Texas Instruments BQ2577 EVM Series User Manual

www.ti.com
EVM User's Guide: BQ25770EVM BQ25773EVM

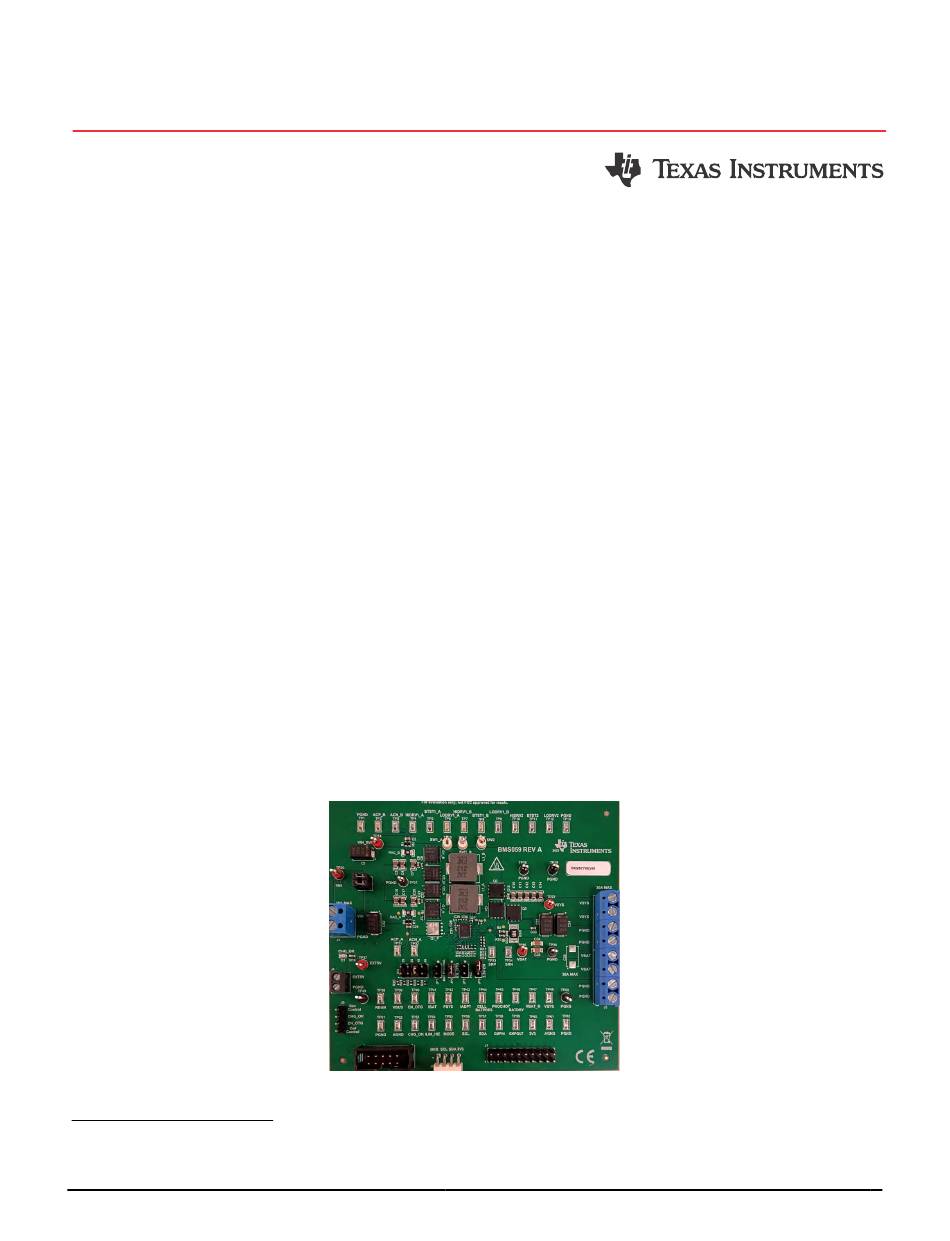

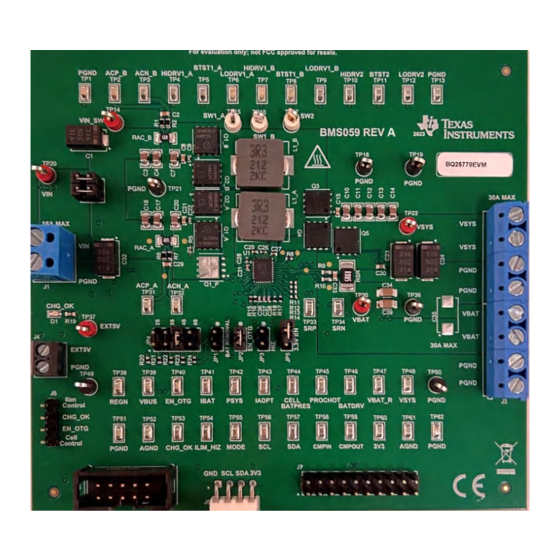

BQ2577xEVM Evaluation Module
Description
The BQ25770EVM or BQ25773EVM evaluation
module (EVM) is a complete high-power high-
efficiency battery charger using SMBus or I
controlled NVDC dual phase buck boost charge
controller BQ25770 or BQ25773. The input voltage
range is from 3.5 V to 40 V, with a programmable
output of 2–5 cells and a charge current range
of 0 A to 16.3 A. This BQ2577xEVM allows the
users to evaluate the function and performance
of the BQ2577x with step-by-step instructions. The
BQ2577xEVM also serves as a reference design
with complete schematic, layout and Bill of Materials
(BOM).
Get Started
1. Order the BQ2577xEVM from ti.com.
2. Download the latest BQStudio
3. Follow this step-by-step user guide.
Features
• Supports 3.5- to 40-V input source
– 3.5- to 40-V, 0- to 8.2-A input operating range
and 2–5 cell battery configuration
– Supports USB 2.0, USB 3.0, USB 3.1 (USB
Type-C ® ) and USB-C PD
– Supports USB OTG with 3- to 28-V adjustable
output
This EVM kit does not include the EV2400 interface device; the EV2400 must be ordered separately to
1
evaluate the BQ2577x EVM.
SLUUCY2 – NOVEMBER 2023
Submit Document Feedback
•
2
C-
•
•
•
•
•
1
•
GUI.
•
•
Applications
•
•
Copyright © 2023 Texas Instruments Incorporated
– Supports Fast Role Swap (FRS) feature for
USB_PD
Narrow VDC (NVDC) power path management
– Battery supplements the system when the
adapter is fully-loaded
600-kHz or 800-kHz switching frequency for low
profile inductor
2
SMBus (BQ25770) or I C (BQ25773) port for best
system performance and status reporting
Power and current monitor for CPU throttling
Safety
– Thermal regulation and thermal shutdown
– Input, system and battery overvoltage
protection
– Input, MOSFET and inductor overcurrent
protection
Supports Vmin Active Protection (VAP) mode for
Intel ® platform
Charge status outputs for LED or host processor
Test points available for key signals with easy
probe hook-up
Jumpers available for easy-to-change
reconfiguration
Standard notebook PC, Chromebook
Appliances: battery charger,
BQ2577xEVM Evaluation Module
Description
oxygen concentrator
1
