EVM User's Guide: BQ25770GEVM, BQ25773GEVM

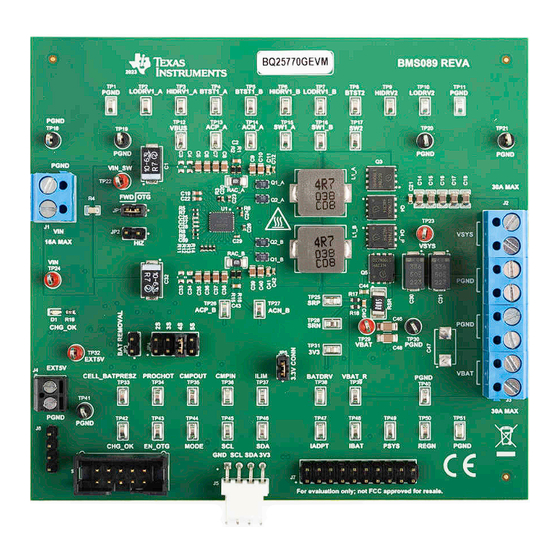

BQ2577xGEVM Evaluation Module
Description
The BQ2577xGEVM is a complete high-power
high-efficiency battery charger using SMBus or I
controlled NVDC dual phase buck boost charge
controller BQ2577xG. The EVM drives GAN FETs
for high efficiency. The input voltage range is from
3.5V to 40V, with a programmable output of 2–5
cells and a charge current range of 0A to 16.3A.
This BQ2577xGEVM allows the users to evaluate the
function and performance of the BQ2577xG with step-
by-step instructions. The BQ2577xGEVM also serves
as a reference design with complete schematic, layout
and Bill of Materials (BOM).
Get Started
1. Order the BQ2577xGEVM from ti.com.
2. Download the latest
BQStudio
3. Follow this step-by-step user's guide.
Features
Supports 3.5V to 40V input source
– 3.5V to 40V, 0A to 8.2A input operating range
and 2–5 cell battery configuration
– Supports USB 2.0, USB 3.0, USB 3.1 (USB
Type-C
®
) and USB-C PD
– Supports USB OTG with 3V to 5V adjustable
output
SLUUD24 – MAY 2024
Submit Document Feedback
2
C-
GUI.
Applications
Copyright © 2024 Texas Instruments Incorporated
– Supports Fast Role Swap (FRS) feature for
USB_PD
High efficiency with GAN FETs
Narrow VDC (NVDC) power path management
– Battery supplements the system when the
adapter is fully-loaded
600kHz or 800kHz switching frequency for low
profile inductor
2
SMBus (BQ25770G) or I
best system performance and status reporting
Power and current monitor for CPU throttling
Safety
– Thermal regulation and thermal shutdown
– Input, system and battery overvoltage
protection
– Input, MOSFET and inductor overcurrent
protection
Supports Vmin Active Protection (VAP) mode for
Intel
®
platform
Charge status outputs for LED or host processor
Test points available for key signals with easy
probe hook-up
Jumpers available for easy-to-change
reconfiguration
Standard notebook
PC,
Chromebook
Appliances: battery
charger,
BQ2577xGEVM Evaluation Module
Description
C(BQ25773G) port for
oxygen concentrator
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BQ2577 GEVM Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments BQ2577 GEVM Series

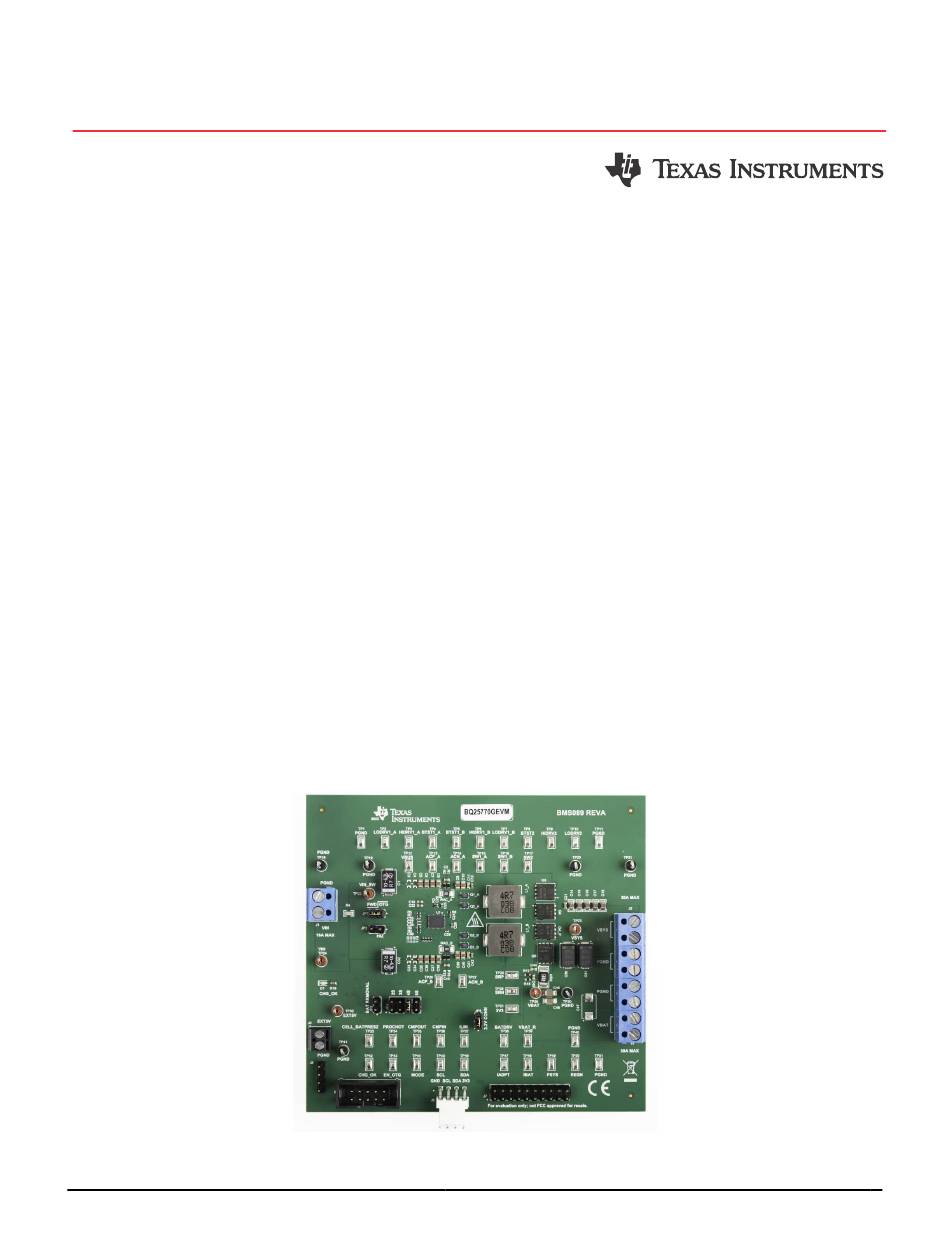

  • Page 1 ) and USB-C PD • Standard notebook Chromebook ™ – Supports USB OTG with 3V to 5V adjustable • Appliances: battery charger, oxygen concentrator output SLUUD24 – MAY 2024 BQ2577xGEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 2: Kit Contents

    Delivery (PD) sources, standard power range (SPR) USB-C Power Delivery (PD) sources and traditional adapters. The BQ2577xG offers a low component count, high efficiency device for space constrained, 2- to 5-cell battery charging applications. BQ2577xGEVM Evaluation Module SLUUD24 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 3 C SDA J6-SCL SMBUS or I C SCL J6-GND Ground SMBUS or I C SDA J8–SDA J8-SCL SMBUS or I C SCL J8-GND Ground SLUUD24 – MAY 2024 BQ2577xGEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 4 5. Computer: A computer with at least one USB port and a USB cable. 6. EV2400 Communication Kit 7. Software: Download and properly install bqStudio from https://www.ti.com/tool/BQSTUDIO. BQ2577xGEVM Evaluation Module SLUUD24 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5: Equipment Setup

    The figure shows the SMBus version EVM connection. If the user is using the BQ25773GEVM, then move the connector to the I C port. Figure 2-2. EV2400 Connections SLUUD24 – MAY 2024 BQ2577xGEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6 Device ACK OK appears on the top right corner of window to indicate a successful communication. Figure 2-3. Main Window of the BQ2577xG Evaluation Software BQ2577xGEVM Evaluation Module SLUUD24 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7: Charge Function

    Write “0800”(2048mA) to charge current register. 11. Measure → V(J2(SYS)) = 15V ±0.5V Measure → V(J3(VBAT)) = 15V ±0.5V Measure → I(J3(VBAT)) = 2A ±0.5A. SLUUD24 – MAY 2024 BQ2577xGEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8: Otg Function

    Measure → V(J1(V )) = 5V ±1V Measure → I(J1(V )) = 2A ±0.5A Figure 2-4. Check EN_OTG bit in Charge Option 3 register BQ2577xGEVM Evaluation Module SLUUD24 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9 N2510-6002-RB PGND P GND 1. U1 is BQ25770G for BQ25770GEVM, while BQ25773G for BQ25773GEVM. 2. DNP means "Do Not Populate". Figure 3-1. BQ2577xGEVM Schematic SLUUD24 – MAY 2024 BQ2577xGEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 3.2 PCB Layout Figure 3-2 through Figure 3-9 illustrate the board assembly and layout images. Figure 3-2. Top Assembly Figure 3-3. Bottom Assembly BQ2577xGEVM Evaluation Module SLUUD24 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11 Hardware Design Files Figure 3-4. PCB Layer 1 Figure 3-5. PCB Layer 2 (Negative) SLUUD24 – MAY 2024 BQ2577xGEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12 Hardware Design Files www.ti.com Figure 3-6. PCB Layer 3 Figure 3-7. PCB Layer 4 BQ2577xGEVM Evaluation Module SLUUD24 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 13 Hardware Design Files Figure 3-8. PCB Layer 5 (Negative) Figure 3-9. PCB Layer 6 SLUUD24 – MAY 2024 BQ2577xGEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 14 H3, H4, H5, H6 Bumpon, Hemisphere, 0.44 X 0.20, Clear Transparent Bumpon SJ-5303 (CLEAR) Terminal Block, 5.08mm, 2x1, Brass, TH 2x1 5.08mm Terminal ED120/2DS On-Shore Technology Block BQ2577xGEVM Evaluation Module SLUUD24 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 15 RES, 3.57 k, 1%, 0.063 W, AEC-Q200 Grade 0, CRCW04023K57FKED Vishay-Dale 0402 15.0k RES, 15.0 k, 1%, 0.063 W, AEC-Q200 Grade 0, CRCW040215K0FKED Vishay-Dale 0402 SLUUD24 – MAY 2024 BQ2577xGEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 16 Keystone Electronics TP21, TP30, TP41 Test point TP22, TP23, TP24, Test Point, Multipurpose, Red, TH Red Multipurpose Test 5010 Keystone Electronics TP29, TP32 point BQ2577xGEVM Evaluation Module SLUUD24 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 17 100 ±5% 0.063W, 1/16W Chip Resistor 0402 (1005 RC0402JR-13100RL Yageo Metric) Moisture Resistant Thick Film SH-JP2, SH-JP3 Shunt, 100mil, Gold plated, Black Shunt SNT-100-BK-G Samtec SLUUD24 – MAY 2024 BQ2577xGEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 18: Additional Information

    USB Implementer's Forum, Inc.. Intel ® is a registered trademark of Intel. All trademarks are the property of their respective owners. BQ2577xGEVM Evaluation Module SLUUD24 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
