CAS CASTON-IIIB Service Manual
  1. Manuals
  2. Brands
  3. CAS Manuals
  4. Scales
  5. CASTON-IIIB
  6. Service manual
CAS CASTON-IIIB Service Manual

CAS CASTON-IIIB Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
M
O
D
E
L
M
O
D
E
L
--------------------------
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
:
C
A
S
T
O
:
C
A
S
T
O
1
-
-
-
-
-
-
-
-
-
-
-
-
-
Ⅲ
Ⅲ
N
-
(
B
)
N
-
(
B
)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CASTON-IIIB and is the answer not in the manual?

Questions and answers

Related Manuals for CAS CASTON-IIIB

Summary of Contents for CAS CASTON-IIIB

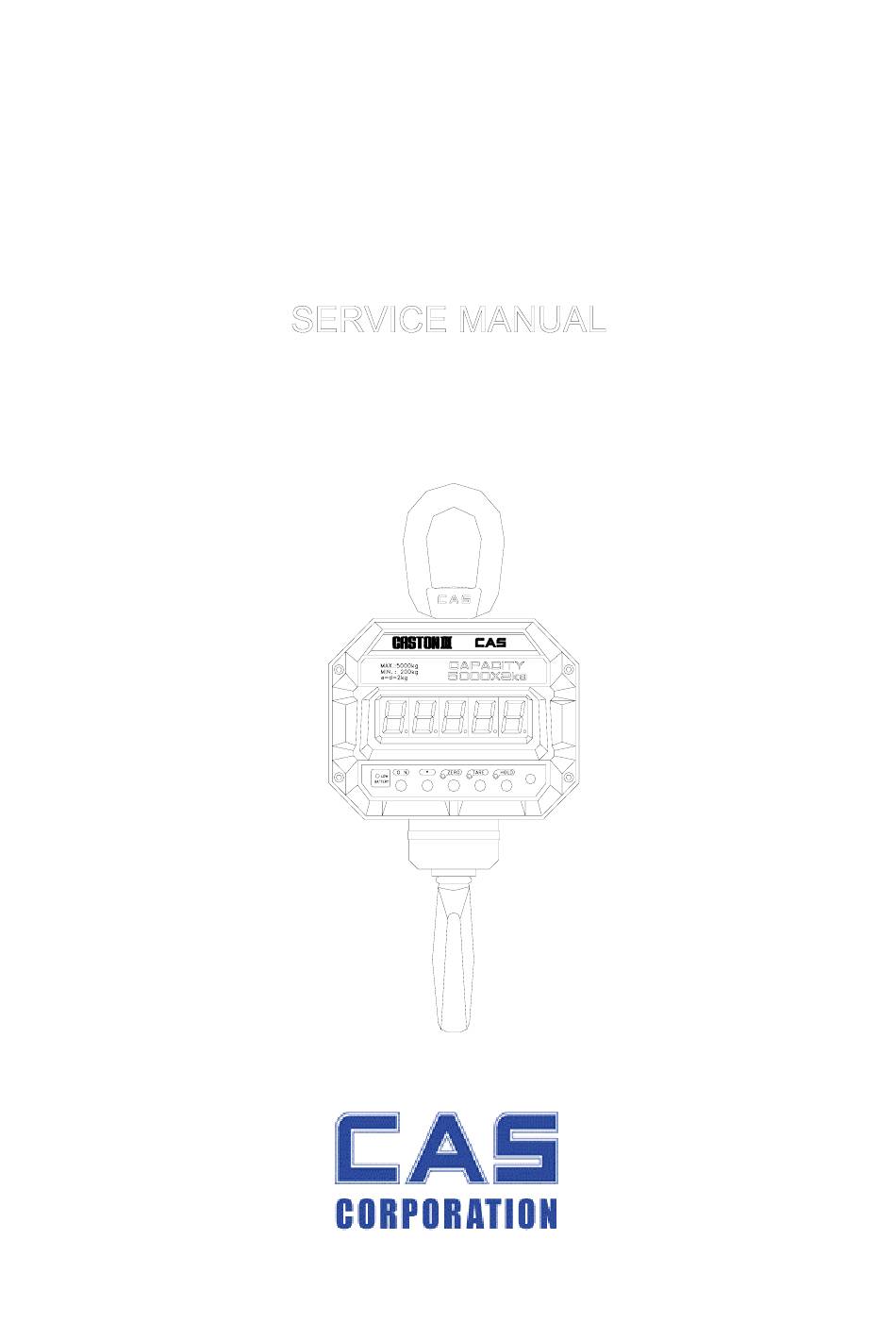

  • Page 1 Ⅲ Ⅲ --------------------------...

  • Page 2: Table Of Contents

    1. Block diagram ............ 3 2. Connector diagram ..........4 3. Test mode ............5 4. Calibration mode ..........6 5. Set mode ............10 6. Program dowmloading ........11 Schematic diagram ............. 14 1) MAIN PCB .............. 17 2) KEY PCB 7.

  • Page 3: Technical Specification

    MAX. TARE WEIGHT FULL TARE DISPLAY L.E.D.(1.5 inch) OPERATION TEMPERATURE －10℃ ~ ＋40℃ POWER SOUR DC 12V Recharge ble Battery / AC Adaptor POWER CONSUMPTION 1.2 ~ 2.4W DISPLAY LAMP ZERO, TARE, HOLD, LOW BATTERY LAMP FREQUENCY 2402 ~ 2483Mhz COMMUNICATION METHOD FSK(Frequency Shift Keying fsk) COMM.

  • Page 4: Connector Diagram

    (DC 12V, 7A POWER CON) (BLUETOOTH 2 SELECT S/W) 6100-PC3-0905-0 MAIN PCB (Download connector) (DOWNLOAD S/W) (MODULE 2) (MODULE 1) 6130-PC3-0905-0 KEY PCB FIG 2. CONNECTOR DIAGRAM.

  • Page 5: Test Mode

    3. TEST MODE (1) HOW TO ENTER Pressing the "ZERO" key f or 2 seconds in weighing mode. TEST mode starts. : Select test menu which you would like to do. (2) AVAILABLE KEYS ‘*’ key : Move into next menu 3) TEST ENU (TEST 1 - TEST 2) TEST...

  • Page 6: Calibration Mode

    4. CALIBRATION MODE ow to ente alibration mode 1. Remo the sealing bolt on the re ar panel and put the switch to CAL S/W. 2. Press ‘*’ key and turn on the powe 3. You can see ‘CAL’ message. Calibra tion menu ZERO...
  • Page 7 Functi aximum Capacity Set LCD SCREEN DESCRIPTION ZERO : Increase the value(1~9) TARE : 2000kg Decrease the value(9~1) 2000 ON/OFF : Move the place(value* 0.1) ‘*’ STAR : CAL-I Move the Next setting HOLD Operate the Span Operate the Span Calibration. Calibration Function Minimum D...
  • Page 8 Functi Setting the Weight in Span Calibration LCD SCREEN DESCRIPTION ZERO : Increase the value(1~9) TARE : Decrease the value(9~1) ON/OFF : 500 kg Move the place(value *0.1) ‘*’ STAR : Move the Next setting HOLD : perate the Span Calibration Note.
  • Page 9 CAL 2~3 Functio Multi Calibration LCD SCREEN DESCRIPTION ‘ *’ Star : pan Calibration is starting. 3000 Another Span weight settin ZERO : Auto detect Span A/D value(5EA) CALC Increase the value(1~9) CAL-2 TARE : ecrease the value(9~1) 3000 LD Long : Display the weight.

  • Page 10: Set Mode

    5. SET MODE ow to ent er calibra tion mode Press T ARE while power is on. Key Usage Used to increase the input value ZERO KEY TARE KEY Used to decrease the input value HOLD KEY Used to me morize the input value When you press HOLD key for 1 second after saving the input value.

  • Page 11: Program Dowmloading

    BT1 : Print Output Command Mode Command Mode Type Stream (about 1 sec period) Stable 6. Program Down Load(IC Writing) (It’s need Download PCB & Download cable) 1. Turn off the power. 2. Separate the front cover. 3. You can see SW1, SW2, Bluetooth module on the main PCB(FIG 2.) 4.
  • Page 12 Input the value of X-tal frequency. Select com port.
  • Page 13 Select baudrate. 13. Release the ‘Limit Flash Erase’ 14. Click OK. 15. If download is done, you must turn off SW2.(FIG 2) Don’t care SW1.(FIG 1)

  • Page 14: Schematic Diagram

    7. Schematic diagram (1) Main schematic...

  • Page 17: Key Pcb

    2) Key schematic...

  • Page 18: Pcb Board Diagram

    8. PCB board diagram 1) Main PCB board...

  • Page 19: Key Pcb

    2) Key PCB board...

  • Page 20: Device Of Specification

    9. Device of specification 1. MPU – MSC1210 2. OPAMP – OP2177/OP2277 3. REGULATOR – LM2575 4. RESET – TC1274 5. BLUETOOTH MODULE – ESD100 10. Error message of description and treatment Error Message Types & Contents Error Contents Remark ouEr Above the maximum allowable weight Check weighed...

  • Page 21: Part List

    11. Part list 1THD PARTS CODE NAME SPECIFICATION UNIT Q'TY REMARK PARTS NAME : KEY BOARD PCB ASS'Y 6130-PC3-0905-0 KEY BOARD PCB 6130-PC3-0905-0(THD-BT) 2004.12.07 2090-H00-0011-0 LED HOLDER STD-110BLK(1mm) Holder of LED1~4 7232-DR0-0005-A LED LAMP ø5-RED LED1~4 7600-STA-1212-0 TACT S/W 12*12(SKHK)DJTA-1103E ON,OFF,ZERO,TARE,HOLD 7805-CCN-6712-0 CONNECTOR(WAFER)
  • Page 22 6710-CAP-P102-0 CONDENSER-CERAMIC 1000PF/50V C24, 26, 28 6710-CAP-P102-B CONDENSER-CERAMIC 1000PF/1KV(102K) C20, 23, 25, 27 6710-CAP-P100-0 CONDENSER-CERAMIC 10PF/50V C21, 22 6710-CAP-P200-0 CONDENSER-CERAMIC 20PF/50V C11, 13 6704-C25-0100-0 CONDENSER-ELECTRIC 100uF/25V 6704-C25-0010-0 CONDENSER-ELECTRIC 10uF/25V C8, 14 6704-C25-0220-0 CONDENSER-ELECTRIC 220uF/25V C2, 5 7805-CCN-6712-0 CONNECTOR(WAFER) 12-5267 6670-T01-0100-0 INDUCTANCE 100uH(장구형) L2~4...
  • Page 23 1095-A00-0001-0 LATCH C-Ⅲ 1095-A00-0006-0 STEEL BAND ø108.5-706R(CASTON-Ⅳ) 1095-A00-0049-0 THRUST WASHER #WC30DUN(0.5~5THD) 1115-A00-0009-B BODY 280*220*150(C-Ⅲ) 1115-A00-0012-B FRONT COVER 280*220*105(C-III)TACT 1115-A00-0014-B REAR COVER 280*212*31(C-Ⅲ) 1115-A00-0016-B BATTERY COVER 214*187*53.8(C-Ⅲ) 1135-A00-0037-0 HOOK 0.5~5TON(CASTON-Ⅲ,Ⅳ공용) 1135-A00-0038-0 LIFT EYE BOLT 0.5~1TON(CASTON-Ⅱ,Ⅲ, 1215-A00-0008-B HOUSING LOWER ø100*86(CASTON-Ⅲ 공용) 1215-A00-0012-0 HOUSING UPPER ø100*120(0.5-1THD) 1215-A00-0029-0...
  • Page 24 7870-WGN-0220-0 LEAD WIRE 0.18*20C*110M/M(GRN) 8700-LA0-0050-0 SILICONE SEALANTE KE-45 0.05 8800-LA0-0030-0 SHRINKABLE TUBE ø3 0.08 9020-A00-0033-0 SITCKER PASSED CAS 영공(확인) 9020-A00-0033-1 STICKER SAFETY STICKER 영공 9020-CTN-0033-0 WARNING STICKER CASTON-SERIES (영공) 9025-A00-0034-0 STICKER THA,THD (ON/OFF) 9025-CT3-0033-1 BATTERY WARNING STICKER CT-3(영공)12V 용 9800-A00-0001-A 순간본드...
  • Page 25 7840-W00-1217-0 CONNECTOR WIRE 12P*150m/m(BT) 7840-W00-1107-0 CABLE ASS'Y 400mm/ESD PARTS NAME : C/T BOX ASS'Y 1090-A00-0005-0 L-WRENCH ￠6 7520-P00-0030-0 Mn BATTERY R6-1.5V-AAM(REMOCON) 7524-PC3-1280-0 BATTERY CHARGER CK-2112800CR(12V/800mA) 7620-S00-5000-0 FUSE 5A/250(ø5*20m/m) 9005-CT3-BT00-0 MANUAL CASTON-III(B) 내수 9100-CT3-0130-0 C/T BOX 620*500*415(DW-4 종)(C-3) 9206-APE-0001-0 POLY ETHYLENE BOX 610*490*400(CASTON-3) 9300-A00-0002-0 POLY BAG...
  • Page 26 2THD PARTS CODE NAME SPECIFICATION UNIT Q'TY REMARK PARTS NAME : KEY BOARD PCB ASS'Y 6130-PC3-0905-0 KEY BOARD PCB 6130-PC3-0905-0(THD-BT) 2004.12.07 2090-H00-0011-0 LED HOLDER STD-110BLK(1mm) Holder of LED1~4 7232-DR0-0005-A LED LAMP ø5-RED LED1~4 7600-STA-1212-0 TACT S/W 12*12(SKHK)DJTA-1103E ON,OFF,ZERO,TARE,HOLD 7805-CCN-6712-0 CONNECTOR(WAFER) 12-5267 PARTS NAME : MAIN PCB ASS'Y 6100-PC3-0905-0...
  • Page 27 6710-CAP-P200-0 CONDENSER-CERAMIC 20PF/50V C11, 13 6704-C25-0100-0 CONDENSER-ELECTRIC 100uF/25V 6704-C25-0010-0 CONDENSER-ELECTRIC 10uF/25V C8, 14 6704-C25-0220-0 CONDENSER-ELECTRIC 220uF/25V C2, 5 7805-CCN-6712-0 CONNECTOR(WAFER) 12-5267 6670-T01-0100-0 INDUCTANCE 100uH(장구형) L2~4 6670-T02-0047-0 INDUCTANCE 47uH L5, 6, 7 7600-SDP-0002-0 DIP-SW EDG-2 SW1, SW2 6515-CJ0-4700-0 RESISTOR 1/4W CFR 470Ω(±5%) R25~29, 38 6515-CJ0-1000-0 RESISTOR 1/4W...
  • Page 28 1115-A00-0009-B BODY 280*220*150(C-Ⅲ) 1115-A00-0012-B FRONT COVER 280*220*105(C-III)TACT 1115-A00-0014-B REAR COVER 280*212*31(C-Ⅲ) 1115-A00-0016-B BATTERY COVER 214*187*53.8(C-Ⅲ) 1135-A00-0035-0 LIFT EYE BOLT 2~3THB(CASTON-Ⅱ) 1135-A00-0037-0 HOOK 0.5~5TON(CASTON-Ⅲ,Ⅳ공용) 1215-A00-0008-B HOUSING LOWER ø100*86(CASTON-Ⅲ 공용) 1215-A00-0010-0 HOUSING UPPER ø100*81(2-3THD) 1215-A00-0014-0 LOAD PIN ø19.8*97(2-3THD) 1215-A00-0029-0 RUBBER RING ø132*8(CASTON-Ⅲ) 1265-A00-0006-B HOOK NUT ø56*28(C-3,4 공용)
  • Page 29 2600-A00-0027-0 BUMPON SJ-5023(5523) 2605-A00-0013-0 LOAD RUBBER ø29*ø40*1T(C-2,3) 2605-A00-0015-A RUBBER TUBE ø132*32.5(CASTON-Ⅲ) ￠15*￠12*10T(NBR)(CASTON- 2605-A00-0052-0 RUBBER STOPPER Ⅲ) 2605-A00-0067-0 FRONT GASKET 274*214*2.0t (C-III) 2605-A00-0068-0 REAR GASKET 274*214*2.0t (C-III) 2605-A00-0069-0 BATTERY GASKET 210*149*2.0t (C-III) 2631-A00-0001-0 VFD CUSHION 30*20*2T 2632-A00-0011-0 DISPLAY COVER TAPE 185*65(CASTON-3) 7520-P00-0010-0 NI-CD BATTERY ES7-12V/7A(SP-1 BF)
  • Page 30 PARTS NAME : C/T BOX ASS'Y 1090-A00-0005-0 L-WRENCH ￠6 7520-P00-0030-0 Mn BATTERY R6-1.5V-AAM(REMOCON) 7524-PC3-1280-0 BATTERY CHARGER CK-2112800CR(12V/800mA) 7620-S00-5000-0 FUSE 5A/250(ø5*20m/m) 9005-CT3-BT00-0 MANUAL CASTON-III(B) 내수 9100-CT3-0130-0 C/T BOX 620*500*415(DW-4 종)(C-3) 9206-APE-0001-0 POLY ETHYLENE BOX 610*490*400(CASTON-3) 9300-A00-0002-0 POLY BAG 90*150*0.05T(FUSE) 9301-A00-0003-0 POLY BAG 170*250*0.05T(MANUAL) 9307-A00-0003-B POLY BAG...
  • Page 31 3THD PARTS CODE NAME SPECIFICATION UNIT Q'TY REMARK PARTS NAME : KEY BOARD PCB ASS'Y 6130-PC3-0905-0 KEY BOARD PCB 6130-PC3-0905-0(THD-BT) 2004.12.07 2090-H00-0011-0 LED HOLDER STD-110BLK(1mm) Holder of LED1~4 7232-DR0-0005-A LED LAMP ø5-RED LED1~4 7600-STA-1212-0 TACT S/W 12*12(SKHK)DJTA-1103E ON,OFF,ZERO,TARE,HOLD 7805-CCN-6712-0 CONNECTOR(WAFER) 12-5267 PARTS NAME : MAIN PCB ASS'Y 6100-PC3-0905-0...
  • Page 32 6710-CAP-P200-0 CONDENSER-CERAMIC 20PF/50V C11, 13 6704-C25-0100-0 CONDENSER-ELECTRIC 100uF/25V 6704-C25-0010-0 CONDENSER-ELECTRIC 10uF/25V C8, 14 6704-C25-0220-0 CONDENSER-ELECTRIC 220uF/25V C2, 5 7805-CCN-6712-0 CONNECTOR(WAFER) 12-5267 6670-T01-0100-0 INDUCTANCE 100uH(장구형) L2~4 6670-T02-0047-0 INDUCTANCE 47uH L5, 6, 7 7600-SDP-0002-0 DIP-SW EDG-2 SW1, SW2 6515-CJ0-4700-0 RESISTOR 1/4W CFR 470Ω(±5%) R25~29, 38 6515-CJ0-1000-0 RESISTOR 1/4W...
  • Page 33 1115-A00-0009-B BODY 280*220*150(C-Ⅲ) 1115-A00-0012-B FRONT COVER 280*220*105(C-III)TACT 1115-A00-0014-B REAR COVER 280*212*31(C-Ⅲ) 1115-A00-0016-B BATTERY COVER 214*187*53.8(C-Ⅲ) 1135-A00-0035-0 LIFT EYE BOLT 2~3THB(CASTON-Ⅱ) 1135-A00-0037-0 HOOK 0.5~5TON(CASTON-Ⅲ,Ⅳ공용) 1215-A00-0008-B HOUSING LOWER ø100*86(CASTON-Ⅲ 공용) 1215-A00-0010-0 HOUSING UPPER ø100*81(2-3THD) 1215-A00-0014-0 LOAD PIN ø19.8*97(2-3THD) 1215-A00-0029-0 RUBBER RING ø132*8(CASTON-Ⅲ) 1265-A00-0006-B HOOK NUT ø56*28(C-3,4 공용)
  • Page 34 2600-A00-0027-0 BUMPON SJ-5023(5523) 2605-A00-0013-0 LOAD RUBBER ø29*ø40*1T(C-2,3) 2605-A00-0015-A RUBBER TUBE ø132*32.5(CASTON-Ⅲ) ￠15*￠12*10T(NBR)(CASTON- 2605-A00-0052-0 RUBBER STOPPER Ⅲ) 2605-A00-0067-0 FRONT GASKET 274*214*2.0t (C-III) 2605-A00-0068-0 REAR GASKET 274*214*2.0t (C-III) 2605-A00-0069-0 BATTERY GASKET 210*149*2.0t (C-III) 2631-A00-0001-0 VFD CUSHION 30*20*2T 2632-A00-0011-0 DISPLAY COVER TAPE 185*65(CASTON-3) 7520-P00-0010-0 NI-CD BATTERY ES7-12V/7A(SP-1 BF)
  • Page 35 7840-W00-1107-0 CABLE ASS'Y 400mm/ESD PARTS NAME : C/T BOX ASS'Y 1090-A00-0005-0 L-WRENCH ￠6 7520-P00-0030-0 Mn BATTERY R6-1.5V-AAM(REMOCON) 7524-PC3-1280-0 BATTERY CHARGER CK-2112800CR(12V/800mA) 7620-S00-5000-0 FUSE 5A/250(ø5*20m/m) 9005-CT3-BT00-0 MANUAL CASTON-III(B) 내수 9100-CT3-0130-0 C/T BOX 620*500*415(DW-4 종)(C-3) 9206-APE-0001-0 POLY ETHYLENE BOX 610*490*400(CASTON-3) 9300-A00-0002-0 POLY BAG 90*150*0.05T(FUSE) 9301-A00-0003-0 POLY BAG...
  • Page 36 5THD PARTS CODE NAME SPECIFICATION UNIT Q'TY REMARK PARTS NAME : KEY BOARD PCB ASS'Y 6130-PC3-0905-0 KEY BOARD PCB 6130-PC3-0905-0(THD-BT) 2004.12.07 2090-H00-0011-0 LED HOLDER STD-110BLK(1mm) Holder of LED1~4 7232-DR0-0005-A LED LAMP ø5-RED LED1~4 7600-STA-1212-0 TACT S/W 12*12(SKHK)DJTA-1103E ON,OFF,ZERO,TARE,HOLD 7805-CCN-6712-0 CONNECTOR(WAFER) 12-5267 PARTS NAME : MAIN PCB ASS'Y 6100-PC3-0905-0...
  • Page 37 6710-CAP-P200-0 CONDENSER-CERAMIC 20PF/50V C11, 13 6704-C25-0100-0 CONDENSER-ELECTRIC 100uF/25V 6704-C25-0010-0 CONDENSER-ELECTRIC 10uF/25V C8, 14 6704-C25-0220-0 CONDENSER-ELECTRIC 220uF/25V C2, 5 7805-CCN-6712-0 CONNECTOR(WAFER) 12-5267 6670-T01-0100-0 INDUCTANCE 100uH(장구형) L2~4 6670-T02-0047-0 INDUCTANCE 47uH L5, 6, 7 7600-SDP-0002-0 DIP-SW EDG-2 SW1, SW2 6515-CJ0-4700-0 RESISTOR 1/4W CFR 470Ω(±5%) R25~29, 38 6515-CJ0-1000-0 RESISTOR 1/4W...
  • Page 38 1115-A00-0009-B BODY 280*220*150(C-Ⅲ) 1115-A00-0012-B FRONT COVER 280*220*105(C-III)TACT 1115-A00-0014-B REAR COVER 280*212*31(C-Ⅲ) 1115-A00-0016-B BATTERY COVER 214*187*53.8(C-Ⅲ) 1135-A00-0037-0 HOOK 0.5~5TON(CASTON-Ⅲ,Ⅳ공용) 1135-A00-0040-0 LIFT EYE BOLT 5TON(CASTON-Ⅱ,Ⅲ,Ⅳ공용) 1215-A00-0008-0 HOUSING UPPER ø100*91(5THD) 1215-A00-0008-B HOUSING LOWER ø100*86(CASTON-Ⅲ 공용) 1215-A00-0016-A LOAD PIN ø29.5*97(5THD) 1215-A00-0029-0 RUBBER RING ø132*8(CASTON-Ⅲ) 1265-A00-0006-B HOOK NUT ø56*28(C-3,4 공용)
  • Page 39 2600-A00-0027-0 BUMPON SJ-5023(5523) 2605-A00-0013-0 LOAD RUBBER ø29*ø40*1T(C-2,3) 2605-A00-0015-A RUBBER TUBE ø132*32.5(CASTON-Ⅲ) 2605-A00-0052-0 RUBBER STOPPER ￠15*￠12*10T(NBR)(CASTON-Ⅲ) 2605-A00-0067-0 FRONT GASKET 274*214*2.0t (C-III) 2605-A00-0068-0 REAR GASKET 274*214*2.0t (C-III) 2605-A00-0069-0 BATTERY GASKET 210*149*2.0t (C-III) 2631-A00-0001-0 VFD CUSHION 30*20*2T 2632-A00-0011-0 DISPLAY COVER TAPE 185*65(CASTON-3) 7520-P00-0010-0 NI-CD BATTERY ES7-12V/7A(SP-1 BF) 7600-SJA-0500-0...
  • Page 40 1090-A00-0005-0 L-WRENCH ￠6 7520-P00-0030-0 Mn BATTERY R6-1.5V-AAM(REMOCON) 7524-PC3-1280-0 BATTERY CHARGER CK-2112800CR(12V/800mA) 7620-S00-5000-0 FUSE 5A/250(ø5*20m/m) 9005-CT3-BT00-0 MANUAL CASTON-III(B) 내수 9100-CT3-0130-0 C/T BOX 620*500*415(DW-4 종)(C-3) 9206-APE-0001-0 POLY ETHYLENE BOX 610*490*400(CASTON-3) 9300-A00-0002-0 POLY BAG 90*150*0.05T(FUSE) 9301-A00-0003-0 POLY BAG 170*250*0.05T(MANUAL) 9307-A00-0003-B POLY BAG 700*750*0.04T(SET,HD) 9400-A00-0046-0 SILICAGEL 9505-A00-0025-0...
  • Page 41 10THD PARTS CODE NAME SPECIFICATION UNIT Q'TY REMARK PARTS NAME : KEY BOARD PCB ASS'Y 6130-PC3-0905-0 KEY BOARD PCB 6130-PC3-0905-0(THD-BT) 2004.12.07 2090-H00-0011-0 LED HOLDER STD-110BLK(1mm) Holder of LED1~4 7232-DR0-0005-A LED LAMP ø5-RED LED1~4 7600-STA-1212-0 TACT S/W 12*12(SKHK)DJTA-1103E ON,OFF,ZERO,TARE,HOLD 7805-CCN-6712-0 CONNECTOR(WAFER) 12-5267 PARTS NAME : MAIN PCB ASS'Y 6100-PC3-0905-0...
  • Page 42 6710-CAP-P100-0 CONDENSER-CERAMIC 10PF/50V C21, 22 6710-CAP-P200-0 CONDENSER-CERAMIC 20PF/50V C11, 13 6704-C25-0100-0 CONDENSER-ELECTRIC 100uF/25V 6704-C25-0010-0 CONDENSER-ELECTRIC 10uF/25V C8, 14 6704-C25-0220-0 CONDENSER-ELECTRIC 220uF/25V C2, 5 7805-CCN-6712-0 CONNECTOR(WAFER) 12-5267 6670-T01-0100-0 INDUCTANCE 100uH(장구형) L2~4 6670-T02-0047-0 INDUCTANCE 47uH L5, 6, 7 7600-SDP-0002-0 DIP-SW EDG-2 SW1, SW2 6515-CJ0-4700-0 RESISTOR 1/4W CFR 470Ω(±5%)
  • Page 43 1095-A00-0006-0 STEEL BAND ø108.5-706R(CASTON-Ⅳ) 1115-A00-0010-A BODY 280*220*150(C-Ⅲ)(10THD) 1115-A00-0012-B FRONT COVER 280*220*105(C-III)TACT 1115-A00-0014-B REAR COVER 280*212*31(C-Ⅲ) 1115-A00-0016-B BATTERY COVER 214*187*53.8(C-Ⅲ) 1501-A00-0308-0 MACHINE SCREW(FH) M3*8 1502-A00-0304-0 MACHINE SCREW(PH) M3*5 1502-MSU-0408-0 MACHINE SCREW(PH) M4*8-SUS 1503-A00-0410-0 MACHINE SCREW(WPH) M4*10 1503-MSU-0412-0 MACHINE SCREW(WPH) M4*12-SUS 1505-MPN-0306-0 MACHINE SCREW(TH) M3*6-NI 1506-MSU-0410-0...
  • Page 44 XLR-4-32C*195mm(C-3) 7870-WGN-0220-0 LEAD WIRE 0.18*20C*110M/M(GRN) 8700-LA0-0050-0 SILICONE SEALANTE KE-45 0.05 8800-LA0-0030-0 SHRINKABLE TUBE ø3 0.08 9020-A00-0033-0 SITCKER PASSED CAS 영공(확인) 9020-CTN-0033-0 WARNING STICKER CASTON-SERIES (영공) 9025-A00-0034-0 STICKER THA,THD (ON/OFF) 9025-CT3-0033-1 BATTERY WARNING STICKER CT-3(영공)12V 용 9800-A00-0001-A 순간본드 ALTECO-EE(20g) 0.01 9800-A00-0003-0...
  • Page 45 PARTS NAME : HOOK ASS'Y 1095-A00-0034-0 ALLOY LATCH KITS SS-4055 7 1/2-10TON 1095-A00-0043-0 THRUST WASHER #WC35 DUN(10THD) 1095-A00-0046-0 ALLOY SHANK HOOKS S-319-A(11 TON,C-3 10TON 용) 1095-A00-0047-0 SPLIT PIN Φ3.5 * 60(10THD) 1135-A00-0007-0 SHACKLE 32-12T-G 4163(C-3) 1215-A00-0062-A HOUSING LOWER Φ106*94.5(10THD) 1215-A00-0065-A HOOK NUT Φ64*32.5(10THD) 1215-A00-0068-0...
  • Page 46 15THD PARTS CODE NAME SPECIFICATION UNIT Q'TY REMARK PARTS NAME : KEY BOARD PCB ASS'Y 6130-PC3-0905-0 KEY BOARD PCB 6130-PC3-0905-0(THD-BT) 2004.12.07 2090-H00-0011-0 LED HOLDER STD-110BLK(1mm) Holder of LED1~4 7232-DR0-0005-A LED LAMP ø5-RED LED1~4 7600-STA-1212-0 TACT S/W 12*12(SKHK)DJTA-1103E ON,OFF,ZERO,TARE,HOLD 7805-CCN-6712-0 CONNECTOR(WAFER) 12-5267 PARTS NAME : MAIN PCB ASS'Y 6100-PC3-0905-0...
  • Page 47 6710-CAP-P200-0 CONDENSER-CERAMIC 20PF/50V C11, 13 6704-C25-0100-0 CONDENSER-ELECTRIC 100uF/25V 6704-C25-0010-0 CONDENSER-ELECTRIC 10uF/25V C8, 14 6704-C25-0220-0 CONDENSER-ELECTRIC 220uF/25V C2, 5 7805-CCN-6712-0 CONNECTOR(WAFER) 12-5267 6670-T01-0100-0 INDUCTANCE 100uH(장구형) L2~4 6670-T02-0047-0 INDUCTANCE 47uH L5, 6, 7 7600-SDP-0002-0 DIP-SW EDG-2 SW1, SW2 6515-CJ0-4700-0 RESISTOR 1/4W CFR 470Ω(±5%) R25~29, 38 6515-CJ0-1000-0 RESISTOR 1/4W...
  • Page 48 1115-A00-0010-A BODY 280*220*150(C-Ⅲ)(10THD) 1115-A00-0012-B FRONT COVER 280*220*105(C-III)TACT 1115-A00-0014-B REAR COVER 280*212*31(C-Ⅲ) 1115-A00-0016-B BATTERY COVER 214*187*53.8(C-Ⅲ) 1501-A00-0308-0 MACHINE SCREW(FH) M3*8 1502-A00-0304-0 MACHINE SCREW(PH) M3*5 1502-MSU-0408-0 MACHINE SCREW(PH) M4*8-SUS 1503-A00-0410-0 MACHINE SCREW(WPH) M4*10 1503-MSU-0412-0 MACHINE SCREW(WPH) M4*12-SUS 1505-MPN-0306-0 MACHINE SCREW(TH) M3*6-NI 1506-MSU-0410-0 MACHINE SCREW(OVH) M4*0.7*10-SUS 1507-A00-0305-0...
  • Page 49 XLR-4-32C*195mm(C-3) 7870-WGN-0220-0 LEAD WIRE 0.18*20C*110M/M(GRN) 8700-LA0-0050-0 SILICONE SEALANTE KE-45 0.05 8800-LA0-0030-0 SHRINKABLE TUBE ø3 0.08 9020-A00-0033-0 SITCKER PASSED CAS 영공(확인) 9020-CTN-0033-0 WARNING STICKER CASTON-SERIES (영공) 9025-A00-0034-0 STICKER THA,THD (ON/OFF) 9025-CT3-0033-1 BATTERY WARNING STICKER CT-3(영공)12V 용 9800-A00-0001-A 순간본드 ALTECO-EE(20g) 0.01 9800-A00-0003-0...
  • Page 50 PARTS NAME : HOOK ASS'Y 1095-A00-0035-0 ALLOY LATCH KITS SS-4055 15TON-22TON 1095-A00-0029-0 ALLOY SHANK HOOKS S-319-A(15TON) 1095-A00-0044-0 THRUST WASHER #WC40 DUN(15THD) 1095-A00-0048-0 SPLIT PIN Φ4.5 * 70(15~20THD) 1135-A00-0008-0 SHACKLE 38-17T-G 4163(C-3) 1215-A00-0063-A HOUSING LOWER Φ119*102(15THD) 1215-A00-0066-A HOOK NUT Φ68*39(15THD) 1215-A00-0069-0 LOAD BOLT M42*P3.0*152(15THD) 1215-A00-0072-0...
  • Page 51 20THD PARTS CODE NAME SPECIFICATION UNIT Q'TY REMARK PARTS NAME : KEY BOARD PCB ASS'Y 6130-PC3-0905-0 KEY BOARD PCB 6130-PC3-0905-0(THD-BT) 2004.12.07 2090-H00-0011-0 LED HOLDER STD-110BLK(1mm) Holder of LED1~4 7232-DR0-0005-A LED LAMP ø5-RED LED1~4 7600-STA-1212-0 TACT S/W 12*12(SKHK)DJTA-1103E ON,OFF,ZERO,TARE,HOLD 7805-CCN-6712-0 CONNECTOR(WAFER) 12-5267 PARTS NAME : MAIN PCB ASS'Y 6100-PC3-0905-0...
  • Page 52 6710-CAP-P200-0 CONDENSER-CERAMIC 20PF/50V C11, 13 6704-C25-0100-0 CONDENSER-ELECTRIC 100uF/25V 6704-C25-0010-0 CONDENSER-ELECTRIC 10uF/25V C8, 14 6704-C25-0220-0 CONDENSER-ELECTRIC 220uF/25V C2, 5 7805-CCN-6712-0 CONNECTOR(WAFER) 12-5267 6670-T01-0100-0 INDUCTANCE 100uH(장구형) L2~4 6670-T02-0047-0 INDUCTANCE 47uH L5, 6, 7 7600-SDP-0002-0 DIP-SW EDG-2 SW1, SW2 6515-CJ0-4700-0 RESISTOR 1/4W CFR 470Ω(±5%) R25~29, 38 6515-CJ0-1000-0 RESISTOR 1/4W...
  • Page 53 1115-A00-0010-A BODY 280*220*150(C-Ⅲ)(10THD) 1115-A00-0012-B FRONT COVER 280*220*105(C-III)TACT 1115-A00-0014-B REAR COVER 280*212*31(C-Ⅲ) 1115-A00-0016-B BATTERY COVER 214*187*53.8(C-Ⅲ) 1501-A00-0308-0 MACHINE SCREW(FH) M3*8 1502-A00-0304-0 MACHINE SCREW(PH) M3*5 1502-MSU-0408-0 MACHINE SCREW(PH) M4*8-SUS 1503-A00-0410-0 MACHINE SCREW(WPH) M4*10 1503-MSU-0412-0 MACHINE SCREW(WPH) M4*12-SUS 1505-MPN-0306-0 MACHINE SCREW(TH) M3*6-NI 1506-MSU-0410-0 MACHINE SCREW(OVH) M4*0.7*10-SUS 1507-A00-0305-0...
  • Page 54 XLR-4-32C*195mm(C-3) 7870-WGN-0220-0 LEAD WIRE 0.18*20C*110M/M(GRN) 8700-LA0-0050-0 SILICONE SEALANTE KE-45 0.05 8800-LA0-0030-0 SHRINKABLE TUBE ø3 0.08 9020-A00-0033-0 SITCKER PASSED CAS 영공(확인) 9020-CTN-0033-0 WARNING STICKER CASTON-SERIES (영공) 9025-A00-0034-0 STICKER THA,THD (ON/OFF) 9025-CT3-0033-1 BATTERY WARNING STICKER CT-3(영공)12V 용 9800-A00-0001-A 순간본드 ALTECO-EE(20g) 0.01 9800-A00-0003-0...
  • Page 55 PARTS NAME : HOOK ASS'Y 1095-A00-0030-0 ALLOY SHANK HOOKS S-319-A(22TON) 1095-A00-0035-0 ALLOY LATCH KITS SS-4055 15TON-22TON 1095-A00-0048-0 SPLIT PIN Φ4.5 * 70(15~20THD) 1095-A00-0050-0 THRUST WASHER 100*500*2T(20THD) 1135-A00-0009-0 SHACKLE 40-25T-G 4163(C-3) 1215-A00-0064-A HOUSING LOWER Φ158*129(20THD) 1215-A00-0067-A HOOK NUT Φ77*44.5(20THD) 1215-A00-0070-0 LOAD BOLT M50*P3.0*185(20THD) 1215-A00-0073-0 HOUSING UPPER...

  • Page 56: Explode View

    12. Explode view <0.5 ~ 5ton>...
  • Page 57 <10 ~ 20 ton>...
