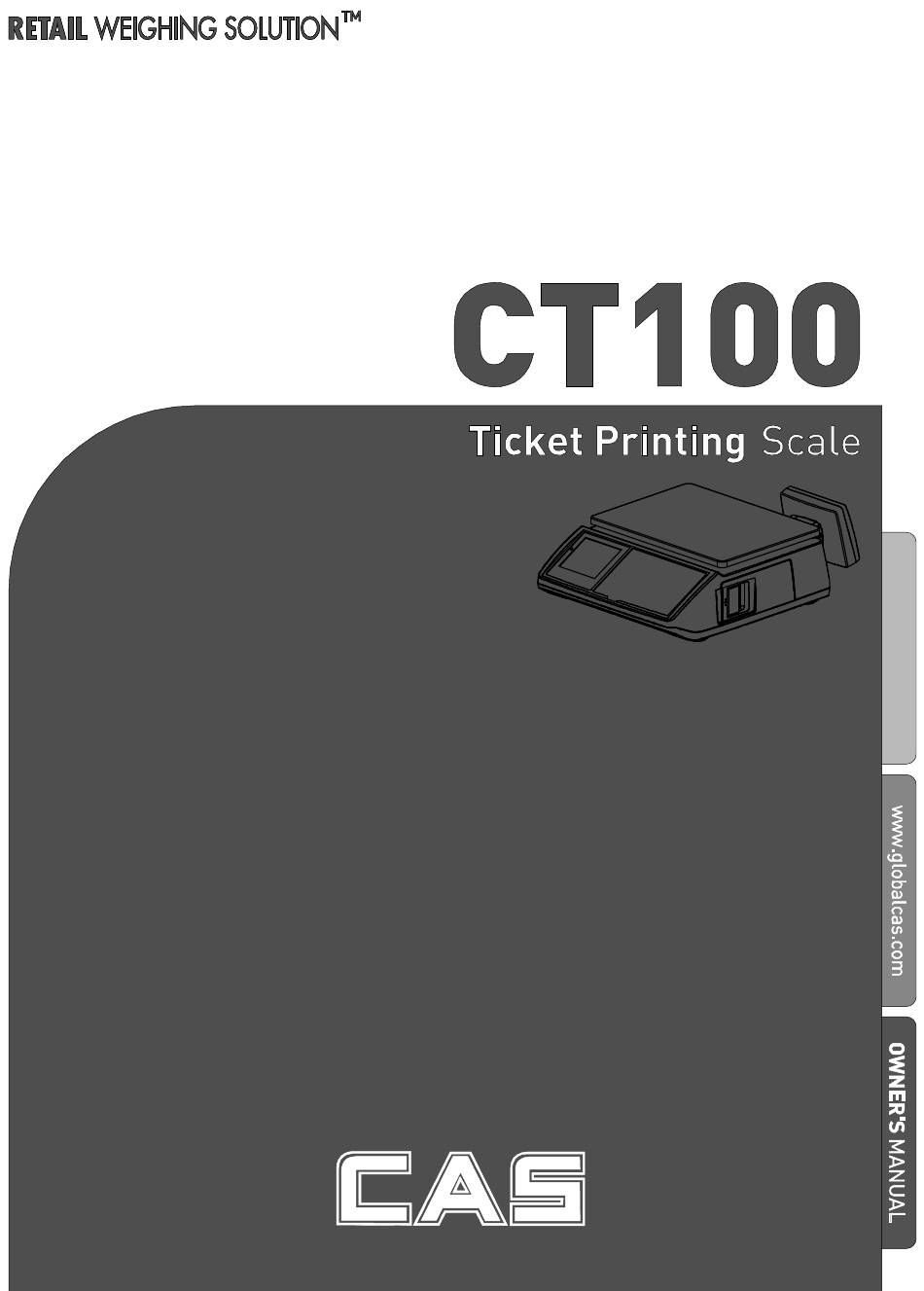

  • Page 1 Manual_CT100_V1 CT100 User’s Manual...

  • Page 2: Table Of Contents

    CONTENTS PRECAUTIONS ..................4 PREFACE ....................... 6 CHANGING THE PRINTER ROLL ..........7 NAME AND FUNCTIONS ..............9 I. SAELS MODE ..................16 Chapter 1 Basic Operation ................. 17 Chapter 2 Sales for Weighed item ..............23 Chapter 3 Sales for non-weighed item............... 24 Chapter 4 Clerk Operation ..................

  • Page 3: Precautions

    PRECAUTIONS...

  • Page 5: Preface

    PREFACE Thank you for purchasing your CT100. CAS scales are designed and produced under rigid quality control to deliver outstanding performance, reliability and long life. This manual will help you with the proper operation and care of your new CT100.

  • Page 6: Changing The Printer Roll

    CHANGING THE PRINTER ROLL ■ Recommended size for thermal paper; 58mm (Width) / 65 m(Thickness) / 60mm (Maximum Diameter)
  • Page 7 ■ It is recommended to tear off the ticket left to right.

  • Page 8: Name And Functions

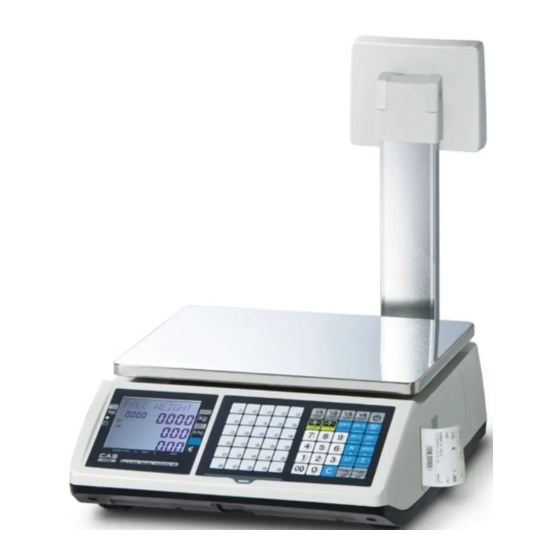

    NAME AND FUNCTIONS OVERALL VIEW ■ B TYPE ■ P TYPE...
  • Page 9 ■ R TYPE ■ POLE TYPE INSTALLATIONS - Insert the post pipe into a post bracket. - Insert and fasten the display assembly screw...
  • Page 10 DISPLAY ■ Front(Clerk-side display) ex) 15kg Version ■ Pole Display ex) 15kg Version...
  • Page 11 KEYBOARD...
  • Page 12 Table 1 : Symbols on Display SYMBOLS DESCRIPTION MASTER (▼) Master mode SLAVE (▼) Slave mode AC (▼) AC power mode PAPER (▼) When blinks there is some problem with paper roll in the printer. ∑ (▼) In the subtotal mode MODE (▼) Program mode SHIFT key pressed...
  • Page 13 Table 2 : Key Functions FUNCTIONS KEYS SALES MODE PROGRAM MODE T o input all numerical data T o input double zero T o clear all of numbers input on the display T o select clerk 1~4 T o select clerk 5~8 (option) T o set zero T o set or clear tare value T o go to program mode...

  • Page 14: Program Mode

    FUNCTIONS KEYS SALES MODE PROGRAM MODE T o open cash drawer *The cash drawer is opened no matter how the "opening time"is set. T o feed the paper T o make discount After pressing After pressing * T o finalize the payment in cash T o print current data * T o print receipt...

  • Page 15: Chapter 1 Basic Operation

    I. Sales Mode Chapter 1. Basic Operation a. Turning the scale or backlight on / off b. Feeding the paper c. Opening cash drawer d. Self- test on printing e. Zero function f. Tare function Chapter 2. Sales for weighed item a.
  • Page 16 Chapter 1. Basic Operation This chapter explains how to turn the scale or backlight on/off, feed the paper, open cash drawer, and do self-test on printer. a. Turning the scale or backlight on/off Press when the scale is turned off, then it ①...
  • Page 17 b. Feeding the paper ■ Feeding the paper is to make sure that printer paper is properly set and operated. Press when user needs to feed ① the paper. c. Opening cash drawer ■ This operation is to use the scale with cash drawer. The cash drawer is opened when the scale is connected to both AC power and 12 V battery ■...
  • Page 18 d. Self-test on printing Press while counting 0~9 after turning on ① the scale by pressing . Then, it automatically prints out the test report. ■ The printing self-test function may be also executed on test mode in "II. Programming mode". e.
  • Page 19 f. Tare function ■ One Time Tare This function is to subtract the weight of actual tare. Place a tare on the platter. For example, 10g. ① Subtract the tare weight. After setting the tare ② user may place item on the platter, and the scale reads only the weight of item.
  • Page 20 ■ Successive Tare This function is to subtract two successive tares. The successive tare can be set in the calibration mode. Please contact your dealer if you want to use "Successive Tare". Place a tare on the platter. For example, 10g. ①...
  • Page 21 Next two chapters, chapter 2 & 3, explain how to make sales transactions for weighed item and for non-weighed item respectively. User may use or not use PLU (Price Look-Up), which can be pre-programmed into the scales. Let’s look at how to operate the sales function of CAS CT100.

  • Page 22: Chapter 2 Sales For Weighed Item

    PLU. CAS CT100 can store up to 1,000 PLUs in its memory. Let’s look at how to make a sales transaction using a PLU.

  • Page 23: Chapter 3 Sales For Non-Weighed Item

    * If current PLU1 has fixed price attribute, which is set in the program mode user cannot change the unit price for PLU called up. However, if current PLU has non-fixed price attribute user may change (override) the unit price as his/her sales transaction requires. ①...
  • Page 24 For more than single item sales, ③ Simply input item's unit price and press and quantity. Then display will show total price. * User may make sales up to 1,999 items per transaction. Press to clear previous transaction and ④ go back to initial weighing mode.
  • Page 25 Press key to change unit price. ② Input new price, 3.00. Then, press ③ the number of non-weighed item unit, for example, 5 units. Press to clear previous transaction and go ④ back to initial weighing mode.

  • Page 26: Chapter 4 Clerk Operation

    Chapter 4. Clerk Operation There are three different type of clerk modes. max number of sales per CLERK : 99 Table 3: Clerk Mode (refer to clerk mode setting on page 88) Modes DESCRIPTION Receipt Printing All clerks can use the scale for a It prints ticket (receipt) including seriesof sales activity.
  • Page 27 ② Call up PLU of Beef Sirloin, #14 for clerk V1 ③ Select the clerk 1. ④ Remove Beef Sirloin from the platter. Call up PLU of Turkey, #15 for clerk V2. ⑤ ⑥ Select the clerk V2.
  • Page 28 ⑦ Remove Turkey from the platter. ⑧ Call up PLU of Rib Eye, #17 for clerk V3. ⑨ Select the clerk V3. ⑩ Remove Rib Eye from the platter.
  • Page 29 ⑪ Call up PLU of Potato(No weight Item), #1 for clerk V1. Customer purchase 3 packs of Potato. ⑫ Select the clerk V1. ⑬ Subtotal Mode. Get subtotal amount. ⑭ Select appropriate clerk (V1, V2, V3, V4) Selecting V1 in the SUBTOTAL mode and pressing key prints out a ticket (receipt) for Clerk1 transaction(s).
  • Page 30 ※User may print out individual clerk's receipt by pressing individual clerk key (using ) then key.
  • Page 31 - Receipt Samples (Euro Version)
  • Page 32 For example, put 2kg of item whose unit price ① b. CLERK MODE 1 is 3.99 and clerk V1 is making current (Only clerk transaction. operation) Press to select the clerk 1. It automatically ② prints out ticket (receipt) for current transaction. VOID ③...
  • Page 33 Sales List ⑤ User may check through previous transactions ① ④ (lists) before printing receipt, using • Pressing will delete current transaction made in the sales list mode. User may exit from current by using once ⑥ for current clerk's sales and twice for another transaction.
  • Page 34 c. CLERK MODE 2 (Supermarket mode) • Only one transaction per clerk at a moment. • It prints ticket (receipt) only for one transaction per clerk. Assumption : a) Please go to clerk mode and set clerk mode as "2 (supermarket mode)". b) 2kg of Beef Sirloin (PLU setting # 14, €3.99/kg, No weight;...
  • Page 35 ※ For further information please refer to "chapter 11. Barcode Printing" on page 80.
  • Page 36 d. CLERK MODE 3 (Label-1 mode) • Only one transaction per clerk at a moment. • It prints Label format receipt only for one transaction per clerk. Assumption : a) Please go to clerk mode and set clerk mode as "3 (Label-1 mode)". b) 2kg of Beef Sirloin (PLU setting # 14, €3.99/kg, No weight;...
  • Page 38 e. CLERK MODE 4 (Label-2 mode) • Only one transaction per clerk at a moment. • It prints Label format receipt only for one transaction per clerk. Assumption : a) Please go to clerk mode and set clerk mode as "4 (Label-2 mode)". b) 2kg of Beef Sirloin (PLU setting # 14, €3.99/kg, No weight;...

  • Page 39: Chapter 5 Discount & Payment

    Chapter 5. Discount & Payment a. Discount for a single of transaction ■ Instant Assumption : • Instant discount rate: 10% • Unit price of a commodity: €20 ① A customer purchased €20.00 for a commodity. ② Press to make €20.00 valued sales transaction for clerk V1.
  • Page 40 Press to have the amount of ④ Subtotal after instant 10% of discount for a single transaction. ※ CLERK"1"MODE : User doesn't need to select a "Clerk", . ■ Pressing is to finalize the discount for a single transaction and print out the receipt. ■...
  • Page 41 Press to make €20.00 sales transaction ② for clerk V1. Press to provide 5% programmed ③ discount for current single transaction. Press to have the amount of subtotal ④ after instant 5% of discount for a single transaction. ■ Pressing is to finalize the discount for a single transaction and print out the receipt.
  • Page 42 b. Discount for subtotal Once the user gets the total amount by pressing he/she may apply some percentage of discount to the subtotal. Let's assume we apply a 6% discount (refer to II. program mode, SET 1) on A customer pays €170.00 for a commodity. ①...
  • Page 43 Pressing will to finalize the discount transaction and print out the receipt. c. Payment ■ Payment function works only in the subtotal mode. Assumption : After clerk 1 has made three sales transactions the subtotal amount of € 46.48 comes up. Customer wants to pay € 20 in credit and rest in cash.
  • Page 44 Press appropriate numeric keys to input the ③ amount of payment in credit. Press and "pay" key to make payment ④ in credit. Press approproate numeric keys to make rest of ⑤ payment, €40.00 in cash.
  • Page 45 Then, the scale automatically prints out receipt. ⑥  If user is using the scale with cash drawer connected the cash drawer is also automatically opened as the pulse length of cash drawer set when printing the receipt. Default for pulse length of cash drawer is 50m/sec (50/1,000 second). Please refer to page 74 for further detail of "pulse length setting"...
  • Page 46 . Duplicate receipt ■ If user sets duplicate receipt ("dbL") as "YES" in the OPTION setting of program mode the scale asks "DUP?" whenever printing receipt by using or PAY key. If user presses it prints the additional copy of receipt, and if press "C" key it does not print copy of receipt. he scale asks user "dUP?", when he/she has ①...

  • Page 47: Chapter 6 Sales Transactions Simulation

    Chapter 6. Sales Transactions Simulation Assumption : • Clerk sales mode: "0"- All clerks sales mode (Clerk mode on page 88) • Programmed discount: 5% (Discount percentage mode on page 66) • Obligatory payment function: "0"-disabled (Obligatory payment setting on page 84) •...
  • Page 48 PLU 3 commodity (Tomato: €1.99/kg), ④ Weight=0.500 kg, clerk 1 sales. Programmed discount (5%) for PLU 3 ⑤ commodity (Tomato), Weight=0.500kg, clerk 1 sales. €5.00 of Non-weighed Free Price commodity ⑥ (Garlic bread) x3, clerk 1 sales. Subtotal, for example, €16.45. Total 4 transactions, ⑦...
  • Page 49 Discount 10% for subtotal, €16.45. ⑧ To review sales list press ⑨ To review sales list press . "dEL" means ⑩ VOID function has deleted the second transaction. To review sales list press . "p 3" means ⑪ that PLU 3 transaction has been completed. If user wants to exit from sales list press...
  • Page 50 If user presses to go back to sales mode the ⑫ display is shown as right. Two sales transactions for PLU 14 (€3.99/kg) ⑬ and PLU 15 (€4.99/kg) with weight=0.500kg, clerk 1 sales activities. Subtotal mode. Subtotal is €19.30, for example. ⑭...
  • Page 51 to delete it. Press to delete it. User may exit from this mode by pressing Payment of €10.00 in credit and rest in cash for total €17.30 for example. Input €10.00 of payment in credit. Input €20.00 to pay for remaining balance in cash.
  • Page 52 ■ The receipt will be automatically printed and the scale is ready to exit to sales mode.

  • Page 53: Ii. Program Mode

    II. Program Mode Chapter 7. PLU Programming a. Tare Validity Price Code Group Name b. Tax, Non Weighed, fixed PLU price & barcode printing c. One touch PLU data Erasing Chapter 8. Report a. PLU data list b. PLU report c.
  • Page 54 Chapter 11. OPTIONS (Receipt Formatting) a. Duplicate receipt b. Image (graphic logo) c. Printing barcode for a single transaction d. Printing barcode for total transaction e. Obligatory payment f. Discount g. Printing PLU code h. Printing all reports i. Printing Tax j.
  • Page 55 Table 4 : Most commonly used keys in program mode FUNCTIONS KEYS PROGRAM MODE To get into program mode User can not get into program mode when ∑ (▼) is on, that is, previous transaction(s) is not completed. ◀ ~ ▶ : To choose menu To move to previous or next character To go to the higher level of menu To go to the lower level of menu...

  • Page 56: Chapter 7 Plu Programming

    Chapter 7. PLU Programming This chapter explains how to input all PLU-related data into the scale. User can store such information as price, code, group, name, tax rate group, weighed or non-weighed, fixed or not-fixed unit price, barcode printing etc. Lets look at how to input price information on the scale.
  • Page 57 a. Tare, Validity, Price, Code, Group, and Name Press key to enter main menu, and then press ① PASSWORD. If you don’t remember password, You can not enter menu mode. (* password’s default is “0”) ② To get into PLU programming mode from main menu, and then press key.
  • Page 58 PLU 1 press 1, 5, and 0 and press to store. ⑤ Press to go to input unit price. To input PLU's unit price press numeric keys you wish. For example, if you input €1.99 for PLU 1 press 1, 9, and 9 and to store.
  • Page 59 ⑨ Press numerical keys as followed. ⑩ Press to save the name input. If user wants to continue to input other PLU name he/she needs to exit to PLU mode by pressing appropriate numeric keys. * If Maximum number of PLU is up to 1,000. b.
  • Page 60 ⑫ Press to go to "non-weighed" setting mode. This setting is to select non-weighed or weighed commodity for current PLU selected. User can select YES or no by pressing "1" or "0" respectively. Then, press to save it. ⑬ Press to go to fixed PLU price setting mode.

  • Page 61: Chapter 8 Report

    Chapter 8. Report This chapter explains how to print out all kind of reports in CT100. CT100 provides such reports as PLU data list, PLU, clerk, department, tax, hourly, sales reports. All of report always includes two special PLUs, PLU 0 and 1,001 on top of report. PLU data list Press key to enter main menu, and enter...

  • Page 62: Chapter 12 Clerk

    Table 6 : "C" key operation while printing Does "C"(cancel) key work while printing report? Report PLU data list Clerk Group Hourly sales Daily sales Weekly sales Monthly sales Total Closing b. PLU report ■ PLU report always includes two special PLUs, PLU 0 and PLU 1,001. ■...
  • Page 63 Automatically print out the PLU report ⑤ ranging from 1 to 20, and two special PLUs.
  • Page 64 c. Clerk report ■ This reports all sales-related activities for 8 clerks. ■ This report includes such information as the number of clients (customers), clerks total sales amount, proportional percent of total sales amount, the amount and number of canceled transaction, the amount and number of discount, transactions and the amount of sales in cash and credit respectively.
  • Page 65 d. Group report Go to the group report mode. ⑦...
  • Page 66 e. Tax report This report include 8 tax groups. Total tax amount and sales amount for each tax groups. ■ Tax report: total tax amount and sales amount for each 8 tax groups. f. Hourly, Daily, Weekly and Monthly sales, report The same process as group report ■...
  • Page 67 h. Total report ⑪ Press key to go to total report mode, and print key to print out the report i. Closing report This will set all of accumulated sums to zero and close all of daily sales activities by printing report. ■...
  • Page 68 Chapter 9. SET 1 (Discount, Barcode formatting & HW setting) This chapter explains how to set BAUD 1 rate, BAUD 2 rate, discount rate, barcode format for a single or total, and pulse length for operation cash drawer. In addition to these, it also describes how to printing darkness, input currency symbol or name, scale number, font type selection, and receipt number Table 7 : SET 1...
  • Page 69 Press to go to BAUD1 rate setting mode. ② User may input any one of options 9600~115200 To meet best usage environment. Please refer to "Table 7: SET 1" on page 66 for speed options. For example, select 57600. b. BAUD 2 rate (bps) The same process as baud 1.
  • Page 70 d. Barcode format setting for a single transactions Press to go to Barcode format setting ① for a single transaction mode. Then, press again to get into input barcode ② String, using code table on page 112. Now you can input appropriate barcode string. The barcodes are entered like string with specific format.
  • Page 71 ▶ N : number of digit(s) ▶ M : constant digit(s) The parameter X specifies what will be printed. You can choose between several parameters and can set how many digits will be printed. The parameter N after parameter X is a obligatory! It give the number of digits which will be printed from value specified with parameter X.
  • Page 72 Case 2 (EAN13 type) : Assumption:  Weight -1.550  Department – 15  Clerk - 1  String- (total is 12 digits input)Then, Barcode -> 4 01550 62 15 1 9 (total is 12 digits input) Case 3 (UPCA type) : Assumption: ...
  • Page 73 Case 4 (EAN8 type) : Assumption:  Number of receipt - 000579  String- (total is 7 digits input) Then, Barcode -> 2 000038 (total is 7 digits input) Case 5 (CODE128 type) : Assumption:  CODE of PLU - 551256 ...
  • Page 74 Lets try to set barcode for above case 1. User should input codes- 49, 87,53, 86, 85, 53- for barcode string, 1W5VU5. Press to input "1", the first ③ digit of string in barcode for a single sale setting mode. Press the following keys to continue to input ④...
  • Page 75 e. Barcode format setting for total ① Press to go to Barcode format setting for a total transaction mode. ② Then, press again to get into input barcode string using code table on page 112. Now you can to input appropriate barcode string. ■...
  • Page 76 f. Setting pulse length to open cash drawer ■ CT100 may be used with cash drawer 12 volts DC. ■ Default for pulse length of cash drawer is 50 msec (50/1000 second). However, user can select any of 1~99 ms, which is best fit for user's own cash drawer. Pulse length setting mode.
  • Page 77 h. Currency symbol or name Currency symbol or name setting mode. User ① can input appropriate characters for currency, using code table on page 112. Maximum number of character is 3. Let’s try to input "€ " for Euro. Input "128" for € symbol. ②...
  • Page 78 Chapter 10. SET 2 (Date, Time, Password, erase PLU data & Default setting) This chapter explains how to set date and time, erase all of PLU data. In addition to these functions it also shows how to do one-touch default setting. a.
  • Page 79 Press to go to Time Setting mode. ④ Press any numeric keys you wish to input. ⑤ For example, lets input "09:53:00" as time, and press to save time. b. Password setting Press to go to Password Setting mode. ① Press any numeric key you wish to input.
  • Page 81 c. One touch PLU data erasing & default setting Press to go to erase PLU, header and ① footer message. Press to erase all PLU data. ② Press to go to default setting mode. ③ Then, press to set default. (you can exit to normal weighing mode using Default...
  • Page 82 Chapter 11. OPTIONS (Receipt Formatting) This chapter explains how to enable/disable back light and save PLU after transaction. duplicate receipt, printing barcode for a single transaction or total. It also explains how to enable/disable printing graphic logo on receipt, code of PLU and all of reports in the closing report.
  • Page 83 b. Image (graphic logo) (Using key and go to option setting ① mode from main menu. And then press to get into image setting mode. User may select YES or NO by pressing "1" or ② "0" respectively, and press to save it.
  • Page 84 b. Printing barcode for a single of transaction (Using key and go to option setting ① mode from main menu. And then press to get into barcode printing for a single of transaction setting mode. User may select YES or NO by pressing "1" or ②...
  • Page 86 e. Obligatory payment (Using key and go to option setting ① mode from main menu. And then press to get into obligatory payment option mode. User may select YES or NO by pressing "1" or ② "0" respectively, and press to save it.
  • Page 87 g. Printing PLU code (Using key and go to option setting ① mode from main menu. And then press to get into PLU code printing mode. User may select YES or NO by pressing "1" or ② "0" respectively, and press to save it.
  • Page 88 Printing tax ① (Using key and go to option setting mode from main menu. And then press to get into tax printing mode. ② User may select YES or NO by pressing "1" or "0" respectively, and press to save it. j.
  • Page 89 k. Saving PLU Using key and go to option setting mode from main menu. And then press to get into PLU saving mode. ② User may select YES or NO by pressing "1" or "0" respectively, and press to save it. Chapter 12.
  • Page 90 Press to enter main menu, and then press ① PASSWORD. And press enter clerk setting mode. User may select one of three clerk modes, "0", ② "1", or "2" by inputting appropriate numeric key. For example, "0" here. Then, save it by pressig b.
  • Page 91 Input clerk' name using appropriate numeric keys ④ in accordance to "code table" on page 112. Input clerk' name using appropriate numeric ⑤ keys in accordance to "code table" on page 112. Input clerk' name using appropriate numeric ⑥ keys in accordance to "code table" on page 112. After finishing clerk name input save it by ⑦...
  • Page 92 * When user wants lower case, press shift key.
  • Page 93 Headline 1 setting mode. ② Press and input appropriate numeric keys ③ to input codes in the headline 1. For example, lets input "CAS" at 16 space in the first headline. Press appropriate numeric keys. ④ ⑤ Press appropriate numeric keys.
  • Page 94 Press appropriate numeric keys. ⑥ Press to save the first headline. And user ⑦ may press to go to input next headline (storable up to 6 header & 2 footer lines), and exit using ⑧ Enter Headline 1 font format setting value. For example, We can match 123’s meaning.

  • Page 95: Chapter 14 Tax Rate Group

    Chapter 14. TAX RATE GROUP This chapter explains how to set tax rate group. User may set up to 8 different tax rate groups; 1~8, and then store a specific tax group when he/she inputs PLU data. Press to enter main menu, and enter ①...

  • Page 96: Chapter 15 Test

    Chapter 15. TEST This chapter explains how to test hardware in the following aspects. ■ ADC (Analog Digital Converter): the digital value converted from analogvalue. ■ SPAN ■ Display : self-test ■ Keyboard ■ Memory ■ Printer : self-test ■ Battery : tested only in unplugged condition, showing value between 0 to 100 percent.
  • Page 97 After making sure the ADC value press ③ ) to get back to ADC test mode. Then press again to go to next test mode, SPAN test mode. After making sure the SPAN value press ④ ) to get back to SPAN test mode and press again to go to next Display test mode.
  • Page 98 Press to go to Printer self-test mode. ⑦ Then, press to test the printer and show current voltage on the display. ⑧ Press to go to Battery voltage mode. Then, press to see remained voltage percentage. For example, Pb battery currently remain 75%.

  • Page 99: Chapter 16 Group

    Chapter 16. GROUP This chapter explains how to input group name. Users may input up to 1~99, which each group name may have up to 32 characters, using "code table" on 112 page. Press to enter main menu, and enter ①...
  • Page 100 Press appropriate numeric keys. ⑤ Press appropriate numeric keys. ⑥ Press appropriate numeric keys. ⑦ ⑧ Press to save user may press to go to input next Group name (storable up to 99), and exit using...

  • Page 101: Chapter 17 Network

    Chapter 17. Network This chapter explains how to set IP, Gateway and Subnet mask (Ethernet option) Table 8 : Network setting example Example Remark Local IP 192.168.0.100 Gate way 192.168.0.1 Subnet mask 255.255.0.0 Press to enter main menu, and enter ①...

  • Page 102: Chapter 18 Wireless Lan

    Chapter 18. Wireless LAN This chapter explains how to set Wireless LAN setting. User may input SSID and Password using “code table” on 112 page. (Ethernet option) Table 9 : WLAN WLAN Minimum Maximum Remark SSID Password 0 : No 1 : WEP64 2 : WEP128 Security type...
  • Page 103 Press and input appropriate numeric keys ③ to input codes in the SSID (refer to page 112). For example, lets input "CAS". Press appropriate numeric keys. ④ Press appropriate numeric keys. ⑤ Press appropriate numeric keys. ⑥...
  • Page 104 Press to save SSID. And user may ⑦ press to go to next setting and exit using b. Password Press to get into WLAN Password setting ① mode. Press and input appropriate numeric ② keys to input codes in the Password (refer to page 112).
  • Page 105 Press appropriate numeric keys. ④ Press appropriate numeric keys. ⑤ ⑥ Press appropriate numeric keys. ⑦ Press appropriate numeric keys.
  • Page 106 ⑧ Press appropriate numeric keys. ⑨ Press appropriate numeric keys. ⑩ Press appropriate numeric keys. ⑪ Press appropriate numeric keys.
  • Page 107 ⑫ Press to save the PASS. And user may press to go to next setting, and exit using c. Security type User may set the security type. ① Please refer to “ Table 9 : WLAN” on the page 103. For example, select 5. ②...
  • Page 108 Chapter 19. RS-485 This chapter explains how to set RS-485 mode (RS-485 option) Table 10 : RS-485 RS-485 Minimum Maximum Remark Scale ID Use RS­485 mode Y es or No User should turn off and on the scale BAUD Rate (bps; bit per sec.) 9600, 19200, 38400, 57600, 115200 after setting new “Baud Rate”.
  • Page 109 User may select YES or NO by pressing "1" or ③ "0" respectively, and press to save it. Use "C" key to change "1" or "0" input before saving by pressing b. BAUD rate Baud rate is the communication speed between ①...
  • Page 110 . Master User select YES or NO by pressing “1” or “0” ① respectively, and press to save it. d. Slave 1~6 User select YES or NO by pressing “1” or “0” ① respectively, and press to save it. YES is connect NO is disconnect ②...

  • Page 111: Chapter 20 Usb

    Chapter 20. USB This chapter explains how to save transaction data. Users may get the sales result up to 1,000. Which each data may have data such as date, time, PLU name, weight, unit price, total price and etc. (USB host option) Press key to enter main menu, and ①...
  • Page 112 CODE [MS 1250 Windows Central Europe] Table 11 : Code [MS 1250 Windows Central Europe] “ & ‘ ­ < > 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 €...
  • Page 113 W in d o w s C o d e p a g e 1256 N U LS O HS T XE T XE O TE N Q A C KB E L B S H T L F V T F F C R S O S I D L E D C 1D C 2D C 3D C 4N A K S Y NE T B C A NE MS U B E S CF S G S R S U S...

  • Page 114: Error Messages

    Please check the weight on the Weight Minus displayed with beep tray. When turning on the scale this message may be displayed Please call your CAS dealer. ERROR with continuous beep and it is automatically turned off. Please remove the item from INIT...

  • Page 115: Specification

    RAM is ARE CORRUPTED! not correct. RESETING ALL RAM In such case the processor Please call your CAS dealer DAT A.. clears the RAM automatically. PLEASE REST ART And all of sums, settings and THE SCALE...

  • Page 116: Table List

    Table List page Table 1: Symbols on display ....................13 Table 2: Key Functions ....................... 14 Table 3: Clerk Mode ....................27 & 88 Table 4: Most commonly used keys program mode ............. 53 Table 5: PLU Programming ....................54 Table 6: "C" key operation while printing................60 Table 7: SET1 ........................

  • Page 117: Cash Drawer Interface

    Cash Drawer Interface ■ Using Voltage : 12V RJ-11 connector Not connected : 1 x (+12V) : 2 Ground : 3 Ground : 4 (+ 12V) : 5 Not connected : 6 x RS-232 & RS-485 INTERFACE RS-232 (cross connect) RS-485 (direct connect) 1,4,6,7,8,9 : Not connected 2 : RX DA TA...

  • Page 118: Usb Interface

    USB INTERFACE ■ USB host ■ USB device RJ45 INTERFACE...

  • Page 119: Program Menu Map

    PROGRAM MENU MAP Table 20 : PROGRAM MENU MAP Mode Sub-Mode Menu On Display Page T are tArE Validity vALid Price PriCE Code CodE Group GroUP (CHAPTER 7) Name nAME T ax rate group 1~8 Weighed or non­weighed? no W Fixed or non­fixed unit price? FIX Pr Barcode printing?
  • Page 120 Font number Fontno Date dAtE Time tiME SET 2 Password to enter main menu PASS (CHAPTER 10) One touch PLU data Erasing Er ALL Default setting dEFAUL Duplicate receipt? Image(Graphic Logo) iMAGE Printing barcode for a single transaction on bAr S receipt? Printing barcode for total on receipt? bAr t...
  • Page 121 Header line 1 Format HForm1 Header line 2 Format HForm2 Header line 3 Format HForm3 Header line 4 Format HForm4 Header line 5 Format HForm5 Header line 6 Format HForm6 Footer line 1 Format FForm1 Footer line 2 Format FForm2 Group 1 tAX 1 Group 2...
  • Page 122 Subnet mask fourth digit SN 4 SSID SSid WLAN Password PASS (CHAPTER 18) Security type tYPE Use RS­485 ? BAUD rate bAUd Scale ID Is MASTER scale ? mAStEr Connect SLAVE 1 ? SLAvE1 RS­485 (CHAPTER 19) Connect SLAVE 2 ? SLAvE2 Connect SLAVE 3 ? SLAvE3...
