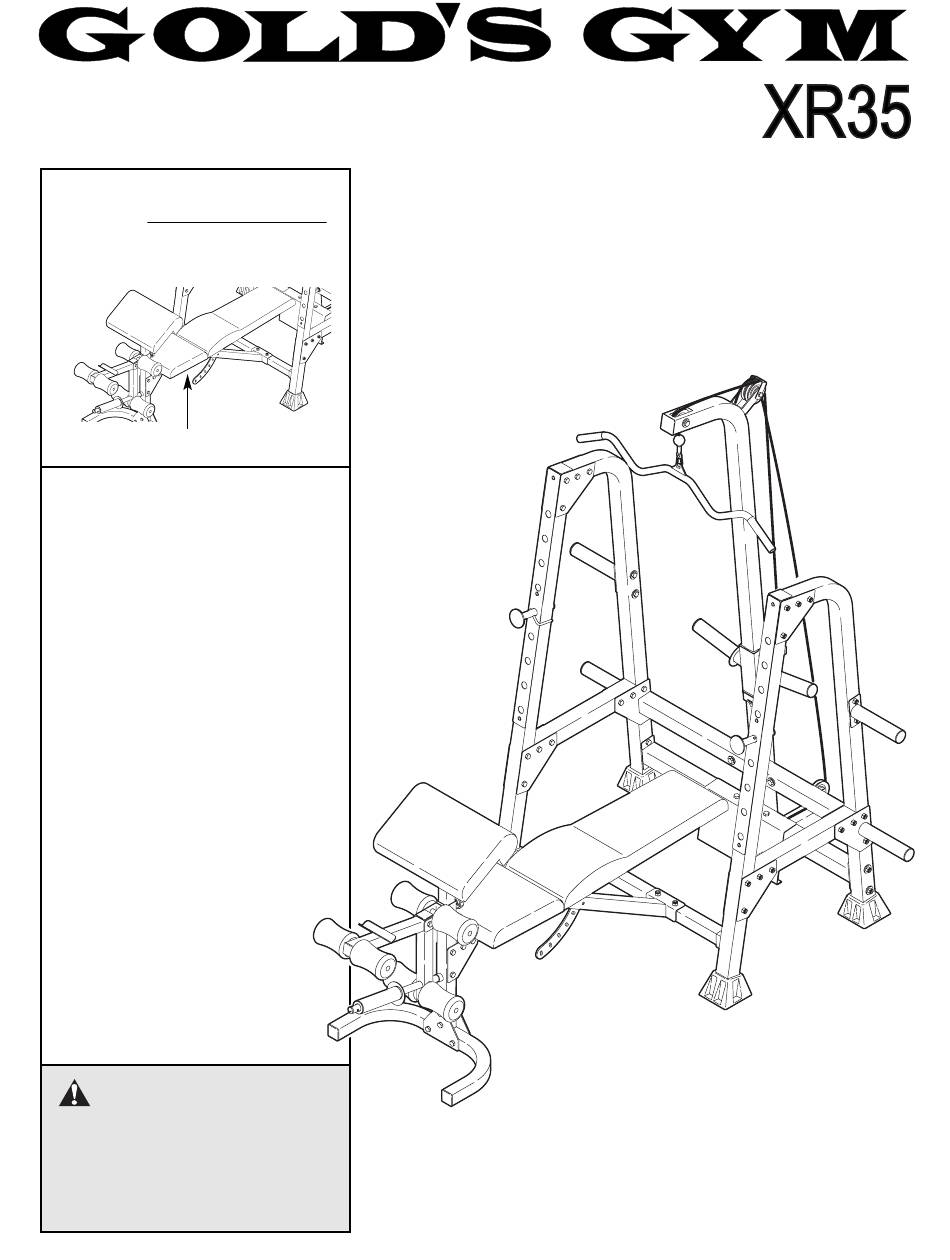

Model No. GGBE35420 Serial No. USER’S MANUAL Write the serial number in the space above for future reference. Serial Number Decal (Under Seat) QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, we will guarantee complete satis- faction through direct assis-...
Friday, 6 a.m. until 6 p.m. Mountain Time, to order a free replacement decal. Apply the decal in the location shown. Decal Warning Decal Decal GOLD'S GYM is a registered trademark of Gold's Gym International, Inc. This product is manufactured and distributed under license from Gold's Gym Merchandising, Inc.
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read the following important precautions before using the weight bench. 1. Read all instructions in this manual before 10. Make sure that the cable remains on the pul- using the weight bench. Use the weight leys at all times.
Thank you for selecting the versatile GOLD’S GYM toll-free at 1-800-999-3756, Monday through Friday, ® XR35 weight bench. The XR35 weight bench is 6 a.m. until 6 p.m. Mountain Time (excluding holidays). designed to help you develop every major muscle To help us assist you, please note the product model group of the body.
ASSEMBLY • As you assemble the weight bench, make sure all Make Things Easier for Yourself parts are oriented as shown in the drawings. Everything in this manual is designed to ensure • For help identifying small parts, use the PART that the weight bench can be assembled suc- IDENTIFICATION CHART.
Page 6
3. Attach the Bench Frame (1) to the Front Leg (4) with four M10 x 68mm Bolts (41), two Notched Plates (21), and four M10 Nylon Locknuts (47). Do not tighten the Locknuts yet. 4. Press four 25mm Square Inner Caps (28) into the ends of the two Backrest Frames (10).
Page 7
6. Attach the Backrest Frames (10) to the Bench Frame (1) with an M10 x 156mm Bolt (39), two M10 Washers (32), and an M10 Nylon Locknut (47). Do not overtighten the Locknut; the Bracket Frames must be able to pivot easily. Insert the Backrest Bracket (11) into the slot in the Bench Frame (1) and engage the Adjustment Pin with Tether (38) into the Bench Frame and...
Page 8
9. Slide the two Pad Tubes (22) into the Leg Lever (6). Slide four Foam Pads (23) onto the ends of the Pad Tubes. Press four 19mm Round Inner Caps (24) into the ends of the Pad Tubes. 10. Lubricate an M10 x 68mm Bolt (41) with grease. Attach the Leg Lever (6) to the Front Leg (4) with the Bolt and an M10 Nylon Locknut (47).
Page 9
12. Identify a Rear Foot (78), which has “5°” marked on the bottom. Press the Rear Foot onto a Rear Upright (9) as shown. Press a 51mm Round Inner Cap (68) into the Left Storage Tube (80). Attach the indicated end of the Top Crossbar (55), a Cross Brace (19), and the Left Storage Tube (80) to the Rear Upright (9) with four M10 x 78mm Bolts (51) and four M10 Nylon Locknuts...
Page 10
14. Press a 60mm Square Inner Cap (62) into the indicated Front Upright (8). Attach the Front Upright (8) to the Rear Upright (9) with four M10 x 78mm Bolts (51), two Top Rack Joint Plates (58), and four M10 Nylon Locknuts (47).
Page 11
17. Press a 60mm Square Inner Cap (62) into the top of the Lat Tower (17). Press two 51mm Round Inner Caps (68) into the Weight Carriage (18). Slide the Weight Carriage (18) onto the Lat Tower (17) as shown. Orient the Carriage Stop (63) with the lip of the Carriage Stop Bushing (64) on top.
Page 12
20. Wrap the Cable (46) around an 89mm Pulley (65). Attach the Pulley and a Cable Trap (66) to the bracket on the Lat Tower (17) with the M10 x 75mm Bolt (34). Make sure the Cable Trap is inside of the bracket and oriented to hold the Cable in the groove of the Pulley.
Page 13
24. Press a 51mm Round Inner Cap (68) into a Top Storage Tube (60). Attach the Top Storage Tube (60) to the indicated Rear Upright (9) with two M10 x 78mm Bolts (51), two M10 Washers (32), and two M10 Nylon Locknuts (47).
ADJUSTMENTS This section explains how to adjust the weight bench. See the EXERCISE GUIDELINES on page 16 for impor- tant information about how to get the most benefit from your exercise program. Also, refer to the accompanying exercise guide to see the correct form for each exercise. Make sure all parts are properly tightened each time the weight bench is used.
Page 15
WEIGHT RESTS AND SAFETY SPOTTERS To use a barbell (not included) with the weight rack, first move the Weight Rests (72, 73 [not shown]) to the correct height for the exercise to be performed. Engage the locking pins around the Front Uprights (8). WARNING: Always place both Weight Rests (72, 73) at the same height.
EXERCISE GUIDELINES THE FOUR BASIC TYPES OF WORKOUTS PERSONALIZING YOUR EXERCISE PROGRAM Muscle Building Determining the exact length of time for each workout, To increase the size and strength of your muscles, as well as the number of repetitions or sets completed, push them close to their maximum capacity.
Rest for a short period of time after each set. The ideal slowly as you stretch and do not bounce. Ease into resting periods are: each stretch gradually and go only as far as you can • Rest for three minutes after each set for a muscle without strain.
Page 18
EXERCISE WEIGHT SETS REPS MONDAY Date: AEROBIC EXERCISE TUESDAY Date: WEDNESDAY EXERCISE WEIGHT SETS REPS Date: THURSDAY AEROBIC EXERCISE Date: EXERCISE WEIGHT SETS REPS FRIDAY Date: Make photocopies of this page for scheduling and recording your workouts.
Page 19
EXERCISE WEIGHT SETS REPS MONDAY Date: AEROBIC EXERCISE TUESDAY Date: WEDNESDAY EXERCISE WEIGHT SETS REPS Date: THURSDAY AEROBIC EXERCISE Date: EXERCISE WEIGHT SETS REPS FRIDAY Date: Make photocopies of this page for scheduling and recording your workouts.
• The MODEL NUMBER of the product (GGBE35420) • The NAME of the product (GOLD’S GYM XR35 weight bench) ® • The SERIAL NUMBER of the product (see the front cover of this manual) • The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED...
Page 21
This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below each part refers to the key number of the part from the PART LIST in the center of this manual. Important: Some parts may have been pre-assembled for shipping purposes.
Page 23
45mm Square Inner Cap (26) 50mm Square Inner Cap (27) 51mm Round Inner Cap (68) 60mm Square Inner Cap (62) 25mm Round Inner Cap (50) 19mm Round Inner Cap (24) 25mm Square Inner Cap (28) 50mm Square Outer Cap (70)
Page 24
PART IDENTIFICATION CHART—Model No. GGBE35420 R1102A M4 x 16mm Screw (49, 54) M10 x 25mm Bolt (69) M10 Washer (32) M6 x 38mm Screw (35) M6 x 16mm Bolt (44) M10 x 45mm Bolt (43) M8 Washer (76) M8 x 58mm Bolt (33) M10 x 58mm Carriage Bolt (40) M6 Washer (45) M10 x 68mm Bolt (41)
Page 25
REMOVE THIS PART LIST/EXPLODED DRAWING FROM THE MANUAL. SAVE THIS PART LIST/EXPLODED DRAWING FOR FUTURE REFERENCE...
Page 26
PART LIST—Model No. GGBE35420 R1102A Key No. Qty. Description Key No. Qty. Description Bench Frame Spring Clip Rear Stabilizer M10 x 45mm Bolt Front Stabilizer M6 x 16mm Bolt Front Leg M6 Washer Curl Post Cable Leg Lever M10 Nylon Locknut Leg Plate M10 x 86mm Bolt Front Upright...
