T-3 SERIES HALF RACK CONVERSION KIT
OPTIONAL WEIGHT PLATE HOLDERS
401185 - T3SQTHALF
401311 - T3SQTHALF-FWHOLD
Operator's Manual
Read the Operator's Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!
Advertisement
Related Manuals for Titan Fitness T3SQTHALF
Summary of Contents for Titan Fitness T3SQTHALF

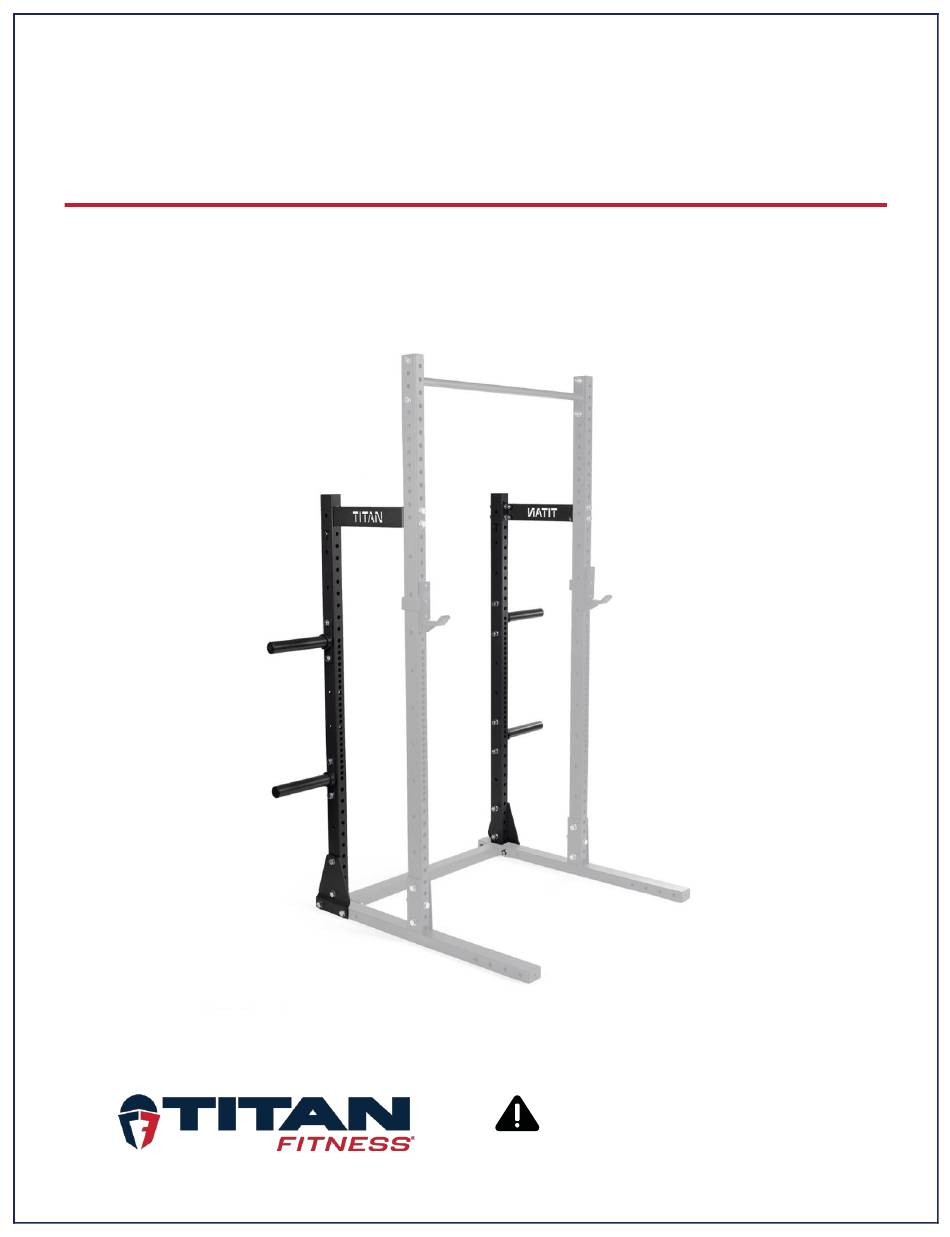

- Page 1 T-3 SERIES HALF RACK CONVERSION KIT OPTIONAL WEIGHT PLATE HOLDERS 401185 - T3SQTHALF 401311 - T3SQTHALF-FWHOLD Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives...
- Page 2 T3SQTHALF PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION DESCRIPTION UPRIGHT FRAME M16 NUT CONNECTING PLATE HEX BOLT M16*85 FIXING PLATE HEX BOLT M16*120 FLAT WASHER HEX BOLT M16*110 Φ17*Φ30*3 SPRING WASHER Φ16...
-
Page 3: Flat Washer
FWHOLD PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION DESCRIPTION WEIGHT PLATE HOLDER SPRING WASHER Φ16 RUBBER BUMPER M16 NUT END CAP Φ48*2 HEX BOLT M16*110 FLAT WASHER HEX BOLT M16*85 Φ17*Φ30*3... - Page 4 ASSEMBLY INSTRUCTIONS STEP 1 Assemble the Upright Frame (1) on the Base Frame (10), using Flat Washer Φ17*Φ30*3 (4), Spring Washer (5), Nut M16 (6), Hex Bolt M16*85(7) and Hex Bolt M16*120 (8).
- Page 5 STEP 2 Connect the Upright Frame (1), Connecting Plate (2) and the Upright Frame on the Squat Rack (10), using Flat Washer Φ17*Φ30*3 (4), Spring Washer (5) Nut M16 (6), and Hex Bolt M16*110 (9).
- Page 6 STEP 3 Install the Weight Plate Holder (2) on the Upright Frame (1), using Flat Washer Φ17*Φ30*3 (4), Spring Washer (5) Nut M16 (6), and Hex Bolt M16*110 (7).
- Page 7 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
- Page 8 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2024 Titan Brands...
