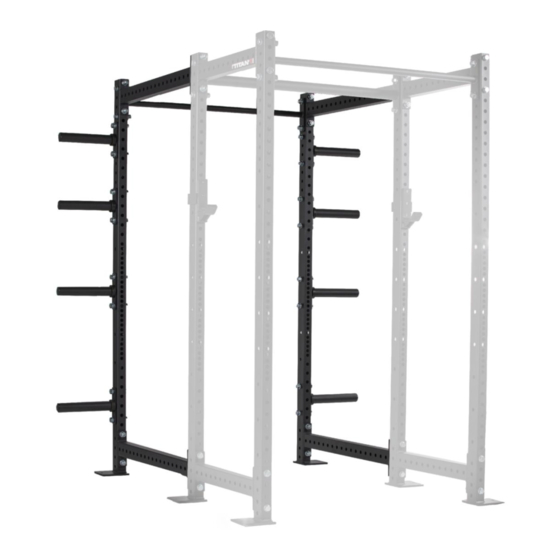

T-3 SERIES POWER RACK EXTENSION KIT
T3UP82-T3EXT24, T3UP82-T3EXT36, T3UP91-T3EXT24, T3UP91-T3EXT36,
T3UP91_RED-T3EXT24, T3UP91_RED-T3EXT36, T3UP82_RED-T3EXT24,
T3UP82_RED-T3EXT36,
T3UP82_NVY-T3EXT24, T3UP82_NVY-T3EXT36
401284, 401285 ,401282, 401283,
401802, 401803, 401804, 401805
T3UP91_NVY-T3EXT24, T3UP91_NVY-T3EXT36,
401798, 401799, 401800, 401801,
Operator's Manual
Read the Operator's Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Titan Fitness T-3 Series
Summary of Contents for Titan Fitness T-3 Series
- Page 1 T-3 SERIES POWER RACK EXTENSION KIT T3UP82-T3EXT24, T3UP82-T3EXT36, T3UP91-T3EXT24, T3UP91-T3EXT36, T3UP91_RED-T3EXT24, T3UP91_RED-T3EXT36, T3UP82_RED-T3EXT24, T3UP82_RED-T3EXT36, T3UP91_NVY-T3EXT24, T3UP91_NVY-T3EXT36, T3UP82_NVY-T3EXT24, T3UP82_NVY-T3EXT36 401284, 401285 ,401282, 401283, 401798, 401799, 401800, 401801, 401802, 401803, 401804, 401805 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception.
- Page 2 82" & 91" UPRIGHTS PARTS DIAGRAM / EXPLODED VIEW AVAILABLE IN YOUR CHOICE OF BLACK, RED, OR NAVY POWDER-COATED FINISH DESCRIPTION SHORT T3 UPRIGHTS (T3UP82) TALL T3 UPRIGHTS (T3UP91)
- Page 3 24" OR 36" EXTENSION DEPTH PARTS DIAGRAM/EXPLODED VIEW SHOWN WITH THE 36-INCH SIDE BRACES DESCRIPTION OPTIONAL 24" OR 36" SIDE BRACES WEIGHT PLATE PEGS 1.25-IN STANDARD PULL-UP BAR...
- Page 4 24" EXTENSION DEPTH EXPLODED VIEW KEY BOX DESCRIPTION QTY KEY BOX DESCRIPTION PULL UP BAR FLAT WASHER 17*30*3 24" CONNECTING FRAME SPRING WASHER 16 WEIGHT PLATE HOLDERS M16 NUT RUBBER CUSHION HEX BOLT M16*120 48 END CAP (10) HEX BOLT M12*85...
- Page 5 36" EXTENSION DEPTH EXPLODED VIEW KEY BOX DESCRIPTION KEY BOX DESCRIPTION PULL UP BAR FLAT WASHER 17*30*3 36" CONNECTING FRAME SPRING WASHER 16 WEIGHT PLATE HOLDERS M16 NUT RUBBER CUSHION HEX BOLT M16*120 48 END CAP (10) HEX BOLT M12*85...
- Page 6 ASSEMBLY INSTRUCTIONS STEP 1 Install the 24" OR 36" CONNECTING FRAME (2) on the UPRIGHT FRAME, using the FLAT WASHER 17*30*3 (6), M16 NUT (8), 16 SPRING WASHER (7), and HEX BOLT M16*120 (9).
- Page 7 STEP 2 Connect the 24" or 36" CONNECTING FRAME (2) and the UPRIGHT FRAME, using FLAT WASHER 17*30*3 (6), M16 NUT (8), 16 SPRING WASHER (7), and HEX BOLT M16*110 (15). Assemble the PULL UP BAR (1) on the UPRIGHT FRAME, using FLAT WASHER 17*30*3 (6), M16 NUT (8), 16 SPRING WASHER (7), and HEX BOLT M16*85 (10).
- Page 8 STEP 3 Assemble the WEIGHT PLATE HOLDER (3) on the UPRIGHT FRAME, using FLAT WASHER 17*30*3 (6), M16 NUT (8), 16 SPRING WASHER (7), and HEX BOLT M16*85 (10).
- Page 9 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
- Page 10 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2022 Titan Brands...
