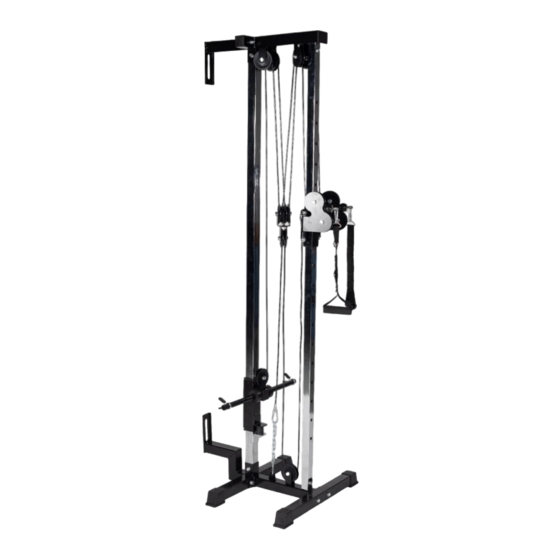

- Page 1 TALL WALL MOUNTED PULLEY TOWER TLLPULTWRv3 400810 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
- Page 2 PARTS DIAGRAM / EXPLODED VIEW...
-
Page 3: Parts List
PARTS LIST HARDWARE LIST... - Page 5 ASSEMBLY INSTRUCTIONS STEP 1 1. Push the END COVER (V) onto the end of FRONT BEAM (A) and the end of REAR BEAM (B). 2. Assemble the BASE FRAME (C), FRONT BEAM (A), REAR BEAM (B) and LOWER MOUNTING FRAME (G) using BOLT M10x70 (4), WASHER M10 (7) and NYLON NUT M10 (8).
- Page 6 ASSEMBLY INSTRUCTIONS STEP 2 1. Attach the GUIDE TUBE (D) to the REAR BEAM (B) using BOLT M10x20 (1) and WASHER M10 (7). 2. Screw the RUBBER BUMPER (U) ON the GUIDE TUBE (D), Slide the WEIGHT CARRIAGE (J) on the GUIDE TUBE (D). 3.
- Page 7 ASSEMBLY INSTRUCTIONS STEP 3 1. Attach the FRONT UPRIGHT (E) to the BASE FRAME (C) using BOLT M10x50 (3), WASHER M10 (7) and NYLON NUT M10 (8). 2. Slide the MULTI-PULLEY BRACKET (F) onto FRONT UPRIGHT (E), screw the KNOB (P) into the MULTI-PULLEY BRACKET(F).
- Page 8 ASSEMBLY INSTRUCTIONS STEP 4 1. Assemble the UPPER FIXING FRAME (H) to the FRONT UPRIGHT (E) using BOLT M10x50 (3), WASHER M10 (7) and NYLON NUT M10 (8). 2. Assemble the UPPER FIXING FRAME (H) to the GUIDE TUBE (D) using BOLT M10x20 (1) and WASHER M10 (7).
- Page 9 ASSEMBLY INSTRUCTIONS STEP 5 1. Assemble two pcs PULLEY (M3/M7) to the MOVABLE PULLEY BRACKET (K) using BOLT M10x75 (5), WASHER M10 (7) and NYLON NUT M10 (8). 2. Assemble the other 11 pcs PULLEY (M1~M13, EXCEPT M3 & M7) to its own BRACKET (K) using BOLT M10x45 (2), WASHER M10 (7) and NYLON NUT M10 (8).
- Page 10 ASSEMBLY INSTRUCTIONS STEP 6 1. Fix the CABLE (S) to the MULTI-PULLEY BRACKET (F) using SAFETY HOOK (N), insert it through the below of PULLEY (M12), through the above of PULLEY (M13), then fix the other end of CABLE (S) to the BASE FRAME (C) using the SAFETY HOOK (N) and the CHAIN (O).
- Page 11 ASSEMBLY INSTRUCTIONS STEP 7 1. Install the CABLE (LONG) (R) in the following route: Pass through the PULLEY(M1&M10), above M2, below M3, above M4, below M5 (from the same side), above M6, below M7, above M8, finally pass through M9 & M11. 2.
- Page 12 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
- Page 13 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2021 Titan Brands...
