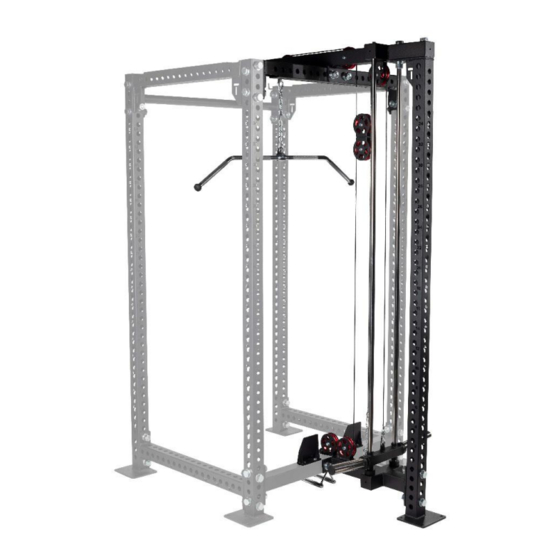

Titan Fitness TITAN 90 Series Operator's Manual

Titan Fitness TITAN 90 Series Operator's Manual

Lat tower rack attachment
Hide thumbs Also See for TITAN 90 Series:

Advertisement

Quick Links

TITAN SERIES 90" LAT TOWER RACK ATTACHMENT
90TITANLPLR, 90TITANLPLR-STBLGST_TS, 90TITANLPLR-
TITANLOGOSTB
401648, 401766, 401761
Operator's Manual
Read the Operator's Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!

Advertisement

loading
Need help?

Need help?

Do you have a question about the TITAN 90 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Titan Fitness TITAN 90 Series

  • Page 1 TITAN SERIES 90" LAT TOWER RACK ATTACHMENT 90TITANLPLR, 90TITANLPLR-STBLGST_TS, 90TITANLPLR- TITANLOGOSTB 401648, 401766, 401761 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
  • Page 2 ASSEMBLY PARTS DIAGRAM / EXPLODED VIEW...
  • Page 3 ASSEMBLY PARTS LIST DESCRIPTION QTY KEY BOX DESCRIPTION LOWER FIXING FRAME (14) CABLE Φ5*3380 UPPER FIXING FRAME (15) LINK Φ5*230 RUBBER BUMPER REAR UPRIGHT FRAME (17) Φ55*Φ25*25 (20) CONNECTING FRAME HOOK Φ8*80 FLAT WASHER WEIGHT PLATE HOLDER (23) Φ26*Φ44*4 GUIDE ROD (25) SPRING WASHER Φ24 MOVABLE PULLEY FRAME...
  • Page 5 ASSEMBLY INSTRUCTIONS STEP 1 1. Remove the Pull Up Bar from the Power Rack. Choose the appropriate connection frame according to your need. 2. Assemble the Connecting Frame (1) with the Power Rack, using Flat Washer Φ26*Φ44*4 (2), Spring Washer Φ24 (3), M24 Flat Nut (4) and Hex Bolt M24*120 (5).
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 2 Connect the Lower Fixing Frame (1), Rear Upright Frame (3) and Connecting Frame (4) with the Power Rack, using Flat Washer Φ26*Φ44*4(23), Spring Washer Φ24 (25), M24 Flat Nut (27) and Hex Bolt M24*120 (32).
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 3 Pass the Rubber Bumper (17) and Weight Plate Holder (5) through the Guide Rod (6), then Insert the Guide Rod (6) into the Low Fixing Frame (1), fixing by Flat Washer Φ10.5*Φ30*2.5 (22), Spring Washer Φ10 (24) and Hex Bolt M10*30 (28), then adjust the machine and tighten all bolts.
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 4 1. Insert the other side of the Guide Rod (6) into the hole on the Upper Fixing Frame (2), then Fixing by Flat Washer Φ10.5*Φ30*2.5 (22), Spring Washer Φ10 (24) and Hex Bolt M10*30 (28). 2. Connect the Rear Upright Frame (3) with the Upper Fixing Frame (2), using Flat Washer Φ26*Φ44*4 (23), Spring Washer Φ24 (25) and Hex Bolt M24*120 (32).
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 5 Connect the Pedal Frame (8) on the Connecting Frame (4), using Flat Washer Φ11*Φ20*2 (21), Nut M10 (26) and Hex Bolt M10*95 (31).
  • Page 10 ASSEMBLY INSTRUCTIONS STEP 6 1. Remove the Pulley (A, B, C) on the Upper Fixing Frame (2), insert the cable (14) from Pulley A, via the upper fixing frame (2) and out from the hole of Pulley B, through the pulley C Bracket, then reinstall the pulley A, B, C.
  • Page 11 PARTS DIAGRAM / EXPLODED VIEW...
  • Page 12 PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION DESCRIPTION SLIDING SLEEVE LOWER FIXING FRAME (18) Φ35.50*Φ26*39 UPPER FIXING FRAME (19) END CAP Φ48*3 REAR UPRIGHT FRAME (20) HOOK Φ8*80 FLAT WASHER CONNECTING FRAME (21) Φ11*Φ20*2 WEIGHT PLATE FLAT WASHER (22) HOLDER Φ10.5*Φ30*2.5 FLAT WASHER GUIDE ROD (23)
  • Page 13 TITANLPLRH ASSEMBLY/EXPLODED VIEW DESCRIPTION CONNECTING FRAME FLAT WASHER Φ26*Φ44*4 SPRING WASHER Φ24 FLAT NUT M24 HEX BOLT M24*120 TITANLOGOSTB ASSEMBLY/EXPLODED VIEW DESCRIPTION LOGO FRAME FLAT WASHER Φ26*Φ44*4 SPRING WASHER Φ24 NUT M24 HEX BOLT M24*120...
  • Page 14 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
  • Page 15 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2021 Titan Brands...
