Summary of Contents for Titan Fitness TITAN1

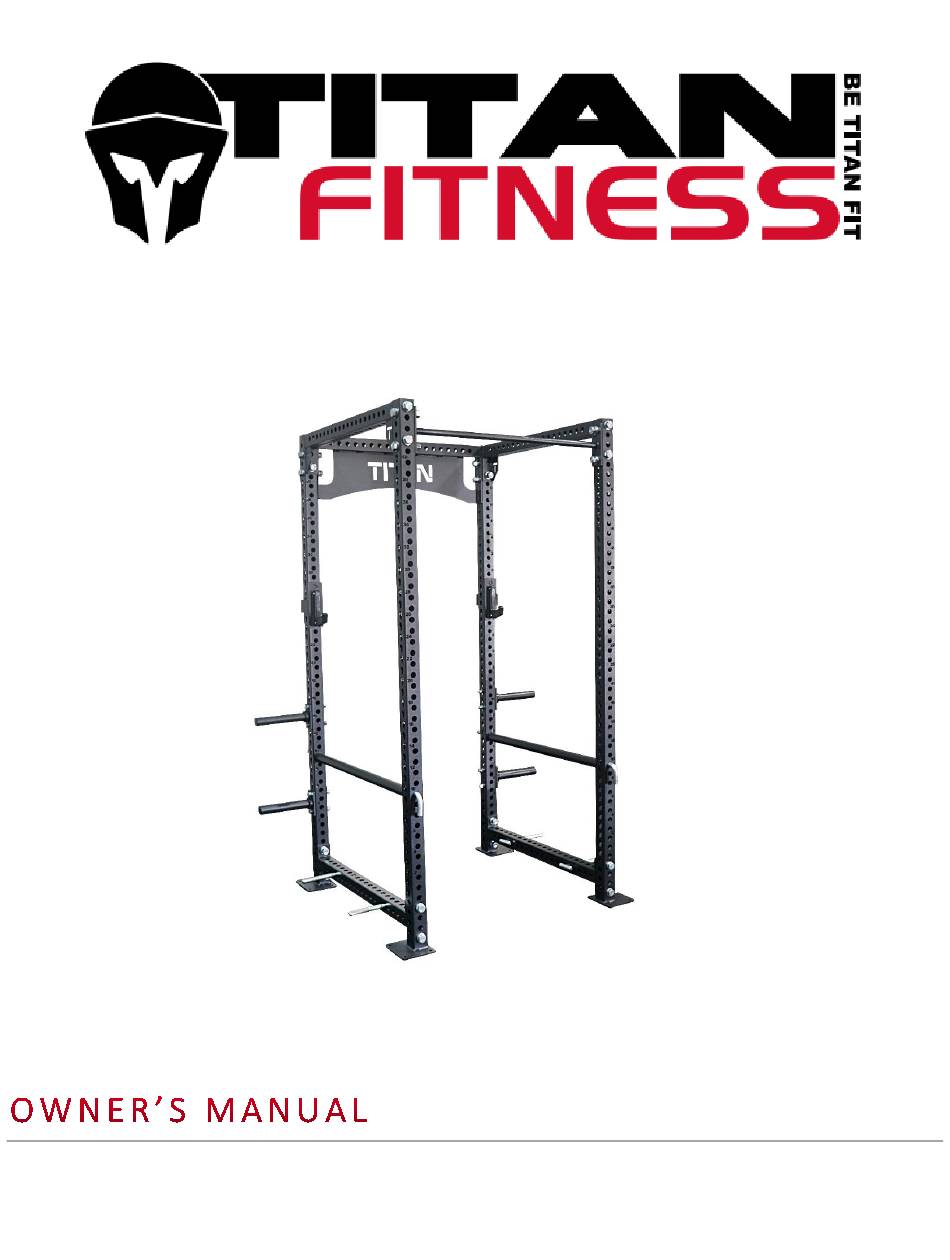

- Page 1 MPN: TITAN1-TITAN2-TITANFWHOLD SKU: 401011...
- Page 2 TITAN1-TITAN2-TITANFWHOLD, HEN ASSEMBLING YOUR WE HIGHLY … RECOMMEND THAT YOU • … ENLIST THE HELP OF A FRIEND • … WATCH EACH OTHER AND BE MINDFUL OF YOUR SURROUNDINGS AS YOU PERFORM EACH ASSEMBLY STEP • … EXERCISE EXTREME CAUTION...
- Page 4 DESCRIPTION (BOX 1 = TITAN1) (BOX 2 = TITAN2) UPRIGHT BASE FRAME UPPER FRAME LOGO PLATE PULL-UP BAR LEFT J-HOOK RIGHT J-HOOK BAND PEG PIN-AND-PIPE SAFETY SYSTEM – PIN (10) SCREW SOCKET (11) PIN-AND-PIPE SAFETY SYSTEM – PIPE (12) J-HOOK PLASTIC COVER...
- Page 5 1. Secure each UPPER FRAME (3) and BASE FRAME (2) between two UPRIGHTS (1) using FLAT WASHERS Φ26*Φ44*4 (16), SPRING WASHERS Φ24 (17), NUTS M24 (18), and BOLTS M24*120 (19) as shown in the image below.
- Page 6 2. Install the LOGO PLATE (4) and PULL-UP BAR (5) between the UPRIGHTS (1) using FLAT WASHERS Φ26*Φ44*4 (16), SPRING WASHERS Φ24 (17), NUTS M24 (18), and BOLTS M24*120 (19) as seen in the figure below.
- Page 7 3. Install the J-HOOKS (6 & 7), BAND PEGS (8), PIN-AND-PIPE SAFETY SYSTEM (9 & 11) at suitable positions as shown in the illustration below. ----- THIS CONCLUDES THE ASSEMBLY OF THE TITAN1-TITAN2. -----...
- Page 8 DESCRIPTION WEIGHT HOLDER SLEEVE RUBBER BUSHING END CAP Φ48 FLAT WASHER Φ17*Φ30*3 SPRING WASHER Φ16 HEX BOLT M16*110 NUT M16...
- Page 9 This concludes the TITAN1-TITAN2 Owner’s Manual. Make sure to tighten all nut-and-bolt combinations before use. Enjoy! DISCLAIMER This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any fitness equipment, including this one, involves the potential risk of injury. You accept and assume full...
