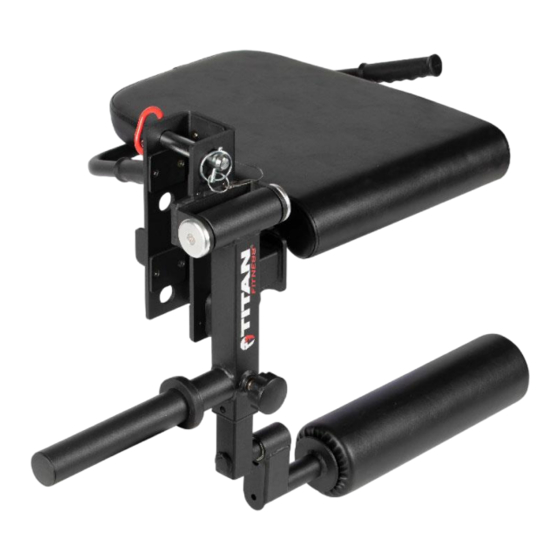

TITAN SERIES RACK MOUNTED

LEG CURL AND EXTENSION

TITANRACKCRL

401423

Operator's Manual

Read the Operator's Manual entirely. When you see this

symbol, the subsequent instructions and warnings are

serious follow without exception. Your life and the lives

of others depend on it!

Need help?

Do you have a question about the TITANRACKCRL and is the answer not in the manual?

Questions and answers

Summary of Contents for Titan Fitness TITANRACKCRL

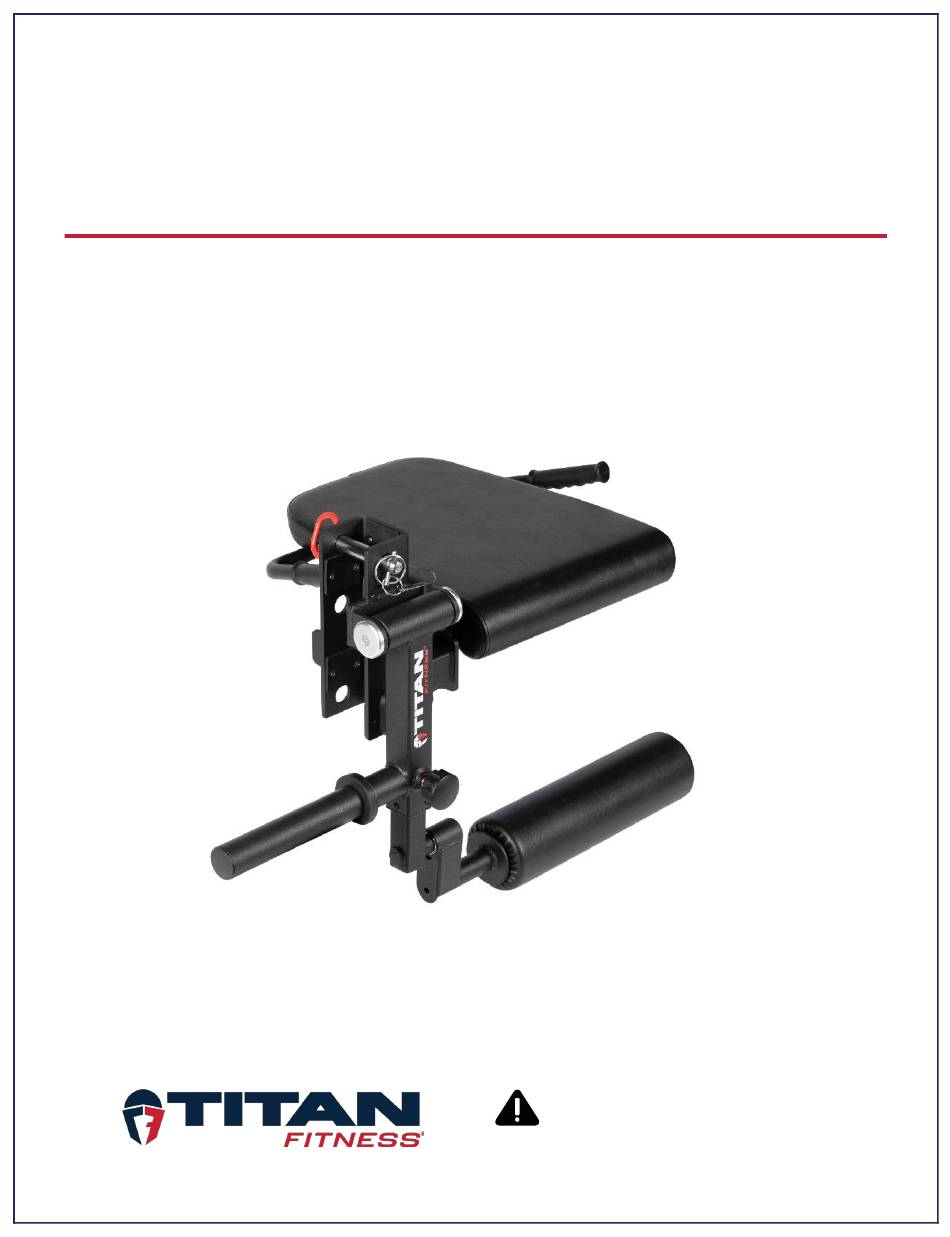

Page 1 TITAN SERIES RACK MOUNTED LEG CURL AND EXTENSION TITANRACKCRL 401423 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
Page 2 PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION DESCRIPTION CONNECTING SUPPORT RIGHT HANDLE BAR FRAME ADJUSTABLE FRAME LONG LOCK PIN FOAM FRAME LOCK PIN LEFT HANDLE BAR (62) HANDLE...
Page 3: Hardware Pack
HARDWARE PACK...
Page 4 ASSEMBLY INSTRUCTIONS STEP 1 A. Remove the Countersunk Head Screw M8*20 (38), Rotating Shaft (10), Spacer Bush (11), Metal End CAP (12) and Swing Frame (2) from the Connecting Support Frame (1). B. Revise the direction of Swing Frame (2), then assemble the Swing Frame (2) on Connecting Support Frame (1), using Rotating Shaft (10), Spacer Bush (11), Metal End CAP (12) and Countersunk Head Screw M8*20 (38).
Page 5 ASSEMBLY INSTRUCTIONS STEP 2 A. Pull the Knob (19), then insert the Adjustable Frame (3) into the Swing Frame (2), fixing by Pan Head, Hex Bolt M8*25 (40). B. Connect FOAM Frame (4) and Adjustable Frame (3), using Flat Washer Φ10.5*Φ30*2.5 (32), Spring Washer Φ10 (35), and Hex Bolt M10*25 (41).
Page 6 ASSEMBLY INSTRUCTIONS STEP 3 A. Assemble the Left Handle Bar (6) and Right Handle Bar (7) on the Seat Cushion Frame (5), using Flat Washer Φ11*Φ20*2 (31), Nut M10 (36) and Hex Bolt M10*75 (42).
Page 7 ASSEMBLY INSTRUCTIONS STEP 4 A. Fixing the Leg Curl Rack Attachment on the Power Rack according to the need, using the Long Pin (8) and Lock Pin (9).
Page 8 FULL PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION DESCRIPTION (22) BASE FRAME HOLLOW SLEEVE RUBBER BAFFLE (23) SWING FRAME Φ27*Φ20.5*13 (24) ADJUSTABLE FRAME STOPPER 30*70*20 SHOCK ABSORBER (25) FOAM FRAME RUBBERΦ77*Φ47.5*13 (26) SEAT CUSHION FRAME END CAP Φ48*2 (27) LEFT HANDLE BAR BEARING 61805ZZ (28) RIGHT HANDLE BAR...
Page 9 FLAT WASHER (10) (31) ROTATING SHAFT Φ11*Φ20*2 SPACER BUSH FLAT WASHER (11) (32) Φ30*Φ25.20*9 Φ10.5*Φ30*2.5 METAL END CAP FLAT WASHER (12) (33) Φ30*Φ25.20*11 Φ11*Φ34*3 (13) (34) FOAM BAFFLE SPRING WASHER Φ8 (14) (35) O-SHAPE PIN SPRING WASHER Φ10 SMALL CABLE (15) (36) NUT M10...
Page 10 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
