- Page 1 UBCH60KCR Ceramic Hob Instruction Manual...
-
Page 2: Table Of Contents
Content Safety instructions……………………………..……………........3-4 Installation……………………………..……………..........5-9 Description of the Ceramic hob surface layout…………………..9-10 Using the ceramic hob……………………………..……………....11-14 Hob guidelines……………………………..…………….........14 Maintenance and cleaning……………………………..……………....15-16 Environmental note……………………………..……………........16 Information for Electric Hob..............17... -
Page 3: Safety Instructions
Safety instructions his User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;... - Page 4 ⚫ ⚫ f it is necessary for younger family his product can be worked but not members to be in the kitchen, through outside timer and remote please ensure that they are kept control. under close supervision at all times. ⚫...
-
Page 5: Installation
Installation Electrical connection Before connecting the appliance, make sure that the supply voltage marked on the Rating Plate corresponds with your mains supply voltage. WARNING: THIS APPLIANCE MUST BE EARTHED. ⚫ If you have to change the oven power cord, the earthing (yellow/green) conductor must always be 10 mm longer than the line conductors. -
Page 6: Installing The Hob
Make sure the surface is level and square and that no part interferes with the space required for installation. Prepare the cut as indicated(see installation dimensions). Installing the hob WARNING Risk of cutting. Be careful of cutting edges. End parts in foamed plastic - be careful. During transportation these could cause slight injury or cuts. -
Page 7: Fitting Guidelines
Step.3 Fix the brackets(4 pcs) on the front side and rear side by screw.Put the hob in the cut- out cabinet,and make it centered.Ensure that the front edge of the hob is parallel to the side edge of the work surface. ⚫... -
Page 8: Replacing The Mains Supply Cable
Adaptive voltage range and wires Model The wiring diagram 220-240V 1N～ 50-60Hz UBCH60KCR H05VV-F 3G2.5 ⚫ The cable connections must be in accordance with the diagram located on the bottom of the hob. ⚫ The cable type must be connected to the corresponding power supply terminal box. -
Page 9: Description Of The Ceramic Hob Surface Layout

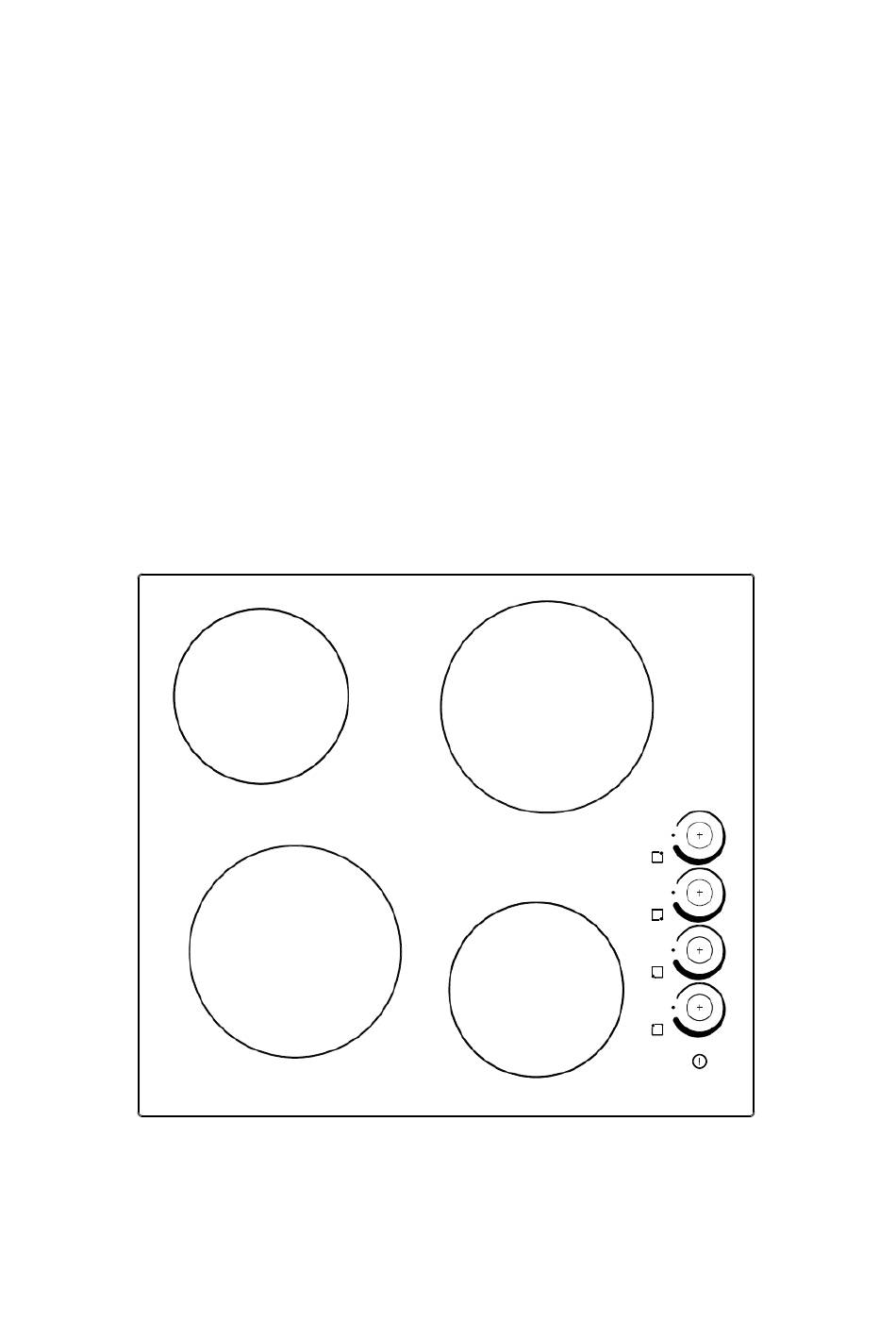

➢ The “blue” neutral wire must be connected to the terminal marked with letter (N) - the live wire(L1) must be connected to the terminal marked with letter (L1) (220-240V 1N～). Caution! Only qualified professionals can replace the power cable. Description of the Ceramic hob surface layout 4 zone ceramic hob schematic diagram Control panel layout... - Page 10 ✓ The whole hob standby mode indicator: all cooking zone indicator lights alternately turn on and off . 1.2 Control method: Touch button (power button) + programming button (Corresponding hob top power level selecting) 1.3 Control panel 2.1 Control panel layout: Icons &...
-
Page 11: Using The Ceramic Hob
NO.4 cooking zone indicating digital tube:display the power level , high temperature warning symbol etc. Using the ceramic hob Before first use IMPORTANT: You should clean the ceramic hob surface (see “Maintenance and cleaning” section). ✓ You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. - Page 12 ✓ If need to switch off one of the cooking zones, you can select corresponding the hob top’s programming button to adjust the power level to “0” to switch off that zone, and no affect the heating of the other cooking zones. When power level reaches “0”, the corresponding cooking zone indicator of hob top which has heated before will flash.
-
Page 13: How To Use The Hot Plate
✓ High temperature protection: The electronic temperature sensor on the control panel will transmit the real-time temperature to the chip of the control panel. The control sensor starts protection when the electronic temperature sensor gauge the current temperature is higher than a certain value, to reduce the heating level of the cooking zone currently, and resumes the heating level after the temperature drops. -
Page 14: Hob Guidelines
When the glass plate is too hot, the high temperature indication lamp will light up, don’t touch the glass plate until the indication lamp goes out. Shut down:after using,please turn the knob to “OFF”,the hob will stop heating. Caution! ➢ Ensure the heating plate is clean-a soiled zone does not transfer all of the heat. ➢... -
Page 15: Maintenance And Cleaning
Maintenance and cleaning Cleaning operations must only be carried out when the hob is cool. The appliance should be disconnected from your mains supply before commencing any cleaning process. Cleaning the ceramic hob top Any residues that are left on the hob top surface from cleaning agents will damage it. -
Page 16: Environmental Note
Do not leave pans with prepared dishes based on fats and oils unattended on the switched-on plate; hot fat can spontaneously catch fire. IMPORTANT: If your appliance appears not to be operating correctly, Please contact with dealer. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. Please note that if an engineer is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge. -
Page 17: Information For Electric Hob
EC electric cooking Wh/kg Left front zone：180.8 per cooking zone or Left rear zone：190.5 area calculated per kg Right front zone：208.4 Right rear zone：192.5 Energy consumption for EC electric cooking Wh/kg the hob calculated per Off power 0.46 IM UBCH60KCR 20240605...
