- Page 1 UBSPH60KCR Solid Plate Hob Instruction Manual...
-
Page 2: Table Of Contents
Content Safety instructions……………………………..……………........3-4 Installation……………………………..……………..........5-6 Description of the appliance………………..........…..7 Operation……………………………..……………..........7-8 Maintenance and cleaning……………………………..…………….....9 Environmental note……………………………..……………........9 Information for electric hob...............10... -
Page 3: Safety Instructions
Safety instructions his User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;... - Page 4 ⚫ ⚫ f it is necessary for younger family o not use the appliance to heat members to be in the kitchen, the room it is located in or to dry please ensure that they are kept clothing. under close supervision at all times. ⚫...
-
Page 5: Installation
Installation Installing the cooker hob ⚫ The kitchen area should be dry and aired and equipped with efficient ventilation. When installing the ceramic, easy access to all control elements should be ensured. ⚫ This is a Y-type design built-in ceramic, which means that its back wall and one side wall can be placed next to a high piece of furniture or a wall .Coating or veneer used on fitted furniture must be applied with a heat-resistant adhesive (100℃).This prevents surface deformation or detachment the coating. -
Page 6: Fitting Guidelines
⚫ IMPORTANT: You must observe the ventilation requirements shown in the drawing opposite. ⚫ IMPORTANT: There are ventilation holes around the outside of the hob. YOU MUST ensure that these holes are not blocked by the work top, when you put the hob into position (see drawing opposite). ⚫... -
Page 7: Replacing The Mains Supply Cable
Power cable for this hob Adaptive voltage range and wires Model The wiring diagram 220-240V 1N～ 50-60Hz UBCH60KCR H05VV-F 3G2.5 ⚫ The cable connections must be in accordance with the diagram located on the bottom of the hob. ⚫ The cable type must be connected to the corresponding power supply terminal box. ⚫... -
Page 8: Description Of The Appliance

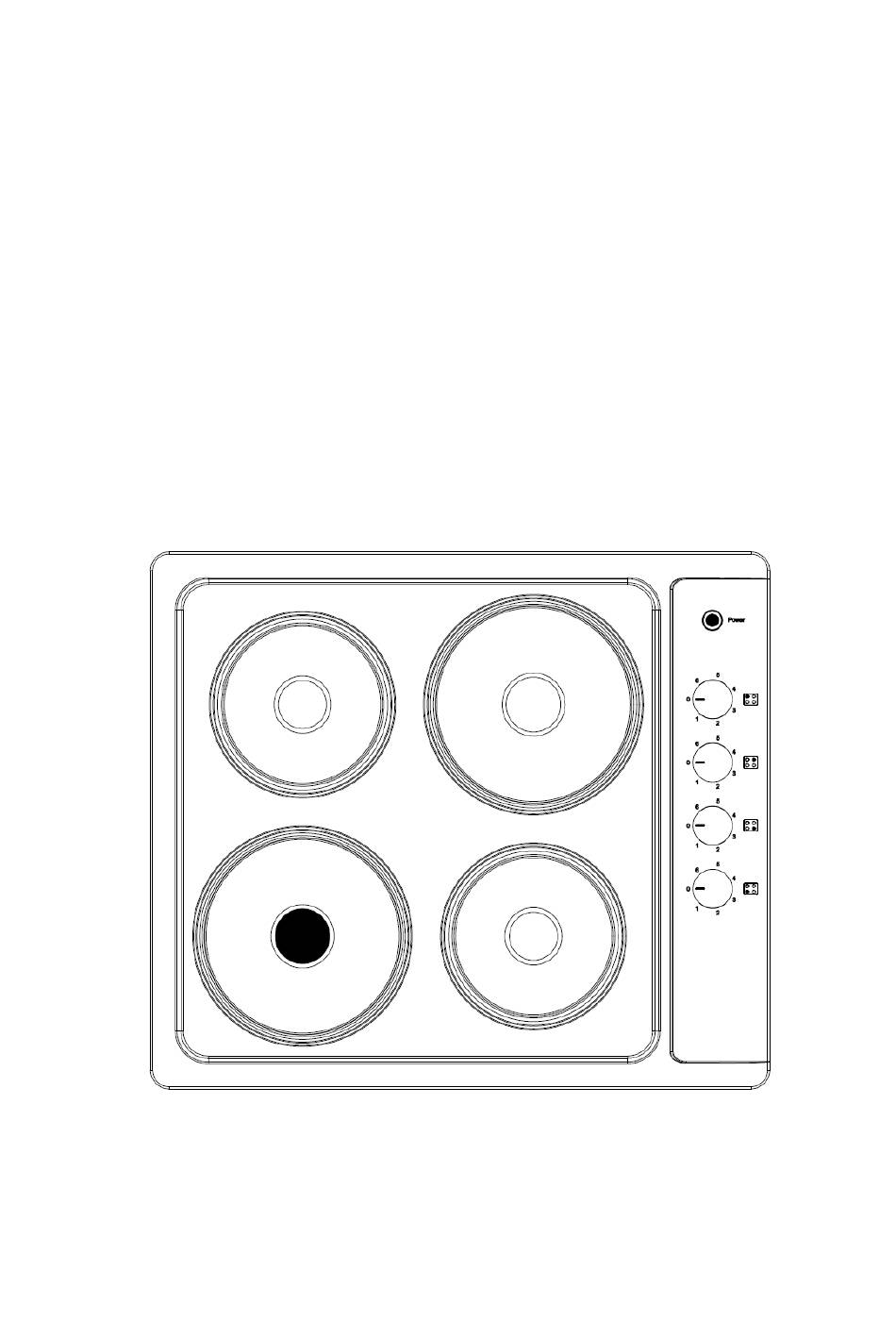

Description of the appliance 1. Front left hot plate ,Ø190mm ,2000W 2. panel 3. Rear left hot plate ,Ø150mm ,1000W 4. Rear right hot plate, Ø190mm,1500W 5. Operating light red 6. Rear left hot plate control knob 7. Rear right hot plate control knob 8. - Page 9 3 Cooking soups ,larger dishes 4 Slow frying 5 Grilling meat, fish 6 MAX. Fast heating up, fast cooking, frying The stainless ornamental rings can be cleaned using washing liquids or gentle liquid scrubbing agents and wiped dry. The surface of the hotplates should be regularly polished with white mineral oil or silicone oil.
-
Page 10: Maintenance And Cleaning
Maintenance and cleaning Environmental note Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. -
Page 11: Information For Electric Hob
EC electric cooking Wh/kg Left front zone：190.1 per cooking zone or Left rear zone：186.4 area calculated per kg Right front zone：182.8 Right rear zone：202.3 Energy consumption for EC electric cooking 190.4 Wh/kg the hob calculated per Off power IM UBSPH60KCR 20240605...
