Summary of Contents for Cata INSB 6003 BK

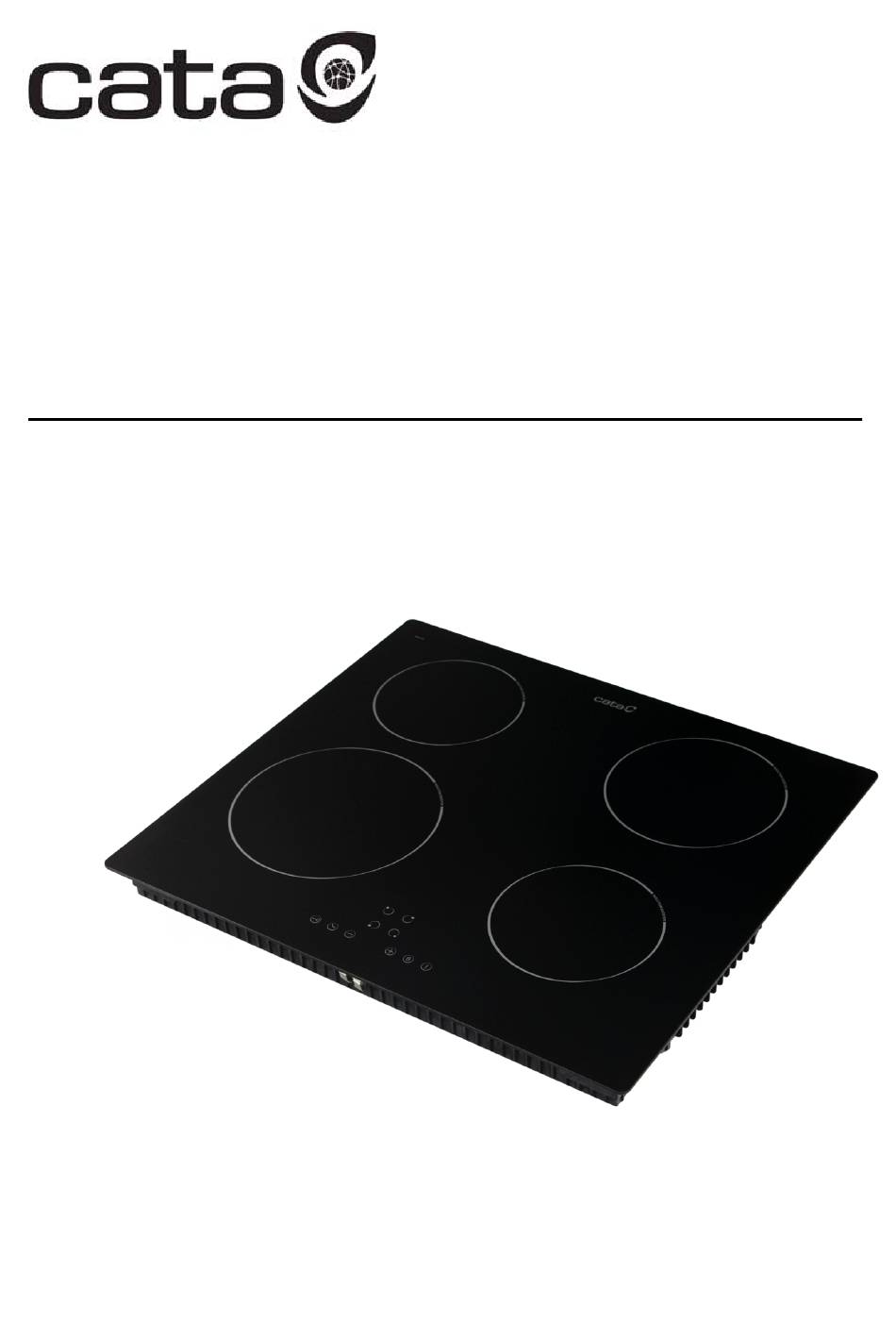

- Page 1 60CM INDUCTION HOB OPERATION AND STORAGE MANUAL Read in full and retain for future reference Keep this manual with the appliance. If the appliance is to be used by a third party, this instruction manual must be supplied with it.
-
Page 2: Before First Use
60CM INDUCTION HOB Before First Use • Before first use, remove any stickers or similar from the appliance, except for the rating label. • Dispose of any plastic bags as they pose a risk of suffocation for young children. Please read this manual before operating the appliance and keep it in a safe place for future reference. - Page 3 • Do not use your appliance as a work or storage surface, or leave any objects or utensils on the appliance. • Do not place or leave any magnetisable objects or electronic devices near the appliance, as they may be affected by its electromagnetic field. •...
-
Page 4: Installation Precautions
manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 5: Selection Of Installation Equipment
Please select heat-resistant work surface material to avoid any large deformation caused by the heat radiation from the hotplate. MODEL (mm) (mm) (mm) (mm) (mm) (mm) (mm) INSB 6003 BK INSB 6003 X (minium) INSB 6004 BK INSB 8021 BK (minium) INSB 9012 BK (minium) - Page 6 The unit should be placed on a stable, smooth surface. Do not apply force onto the controls protruding from the hob. Cut out worktop to the supplied dimensions shown, with suitable equipment. Seal the cut edge of the worktop using silicone or PTFE and allow to dry before fitting the Hob.
- Page 7 A (mm) B (mm) C (mm) D (mm) Air intake 760 min. 50 min. 20 min. Air exit 5min. 5 min. AFTER YOU HAVE INSTALLED THE HOB • Make sure that the power supply cable is not accessible through cupboard doors or drawers. •...
-
Page 8: A Word On Induction Cooking
A WORD ON INDUCTION COOKING Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly into the cookware, rather than indirectly through heating the glass surface. The glass becomes hot only because the cookware eventually warms it up. -
Page 9: Product Description
• If cast iron cookware is used, make sure it has an enamel bottom to aviod scratching the ceramic hob surface. • Do not use cookware with jagged edges or a curved base. • Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. -
Page 10: Operation
Operation TO START COOKING Touch the ON/OFF control. After power on, the will buzzer beep once and all displays will show (-) or (--), indicating that the Induction Hob has entered the state of standby mode. 2. Place suitable cookware on the cooking zone that you wish to use. -
Page 11: Using The Boost Function
USING THE BOOST FUNCTION The Booster function provides higher power for a maximum of 5 minutes giving you a faster cooking time with more power. The function can work in any cooking zone. To active the Boost function Touch Booster key (8) of the desired cooking zone. The related power display will show “P.”... - Page 12 3. To cancel the pause status, touch Stop&Go (4), The cooking zones will go back to the power level that they were previously set. FLEXIBLE ZONE FUNCTION (only in some models) This area can be used as a single, big zone or as two different zones, according to the cooking needs.
-
Page 13: Overheating Protection
USING CHILD LOCK FUNCTION You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). When the controls are locked, all of the controls except for the OFF control are disabled. To lock the controls Touch the Keylock (6) for 3 seconds. -
Page 14: Using The Timer
USING THE TIMER You can use the timer in two different ways. You can use it as a Minute Minder or you can set it to turn one cooking zone off after the set time is up. The timer can be set for up to 99 minutes. Using the Timer as a Minute Minder After selecting the cooking zone and the power level required (3), the dot next to power level indicator will flash for 5 seconds. -
Page 15: Troubleshooting
Troubleshooting Troubleshooting If an error occurs, the induction Hob will enter the protective state If an error occurs, the Induction Hob will enter the protective state automatically and display corresponding protective codes: automatically and display corresponding protective codes: ERROR POSSIBLE CAUSE SOLUTION The induction hob No power. - Page 16 ERROR POSSIBLE CAUSE SOLUTION No cookware or cookware Replace the cookware. is not suitable. ER03 Water or cookware on the glass is Clean the user interface. over the control area. The connection between the display • The connection cable is not board and the mainboard has failed correctly plugged in or is (the cooking zone indicator is...
- Page 18 Customer Support www.asiapacbrands.com Helpline New Zealand call toll free 0508 274 2722 Australia call +64 9 974 9206 Distributed by Asia Pacific Brands 2019 Ltd PO Box 301145 Albany, Auckland 0752, New Zealand...
