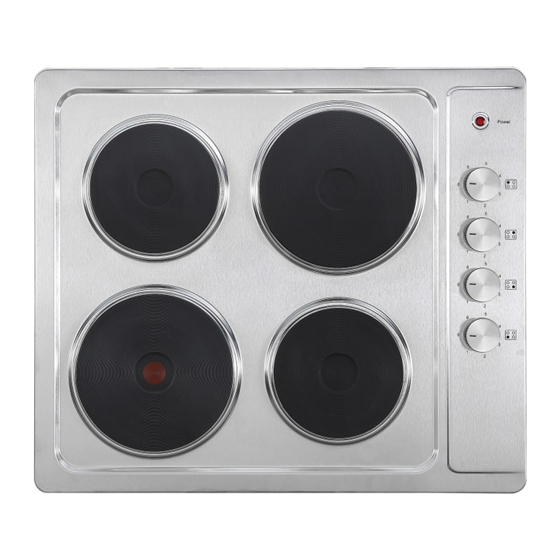

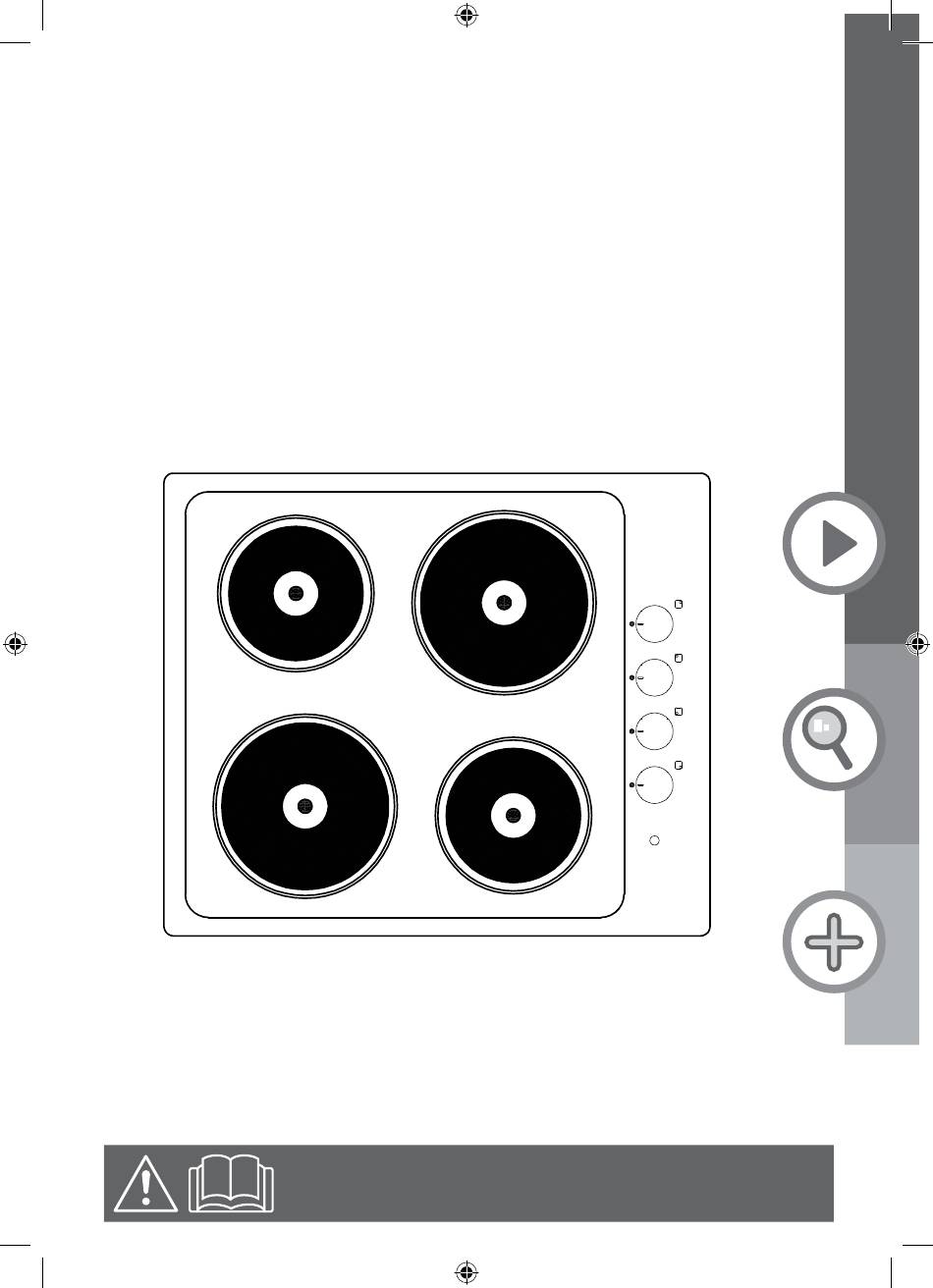

- Page 1 60cm Solid Hotplate Electric Hob Model Number UBESP60IX WARNING: Read the instructions before using the appliance.
- Page 2 [01] x 1 [02] x 4 1 : 1 [03] x 1 [04] x 4 [05] x 1 60 cm Solid Plate Electric Hob...
-
Page 3: Table Of Contents
Let's get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started… Your product Before you start Safety more detail… Operation Care and maintenance Troubleshooting Recycling and disposal Technical specifications Wiring Technical and legal information... -
Page 4: Getting Started
Your product Before you start Your product Control panel Installation guide located at the end of the guidebook Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. -
Page 5: Safety
Safety Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a competent person or qualified electrician. • This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer’s instructions. - Page 6 Safety This appliance is not intended for use by persons (including children) with reduced physical sensory, or mental capabilities, or by those who lack experience and knowledge, unless they have been given supervision and instruction concerning the use of the appliance by a person responsible for their safety.
- Page 7 Safety Safety Please dispose of the packing material carefully. Do not use flammable sprays in close vicinity to the appliance. We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully.
-
Page 8: In More Detail
Operation Product functions • 2 x 2.00 kW thermostatic plates (diameter 180 mm). Rapid hot plates. • 2 x 1.50 kW thermostatic plates (diameter 155 mm). Semi-rapid hot plates. • Side control operation. 6 power levels. Control elements Control panel Reference Description Rapid hot plates... - Page 9 Before first use • You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. This will help to eliminate any new smell that exists and evaporate any humidity that has formed on the heating elements during transit.
- Page 10 Operation Turning on a zone and setting a power level Recommended pan diameters (cm) Hotplate 14-22 Small Hotplate 18-22 Large Hotplate Hob guidelines • The first few times the hob top is used, it may give off an acrid, burning smell. •...
-
Page 11: Care And Maintenance
Care and maintenance Care and maintenance If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. For domestic use only. When a cooking zone has been on for a long time, the surface remains hot for some time afterwards so do not touch the ceramic surface. - Page 12 Care and maintenance Care and maintenance After each use • Wipe the inner and outer surface of the appliance and its accessories with wet cloth. • Dry the appliance by the surface with a clean cloth. • If the hob top is heavily soiled a suitable stainless steel cleaner should be used.
-
Page 13: Troubleshooting
Troubleshooting Troubleshooting The following circumstances may not be a problem. Do not contact the customer services until the problem has been confirmed. If your appliance is still not functioning properly after making the below checks, please contact customer services. Do not take the appliance apart yourself, as you may damage the hob. Problem Possible cause Possible solution... -
Page 14: Recycling And Disposal
Recycling and disposal Technical specifications Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. -
Page 15: Wiring
Wiring Wiring All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hob. WARNING: THIS APPLIANCE MUST BE EARTHED. Mains Supply could be connected to the Mains Voltage by Direct Connection DOUBLE POLE SWITCHED FUSED SPUR OUTLET... -
Page 16: Technical And Legal Information
Technical and legal information Technical and legal information The Manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance. Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company regulations. -
Page 17: Guarantee
CE Declaration of Conformity CE Declaration of Conformity MANUFACTURER: CATA C/ Ter nº 2, Torelló 08570 - Barcelona (Spain) ADDRESS: We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law. -
Page 18: Installation
Installation Clearance Warning Good ventilation is required around the appliance for easier dissipation of heat and low power consumption. Sufficient clearance is required around the appliance. The gap between the hob and any cupboard above it should be at least 600mm. - Page 19 Installation [05] x 1 Cut out worktop to the template dimensions with suitable equipment and seal the cut edge with appropriate sealant. [03] x 1 [03] Stretch out the supplied seal along the underside edge of the hob, ensuring the ends overlap.
- Page 20 30mm 40mm [02] x 4 [04] [02] [04] [02] [04] x 4 Note: For electrical connection see Technical and legal information section.
- Page 21 Notes...
- Page 22 Apelson Appliances UK Ltd Unit 3 Normandy Landings Pope Street Castleford WF6 3AG...
