Summary of Contents for Cata EC60T2
-

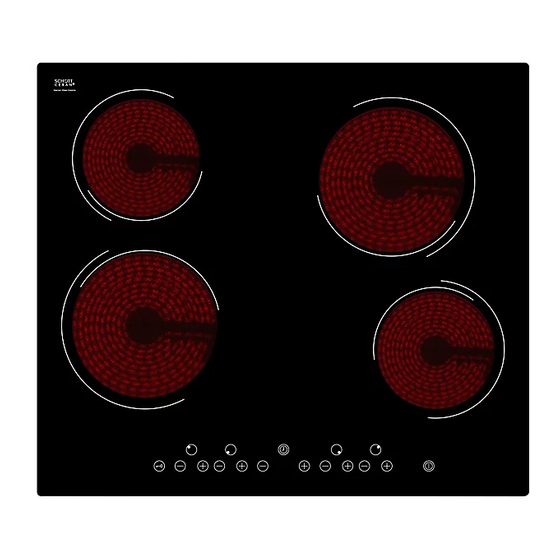

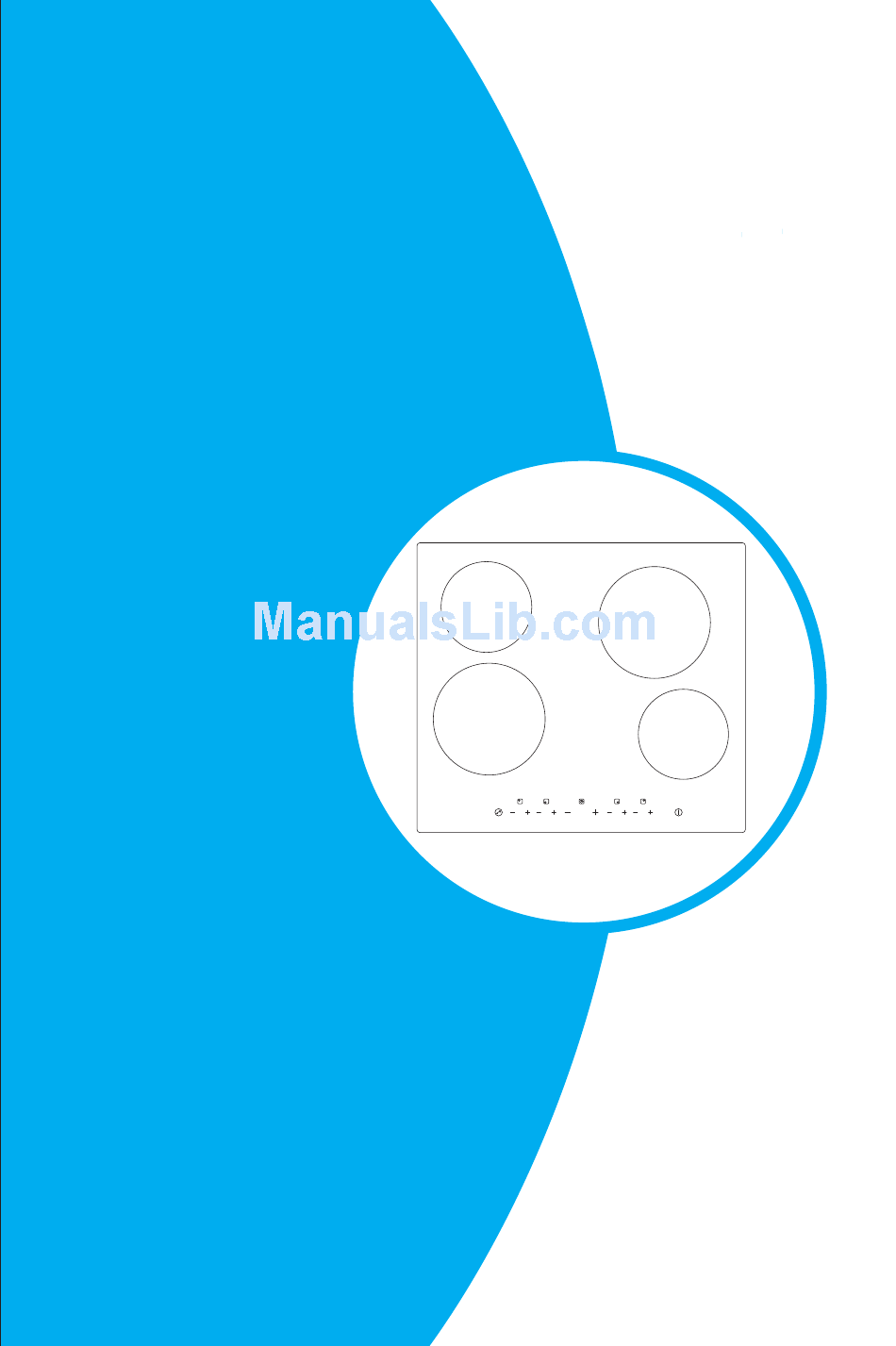

Page 1: Ceramic Hob
Instruction Manual for the Ceramic Hob Model:EC60T2... - Page 2 Dear customer, Thank you for purchasing our ceramic hob. Please read this instruction manual carefully before using and ensure it is installed by a qualified electrician and to current UK regulations. Care & Maintainence • Avoiding banging pots and pans down on the hob. The glass surface is tough but not unbreakable •...
-
Page 3: Installation
Safety Residual heat indicators After using the hob, residual heat remains in the heating area. The LED shows the code “H” which indictates that the zone is not safe to touch Auto shut down protection During operation the hob will automatically shut off as detailed in chart below Power level Default working... - Page 4 Under all circumstances, make sure the ceramic hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic hob is in a good work state. As shown in Figure (2) Mini 750mm Air exit mini 5 cm mini 5 mm mini 2 cm Air intake...
-
Page 5: Power Line Connection
Please note The ceramic hob must be installed by qualified personnel or technicians in accoradance with current regulations. Please never conduct the installation by yourself. The ceramic hob should not be mounted above cooling equipment, dishwashers and rotary dryers. Please ensure there is adequate ventillation underneath the ceramic hob to enhance its reliability A steam cleaner is not to be used. -
Page 6: Instructions For Use
The ceramic hob appearance Glass plate Power cord Control panel ON/OFF Schematic diagram of the control panel Timer Power/Timer ON/OFF regulating key Childproof lock key Instructions for Use Put the pan in the centre of the heating zone. Preparation before using After power on, the buzzer bleeps once, all the indicators light up for 1 second then go out, indicating the ceramic hob enters into standby mode. -
Page 7: Operation Instructions
Operation Instructions: After the " ON/OFF "key is pressed,all the indicators show " - ".Then you can set the heat setting of corresponding heating zone Note: 1. In standby working mode, touch the “ON/OFF” symbol the heating zone will restore to the standby working mode if there is no heat setting within 2 minutes. - Page 8 Safety Reminder and Maintenance A dedicated power protection Never use the ceramic cooker Do not put any detergents or air swith protection air switch hob in high temperature flammable materials in the must be incorporated in the environments such as near a equipment installed under the fixed wiring in accordance gas stove or kerosene stove.
-
Page 9: Care And Maintenance
DISPOSAL: Do not dispose this Indoor use only. Clean the ceramic hob on a regular basis to prevent product as unsorted municipal the build up of food residue waste. Collection of such waste separately for special treatment is necessary. Care and Maintenance You can easily clean the surface of the ceramic hob if following the methods given in the table. -
Page 10: Your Guarantee
For any mistake and omission in printing or misunderstanding of the contents,the company keeps the right of interpretation. Addition:any technical improvement will be placed in the revised manual without notice;for product appearance and color is according to the actual one IM EC60T2 2009.04.27...
