Ceramic Hob
Instruction Manual / Installation Manual
MODEL:
UBTC30BV
UBTCC60BV
UBTCC60BVD
UBTCC60MZ
UBTCC77BV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UBTC30BV and is the answer not in the manual?

Questions and answers

Summary of Contents for Cata UBTC30BV

  • Page 1 Ceramic Hob Instruction Manual / Installation Manual MODEL: UBTC30BV UBTCC60BV UBTCC60BVD UBTCC60MZ UBTCC77BV...
  • Page 2: Safety Warnings

    SAFETY WARNINGS PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory.
  • Page 3 • This appliance is to be properly installed and earthed only by a suitably qualified person. • This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. • WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance.
  • Page 4 • During use, accessible parts of this appliance will become hot enough to cause burns. • Do not let your body, clothing or any item other than suitable cookware contact the ceramic glass until the surface is cool. • Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.4 •...
  • Page 5 • Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. • Do not leave children alone or unattended in the area where the appliance is in use. •...
  • Page 6 • Care should be taken to avoid touching heating elements. • Children less than 8 years of age shall be kept away unless continuously supervised. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the...
  • Page 7: Product Overview

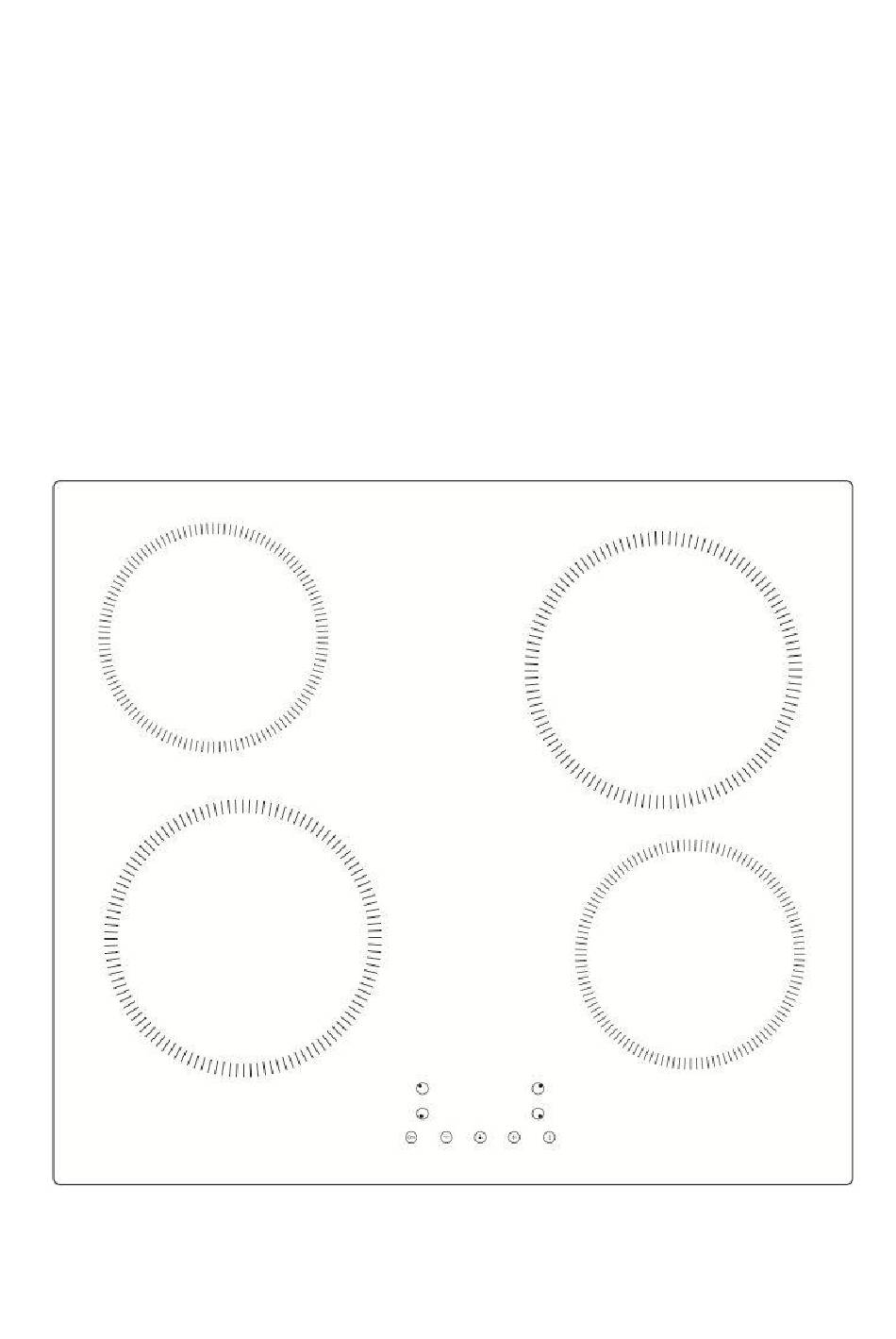

    Product Overview Top View 1. max. 1700 W zone 2. max. 1200 W zone 3. Control panel UBTC30BV 1. max. 1800 W zone 2. max. 1200 W zone 3. max. 1800 W zone 4. max. 1200 W zone 5. Control panel UBTCC60BV 1.
  • Page 8 1. max. 1100/2200 W zone 2. max. 1200 W zone 3. max. 1100/2000 W zone 4. max. 1200 W zone 5. Control panel UBTCC60MZ 1. max. 1100/2200 W zone 2. max. 1200 W zone 3. max. 1100/2000 W zone 4. max. 1600 W zone 5.
  • Page 9: The Control Panel

    The Control Panel UBTC30BV UBTCC60BV/UBTCC60BVD UBTCC60MZ UBTCC77BV 1. ON/OFF switch 4. Child lock 2. Select power level 5. Select heating zone 3. Setting the timer 6. Double zone control...
  • Page 10: Product Information

    Product Information The ceramic/induction hob can meet different kinds of cuisine demands because of resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice for modern families. The hob centers on customers and adopts personalized design. The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life.
  • Page 11: Using Your Hob

    Always lift pans off the ceramic hob – do not slide, or they may scratch the glass. Using your Hob To start cooking After power on, the buzzer beeps once, all the indicators light up for 1 second then • go out, indicating that the hob has entered the state of standby mode.
  • Page 12: Locking The Controls

    Turn the cooking zone off by scrolling down to”0”. Make sure the display shows”0”. Turn the whole cooktop off by touching the ON/OFF control. Beware of hot surfaces “H” will show which means cooking zone is too hot to touch. It will disappear when the surface has cooled down to a safe temperature.
  • Page 13: Residual Heat Warning

    When the hob is in lock mode, all the controls are disable except the ON/OFF, you can always turn the hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation. Residual Heat Warning When the hob has been operating for some time, there will be some residual heat.
  • Page 14 2. Touch timer key, “10” will show in the timer display and “0” will blink. 3. Set the time by touching the”-” or” +” control of the timer (e.g. 5) 4. Touch timer control again, then “1” will flash. 5. Set the time by touching the “-“ or “+” control (e.g.9), now the timer you set is 95 minutes.
  • Page 15 Using the timer to switch off one or more cooking zones 1. Touching the heating zone selection control that you want to set the timer for. 2. Touch timer control, the “10” will show in the timer display. and the “0” fiashes. 3.
  • Page 16 7. When cooking timer expires, the corresponding cooking zone will switch off automatically. Note: Other cooking zones will keep operating if they are turned on previously. If the timer is set on more than one zone: When you set timer for several cooking zones, red dots of the relevant cooking zones are indicated.
  • Page 17: Cooking Guidelines

    Cooking Guidelines ke care when frying as the oil and fat heat up very quickly, particularly if you’re using Boost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk. Cooking Tips When food comes to the boil, reduce the power setting. •...
  • Page 18: Heat Settings

    For stir-frying 1. Choose a ceramic compatible flat-based wok or a large frying pan. 2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches. 3. Preheat the pan briefly and add two tablespoons of oil. 4.
  • Page 19: Care And Cleaning

    Care and Cleaning What? How? Important! Everyday soiling on glass 1. Switch the power to the cooktop off. • When the power to the cooktop is (fingerprints, marks, 2. Apply a cooktop cleaner while the switched off, there will be no ‘hot stains left by food or glass is still warm (but not hot!) surface’...
  • Page 20: Hints And Tips

    See ‘Choosing the right Unsuitable, abrasive scourer or cookware’. Cleaning products being used. See ‘Care and cleaning’. Technical Specification Ceramic Hob UBTC30BV Cooking Zones 2 Zones Supply Voltage 220-240V~ 50/60Hz Installed Electric Power 2900W Product Size D× W× H(mm) 290×...
  • Page 21: Selection Of Installation Equipment

    Ceramic Hob UBTCC60MZ Cooking Zones 4 Zones Supply Voltage 220-240V~ 50/60Hz Installed Electric Power 6600W Product Size D× W× H(mm) 590× 520× 50 Building-in Dimensions A× B (mm) 560× 490 Ceramic Hob UBTCC77BV Cooking Zones 4 Zones Supply Voltage 220-240V~ 50/60Hz Installed Electric Power 7000W Product Size D×...
  • Page 22 L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) UBTC30BV 50 mini UBTCC60BV 50 mini UBTCC60BVD 50 mini UBTCC60MZ 50 mini UBTCC77BV 50 mini Under any circumstances, make sure the hob is well ventilated and the air inlet and outlet are not blocked. Ensure the hob is in good work state. As shown below Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.
  • Page 23: Before Locating The Fixing Brackets

    a suitable isolating switch providing full disconnection from the mains power • supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations. The isolating switch must be of an approved type and provide a 3mm air gap contact •...
  • Page 24: Connecting The Hob To The Mains Power Supply

    Cautions  The hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.  The hob shall not be mounted to cooling equipment, dishwashers and rotary dryers.  The hob shall be installed such that better heat radiation can be ensured to enhance its reliability.
  • Page 25 UBTCC77BV  If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents.  If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts.
  • Page 26 Energy data sheet...
  • Page 32 For more detailed information about treatment, recovery and recycling of for special treatment is this product, please contact your local city office, your household waste necessary. disposal service or the shop where you purchased the product. UBTC30BV&UBTCC60BV&UBTCC60BVD&UBTCC60MZ& UBTCC77BV User Manual v.20171012...

This manual is also suitable for:

Ubtcc60bvUbtcc60bvdUbtcc60mzUbtcc77bv
