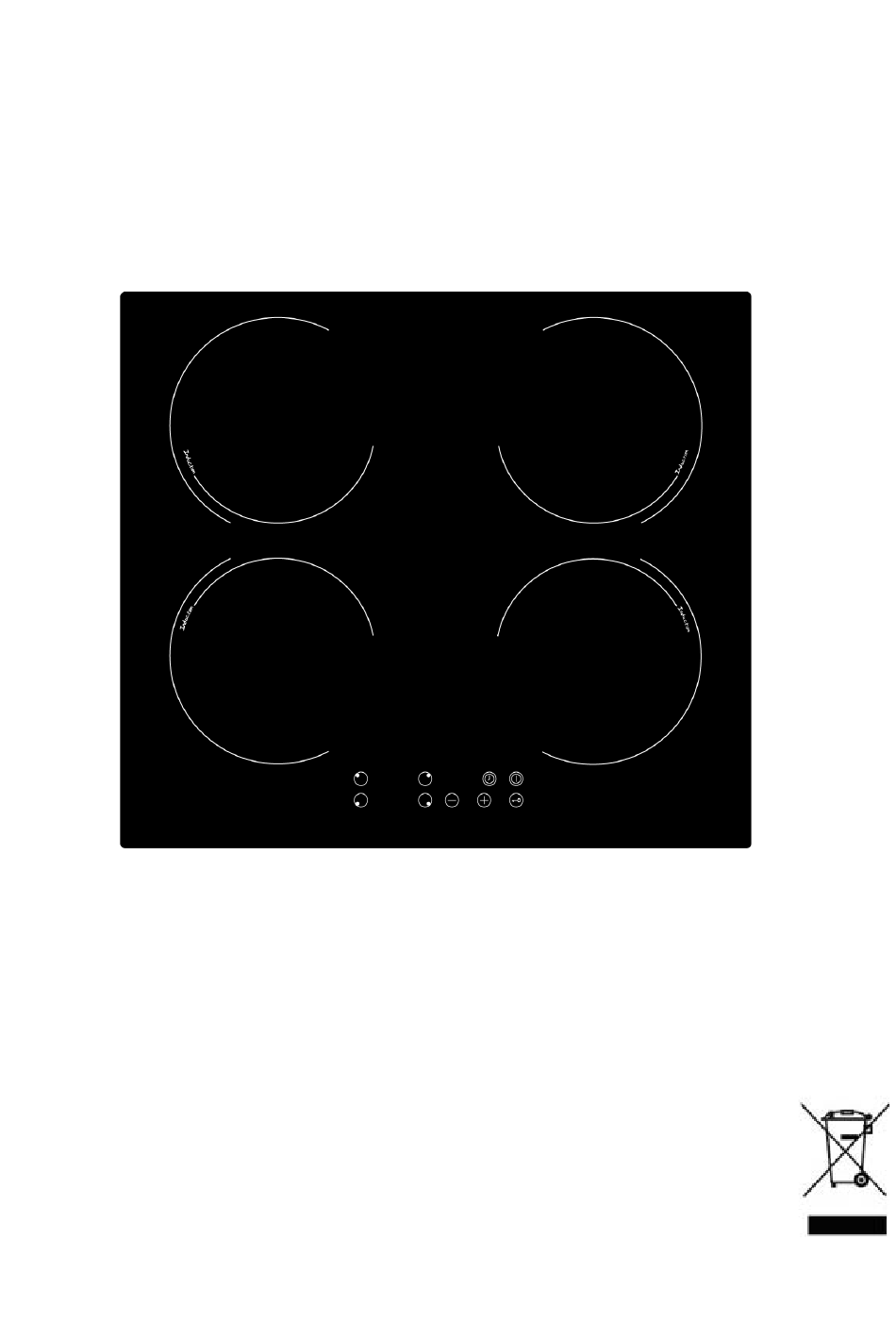

- Page 1 UBIND60 IM UBIND60 20130627 - 1 -...
-
Page 2: Product Introduction

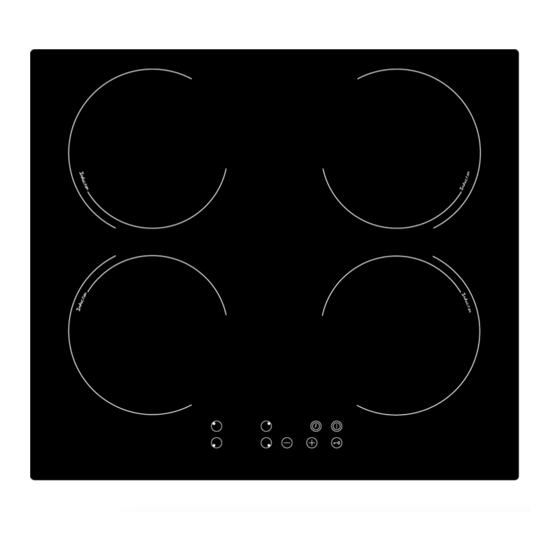

Please read this instruction manual carefully before using the hob and keep it in a safe place for future reference. Product Introduction The UBIND60 induction hob caters for all kind of cooking, with its electromagnetic cooking zones, and its micro-computerised controls and multi-functions, making it the ideal choice for today's family. -
Page 3: Installation
2. Detection of small or non-magnetic items When a unsuitable size or non-magnetic pan (e.g. aluminium), or some other small item (e.g. knife, fork, key) has been left on the hob, the hob goes automatically on to standby a minute later. Residual heat indicator When the hob has been operating for some time,there will be some residual heat. - Page 4 mini 750 mm Air exit mini 5 cm mini 5 mm mini 2 cm Air intake Figure (2) Caution: For safety, the gap between the hob and any cupboard above it should be at least 750 mm. 3. Fix the hob to the worktop using the four brackets on the base of the hob. The position of the brackets can be adjusted according to the thickness of the top.
- Page 5 220-240V~ (1)If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents. (2)If the appliance is being connected directly to the mains supply , an omnipolar circuit breaker must be installed with a minimum gap of 3 mm between the contacts.
- Page 6 Schematic diagram of the control panel Heating zone selection key Timer key ON/OFF System key Power Regulating key Instructions for Use Preparation before using: When the power is switched on, the buzzer will sound once and all the indicators will come on for one second and then go out.
- Page 7 Timer cancellation After setting the time again, hold down the "Timer" key for 5 seconds. This will cancel the timer and the indicator will revert to "0". Safety mode To ensure the safety of children, the induction hob is fitted with an interlock device. To lock: hold down the "Interlock"...
-
Page 8: Care And Maintenance
Care and Maintenance: If the power cable is damaged it should be replaced by our service agent or by another suitably qualified person. For indoor use only. Never wash the induction hob directly with water. Never have the induction hotplate to work without food inside, otherwise its operational performance may be affected. - Page 9 If the surface of the hob is cracked , switch off the appliance to avoid any possibility of electric shocks. Do not place rough or uneven vessels on the hob, as they may damage the ceramic surface. Clean the induction hob regularly to stop foreign objects from getting into the fan and preventing the appliance from working properly.
-
Page 10: Customer Care Service
Care and Maintenance The surface of the induction hob may be easily cleaned in the following way: Type of contam-ination Method of cleaning Cleaning materials Rings and lime scale Apply white vinegar to the area, Special hob cleaner such as wipe it dry with soft cloth or use Hob Brite a commercially available product...
