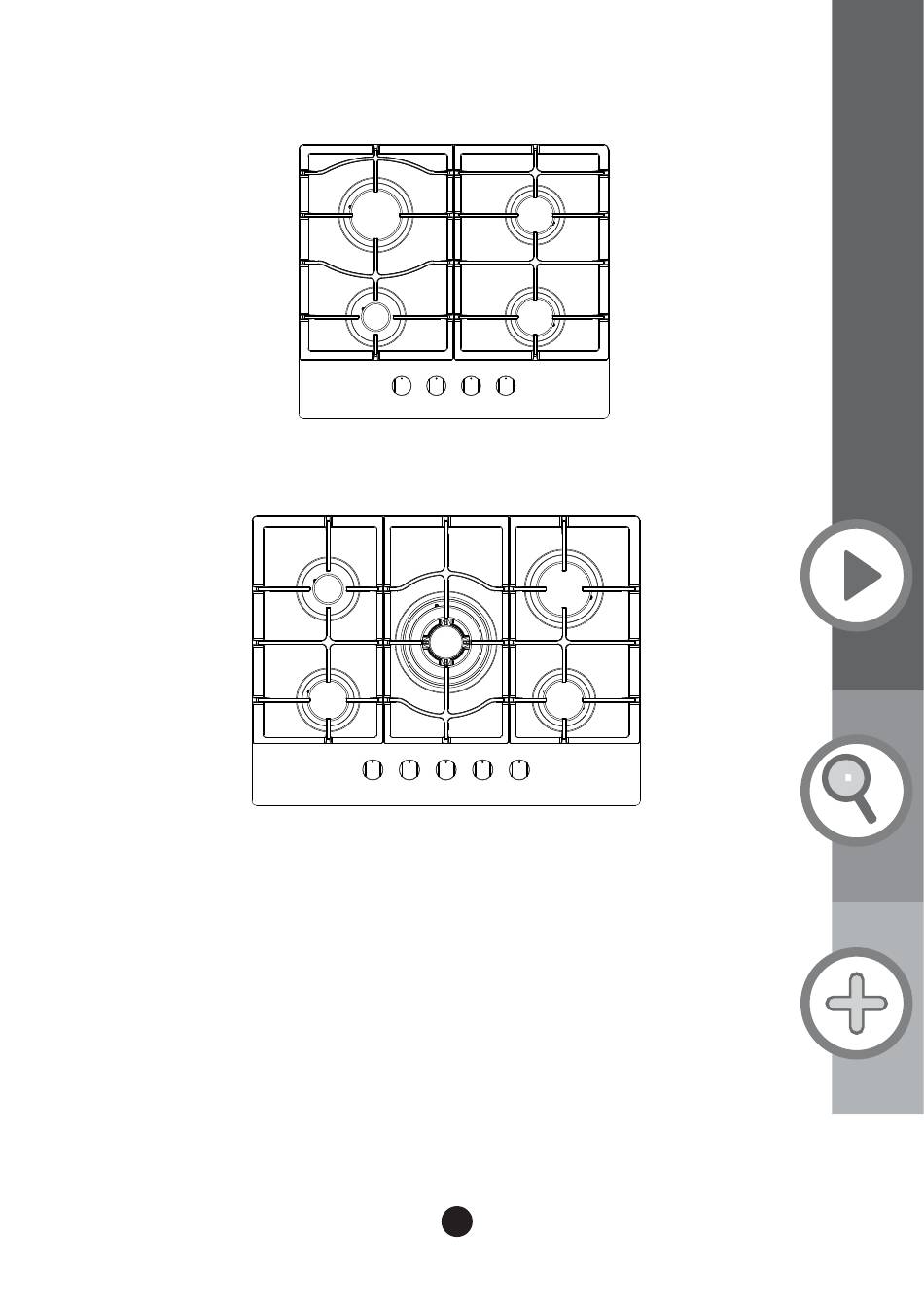

- Page 1 WRGOGH60 WRGOGH70 Gas-On-Glass Hob User Manual...
- Page 2 UBGOG601BK [03] x 1 [04] x 2 [05] x 1 [01] x 1 [06] x 1 set [10] x 4 [11] x 3 [07] x 1 [08] x 3 [09] x 1set [12] x 1...
- Page 3 UBGOG701BK [02] x 1 [03] x 1 [04] x 2 [01] x 1 [05] x 1 [06] x 1 set [10] x 5 [11] x 4 [07] x 1 [08] x 4 [09] x 1set [12] x 1...
- Page 4 UBGOG901BK [02] x 1 [03] x 1 [04] x 2 [01] x 1 [05] x 1 [06] x 1 set [10] x 5 [11] x 4 [07] x 1 [08] x 4 [09] x 1set [12] x 1...
- Page 5 UBGOG601BK UBGOG701BK UBGOG901BK Built in Gas Hob Installation...
-
Page 6: Table Of Contents
Let's get started... started... Getting Before you start Safety more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Appendix Installation... -
Page 7: Getting Started
Getting Started... Before you start Safety... -
Page 8: Tools Required
Before you start Before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. please keep this instruction booklet for future reference and pass it on to any future owners. - Page 9 Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. WARNING: The connection of the hob to the gas network or gas cylinder must be made by means of a rigid copper or steel pipe with fittings complying with local regulations supplied.
- Page 10 Safety • Means for isolating the appliance must be incorporated in the fixed wiring in accordance with the current wiring regulations. An omnipolar circuit breaker having a contact separation of at least 3 mm in all poles should be connected in the fixed wiring.
- Page 11 Safety • The appliance is for domestic use only. • When a cooking zone has been on for a long time, the surface remains hot for some time afterwards so do not touch the metal surface. • Do not store detergents or flammable materials beneath the hob.
- Page 12 Safety WARNING! Risk of fire! Do not store items on the cooking surfaces. • Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible. • The adjustment conditions for this appliance are stated on the label (or data plate).
- Page 13 Safety • Read the instructions before installing or using this appliance. CAUTION: The use of a hob guard is not permitted with this appliance. Do not attempt to fit or use a hob guard as this can cause accidents. • The minimum distance between this separation and the underneath of the worktop shall be stated and this minimum distance declared shall not exceed 150 mm.
-
Page 14: In More Detail
more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information... -
Page 15: Operation
Operation UBGOG601BK Product functions • 4 x Burners: Four zones of cooking. • Flame safety device (FSD): Stops the gas supply to the gas hob when the fame goes out. • auto - ignition • LPG conversion kit supplied. Control elements Reference Description Qty Reference... - Page 16 Operation UBGOG701BK Product functions • 5 x Burners: Five zones of cooking. • Flame safety device (FSD): Stops the gas supply to the gas hob when the fame goes out. • auto - ignition • LPG conversion kit supplied. Control elements Reference Description Qty Reference...
- Page 17 Operation UBGOG901BK Product functions • 5 x Burners: Five zones of cooking. • Flame safety device (FSD): Stops the gas supply to the gas hob when the fame goes out. • auto - ignition • LPG conversion kit supplied. Control elements Reference Description Qty Reference...
-
Page 18: Operation
Operation Operation UBGOG601BK UBGOG701BK, UBGOG901BK Use of the burners Caution • If there is no electric current you can light the burners with piezo electric spark gas ignitor. • The burners can only be lit with safety thermocouples when the knob is on MAXIMUM. On the control panel to the left of every knob there is a diagram to indicate the burner to which the knob in question refers. - Page 19 Operation NOTE: > The use of a gas cooking appliance produces heat and humidity in the place where it is installed. Therefore, you need to ensure the place is well ventilated, keeping the > natural ventilation openings clear and using a mechanical ventilation device/ flue or electric fan.
-
Page 20: Care And Maintenance
Care and maintenance Appliance cleanliness Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, FUSE contact customer services. Caution • Use soapy water and a cloth for cleaning. Never use abrasive powders. •... -
Page 21: Replacement Of Parts
Care and maintenance Replacement of parts Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, FUSE contact customer services. -
Page 22: Troubleshooting
Troubleshooting Troubleshooting The following circumstances may not be a problem. Do not contact the If your appliance is still not functioning properly after making the above checks, please contact customer services. 1. C heck that the mains supply has not been switched off. 2. -
Page 23: Technical And Legal Information
technical and legal information Technical data Power Supply V/Hz 220-240 Vac 50/60Hz G20-20mbar mbar Gas Pressure G30-28~30mbar 55x520x590 HxDxW mm External Dimensions NG(G20 20mbar) LPG(G30 28-30mbar) Injector Dia. (mm) and kW Injector Dia. (mm) and kW Gas Category 0.84 3 .0 Rapid Burner 1.24 3 .0... - Page 24 technical and legal information Technical data Power Supply V/Hz 220-240 Vac 50/60Hz G20-20mbar mbar Gas Pressure G30-28~30mbar 55x520x700 HxDxW mm External Dimensions NG(G20 20mbar) LPG(G30 28-30mbar) Injector Dia. (mm) and kW Injector Dia. (mm) and kW Gas Category 0.94 Wok Burner 1.27 0.84 3 .0...
- Page 25 technical and legal information Technical data Power Supply V/Hz 220-240 Vac 50/60Hz G20-20mbar mbar Gas Pressure G30-28~30mbar 55x520x874 HxDxW mm External Dimensions NG(G20 20mbar) LPG(G30 28-30mbar) Injector Dia. (mm) and kW Injector Dia. (mm) and kW Gas Category 0.94 Wok Burner 1.27 0.84 3 .0...
- Page 26 technical and legal information UBGOG601BK Overall Dimensions: Width: 590mm Depth: 520mm Cut-out Dimensions Width: 555mm Depth: 475mm UBGOG701BK Overall Dimensions: Width: 700mm Depth: 520mm Cut-out Dimensions Width: 555mm Depth: 475mm...
- Page 27 technical and legal information UBGOG901BK Overall Dimensions: Width: 874mm Depth: 520mm Cut-out Dimensions Width: 828mm Depth: 478mm...
-
Page 28: Technical And Legal Information
Technical and legal information All installation work must be carried out by a Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. Warning: THIS APPLIANCE MUST BE EARTHED. Mains Supply could be connected to the Mains Voltage by Direct Connection DOUBLE POLE SWITCHED... - Page 29 Technical and legal information Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company regulations. For roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation. Electrical Connection Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the appliance.
- Page 30 Technical and legal information Installation Guidelines Gas Supply Requirements (UK and ROI) This installation must comply with the Gas Safety Regulations 1984. The connection to the gas supply must comply with all current regulations in force. We are not legally able to offer advice on the installation of gas appliances to non Gas Safe registered personnel.
-
Page 31: Gas Connection
Technical and legal information Gas connection Caution The gas connection must be installed in compliance with applicable regulations in the country of installation. The preferred method of connection is by rigid copper pipe or by flexible hose, depending on local regulations. The hob is supplied with a G½”... - Page 32 Technical and legal information Lift up the burners and unscrew the nozzle using an dedicated tool and replace the nozzles with those designed for LPG gas supply . (see table on page 19) Note: When the injectors have been changed the gas technician should mark the appliance to show which injectors are being used.
- Page 33 Technical and legal information The Manufacturer has a policy of continuous product improvement, it necessary without prior warning.
- Page 34 Appendix...
-
Page 35: Installation
Installation Clearance Warning Good ventilation is required around the appliance for easier dissipation of heat and low power consumption. The gap between the hob and any cupboard above it should be at least 750mm. 750mm 750mm At least 300mm 60mm At least 300mm... - Page 36 Installation [12]x 1 Cut out worktop to the template dimensions with suitable equipment and seal the cut edge with appropriate sealant. [07] x 1 [07] Stretch out the supplied seal along the underside edge of the hob ensuring the ends overlap.
- Page 37 Installation 30mm 40mm [11] [08] UBGOG601BK [08] x 3 UBGOG701BK/ [11] [08] UBGOG901BK [08] x 4 UBGOG601BK [11] x 3 UBGOG701BK/ UBGOG901BK [11] x 4 Note The images above are a guide only Note For electrical connection see Technical and legal information section...
- Page 38 Notes...
- Page 40 AAUK Ltd Good Hope Close Normanton Industrial Estate Normanton West Yorkshire WF6 1TR 2531 Pin code :2531DN-0067 UBGOG601BK UBGOG701BK UBGOG901BK IM 21.11.2023...
- Page 41 此页不印刷 This page will not be printed 版本号：20231121 V1.3 材质：A5,70克双胶纸，单色印 刷，骑马钉...
