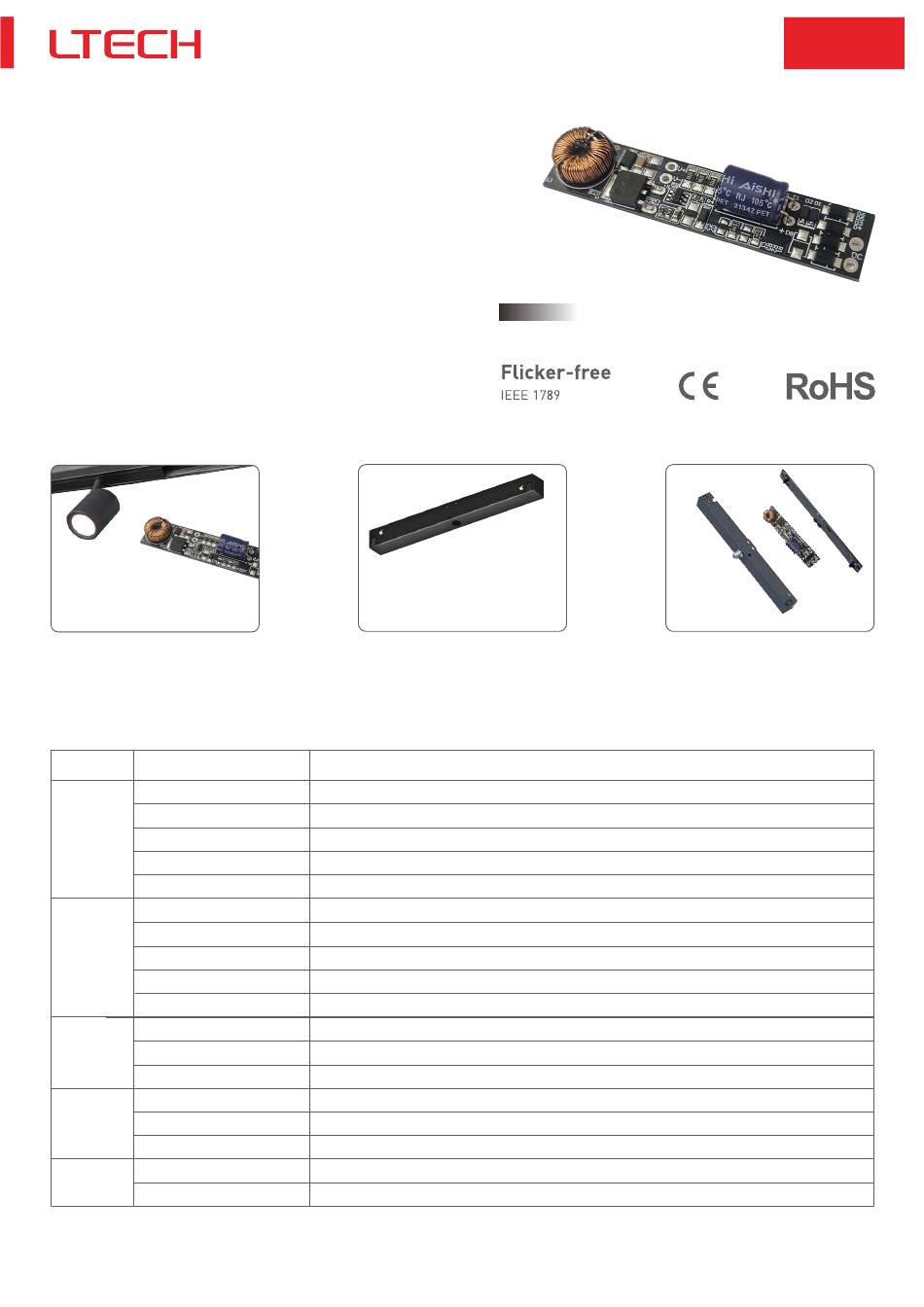

Ltech MT-100-700-D1P1 Wiring Diagram

PWM Constant Current Driver
Special for magnetic & linear lamp
- No input polarity.
- DC to DC constant current output.
- PWM signal control.
- Ultra-small size , suitable for STUCCHI standard housings.
- Magnetic installation is quiet without high-frequency sound.
- Short circuit, anti-reverse protection and hot plugging.
No noise, no kicker
Technical Specs
MODEL
Load Voltage Range
Output Current Range
OUTPUT
Output Power

Dimming Range


Channel
Dimming
Interface
Dimming signal frequency
Input
Voltage
INPUT
Input Current
Efficiency(Typ)
Working Temperature
Working Humidity
ENVIRONMENT
Storage Temperature
Short Circuit Protection
PROTECTION
Hot Plugging
Input Anti -reverse Protection
Dimensions
OTHERS
Weight
Note: 1. The higher the dimming signal frequency is, the less the noise would be.








2. To prevent the constant voltage driver at the input end from overload protection when it is powered on, it is recommended to use a driver without protection or with
the soft start function.
Suitable for STUCCHI standard housings
- 9519-166-K
- B 9519-166-K/W
MT-100-700-D1P1
9-42Vdc
100-700mA
0.9W-29.4W
0-100%, down
to
0.1%
1
PWM(Dimming interface and power supply interface in one)
1.2K~18K
48Vdc±5%
≤0.7A
≥87%

ta: -25~50°C
20~95%RH, non-condensing
-40~80°C, 10~95%RH
Close output and automatically recover once the fault is removed.
Support hot plugging
No input polarity , able to output normally.
65×14×8.5mm (L×W×H)
6.3g±2g
1
MT-100-700-D1P1
DIM
Installation guide
PWM
www.ltech.cn
