SURGmatic S15 L Pro – 1.014.4000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SURGmatic S15 L Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KaVo SURGmatic S15 L Pro

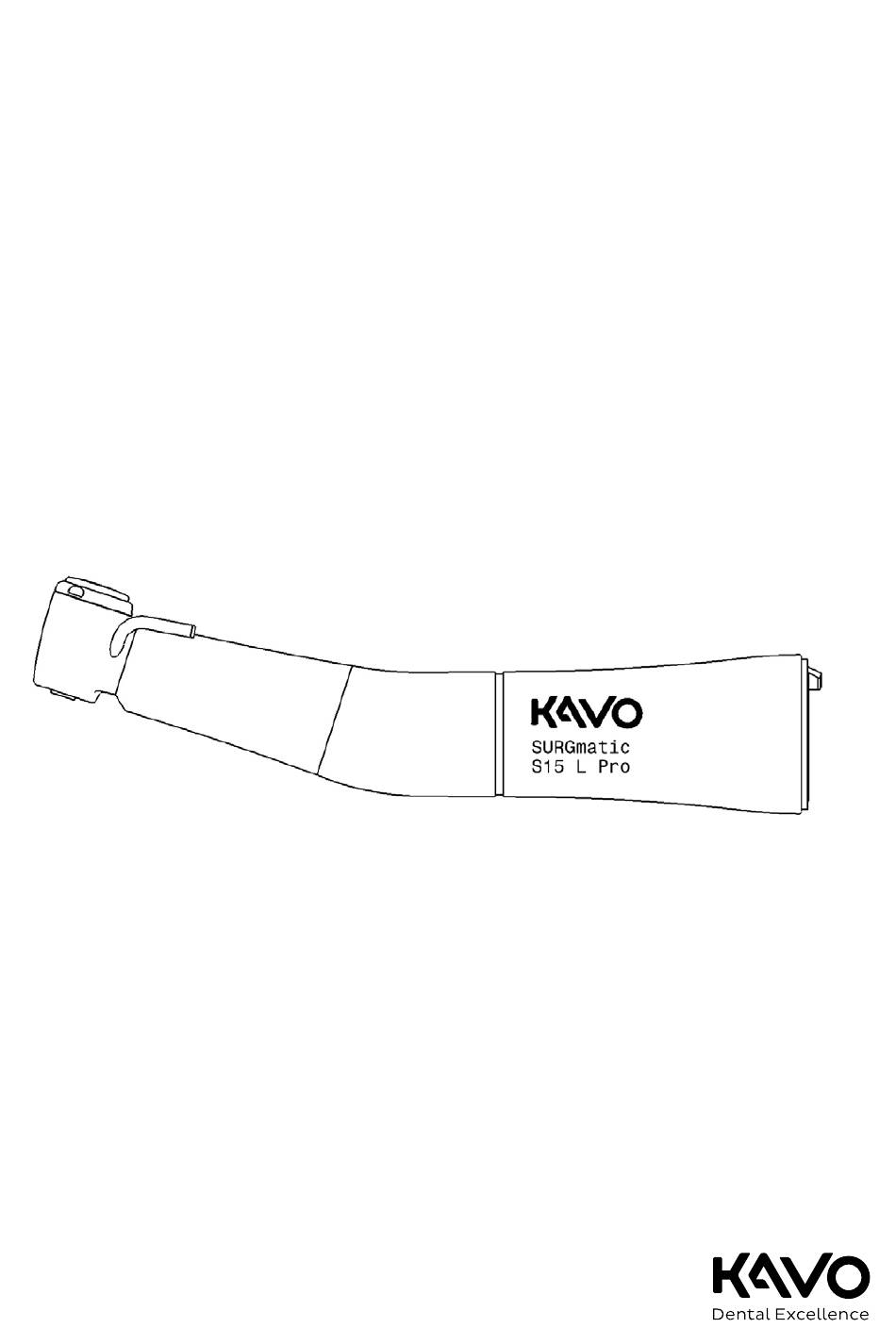

  • Page 1 Instructions for use SURGmatic S15 L Pro – 1.014.4000...
  • Page 2 Distribution: Manufacturer: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...
  • Page 3: Table Of Contents

    Instructions for use SURGmatic S15 L Pro – 1.014.4000 Table of contents Table of contents 1 User instructions ....................... 2 Safety..........................2.1 Infection hazard ......................7 2.2 Improper use ........................ 7 2.3 Technical condition ......................7 2.4 Accessories and combination with other equipment............8 2.5 Qualification of personnel ....................
  • Page 4: User Instructions

    Dental GmbH. All other trademarks are property of their respective owners. KaVo Original Factory Repair In the event of a repair, please ship your product to the KaVo Original Factory Repair using https://www.kavobox.com. KaVo Technical Service If you have any questions or complaints, please contact the KaVo Technical...
  • Page 5: Hazard Levels

    Instructions for use SURGmatic S15 L Pro – 1.014.4000 1 User instructions Information on the packaging Material number Serial number Manufacturer Note: Please note accompanying documents Follow the electronic instructions for use HIBC Code CE mark for medical devices EAC conformity mark (Eurasian Conformity)
  • Page 6 Instructions for use SURGmatic S15 L Pro – 1.014.4000 1 User instructions CAUTION In cases which – if not prevented – can lead to material damage. 6 / 28...
  • Page 7: Safety

    Instructions for use SURGmatic S15 L Pro – 1.014.4000 2 Safety | 2.1 Infection hazard 2 Safety NOTE All serious events occurring in relation to the product must be reported to the manufacturer and the competent authority of the member state, in which the user and/or patient resides.
  • Page 8: Accessories And Combination With Other Equipment

    Repairs, servicing and safety checks may only be performed by trained service personnel. The following persons are authorised to do this: ▪ Service technicians of KaVo branches after the appropriate product training ▪ Service technicians of KaVo authorised dealers after the appropriate product...
  • Page 9 Define the service interval depending on the frequency of use. As a result of the use of NON-KaVo original spare parts during the repair, parts such as covers may become undone and injure the patient, user or other people.
  • Page 10: Description Of The Product

    Instructions for use SURGmatic S15 L Pro – 1.014.4000 3 Description of the product | 3.1 Intended use 3 Description of the product SURGmatic S15 L Pro (Mat. no. 1.014.4000) 3.1 Intended use Indications for use: This medical device is: ▪...
  • Page 11: Transportation And Storage Conditions

    Instructions for use SURGmatic S15 L Pro – 1.014.4000 3 Description of the product | 3.3 Transportation and storage conditions Pushbutton chuck Ø 1.6 mm Can be attached to All INTRA (LUX) surgical motors with a connector in accordance with DIN EN...
  • Page 12: Startup And Shut Down

    Instructions for use SURGmatic S15 L Pro – 1.014.4000 4 Startup and shut down | 4.1 Checking the amount of water 4 Startup and shut down WARNING Hazard from contaminated products. Infection hazard to the dentist and patient. 4 Prior to initial startup and after each use, reprocess the product and ac- cessories.
  • Page 13 Instructions for use SURGmatic S15 L Pro – 1.014.4000 4 Startup and shut down | 4.1 Checking the amount of water 4 Carefully plug the coolant hose in central position onto the media tube pro- ceeding in axial direction. 13 / 28...
  • Page 14: Operation

    Instructions for use SURGmatic S15 L Pro – 1.014.4000 5 Operation | 5.1 Attaching the medical device 5 Operation 5.1 Attaching the medical device WARNING Detachment of the medical device during treatment. A medical device that is not properly locked can detach from the coupling dur- ing treatment.
  • Page 15: Inserting The Dental Bur

    Instructions for use SURGmatic S15 L Pro – 1.014.4000 5 Operation | 5.3 Inserting the dental bur 5.3 Inserting the dental bur NOTE Only use carbide burs or diamond grinders that comply with DIN EN ISO 1797 type 3, are made of steel or hard metal and meet the following criteria: - Shaft diameter: 1.59 to 1.60 mm...
  • Page 16: Removing The Dental Bur

    Material damage. 4 Never push the press-button while the dental bur is rotating. KaVo recommends changing the dental bur with tweezers or a similar tool. 4 After the dental bur has stopped rotating, firmly press the push-button down with your thumb and simultaneously remove the dental bur.
  • Page 17: Checking For Malfunctions And Troubleshooting

    KaVo spare parts comply with the specification. NOTE If a repair is done with NON-KaVo original spare parts, this may constitute a product modification that leads to the loss of CE conformity. In the event of damage, the responsibility is with the service company or the operator.
  • Page 18 Instructions for use SURGmatic S15 L Pro – 1.014.4000 6 Checking for malfunctions and troubleshooting | 6.2 Troubleshooting CAUTION Overheating of the tooth due to insufficient amount of cooling water. Insufficient spray water can cause the medical device to overheat and damage the pulp and tooth.
  • Page 19: Reprocessing Steps In Accordance With Iso 17664

    Instructions for use SURGmatic S15 L Pro – 1.014.4000 7 Reprocessing steps in accordance with ISO 17664 | 7.1 Preparations at the site of use 7 Reprocessing steps in accordance with ISO 17664 7.1 Preparations at the site of use WARNING Hazard from contaminated products.
  • Page 20: Automated Reprocessing

    NOTE Please comply with the instructions for use of the washer disinfector. 4 In order to prevent impairment of the KaVo medical device, make sure that the product is dry on the inside and outside after completion of the cycle.
  • Page 21: Care Products And Systems - Servicing

    4 Remove the dental bur from the medical device. 4 Cover the medical device with the KaVo Cleanpac bag, and place it on the corresponding care adapter. 4 Press the spray key for 1 to 2 seconds.
  • Page 22: Packaging

    Instructions for use SURGmatic S15 L Pro – 1.014.4000 7 Reprocessing steps in accordance with ISO 17664 | 7.6 Packaging NOTE Handpieces must be taken off the service couplings before the chuck service can be started and performed. 4 Close the front flap and press the chuck service button for at least three seconds until the spray canister control LED flashes three times consecut- ively.
  • Page 23: Storage

    Instructions for use SURGmatic S15 L Pro – 1.014.4000 7 Reprocessing steps in accordance with ISO 17664 | 7.8 Storage Sterilisation parameters: Select a suitable process from the following sterilisation processes (depending on the available steriliser): ▪ Steriliser with triple pre-vacuum: –...
  • Page 24: Optional Aids And Consumables

    Instructions for use SURGmatic S15 L Pro – 1.014.4000 8 Optional aids and consumables 8 Optional aids and consumables Available from specialised dental dealers. Material summary Mat. no. INTRA Instrument stand 3.005.5204 Cleanpac 10 units 0.411.9691 Cellulose pad 100 units 0.411.9862...
  • Page 25: Terms And Conditions Of Warranty

    12 months from the date of the invoice, subject to the following conditions: With regard to justified complaints KaVo grants warranty in the form of a free of charge repair or delivery of a replacement. Other claims of any kind whatso- ever, in particular with respect to compensation, are excluded.
