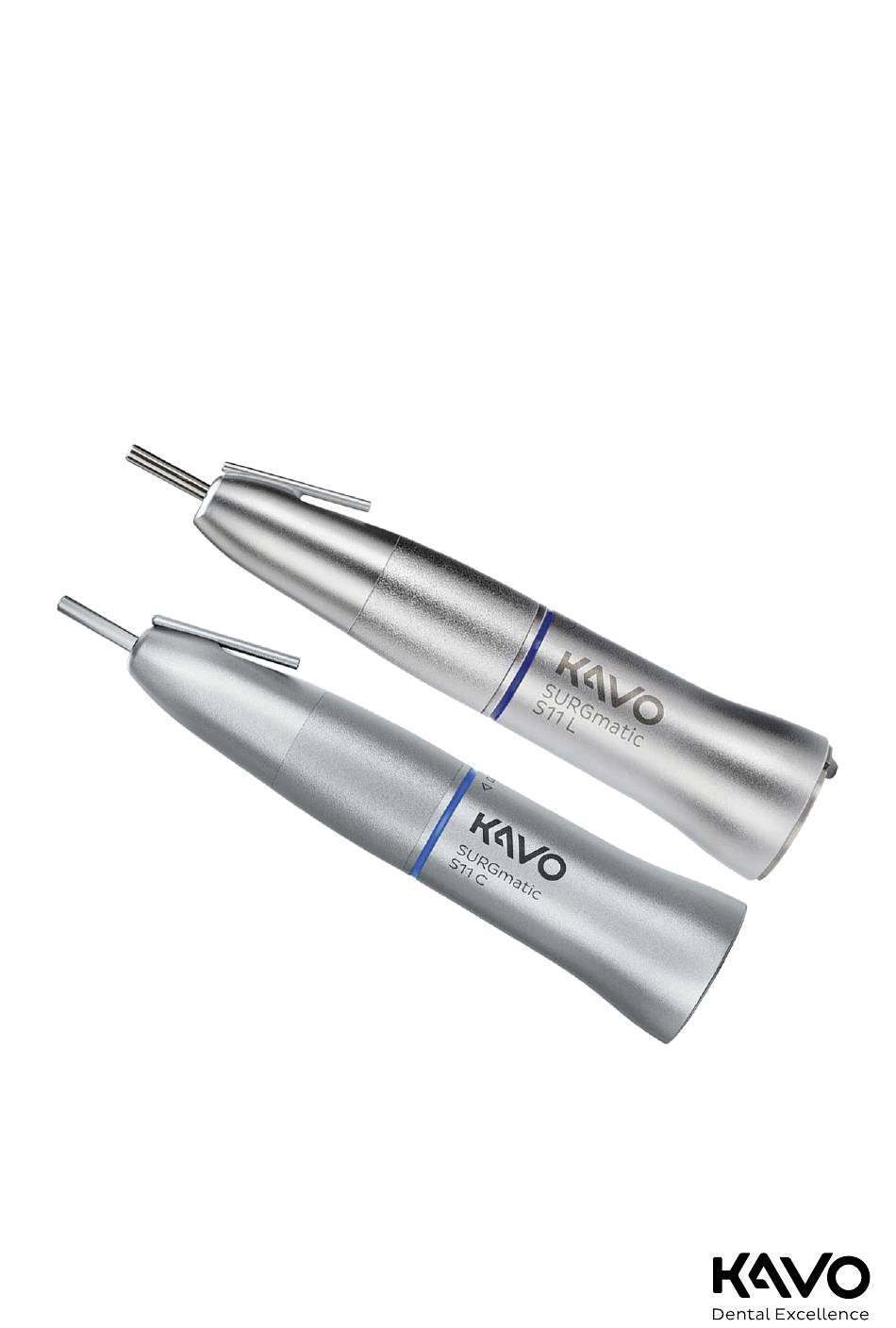

  • Page 1 Instructions for use SURGmatic S11 L – 1.009.1010 SURGmatic S11 C – 1.009.1005...
  • Page 2 Manufacturer: Distributed by: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...

  • Page 3: Table Of Contents

    Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 Table of contents Table of contents 1 User instructions ....................... 2 Safety..........................2.1 Infection hazard ......................7 2.2 Improper use ........................ 7 2.3 Technical condition ......................8 2.4 Accessories and combination with other equipment............

  • Page 4: User Instructions

    SMARTmatic is a registered trademark of KaVo Dental GmbH. All other trademarks are property of their respective owners. KaVo Original Factory Repair In the event of a repair, please ship your product to the KaVo Original Factory Repair using www.kavobox.com. KaVo Technical Service...
  • Page 5 Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 1 User instructions Serial number UDI symbol Manufacturer Note: Please note accompanying documents Follow the electronic instructions for use HIBC Code CE mark for medical devices EAC conformity mark (Eurasian Conformity)
  • Page 6 Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 1 User instructions CAUTION In cases which – if not prevented – can lead to minor or moderate injury. CAUTION In cases which – if not prevented – can lead to material damage.

  • Page 7: Safety

    Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 2 Safety | 2.1 Infection hazard 2 Safety NOTE All serious events occurring in relation to the product must be reported to the manufacturer and the competent authority of the member state, in which the user and/or patient resides.

  • Page 8: Technical Condition

    Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 2 Safety | 2.3 Technical condition 2.3 Technical condition A damaged product or damaged or NOT KaVo original components could injure patients, users or third parties. 4 Only operate devices or components if they show no signs of damage on the outside.

  • Page 9: Service And Repair

    Define the service interval depending on the frequency of use. As a result of the use of NON-KaVo original spare parts during the repair, parts such as covers may become undone and injure the patient, user or other people.

  • Page 10: Description Of The Product

    Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 3 Description of the product | 3.1 Intended use 3 Description of the product SURGmatic S11 L (Mat. no. 1.009.1010) SURGmatic S11 C (Mat. no. 1.009.1005) 3.1 Intended use...

  • Page 11: Technical Specifications

    Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 3 Description of the product | 3.2 Technical Specifications 3.2 Technical Specifications Drive speed max. 40,000 rpm Speed transmission 1 : 1 Identification 1 blue ring Can be attached to...

  • Page 12: Startup And Shut Down

    Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 4 Startup and shut down | 4.1 Checking the amount of water 4 Startup and shut down WARNING Hazard from contaminated products. Patients, users or third parties could be infected by contaminated medical devices.
  • Page 13 Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 4 Startup and shut down | 4.1 Checking the amount of water 4 Cool the dental bur via an external supply. 4 During surgical interventions, comply with the necessary precautions re- garding cooling.

  • Page 14: Operation

    Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 5 Operation | 5.1 Attaching the medical device 5 Operation 5.1 Attaching the medical device WARNING Detaching the medical device during treatment. A medical device that is not properly locked can detach from the coupling dur- ing treatment.

  • Page 15: Inserting The Dental Bur

    Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 5 Operation | 5.3 Inserting the dental bur 5.3 Inserting the dental bur NOTE Only use carbide burs or diamond burs that conform to DIN EN ISO 1797 type...

  • Page 16: Removing The Dental Bur

    Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 5 Operation | 5.4 Removing the dental bur CAUTION Incorrectly clamped dental bur. Material damage to the chuck system, dental bur is difficult or impossible to re- move from the chuck system.

  • Page 17: Checking For Malfunctions And Troubleshooting

    Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 6 Checking for malfunctions and troubleshooting | 6.1 Check for malfunctions 6 Checking for malfunctions and troubleshooting 6.1 Check for malfunctions CAUTION Overheating of the device. Burns or product damage from overheating.
  • Page 18 Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 6 Checking for malfunctions and troubleshooting | 6.2 Troubleshooting 4 Use the nozzle needle (Mat. no. 0.410.0931) to free the water passage at the spray tubes. 18 / 28...

  • Page 19: Reprocessing Steps In Accordance With Iso 17664-1 / Iso 17664-2

    Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.1 Preparations at the site of use 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 7.1 Preparations at the site of use...

  • Page 20: Automated Reprocessing

    Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.3 Automated reprocessing 7.3 Automated reprocessing WARNING Sharp dental bur in the medical device. Injury hazard from sharp and/or pointed dental bur.

  • Page 21: Automated Drying

    NOTE Please comply with the instructions for use of the washer disinfector. 4 In order not to affect the KaVo medical device, make sure that the product is dry on the inside and outside after completion of the cycle. 4 Immediately after drying, lubricate the KaVo medical device with care agents from the KaVo care system.

  • Page 22: Servicing With Kavo Quattrocare Plus

    Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.5 Packaging 4 Position the tip of the spray nipple in the opening, and apply the spray.

  • Page 23: Sterilisation

    Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.6 Sterilisation 7.6 Sterilisation Sterilisation in a steam steriliser (autoclave) in accordance with EN 13060 / EN ISO 17665-1 CAUTION Improper service and care.

  • Page 24: Optional Aids And Consumables

    Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 8 Optional aids and consumables 8 Optional aids and consumables Available from specialised dental dealers. Material summary Mat. no. INTRA Instrument stand 3.005.5204 Cleanpac 10 units 0.411.9691 Cellulose pad 100 units 0.411.9862...

  • Page 25: Terms And Conditions Of Warranty

    Instructions for use SURGmatic S11 L – 1.009.1010, SURGmatic S11 C – 1.009.1005 9 Terms and conditions of warranty 9 Terms and conditions of warranty This KaVo medical device is subject to the following warranty conditions: KaVo grants the end customer a warranty of proper function and guarantees...
