Instructions for use

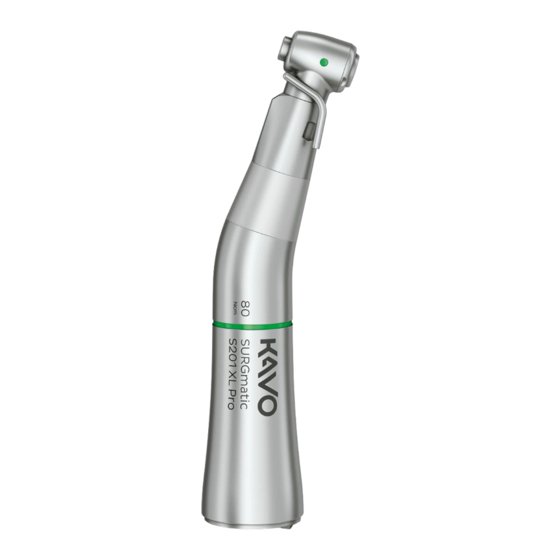

SURGmatic S201 XL Pro - 1.013.7541
SURGmatic S201 L Pro - 1.013.7540
SURGmatic
S201 XL Pro
SURGmatic
S201 L Pro

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SURGmatic S201 XL Pro and is the answer not in the manual?

Questions and answers

Related Manuals for KaVo SURGmatic S201 XL Pro

Summary of Contents for KaVo SURGmatic S201 XL Pro

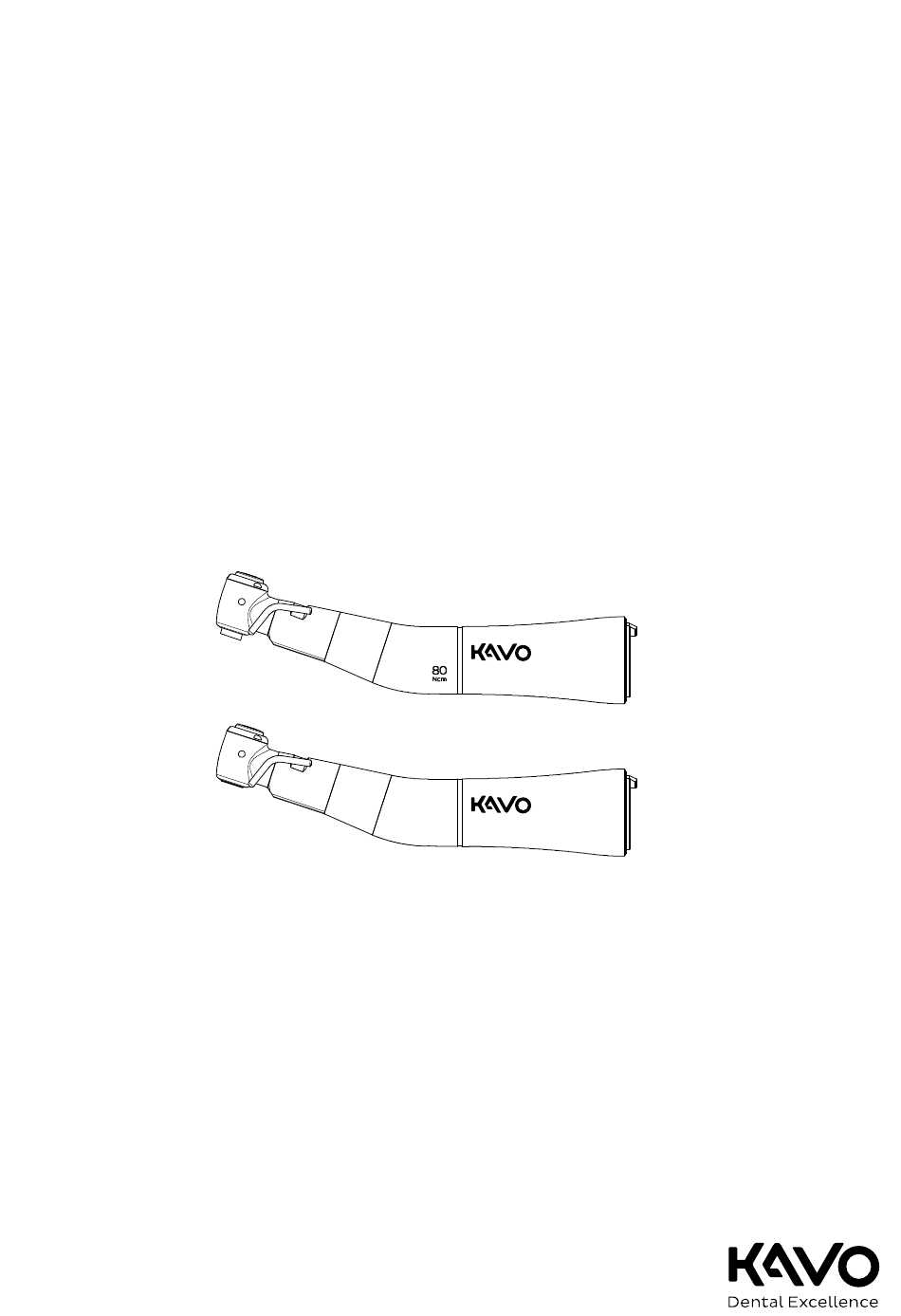

  • Page 1 Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 SURGmatic S201 XL Pro SURGmatic S201 L Pro...
  • Page 2 Distributed by: Manufacturer: KaVo Dental Technologies, LLC Kaltenbach & Voigt GmbH 11727 Fruehauf Drive Bismarckring 39 Charlotte, NC 28273 USA D-88400 Biberach Phone: 847 550 6800 www.kavo.com Fax: 847 550 6825...

  • Page 3: Table Of Contents

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 Table of contents Table of contents 1 User instructions ........................ 4 2 Safety..........................7 2.1 Infection hazard ......................7 2.2 Technical condition......................7 2.3 Accessories and combination with other equipment ............7 2.4 Qualification of personnel....................

  • Page 4: User Instructions

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 1 User instructions 1 User instructions Dear User, Congratulations on purchasing this KaVo quality product. By following the in- structions below you will be able to work smoothly, economically and safely.
  • Page 5 Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 1 User instructions Information on the packaging Catalog number Serial number Legal Manufacturer CE mark according to Medical Devices Directive EC 93/42 Please note the electronic instructions for use...
  • Page 6 Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 1 User instructions NOTICE In cases which – if not prevented – can lead to property damage. 6 / 28...

  • Page 7: Safety

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 2 Safety | 2.1 Infection hazard 2 Safety The instructions for use are a component of the product and must be read care- fully prior to use and be accessible at all times.

  • Page 8: Qualification Of Personnel

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 2 Safety | 2.4 Qualification of personnel ▶ Only use accessories that have been approved for combination with the product by the manufacturer. ▶ Do not make any modifications to the device unless these have been ap- proved by the manufacturer of the product.

  • Page 9: Product Description

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 3 Product description | 3.1 Intended use 3 Product description SURGmatic S201 XL Pro SURGmatic S201 XL Pro Mat. no. 1.013.7541 SURGmatic S201 L Pro SURGmatic S201 L Pro Mat.

  • Page 10: Technical Specifications

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 3 Product description | 3.2 Technical Specifications Proper Use: According to these regulations, this product may only be used for the described application by a properly trained user. You need to comply with the following: ▪...

  • Page 11: Startup And Shut-Down

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 4 Startup and shut-down | 4.1 Checking the water quantity 4 Startup and shut-down WARNING Hazard from non-sterile products. Infection hazard for dentist and patient.
  • Page 12 Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 4 Startup and shut-down | 4.1 Checking the water quantity ▶ Carefully plug the coolant hose in central position onto the media tube pro- ceeding in axial direction.

  • Page 13: Operation

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 5 Operation | 5.1 Inserting the head 5 Operation 5.1 Inserting the head CAUTION The SURGmatic S201 L / XL Pro contra-angle handpiece consists of a shank and a head.

  • Page 14: Attaching The Contra-Angle Handpiece To The Motor Coupling

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 5 Operation | 5.3 Attaching the contra-angle handpiece to the motor coupling 5.3 Attaching the contra-angle handpiece to the motor coupling WARNING Detachment of the medical device during treatment.

  • Page 15: Removing The Bur Or Diamond

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 5 Operation | 5.6 Removing the bur or diamond WARNING Use of unauthorized burs. Injury to the patient or damage to the medical device. ▶ Comply with the instructions for use and the intended use of the bur.

  • Page 16: Checking For Malfunctions And Troubleshooting

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 6 Checking for malfunctions and troubleshooting | 6.1 Check for malfunctions 6 Checking for malfunctions and troubleshooting 6.1 Check for malfunctions CAUTION Product heats up.

  • Page 17: Processing Steps In Accordance With En Iso 17664

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 7 Processing steps in accordance with EN ISO 17664 | 7.1 Preparations at the site of use 7 Processing steps in accordance with EN ISO 17664 7.1 Preparations at the site of use...

  • Page 18: Manual Processing

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 7 Processing steps in accordance with EN ISO 17664 | 7.3 Manual processing 7.3 Manual processing WARNING Sharp tool in the medical device. Injury hazard from sharp and/or pointed tool.

  • Page 19: Automated Internal And External Cleaning And Internal And External Disinfection

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 7 Processing steps in accordance with EN ISO 17664 | 7.4 Automated processing WARNING Sharp tool in the medical device. Injury hazard from sharp and/or pointed tool.

  • Page 20: Care Products And Systems - Servicing

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 7 Processing steps in accordance with EN ISO 17664 | 7.5 Care products and systems - Servicing 7.5 Care products and systems - Servicing CAUTION Improper service and care.

  • Page 21: Servicing With Kavo Quattrocare

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 7 Processing steps in accordance with EN ISO 17664 | 7.5 Care products and systems - Servicing See also: 2 Instructions for use KaVo QUATTROcare PLUS...

  • Page 22: Packaging

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 7 Processing steps in accordance with EN ISO 17664 | 7.6 Packaging ▶ Service the product in the QUATTROcare. See also: 2 Instructions for use KaVo QUATTROcare 2104 / 2104A / 2124A Servicing the chucking system KaVo recommends servicing the chucking system once weekly.

  • Page 23: Storage

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 7 Processing steps in accordance with EN ISO 17664 | 7.8 Storage – Drying time: 16 min. ▪ Sterilizer using the gravity method: - at least 10 minutes at 135°C (275 °F) - drying time 30 minutes or alternatively - at least 30 minutes at 121°C (250 °F)

  • Page 24: Tools And Consumables

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 8 Tools and consumables 8 Tools and consumables Available from dental suppliers. Material summary Mat. No. Spray head INTRA (KaVo Spray) 0.411.9911 Service coupling for heads 0.411.7941...

  • Page 25: Terms And Conditions Of Warranty

    Instructions for use SURGmatic S201 XL Pro - 1.013.7541 SURGmatic S201 L Pro - 1.013.7540 9 Terms and conditions of warranty 9 Terms and conditions of warranty The following Terms and conditions of warranty apply to this KaVo medical de-...

This manual is also suitable for:

1.013.75411.013.7540
