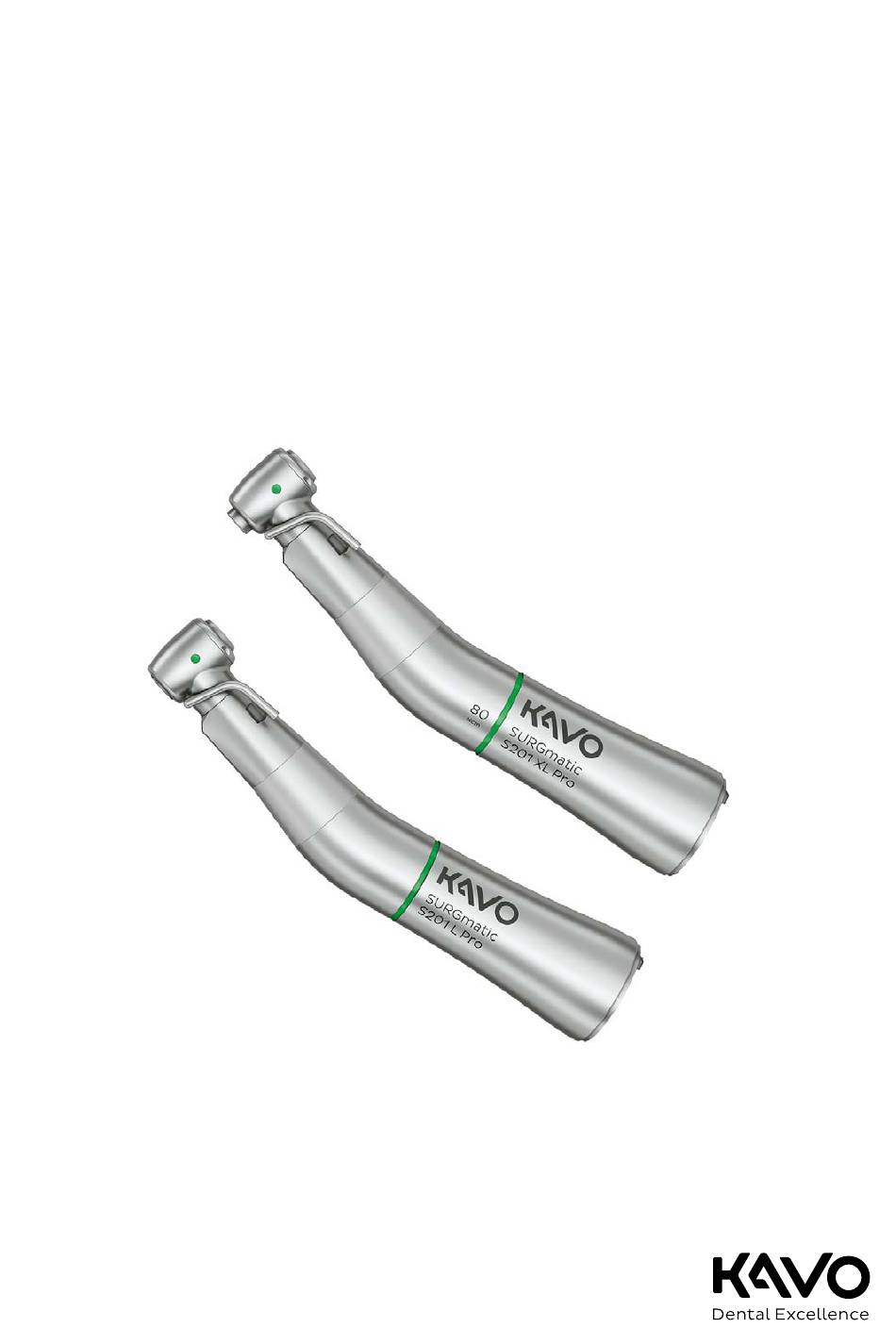

  • Page 1 Instructions for use SURGmatic S201 XL Pro – 1.013.7541 SURGmatic S201 L Pro – 1.013.7540...
  • Page 2 Manufacturer: Distributed by: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...

  • Page 3: Table Of Contents

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 Table of contents Table of contents 1 User instructions ....................... 2 Safety..........................2.1 Infection hazard ......................7 2.2 Improper use ........................ 7 2.3 Technical condition ......................8 2.4 Accessories and combination with other equipment............

  • Page 4: User Instructions

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 1 User instructions 1 User instructions Dear user, Congratulations on purchasing this KaVo quality product. By following the notes below you will be able to work smoothly, economically and safely.
  • Page 5 Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 1 User instructions Serial number UDI symbol Manufacturer Note: Please note accompanying documents Follow the electronic instructions for use HIBC Code CE mark for medical devices...
  • Page 6 Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 1 User instructions CAUTION In cases which – if not prevented – can lead to minor or moderate injury. CAUTION In cases which – if not prevented – can lead to material damage.

  • Page 7: Safety

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 2 Safety | 2.1 Infection hazard 2 Safety NOTE All serious events occurring in relation to the product must be reported to the manufacturer and the competent authority of the member state, in which the user and/or patient resides.

  • Page 8: Technical Condition

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 2 Safety | 2.3 Technical condition 2.3 Technical condition A damaged product or damaged or NOT KaVo original components could injure patients, users or third parties.

  • Page 9: Service And Repair

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 2 Safety | 2.6 Service and repair 4 Make sure that the user has read and fully comprehends the instructions for use. 4 Make sure that the user has read and comprehends the national and re- gional regulations.

  • Page 10: Description Of The Product

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 3 Description of the product | 3.1 Intended use 3 Description of the product SURGmatic S201 XL Pro (Mat. no. 1.013.7541) SURGmatic S201 L Pro (Mat. no. 1.013.7540) 3.1 Intended use...

  • Page 11: Technical Specifications

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 3 Description of the product | 3.2 Technical Specifications 3.2 Technical Specifications CAUTION The contra-angle handpiece SURGmatic S201 L / XL Pro consists of a shank and a head.

  • Page 12: Startup And Shut Down

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 4 Startup and shut down | 4.1 Checking the amount of water 4 Startup and shut down WARNING Hazard from contaminated products. Patients, users or third parties could be infected by contaminated medical devices.
  • Page 13 Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 4 Startup and shut down | 4.1 Checking the amount of water 4 Ensure that the coolant supply is free of air. 4 Cool the dental bur via the external and/or internal feed, if available. The supply can take place individually or via a coupling piece.

  • Page 14: Operation

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 5 Operation | 5.1 Inserting the head 5 Operation 5.1 Inserting the head WARNING Detaching the medical device during treatment. If the head is not properly locked in place, it can become detached during treat- ment.

  • Page 15: Attaching The Contra-Angle Handpiece To Motor Coupling

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 5 Operation | 5.3 Attaching the contra-angle handpiece to motor coupling 5.3 Attaching the contra-angle handpiece to motor coupling WARNING Detaching the medical device during treatment.

  • Page 16: Inserting The Dental Bur

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 5 Operation | 5.5 Inserting the dental bur 5.5 Inserting the dental bur NOTE Only use carbide burs or diamond grinders that conform to DIN EN ISO 1797...

  • Page 17: Removing The Dental Bur

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 5 Operation | 5.6 Removing the dental bur CAUTION Incorrectly clamped dental bur. Material damage to the chuck system, dental bur is difficult or impossible to re- move from the chuck system.

  • Page 18: Checking For Malfunctions And Troubleshooting

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 6 Checking for malfunctions and troubleshooting | 6.1 Check for malfunctions 6 Checking for malfunctions and troubleshooting 6.1 Check for malfunctions CAUTION Overheating of the device.
  • Page 19 Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 6 Checking for malfunctions and troubleshooting | 6.2 Troubleshooting 4 Use the nozzle needle (Mat. no. 0.410.0931) to clean the water passage on the spray nozzles.

  • Page 20: Reprocessing Steps In Accordance With Iso 17664-1 / Iso 17664-2

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.1 Preparations at the site of use 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 7.1 Preparations at the site of use...

  • Page 21: Automated Reprocessing

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.3 Automated reprocessing 7.3 Automated reprocessing WARNING Sharp dental bur in the medical device.

  • Page 22: Automated Internal And External Cleaning And Internal And External Disinfection

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.4 Care products and systems - Servicing 7.3.2 Automated internal and external cleaning and...

  • Page 23: Servicing With Kavo Quattrocare Plus

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.4 Care products and systems - Servicing KaVo recommends servicing the product as part of the reprocessing after each use, i.e.

  • Page 24: Packaging

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.5 Packaging 7.5 Packaging NOTE The sterile goods package must be large enough to accommodate the product without stretching the packaging.

  • Page 25: Optional Aids And Consumables

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 8 Optional aids and consumables 8 Optional aids and consumables Available from specialised dental dealers. Material summary Mat. no. INTRA Instrument stand 3.005.5204 Cleanpac 10 units 0.411.9691...

  • Page 26: Terms And Conditions Of Warranty

    Instructions for use SURGmatic S201 XL Pro – 1.013.7541, SURGmatic S201 L Pro – 1.013.7540 9 Terms and conditions of warranty 9 Terms and conditions of warranty This KaVo medical device is subject to the following warranty conditions: KaVo grants the end customer a warranty of proper function and guarantees...
