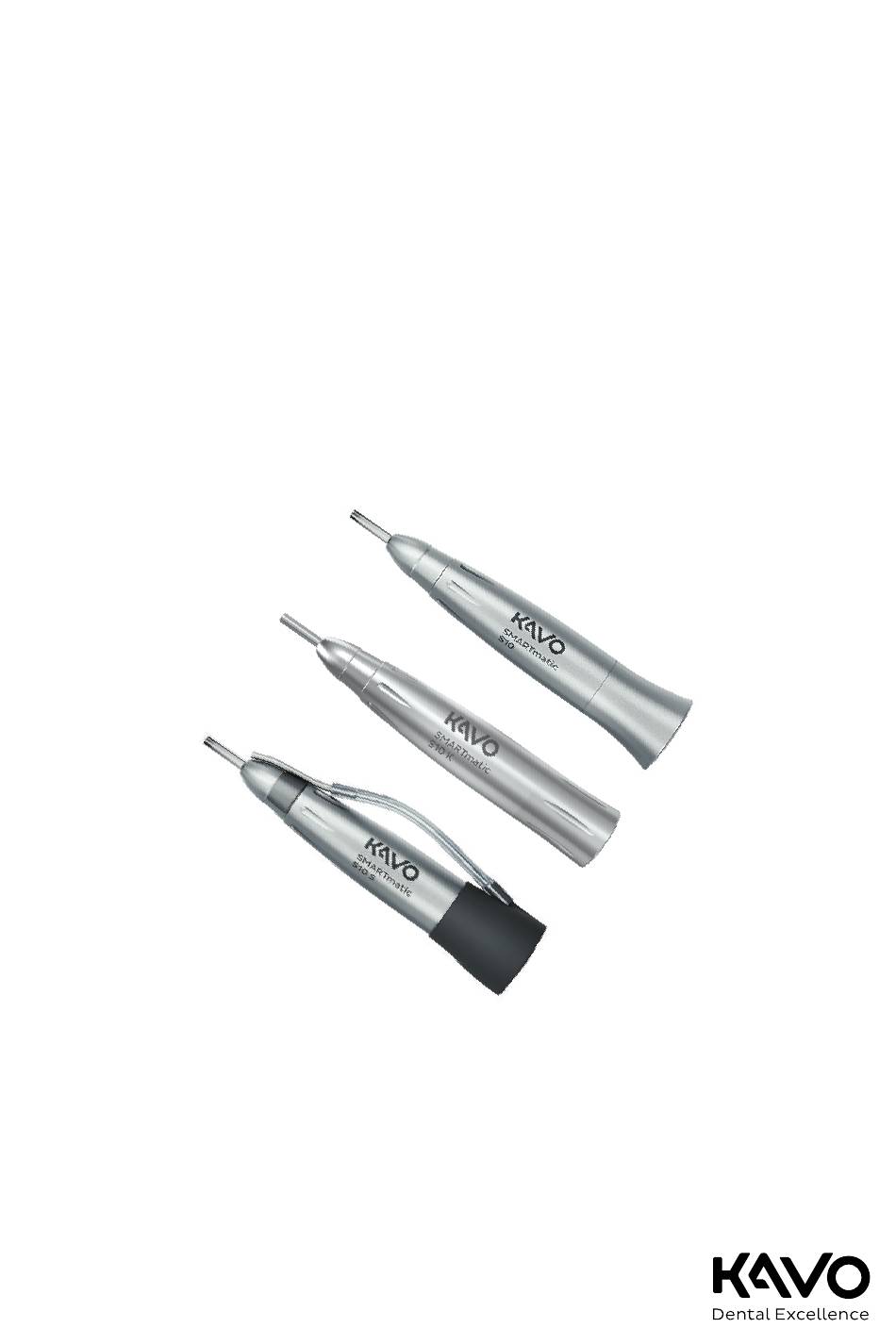

- Page 1 Instructions for use SMARTmatic S10 – 1.011.6730 SMARTmatic S10 K – 1.011.6731 SMARTmatic S10 S – 1.011.6732...
- Page 2 Distributed by: Manufacturer: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...
-
Page 3: Table Of Contents
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 Table of contents Table of contents 1 User instructions....................... 2 Safety ..........................2.1 Infection hazard......................7 2.2 Improper use ....................... 7 2.3 Technical condition......................7 2.4 Accessories and combination with other equipment ............ -
Page 4: User Instructions
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 1 User instructions 1 User instructions Dear user, Congratulations on purchasing this KaVo quality product. By following the notes below you will be able to work smoothly, economically and safely. - Page 5 Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 1 User instructions Serial number UDI symbol Manufacturer Note: Please note accompanying documents Follow the electronic instructions for use HIBC Code CE mark for medical devices...
- Page 6 Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 1 User instructions WARNING In cases which – if not prevented – can lead to death or severe injury. CAUTION In cases which – if not prevented – can lead to minor or moderate injury.
-
Page 7: Safety
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 2 Safety | 2.1 Infection hazard 2 Safety NOTE All serious events occurring in relation to the product must be reported to the manufacturer and the competent authority of the member state, in which the user and/or patient resides. -
Page 8: Accessories And Combination With Other Equipment
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 2 Safety | 2.4 Accessories and combination with other equipment ▪ Malfunctions ▪ Damage (e.g., from dropping) ▪ Irregular running noise ▪ Excessive vibration ▪... - Page 9 Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 2 Safety | 2.6 Service and repair 4 Have the service and testing tasks carried out according to the Medical Device Operator Ordinance.
-
Page 10: Product Description
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 3 Product description | 3.1 Intended use 3 Product description SMARTmatic S10 (Mat. no. 1.011.6730) SMARTmatic S10 K (Mat. no. 1.011.6731) SMARTmatic S10 S (Mat. no. 1.011.6732) 3.1 Intended use... -
Page 11: Technical Specifications (Without Light)
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 3 Product description | 3.2 Technical specifications (without light) ▪ Protect themselves, patients and third parties from danger. ▪ Contamination by the product must be avoided. -
Page 12: Startup And Shut Down
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 4 Startup and shut down | 4.1 Checking the water quantity (S10 S only) 4 Startup and shut down WARNING Hazard from contaminated products. - Page 13 Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 4 Startup and shut down | 4.1 Checking the water quantity (S10 S only) 13 / 32...
-
Page 14: Operation
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 5 Operation | 5.1 Attaching the medical device 5 Operation WARNING Rotating dental bur. Cuts, infection and burn injury. 4 Do not touch the dental tool while it is rotating. -
Page 15: Inserting The Dental Bur
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 5 Operation | 5.3 Inserting the dental bur 5.3 Inserting the dental bur NOTE Only use carbide burs or diamond burs that conform to DIN EN ISO 1797 type... -
Page 16: Removing The Dental Bur
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 5 Operation | 5.4 Removing the dental bur CAUTION Dental tool with damaged, worn or deformed shafts. Material damage to the chuck system, dental tool is difficult or impossible to re- move from the chuck system. -
Page 17: Using The Spray (S10 S Only)
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 5 Operation | 5.6 Using the spray (S10 S only) 4 Use the enclosed hook to remove the bur stop. 5.6 Using the spray (S10 S only) CAUTION Spray clip may fall off. -
Page 18: Checking For Malfunctions And Troubleshooting
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 6 Checking for malfunctions and troubleshooting | 6.1 Checking for malfunctions 6 Checking for malfunctions and troubleshooting 6.1 Checking for malfunctions CAUTION Overheating of the device. -
Page 19: Cleaning The Spray Tube (S10 S Only)
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 6 Checking for malfunctions and troubleshooting | 6.2 Troubleshooting 4 Spray a lint-free cloth with KaVo Spray, apply it to the new O-rings and in- sert them in the recesses. -
Page 20: Reprocessing Steps In Accordance With Iso 17664-1 / Iso 17664-2
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.1 Preparations at the site of use 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 7.1 Preparations at the site of use... -
Page 21: Manual Reprocessing
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.2 Manual reprocessing 7.2 Manual reprocessing WARNING Incomplete disinfection. Patients, users or third parties could be infected by contaminated medical devices. -
Page 22: Manual Internal And External Cleaning And Internal And External Disinfection
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.2 Manual reprocessing 4 Allow the cleaning agent to act for 5 minutes. -
Page 23: Automated Reprocessing
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.3 Automated reprocessing 7.3 Automated reprocessing WARNING Sharp dental tool in the medical device. -
Page 24: Pre-Cleaning
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.4 Care products and systems - Servicing 7.3.2 Pre-cleaning Accessories required: ▪... -
Page 25: Servicing With Kavo Spray
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.4 Care products and systems - Servicing NOTE KaVo guarantees the proper function of KaVo products only if the care products listed by KaVo as accessories are used, since these were tested for proper use on our products. -
Page 26: Packaging
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.5 Packaging NOTE End the chuck service mode. Option 1: Place the dental handpieces in the QUATTROcare PLUS 2124 A, close the front flap and start the service procedure. - Page 27 Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.7 Storage NOTE Comply with the expiry date of the sterilised items.
-
Page 28: Optional Aids And Consumables
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 8 Optional aids and consumables 8 Optional aids and consumables Available from specialised dental dealers. Material summary Mat.No. INTRA Instrument stand 3.005.5204 Cleanpac 10 units 0.411.9691... -
Page 29: Terms And Conditions Of Warranty
Instructions for use SMARTmatic S10 – 1.011.6730, SMARTmatic S10 K – 1.011.6731, SMARTmatic S10 S – 1.011.6732 9 Terms and conditions of warranty 9 Terms and conditions of warranty This KaVo medical device is subject to the following warranty conditions:...
