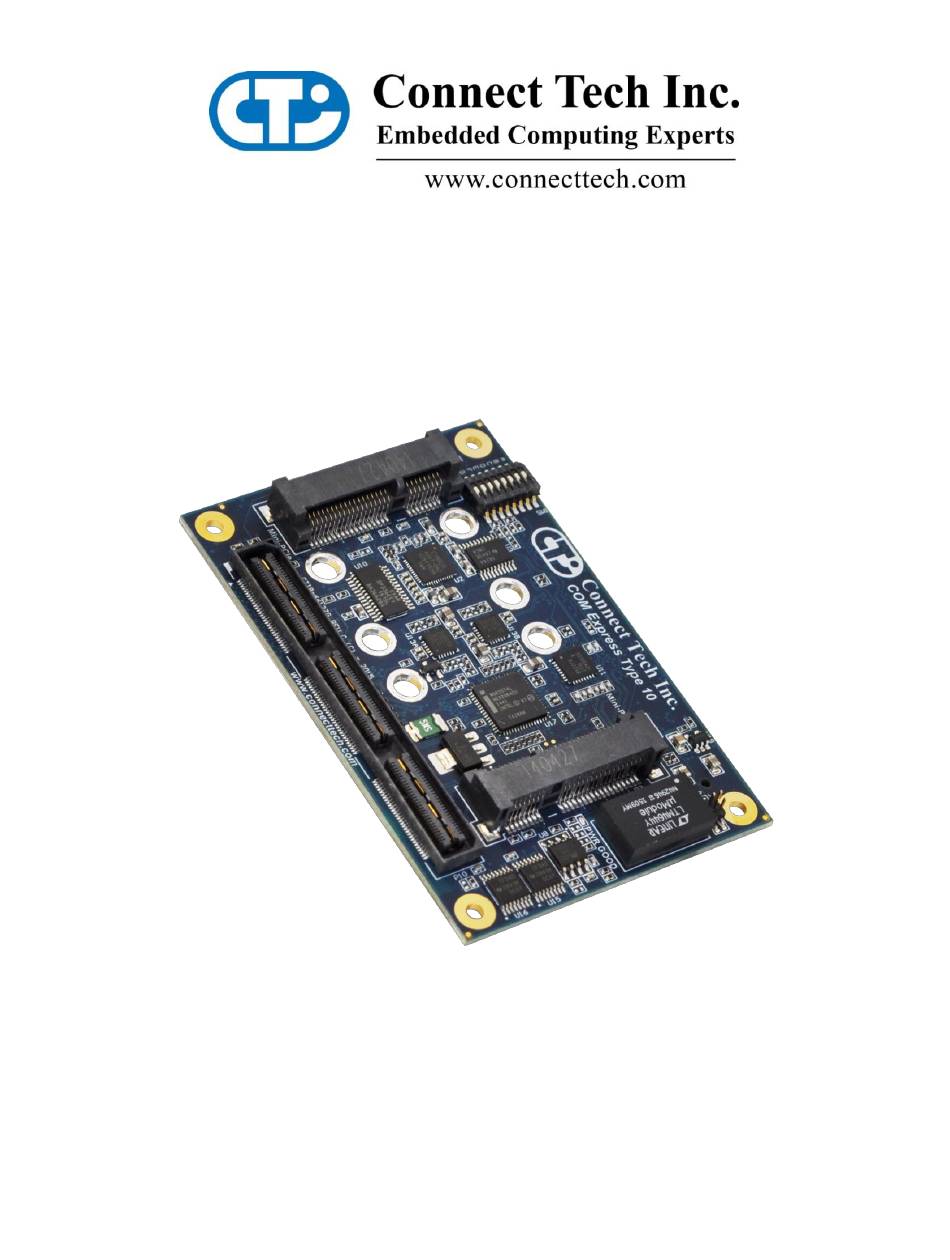

  • Page 1 COM Express Type 10 Users Guide Connect Tech Inc. Tel: 519-836-1291 42 Arrow Road Toll: 800-426-8979 (North America only) Guelph, Ontario Fax: 519-836-4878 N1K 1S6 Email: sales@connecttech.com www.connecttech.com support@connecttech.com CTIM-00457 Revision 0.01 2016/04/08...
  • Page 2 Dual Function Mini-PCIe/mSATA Slots .................... 13 Half and Full Length Mini-PCIe/mSATA Module Installation ............13 Micro SIM Card Slot ............................. 15 Connect Tech High Density Connector ......................16 HD AUDIO – HDC ............................19 Software Support for the CS4207 ....................... 19 USB 2.0/3.0 –...
  • Page 3 CBG125 - LVDS (DP20A-40DS) to Un-Terminated Wires ................. 41 CBG131 - Dual USB 3.0 to 20-Pin Cable ..................... 42 CBG145 - HDMI Female to 20-Pin Minitek Cable..................43 Document: CTIM-00457 Page 3 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 4 The information contained within this user’s guide, including but not limited to any product specification, is subject to change without notice. Connect Tech assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide.
  • Page 5 Connect Tech Inc. provides a two year Warranty for the COM Express Type 10 Carrier. Should this product, in Connect Tech Inc.'s opinion, fail to be in good working order during the warranty period, Connect Tech Inc. will, at its option, repair or replace this product at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster or non-Connect Tech Inc.
  • Page 6 ESD Warning Electronic components and circuits are sensitive to ElectroStatic Discharge (ESD). When handling any circuit board assemblies including Connect Tech COM Express Carrier assemblies, it is recommended that ESD safety precautions be observed. ESD safe best practices include, but are not limited to: ...
  • Page 7 With all of the complex circuitry already on the carrier, such as Gigabit Ethernet, USB 3.0, Serial, and Display, the design of a unique breakout board can be done with minimal effort using Connect Tech’s design services or by the user.
  • Page 8 COM Express Type 10 Users Guide www.connecttech.com Product Overview Block Diagram Document: CTIM-00457 Page 8 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 9 COM Express Type 10 Users Guide www.connecttech.com Connector Locations Document: CTIM-00457 Page 9 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 10 Slot Mini-PCIe Slot Mini-PCIe/mSATA Half Sized Card Slot Micro SIM Card Slot Micro SIM Card Slot for Mini-PCIe Slot P4 High Density Board to Connect Tech High Density Board to Board Connector Board Connector Jumper Summary Designator Function Description ATX Power Bypass...
  • Page 11 TE Connectivity Board to Board Connector Carrier 3-6318491-6 Connector Manufacturer: TE Connectivity Mating 3-1827231-6 Connector Manufacturer: TE Connectivity Pinout Refer to COM Express R2.1 specification, Type 10 Document: CTIM-00457 Page 11 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 12 To enable the microSD Card Slot on the COM Express Type 10 Carrier the Control DIP Switch (SW1B) needs to be enabled. Carrier Control DIP Switch Selection Switch Location Switch ON Switch OFF SW1B microSD Card Slot GPIO at HDC Document: CTIM-00457 Page 12 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 13 The COM Express Type 10 Carrier is designed with mounting holes to allow for the population of half-length or full length modules. To install a half-length module simply shift the spacers to the appropriate location. Document: CTIM-00457 Page 13 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 14 SMB_CLK PCIe TX- SATA RX- SMB_DATA PCIe TX+ SATA RX+ USB D- USB D+ +3.3V +3.3V +3.3V +3.3V RESV RESV +1.5V +1.5V +3.3V +3.3V Document: CTIM-00457 Page 14 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 15 Function Micro SIM Card Slot Location Type Molex Micro SIM Card Connector 786463001 Pinout Description SIM_PWR SIM_RST SIM_CLK SIM_VPP SIM_DATA Document: CTIM-00457 Page 15 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 16 USB2_D_DATA_P USB3_B_SS_TX_N USB3_B_SS_TX_P USB2_VBUS_C USB3_B_DATA_N USB2_C_DATA_N USB3_B_DATA_P USB2_C_DATA_P USB3_VBUS_A USB2_VBUS_B USB3_A_SS_RX_N USB2_B_DATA_N USB3_A_SS_RX_P USB2_B_DATA_P USB3_A_SS_TX_N USB2_VBUS_A USB3_A_SS_TX_P USB2_A_DATA_N USB3_A_DATA_N USB2_A_DATA_P USB3_A_DATA_P +3.3V BLADE_A +3.3V Document: CTIM-00457 Page 16 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 17 SATA_TX_N DDI_LANE0_P SATA_RX_P DDI_LANE0_N SATA_RX_N DDI_LANE1_P DDI_LANE1_N UART1_RX_N DDI_LANE2_P UART1_RX_P DDI_LANE2_N UART1_TX_N DDI_LANE3_P UART1_TX_P DDI_LANE3_N UART0_RX_N DDI_AUX_P UART0_RX_P DDI_AUX_N UART0_TX_N DDI_HPD# UART0_TX_P DDI_PWR BLADE_B Document: CTIM-00457 Page 17 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 18 LVDS_DATA0_N GBE0_MDI_3_N GBE0_MDI_3_P LVDS_DATA1_P GBE0_MDI_2_N LVDS_DATA1_N GBE0_MDI_2_P GBE0_MDI_1_N LVDS_DATA2_P GBE0_MDI_1_P LVDS_DATA2_N GBE0_MDI_0_N GBE0_MDI_0_P LVDS_DATA3_P LVDS_DATA3_N GBE0_LINK1000# GBE0_LINK100# LVDS_CLK_P GBE0_LINK# LVDS_CLK_N GBE0_ACT# +VIN BLADE_C +VIN Document: CTIM-00457 Page 18 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 19 Additional drivers will be needed to properly operate audio on the COM Express Type 10 Carrier. Some downloadable links can be found below. Windows XP Driver: http://www.cirrus.com/en/pubs/software/CS4207_WinXP_1-0-0-38.zip Windows 7/8 Driver: http://www.cirrus.com/en/support/lic/lic3.html?uri=/en/pubs/software/CS4207_LogoedDriverPackage_6-6001- 1-39.zip Linux Driver: Included in kernels 2.6.30 and up. Document: CTIM-00457 Page 19 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 20 If power is required, please note that the USB3_VBUS (Pins 18 and 40) supply +5V @ 0.9A No additional circuitry required USB magnetics placed upon CCG030 Route direct to header/connector/device Document: CTIM-00457 Page 20 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 21 HDC Bank Pins 67, 69 Design Instruction No additional circuitry required Advanced fan control and isolation circuitry present on CCG030 Route direct to header/connector/device Document: CTIM-00457 Page 21 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 22 In line AC Capacitors place on COM Express Module (Refer to Figure 5-3 in PCIMG COM.0 COM Express Base Specification R2.1) Route direct to header/connector/device Document: CTIM-00457 Page 22 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 23 To hard select DisplayPort or HDMI or DVI, appropriate Pull Ups or Pull Downs are required on the CONFIG Pin provided from the HDC. See the design instructions above. Document: CTIM-00457 Page 23 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 24 Military, Aerospace, and Industrial, the COM Express Type 10 Carrier Control DIP Switch can be removed and replaced with resistors. Please contact sales@connecttech.com for additional details. Document: CTIM-00457 Page 24 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 25 Serial Link 0 - RX+ BIAS Serial Link 0 - RX- BIAS Serial Link 1 - RX+ BIAS Serial Link 1 – RX- BIAS Document: CTIM-00457 Page 25 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 26 The microSD Card Slot on the CCG030 uses the GPIO for operation If a microSD Card is used, the GPIO at the HDC will be disconnected Document: CTIM-00457 Page 26 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 27 Military, Aerospace, and Industrial, the COM Express Type 10 Carrier has a hardwired resistor population option to enable ATX Override Mode. Please contact sales@connecttech.com for additional details. Document: CTIM-00457 Page 27 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 28 Breakout Board Design. If additional current is required, then an additional +3.3V power rail should be added to the Breakout Board Design. For additional inquiries please contact sales@connecttech.com. Document: CTIM-00457 Page 28 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 29 SP336E Serial Link 0 – RX+ BIAS SP336E Serial Link 0 – RX- BIAS SP336E Serial Link 1 – RX+ BIAS SP336E Serial Link 1 – RX- BIAS Document: CTIM-00457 Page 29 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 30 For Normal ATX Operation, if the system does not automatically start, toggle SYS_PWRBTN# On-Board Indicator LED’s The COM Express Type 10 Carrier has 2 on-board indicator LEDs. Description Power Good System Reset Document: CTIM-00457 Page 30 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 31 1.25 running, system in Linux running 1080p Video Test ™ ® Note [4]: COM Express Type 10 Module with Intel Atom E3815, 2GB DDR3L Document: CTIM-00457 Page 31 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 32 A complete 3D STEP Model file of COM Express Type 10 Carrier can be downloaded here: http://www.connecttech.com/ftp/3d_models/CCG030_3D_MODEL.zip 2D Mechanical Dimensioned Drawing (Top View) - PCB and Mounting Hole Dimension are in mil. Top View Document: CTIM-00457 Page 32 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 33 GPIO 4x GPI Test Points 4x GPO Test Points Power +12V Input +12V Input Requirements Operating C to +85 C to +85 Temperature Image Document: CTIM-00457 Page 33 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 34 If a user wishes to create their own breakout board to connect to the COM Express Type 10 Carrier, Connect Tech Inc. has prepared a reference design package that can be downloaded below. In addition, Connect Tech Inc. also offers a quick turn, low cost design service to create your custom breakout board. Please contact sales for more information at sales@connecttech.com.
  • Page 35 HDMI Female to 20-Pin Minitek Cable CBG125 LVDS (DP20A-40DS) to Un-Terminated Wires Cable drawings are available upon request. Send an email request to: support@connecttech.com Document: CTIM-00457 Page 35 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 36 COM Express Type 10 Users Guide www.connecttech.com CBG090 - SATA HDD Signal and Power Cable Document: CTIM-00457 Page 36 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 37 COM Express Type 10 Users Guide www.connecttech.com CBG111 - Dual USB 2.0 panel mount to 8-pin MiniTek Cable Document: CTIM-00457 Page 37 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 38 COM Express Type 10 Users Guide www.connecttech.com CBG113 - DisplayPort to 20-Pin Minitek Cable Document: CTIM-00457 Page 38 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 39 COM Express Type 10 Users Guide www.connecttech.com CBG117 - RJ-45 to 10-Pin Minitek Cable Document: CTIM-00457 Page 39 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 40 COM Express Type 10 Users Guide www.connecttech.com CBG118 - Dual Audio to 8-Pin Minitek Cable Document: CTIM-00457 Page 40 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 41 COM Express Type 10 Users Guide www.connecttech.com CBG125 - LVDS (DP20A-40DS) to Un-Terminated Wires Document: CTIM-00457 Page 41 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 42 The CBG131 cable is an OEM 19-pin internal type cable, to panel mountable USB 3.0 Type-A Connector(s). Note: Cable will not ship with bracket Document: CTIM-00457 Page 42 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
  • Page 43 COM Express Type 10 Users Guide www.connecttech.com CBG145 - HDMI Female to 20-Pin Minitek Cable Document: CTIM-00457 Page 43 of 43 Date: 2016/04/08 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
