Summary of Contents for Connect Tech CPG004

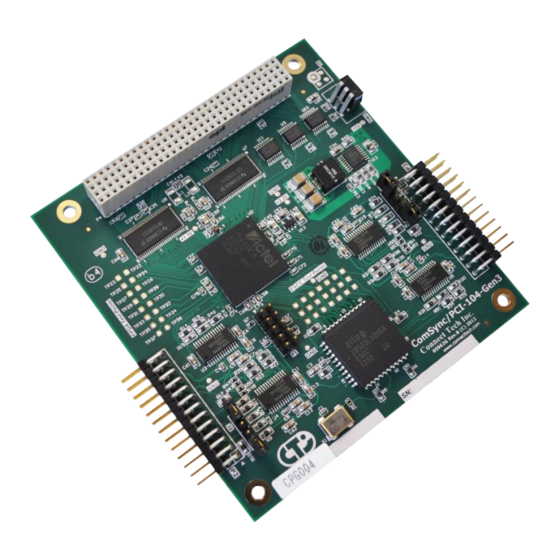

- Page 1 ComSync/PCI-104 Gen 3 Users Guide Connect Tech Inc. Tel: 519-836-1291 42 Arrow Road Toll: 800-426-8979 (North America only) Guelph, Ontario Fax: 519-836-4878 N1K 1S6 Email: sales@connecttech.com www.connecttech.com support@connecttech.com CTIM-00122 Revision 0.01 2017-01-26...
-
Page 2: Table Of Contents
PCI-104 Slot Selection ............................ 9 RS485, ½ Duplex Bias/Termination Selection ....................10 IO Cable .............................. 10 ESCC DMA Data Transfers ......................... 11 Detailed Technical Manual ........................11 Document: CTIM-00122 Page 2 of 11 Date: 2017-01-26 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 3: Preface
Preface Customer Support Overview If you experience difficulties after reading the manual and/or using the product, contact the Connect Tech reseller from which you purchased the product. In most cases the reseller can help you with product installation and difficulties. -
Page 4: Limited Lifetime Warranty
You may obtain warranty service by delivering this product to an authorized Connect Tech Inc. business partner or to Connect Tech Inc. along with proof of purchase. Product returned to Connect Tech Inc. must be pre-authorized by Connect Tech Inc. with an RMA (Return Material Authorization) number marked on the outside of the package and sent prepaid, insured and packaged for safe shipment. -
Page 5: Esd Warning
ESD Warning Electronic components and circuits are sensitive to ElectroStatic Discharge (ESD). When handling any circuit board assemblies including Connect Tech COM Express carrier assemblies, it is recommended that ESD safety precautions be observed. ESD safe best practices include, but are not limited to: ... -
Page 6: Introduction
RS232, RS422, RS485 Industrial Temp operation -40C to +85C Part Numbers / Ordering Information Part Number CPG004 Standard Product CPG005 CPG004 with Conformal coating Document: CTIM-00122 Page 6 of 11 Date: 2017-01-26 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 7: Product Overview
PCI-104 Bus Stack connector PCI-104 Bus “Slot” selector J1/J2 Port-1 RS485 Bias/Termination J3/J4 Port-2 RS485 Bias/Termination Alternate PCI-104 Bus “Slot” selector (not normally populated) Document: CTIM-00122 Page 7 of 11 Date: 2017-01-26 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 8: Serial Data & Clocking Connectors
Input or Output in RS422 or RS485 modes, output only in RS232 mode. Input or Output in RS485 mode, otherwise an Output. Always RS232 level signal in all modes. Document: CTIM-00122 Page 8 of 11 Date: 2017-01-26 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 9: Signal Description
Specifications. Positions 0 through 3 select the 4 possible slots. The other positions just mirror the first 4 selections. Switch Slot Position Number 0,4,8,C 1,5,9,D 2,6,A,E 3,7,B,F Document: CTIM-00122 Page 9 of 11 Date: 2017-01-26 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 10: Rs485, ½ Duplex Bias/Termination Selection
Cable assembly CBG001 (CTIC-00055) can be used with the ComSync PCI-104 Gen 3 product. It provides a DB-25 style of connector. The pin assignments for this cable are shown in the table above. Document: CTIM-00122 Page 10 of 11 Date: 2017-01-26 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 11: Escc Dma Data Transfers
A companion detailed technical manual for this product is available upon execution of an Non-Disclosure Agreement (NDA). This manual contains technical details that software developers would need to incorporate this product in their system. Document: CTIM-00122 Page 11 of 11 Date: 2017-01-26 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
