Summary of Contents for Connect Tech CTIM-00080

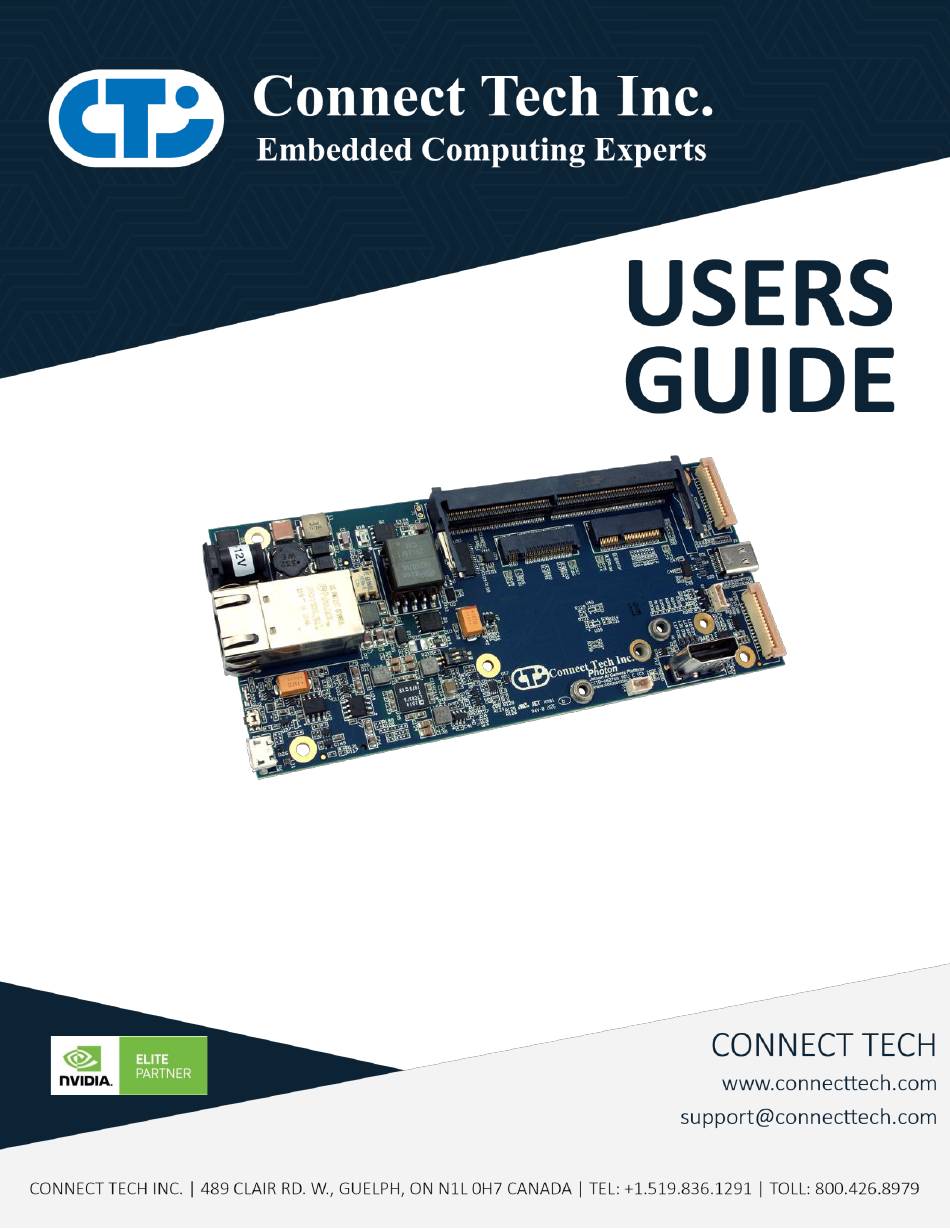

- Page 1 Photon AI Camera Platform CTIM-00080 Revision 0.06 2021-08-20...
-
Page 2: Table Of Contents
PoE PD Connectivity ................................24 Software Setup..................................25 Optional integration features ..............................25 Power Consumption & Thermals ............................26 Thermal Details ....................................26 Connect Tech Custom Thermal Solutions ............................27 Current Consumption Details ..............................29 Document: CTIM-00080 Page 2 of 29 Date: 2021-08-20 Revision: 0.06... -
Page 3: Preface
The information contained within this user’s guide, including but not limited to any product specification, is subject to change without notice. Connect Tech assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide. -
Page 4: Limited Product Warranty
Connect Tech Inc. provides a one year Warranty for this product. Should this product, in Connect Tech Inc.'s opinion, fail to be in good working order during the warranty period, Connect Tech Inc. will, at its option, repair or replace this product at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster or non-Connect Tech Inc. -
Page 5: Esd Warning
ESD Warning Electronic components and circuits are sensitive to ElectroStatic Discharge (ESD). When handling any circuit board assemblies including Connect Tech COM Express carrier assemblies, it is recommended that ESD safety precautions be observed. ESD safe best practices include, but are not limited to: •... -
Page 6: Introduction
Rear IO - Button Dual RESET + FLASH Enable Functionality Operating Temperature -25°C to +85°C (-13°F to +185°F) Weight 76g (0.167lbs) Warranty and Support 1 Year Warranty and Free Support Document: CTIM-00080 Page 6 of 29 Date: 2021-08-20 Revision: 0.06... -
Page 7: Part Numbers / Ordering Information

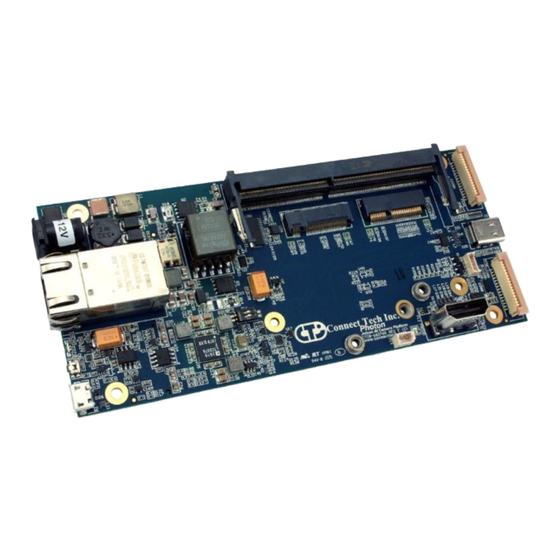

Users Guide www.connecttech.com Connect Tech’s Photon AI Camera Platform brings a low cost deployable Jetson solution to the market. Its design includes Power over Ethernet (PoE) 802.3at as well as a lower cost variant without it. Part Numbers / Ordering Information... -
Page 8: Product Overview
Photon AI Camera Platform Users Guide www.connecttech.com PRODUCT OVERVIEW Block Diagram Document: CTIM-00080 Page 8 of 29 Date: 2021-08-20 Revision: 0.06... -
Page 9: Connector Locations
MIPI CSI-2 (P10B) MIPI CSI-2 (P10A) FAN (P8) HDMI (P12) Power ON LED RTC (P14) USB 2.0 FTDI DEBUG (P6) +12V DC 2.1mm BARREL JACK (P2) GIGABIT ETHERNET/ PoE PD (P7) Document: CTIM-00080 Page 9 of 29 Date: 2021-08-20 Revision: 0.06... - Page 10 Photon AI Camera Platform Users Guide www.connecttech.com BOTTOM VIEW I2C/GPIO/POWER (P9) M.2 M-Key (P5) micoSD CARD/SIM CARD (P11) USB 2.0 OTG (P13) Document: CTIM-00080 Page 10 of 29 Date: 2021-08-20 Revision: 0.06...
-
Page 11: Connector Summary
P10A 52610-1572 MIPI CSI-2 Camera Connector P10B 52610-1572 MIPI CSI-2 Camera Connector 1042391430 Dual microSD/SIM Connector 0476591000 HDMI Video Connector 47589-0001 USB 2.0 Micro-AB OTG Connector 53047-0310 RTC Battery Connector Document: CTIM-00080 Page 11 of 29 Date: 2021-08-20 Revision: 0.06... -
Page 12: Led, Jumper & Switch Summary
**Note: J3 and J4 Shield GND Jumpers are only available on Revision F and above for NGX002 and NGX003. Also note that the configuration of J3:ON and J4:OFF will match the NGX002/NGX002 Revision A-E connectivity. Note: Please refer to our Product Change Notice CTIU-00035(0.00) for more information on the Jumper Ground Configuration Document: CTIM-00080 Page 12 of 29 Date: 2021-08-20... -
Page 13: Detailed Feature Description
Board-to- M2.5 x 6.57mm standoffs required between Module NVIDIA Jetson NX Modules and Photon AI Standoff Camera Platform Height (CTI P/N: 155-0746-000.A) Document: CTIM-00080 Page 13 of 29 Date: 2021-08-20 Revision: 0.06... -
Page 14: Usb 2.0 Otg/Host Mode Connector
Function Description Location Type TE Connectivity Micro-B USB Connector Carrier Connector Part Number: 1981568-1 Manufacturer: TE Connectivity Mating Connector USB 2.0 Micro-B Cable Pinout Refer to USB Standard Document: CTIM-00080 Page 14 of 29 Date: 2021-08-20 Revision: 0.06... -
Page 15: Hdmi Connector
Please ensure the Photon AI Camera Platform is powered with a DC source when required as mentioned in the following section Function Description Location Type PJ-002A Barrel Jack Connector Carrier Connector Part Number: PJ-002A Manufacturer: CUI Document: CTIM-00080 Page 15 of 29 Date: 2021-08-20 Revision: 0.06... -
Page 16: Gbe Rj45 Ethernet & Poe Pd Connector
P6 (USB), P9 (GPIO), P13 (USB) and P12 (HDMI) to avoid creating ground currents from differences in potential. Please refer to the following section for more information on connectivity. Document: CTIM-00080 Page 16 of 29 Date: 2021-08-20... -
Page 17: Mipi Csi-2 Connectors
P10B – CSI2 Type MOLEX FPC Vertical Connector 15 Pin Carrier Part Number: 0526101572 Connector Manufacturer: MOLEX Pinout Description CAM_DN0 CAM_DP0 CAM_DN1 CAM_DP1 CAM_CLKN CAM_CLKP CAM_PWDN CAM_MCLK I2C0_SCL I2C0_SDA 3.3V Document: CTIM-00080 Page 17 of 29 Date: 2021-08-20 Revision: 0.06... -
Page 18: B-Key Connector
Refer to M.2 NGFF Standard Note: Only a M.2 E-Key or M.2 M-Key can be operated at a time. This is a limitation in the amount of available PCIe lanes from the Jetson Module. Document: CTIM-00080 Page 18 of 29 Date: 2021-08-20... -
Page 19: M-Key Connector
Manufacturer: Molex Mating Connector microSD Card, SIM Card Pinout Refer to SD Card Standard and SIM Card Standard Note: microSD card is on the top, SIM card is on the bottom. Document: CTIM-00080 Page 19 of 29 Date: 2021-08-20 Revision: 0.06... -
Page 20: Fan Connector
The Photon AI Camera Platform implements a 3 Position Molex PicoBlade connector for an RTC Battery. Function Description Location Type Molex 3 Position 1.25mm PicoBlade Connector Carrier Part Number: 53047-0310 Connector Manufacturer: Molex Mating Part Number: 0510210300 Connector Manufacturer: Molex Pinout Description BAT+ BAT- Document: CTIM-00080 Page 20 of 29 Date: 2021-08-20 Revision: 0.06... -
Page 21: I2C/Gpio/Power Connector
GPIO SYSFS for GPIO0, GPIO1, GPIO1, GPIO3 for different Jetson modules are respectively: Nano uses SYSFS 504, 505, 506, 507 Xavier-NX uses SYSFS 232,233,234,235 TX2-NX uses SYSFS 248,249,250,251 For more information on GPIO usage, please click here Document: CTIM-00080 Page 21 of 29 Date: 2021-08-20 Revision: 0.06... -
Page 22: Reset & Recovery Pushbutton
SW1-1 – ON Not Used SW1-2 – ON Enable PCIe for M.2 2280 M-Key (NVMe) SW1-1 – OFF Not Used SW1-2 – OFF Enable PCIe for M.2 2230 E-Key (WiFi/Bluetooth) Document: CTIM-00080 Page 22 of 29 Date: 2021-08-20 Revision: 0.06... -
Page 23: Pwm Rgb Led
Note 1: This port can be used for host mode access to the NVIDIA® Jetson Nano™ module at 5Gbps only. Note 2: Display devices or devices requiring 20V power modes are not supported. Document: CTIM-00080 Page 23 of 29 Date: 2021-08-20... -
Page 24: Installation
HDMI connector (P12), the Photon Jetson AI Camera Platform can be sitting at different potential than the monitor causing ground currents. It is suggested to avoid directly connecting to these peripherals without any additional isolation. Please contact for support@connecttech.com for further information. Document: CTIM-00080 Page 24 of 29 Date: 2021-08-20 Revision: 0.06... -
Page 25: Software Setup
Nano module: sudo cti-nano-fdt.sh OPTIONAL INTEGRATION FEATURES Feature Module Size Connector Manufacturer Cellular Module M.2 3042 Quectel WiFi / BT M.2 2230 Intel NVMe M.2 2280 Samsung Document: CTIM-00080 Page 25 of 29 Date: 2021-08-20 Revision: 0.06... -
Page 26: Power Consumption & Thermals
NVIDIA® Jetson TX2™ NX Parameter Value Units T.cpu = 95.5 °C Maximum Tegra X2 Operating Temperature T.gpu = 95.5 °C T.cpu = 101 °C Tegra X2 Shutdown Temperature T.gpu = 101 °C Document: CTIM-00080 Page 26 of 29 Date: 2021-08-20 Revision: 0.06... -
Page 27: Connect Tech Custom Thermal Solutions
Connect Tech Custom Thermal Solutions Connect Tech Inc. has three custom solutions available for customer implementation, namely, an Active Cooling Solution, Passive Cooling Solution, and Thermal Transfer Plate Solution. Please contact Connect Tech Inc. for more information regarding these options. - Page 28 Photon AI Camera Platform Users Guide www.connecttech.com Connect Tech Inc. NVIDIA® Jetson Xavier NX™ Thermal Solutions Function Part Number Active Cooling XHG312 Cools SoC and Memory Active Cooling XHG314 Cools SoC Only Note: Needs additional fan extension cable Passive Cooling...
-
Page 29: Current Consumption Details
Idle, HDMI, Ethernet, Mouse and Keyboard plugged in NVIDIA® Jetson™ Xavier NX Module, Passive Cooling, 25°C (typ.) 15W - 6 core mode, CPU stressed, GPU stressed, HDMI, Ethernet, Mouse and Keyboard plugged in Document: CTIM-00080 Page 29 of 29 Date: 2021-08-20 Revision: 0.06...
