- Page 1 More Bad Muff Massive Muff-based fuzz Contents of this document are ©2023 Pedal Parts Ltd. No reproduction permitted without the express written permission of Pedal Parts Ltd. All rights reserved.
- Page 2 Before you dig in, ensure you download and read the General Build Guide. It contains all the information you need for a successful outcome.
- Page 3 Schematic + BOM D1-4 1N4148 1N5817 100n 510K 100n Q1-3 BC184C** 330p 2N5457 470R (270R)* 100n 100n 20K TRIM 330p 100n 100KB 100K 100n 100KA 470K 20KW (10KB)*** 100KA 220R 10u elec 10u elec 100K 10u elec 680R 1u elec 470K 100u elec *Smaller value give you more oomph with the heat control fully CW.

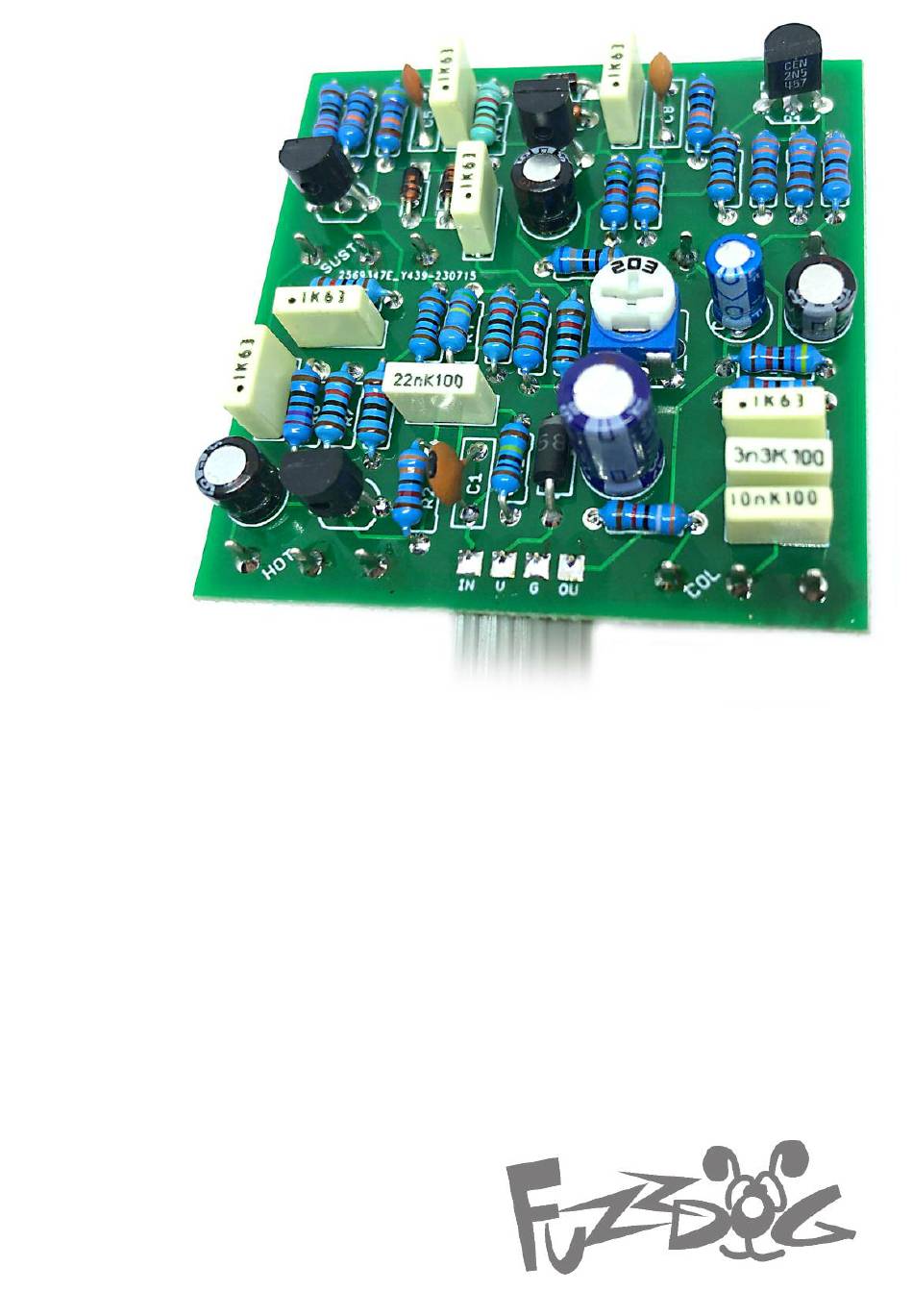

- Page 5 Snap the small metal tag off the pots so they can be mounted flush in the box. You should solder all other board-mounted components before you solder the pots. Once they’re in place you’ll have no access to much of the board. As noted previously, the transistor spots are for standard EBC transistors.
-
Page 6: Drilling Template
3 mm This template is a rough guide only. You should ensure correct marking of your enclosure before drilling. You use this template at your own risk. Pedal Parts Ltd can accept no responsibility for incorrect drilling of enclosures. FuzzDog.co.uk...
