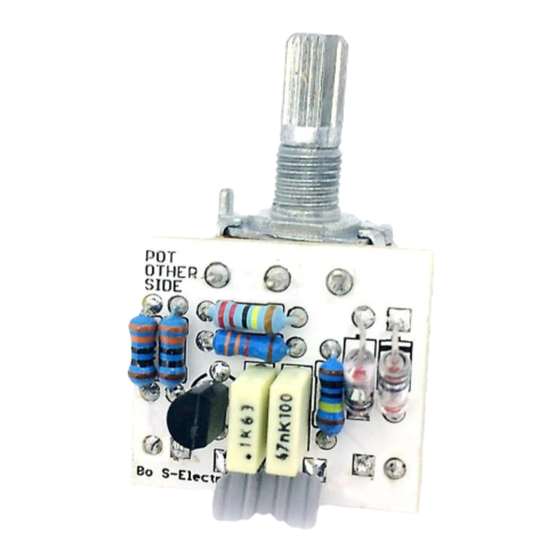

Multiple tone shaping tools on one tiny board

Advertisement

Electrica+
Multiple tone shaping tools
on one tiny board
Contents of this document are ©2018 Pedal Parts Ltd.
No reproduction permitted without the express written
permission of Pedal Parts Ltd. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Electrica+ and is the answer not in the manual?

Questions and answers

Summary of Contents for FuzzDog Electrica+

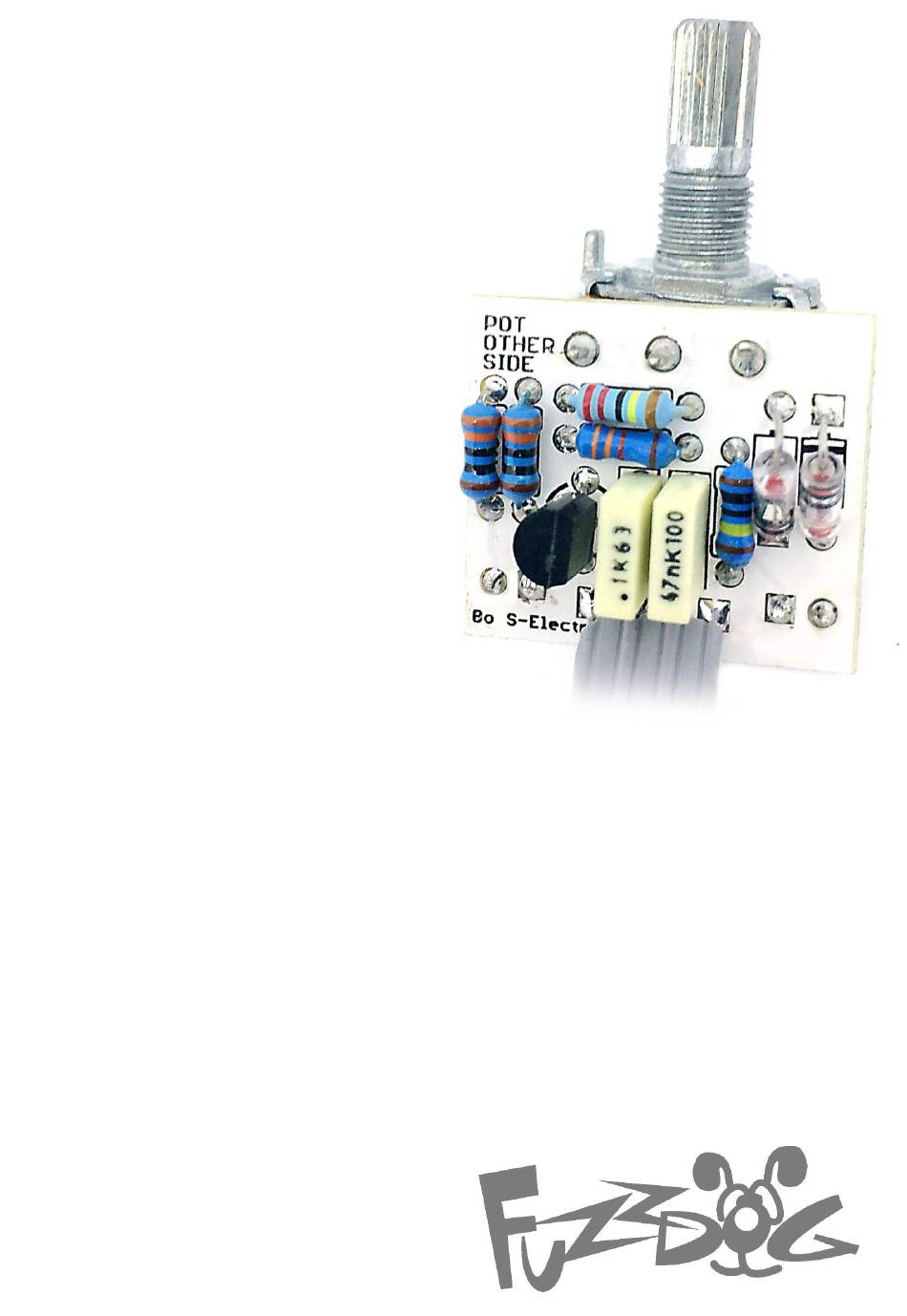

  • Page 1 Electrica+ Multiple tone shaping tools on one tiny board Contents of this document are ©2018 Pedal Parts Ltd. No reproduction permitted without the express written permission of Pedal Parts Ltd. All rights reserved.
  • Page 2 Schematic + BOMs *There’s no definitive BOM for the Electrica, it’s a basic circuit topography that’s ripe for tweaking. ELECTRICA* TWEEDY CHAMPION 680R 330R 330R Jumper Jumper 330R 100n 100n 100n 100n 47u elec 47u elec 47u elec Empty 47u elec 47u elec 2N5088 2N5088...
  • Page 3 The power and signal pads on the PCB C3 and C4 can go on either side of the conform to the FuzzDog Direct Connection PCB. We thought it best to put them on the format, so can be paired with the same side as the pot as it’s dead space...
  • Page 4 Test the board! BATTERY 9V GND Your nice, new circuit board INCLUDING WIRED POTS!!!! UNDER NO CIRCUMSTANCES will troubleshooting help be offered if you have skipped this stage. No exceptions. Once you’ve finished the circuit it makes sense to test is before starting on the switch and LED wiring.
  • Page 5 Wire it up (if using a daughterboard please refer to the relevant document) BOARD BOARD INPUT BOARD BOARD BOARD BOARD LED+ BOARD BOARD BATTERY Wiring shown above will disconnect the battery when you remove the jack plug from the input, and also when a DC plug is inserted. The Board GND connections don’t all have to directly attach to the board.
  • Page 6 60 x 111 x 31mm This template is a rough guide only. You should ensure correct marking of your enclosure before drilling. You use this template at your own risk. Pedal Parts Ltd can accept no responsibility for incorrect drilling of enclosures. FuzzDog.co.uk...
  • Page 7 36 x 90 x 30mm This template is a rough guide only. You should ensure correct marking of your enclosure before drilling. You use this template at your own risk. Pedal Parts Ltd can accept no responsibility for incorrect drilling of enclosures. FuzzDog.co.uk...
