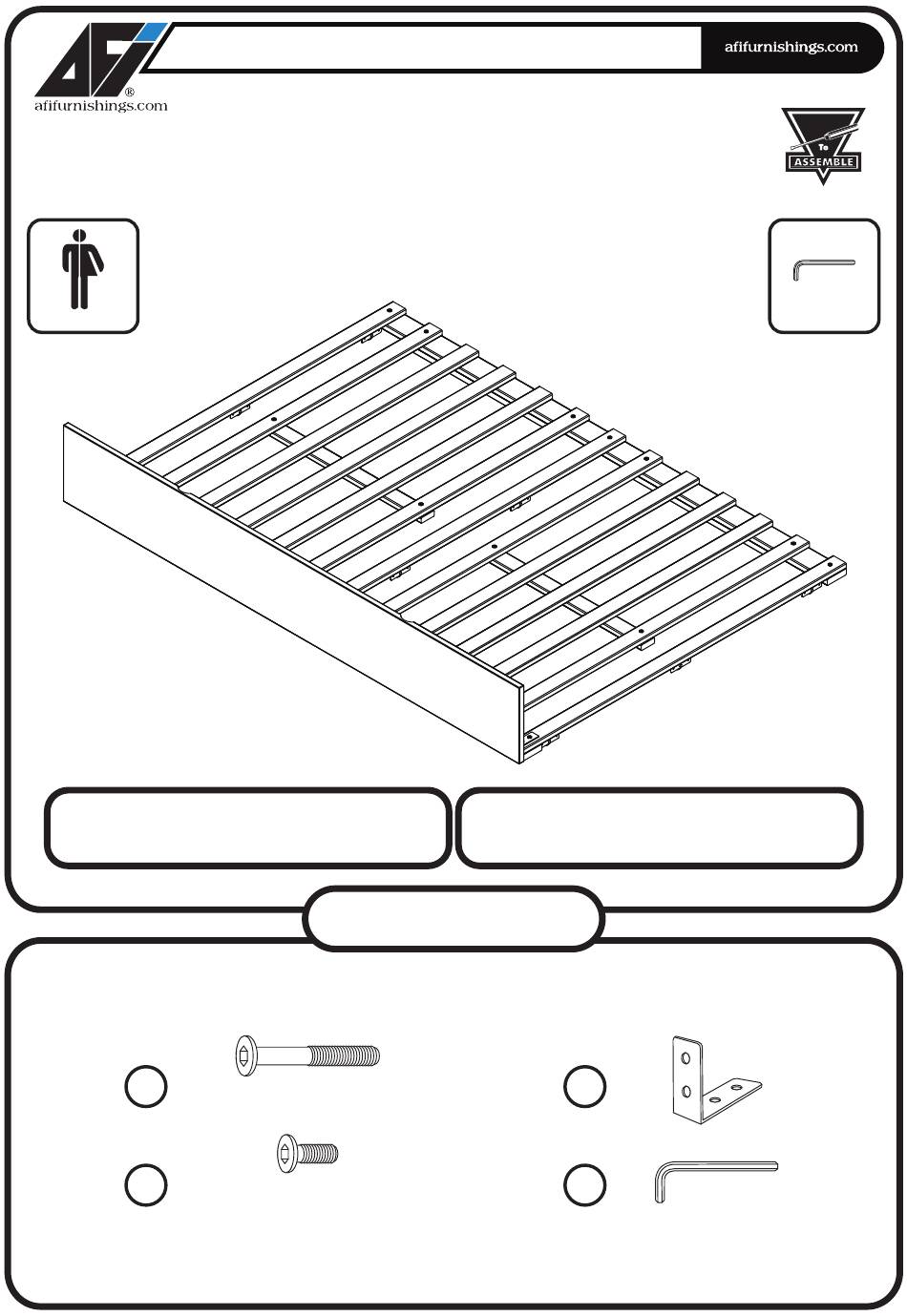

AFi ST-TD-UBN Assembly Instructions

Hide thumbs Also See for ST-TD-UBN:

Download this manual

please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726

Adult assembly

CODE

ST-TD-UBN

NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.

JCB M6 X 1 5/8"( 40mm ) - 21 pcs

JCB M6 X 5/8"( 15mm ) - 6 pcs

TRUNDLE BED

ASSEMBLY INSTRUCTIONS

Before assembling your Trundle bed, please read through these

instructions carefully. Familiarize yourself with the different parts.

ATTENTION! If you receive a damaged or defective item,

ITEM

E-6713X

HARDWARE

Spare - 1 pc

Fix L bracket to front panel

FULL

PO :

L Bracket - 3 pcs

Allen wrench - 1 pc

Spare - 1 pc

READY

Allen wrench

Page 1 of 4

Need help?

Do you have a question about the ST-TD-UBN and is the answer not in the manual?

Page 1 1-800-955-3726 Allen wrench Adult assembly PO : CODE ITEM ST-TD-UBN E-6713X HARDWARE NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY. JCB M6 X 1 5/8”( 40mm ) - 21 pcs Spare - 1 pc L Bracket - 3 pcs JCB M6 X 5/8”( 15mm ) - 6 pcs...
Page 2 FULL PARTS LIST HARDWARE 1 BOX SIDE CROSS RAIL 2 PCS FRONT PANEL 1 PC CENTER CROSS RAIL 1 PC SLAT KIT 2 SET FRONT RAIL 1 PC CENTER SLAT SUPPORT 2 PCS BACK RAIL 1 PC Step 1 Attach the side cross rails (05) and center cross rail (06) to the front and back rail (03)(04), using L bracket (C), JCB M6 X 1 5/8”(A).
Page 3 FULL Attach the front panel (02) to the front rail as shown, using JCB M6 X 5/8” (B). Step 2 Tighten with the Allen wrench (D). Adult assembly JCB M6 X 5/8” Allen wrench Step 3 Attached center slat support(08) to the slat kit (07) as shown, using JCB M6 X 1 5/8” (A). Tighten with the Allen wrench (D).
Page 4 FULL Step 4 Lay the slat kit (07) onto the rail assembly as shown, using JCB M6 X 1 5/8” (A). Tighten with the Allen wrench (D). Adult assembly JCB M6 X 1 5/8” Allen wrench Congratulations! Your Trundle bed is now ready for use. We recommend that you periodically check that all screws are tight and all parts are secure to ensure lasting safety.

E-6713x
