AFi HBFB-RCM Assembly Instructions

instructions carefully and familiarize yourself with the different parts.
please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
PARTS LIST
1 HEADBOARD PANEL 1 PC
2 LEFT LEG 1 PC
3 RIGHT LEG 1 PC
4 PACKING STICK 2 PCS
5 WOOD DOWELS 4 PCS
(Factory Installed)
6 FOOTBOARD 1 PC
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.

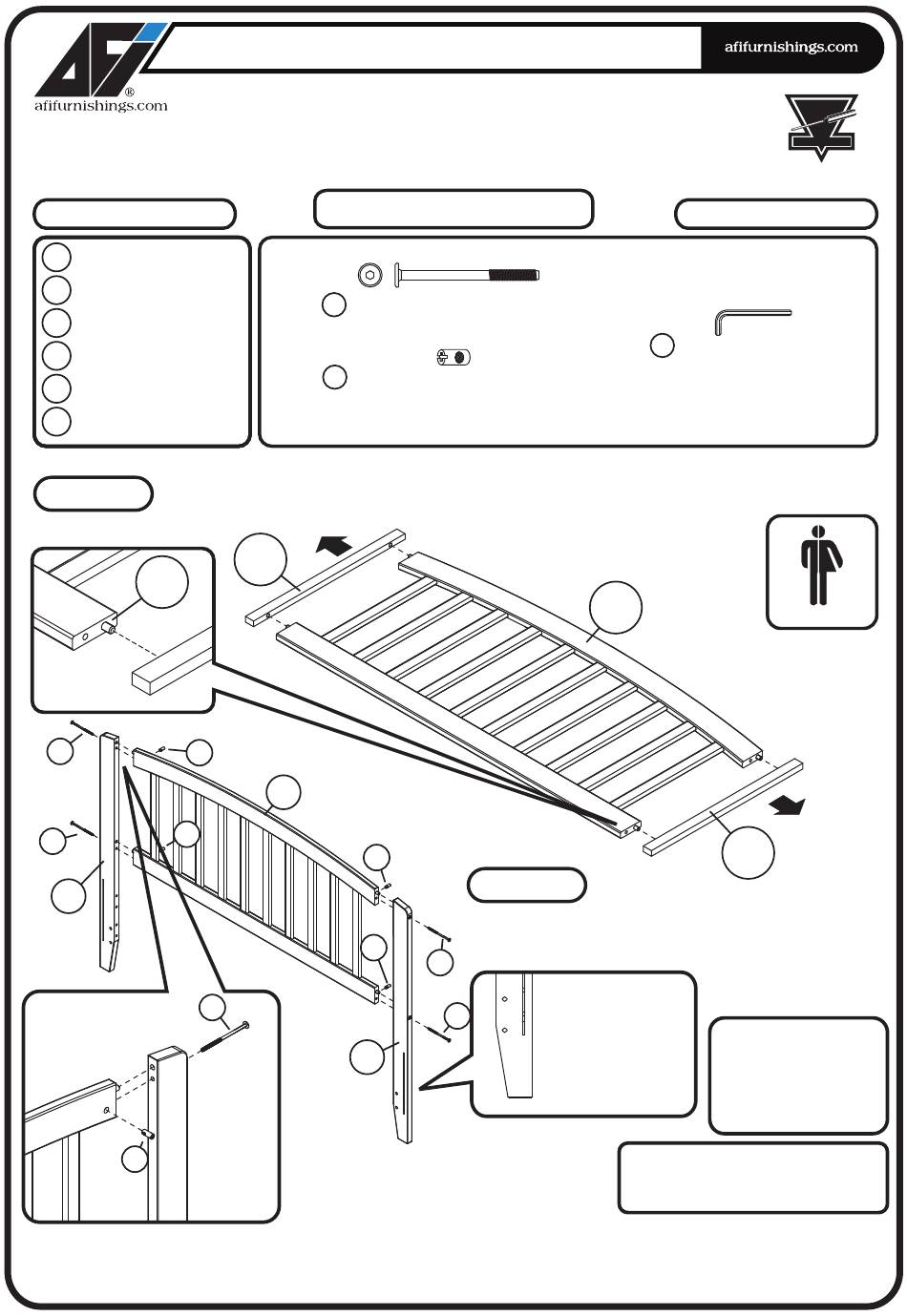

Remove packing stick (4) from headboard panel (1) as shown below and DISCARD.
Step 1
5
A
B
B
A
2
A
BACK VIEW
B
To ensure lasting safety, we recommend that you periodically check
BED WITH MATCHING FOOTBOARD
ASSEMBLY INSTRUCTIONS
Before assembling your bed, please read through these
ATTENTION! If you receive a damaged or defective item,
Instructions apply for bed sizes
TWIN > TWIN XL > FULL
A JCB M6 X 110mm (4 3/8") - 4 pcs
B Barrel nut - 4 pcs
Spare - 1 pc
4
1
B
B
3
Congratulations!
Your headboard is now assembled.
that all screws are tight and all parts are secure.
Spare - 1 pc
Step 2
Attach the legs (2) and (3) to headboard panel (1),
using JCB (A) and barrel nut (B).
Tighten with the Allen wrench (C).
A
FRONT VIEW
A
TAPER INSIDE AND
HOLES TO THE FRONT.
HARDWARE
C Allen wrench - 1pc
Spare - 1pc
1
4
CODE
HBFB-RCM
HBFB-RCM
HBFB-RCM
PO :
READY
TO
ASSEMBLE
Adult assembly
ITEM
R-28872X
R-28873X
R-28871X
Page 1 of 2
