instructions carefully and familiarize yourself with the different parts.
please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
PARTS LIST
1
HEADBOARD PANEL 1 PC
2
LEFT LEG
1 PC
3
RIGHT LEG
1 PC
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.

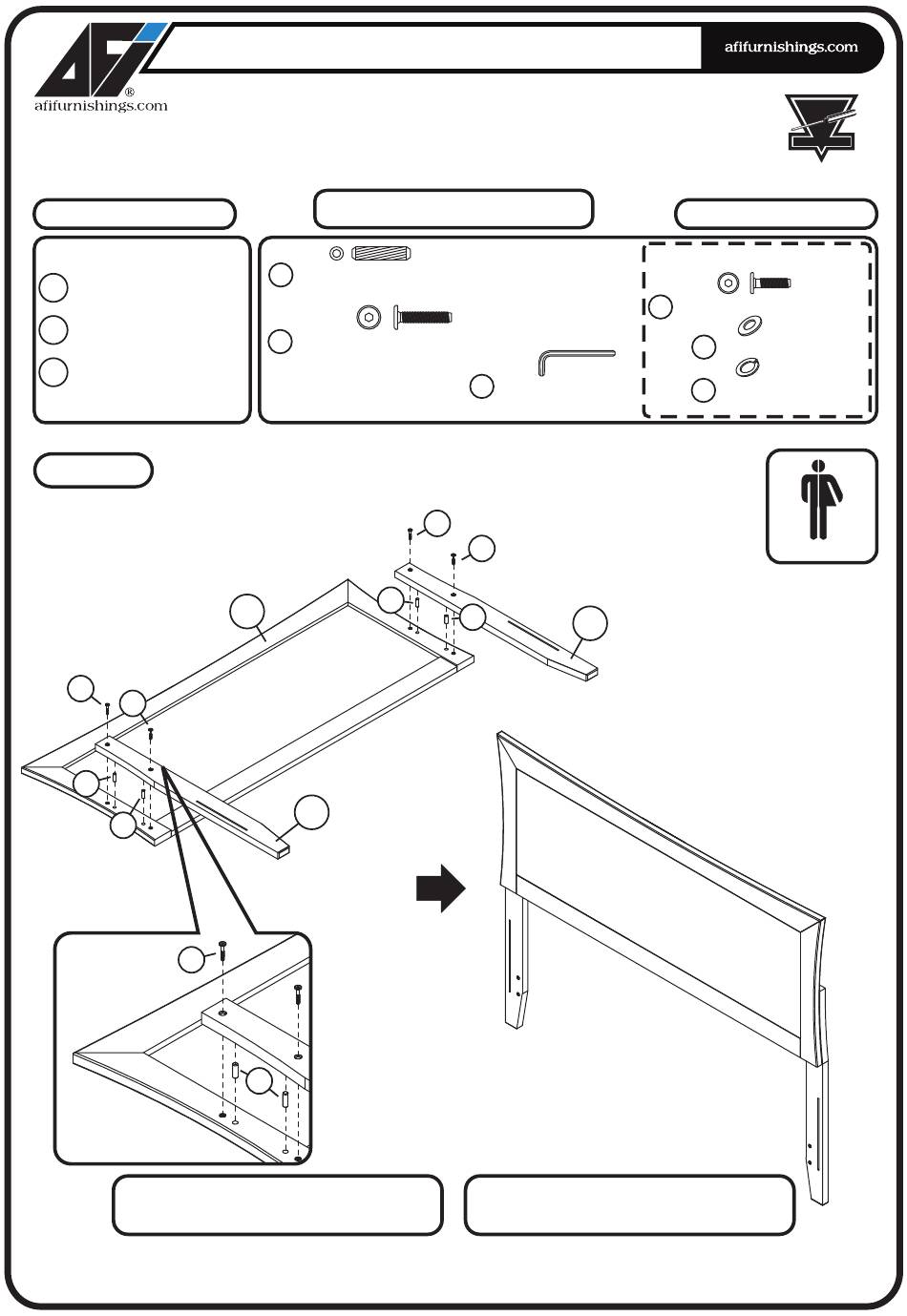

Step 1
Attach the legs (2) and (3) to headboard panel (1),
using wooden dowels (A) and JCB (B).
Tighten with the Allen wrench (F).
B
B
A
A
BACK VIEW
B
PO:
If you purchased a wood headboard to attach to metal bed frame, please refer to page 3.
HEADBOARD
ASSEMBLY INSTRUCTIONS
Before assembling your headboard, please read through these
ATTENTION! If you receive a damaged or defective item,
Instructions apply for bed sizes
A
Wooden dowel - 4 pcs
Spare - 1 pc
B
JCB M6 X 35mm (1 3/8") - 4 pcs
A
1
3
A
TWIN > FULL
Spare - 1 pc
F
Allen wrench - 1pc
Spare - 1pc
B
B
A
CODE
HB-MTR
HARDWARE
HARDWARE FOR METAL BED FRAME
C
JCB M6 X 25mm (1") - 4 pcs
D
Flat washer - 4 pcs
E
Split washer - 4 pcs
2
ITEM
ITEM
R-29082X
R-29083X
READY
TO
ASSEMBLE
Spare - 1 pc
Spare - 1 pc
Spare - 1 pc
Adult assembly
Page 1 of 3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AFi HB-MTR
Summary of Contents for AFi HB-MTR
- Page 1 (A) and JCB (B). Tighten with the Allen wrench (F). Adult assembly BACK VIEW CODE ITEM ITEM R-29082X R-29083X HB-MTR If you purchased a wood headboard to attach to metal bed frame, please refer to page 3. Page 1 of 3...
- Page 2 WOOD BED FRAME Your bed can be assembled using an open footrail or panel footboard. The open footrail has a choice of tall or short legs. TALL LEGS SHORT LEGS FOOTRAIL Storage drawers, Trundle bed or mattress only use TALL LEGS. Foundation and mattress use SHORT LEGS.
-
Page 3: Assembly Instruction
SLAT KIT ASSEMBLY INSTRUCTION READY ( TWIN ) Before assembling your bed slat kit, please read through these ASSEMBLE instructions carefully and familiarize yourself with the different parts. Please note that you will require a Phillips screwdriver. ATTENTION! If you receive a damaged or defective item, please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726 PARTS LIST SLAT KIT... - Page 4 BED DRAWER ASSEMBLY INSTRUCTIONS READY Before assembling your bed drawer, please read through these instructions carefully, familiarize yourself with the different parts. ATTENTION! If you receive a damaged or defective item, please contact afifurnishigs at customerservice@afifurnishings.com or 1-800-955-3726 Adult assembly Allen wrench NOTE : WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
- Page 5 Step 2 Step 3 Guide the drawer bottom (05) in carefully so Attach drawer back (04) to bed drawer that it won’t jump out of its grooves. Be sure it assembly as shown. Use JCB M6 X 1 1/8”(A). fits fully into its groove at the bottom Tighten with Allen wrench (B).
