instructions carefully and familiarize yourself with the different parts.
please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
PARTS LIST
1
HEADBOARD PANEL 1 PC
2
LEFT LEG
1 PC
3
RIGHT LEG
1 PC
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.

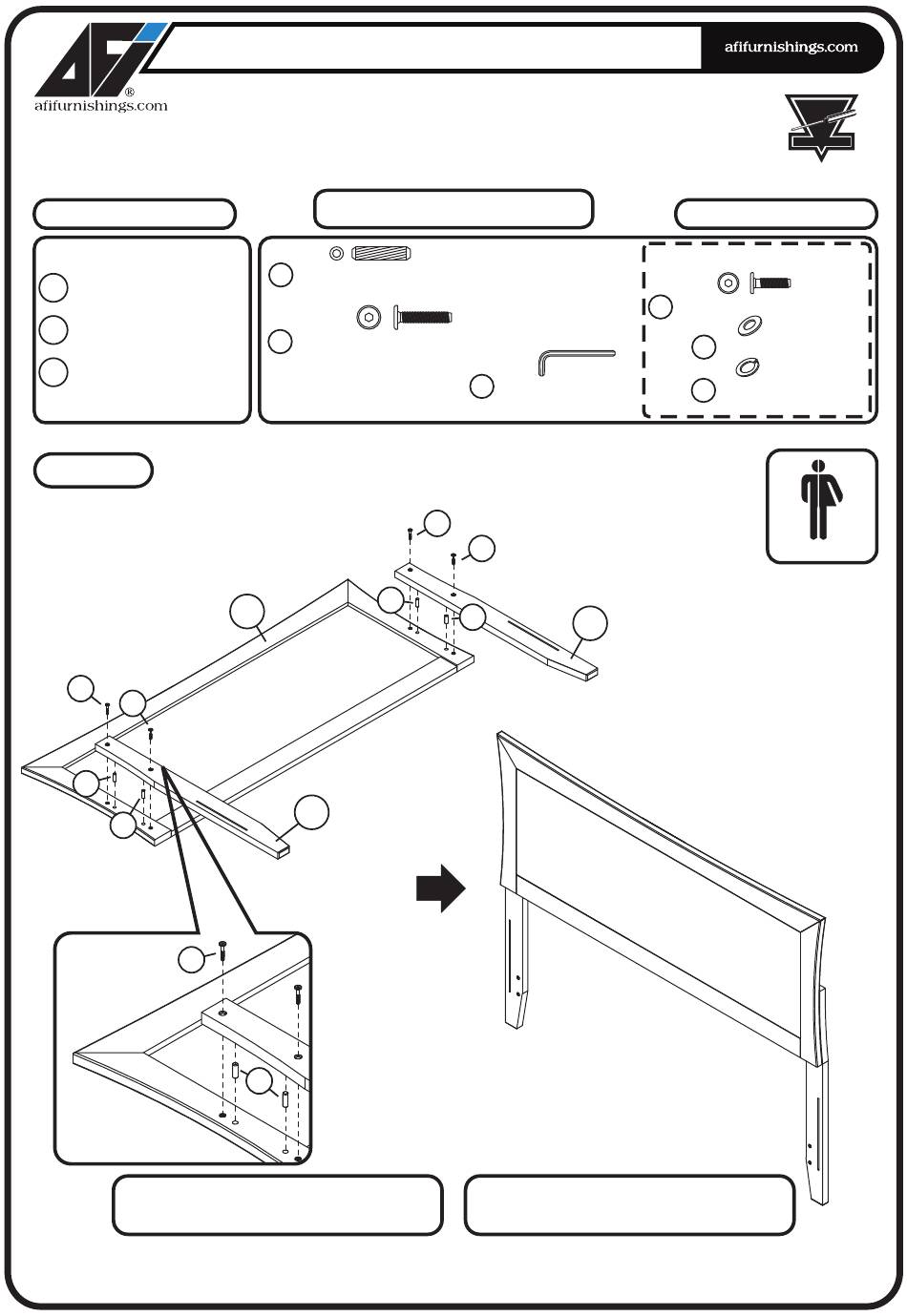

Step 1
Attach the legs (2) and (3) to headboard panel (1),
using wooden dowels (A) and JCB (B).
Tighten with the Allen wrench (F).
B
B
A
A
BACK VIEW
B
PO:
If you purchased a wood headboard to attach to metal bed frame, please refer to page 3.
HEADBOARD
ASSEMBLY INSTRUCTIONS
Before assembling your headboard, please read through these
ATTENTION! If you receive a damaged or defective item,
Instructions apply for bed sizes
A
Wooden dowel - 4 pcs
Spare - 1 pc
B
JCB M6 X 35mm (1 3/8") - 4 pcs
A
1
3
A
TWIN > FULL
Spare - 1 pc
F
Allen wrench - 1pc
Spare - 1pc
B
B
A
CODE
HB-MTR
HARDWARE
HARDWARE FOR METAL BED FRAME
C
JCB M6 X 25mm (1") - 4 pcs
D
Flat washer - 4 pcs
E
Split washer - 4 pcs
2
ITEM
ITEM
R-29082X
R-29083X
READY
TO
ASSEMBLE
Spare - 1 pc
Spare - 1 pc
Spare - 1 pc
Adult assembly
Page 1 of 3
