AFi G-11812X Assembly Instructions

instructions carefully and familiarize yourself with the different parts.
please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
PARTS LIST
1 HEADBOARD PANEL 1 PC
2 LEFT LEG 1 PC
3 RIGHT LEG 1 PC
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.

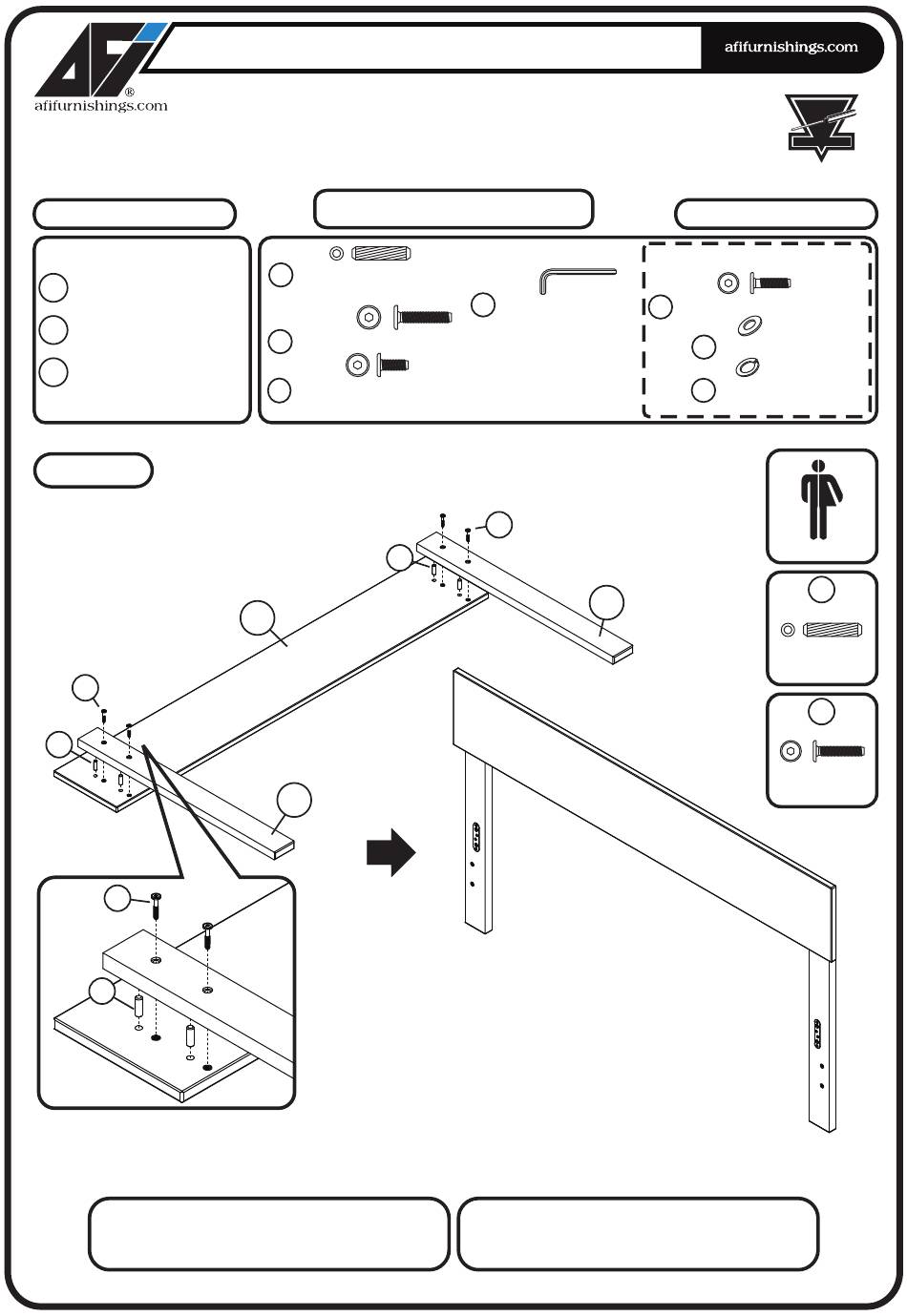

Step 1
Attach the left leg (2) and right leg (3) to headboard panel (1),
using wooden dowels (A) and JCB M6 X 35mm (B).
Tighten with the Allen wrench (G).
B
A
B
A
FOR BED FRAME ASSEMBLY follow assembly instructions included with your bed frame.
If you purchased a wood headboard to attach to metal bed frame, please refer to page 2.
PO:
HEADBOARD
ASSEMBLY INSTRUCTIONS
Before assembling your headboard, please read through these
ATTENTION! If you receive a damaged or defective item,
Instructions apply for bed sizes
TWIN > FULL > QUEEN
A
Wooden dowel - 4 pcs
Spare - 1 pc
B
JCB M6 X 35mm (1 3/8") - 4 pcs
C
JCB M8 X 15mm ( 5/8") - 4 pcs
Assembly headboard to open bed frame
A
1
3
G
Allen wrench - 1pc
Spare - 1pc
Spare - 1 pc
B
2
CODE ITEM
HB-ISL-BST G-11812X
READY
TO
ASSEMBLE
HARDWARE
HARDWARE FOR METAL BED FRAME
D
JCB M6 X 25mm (1") - 4 pcs
Spare - 1 pc
E
Flat washer - 4 pcs
Spare - 1 pc
F
Split washer - 4 pcs
Spare - 1 pc
Adult assembly Adult assembly
A
Wood dowel
B
JCB M6 X 35mm
ITEM ITEM
G-11813X G-11814X
Page 1 of 2
