PARTS LIST
LEFT POST
1 PC
1
2
RIGHT POST
1 PC
3
HB TOP RAIL
1 PC
4
MID RAIL
1 PC
5
HB BOTTOM RAIL
1 PC
6
FOOTBOARD PANEL
1 PC
7
LEFT LEG
1 PC
8
RIGHT LEG
1 PC
9
FB TOP RAIL
1 PC
FB BOTTOM RAIL
1 PC
10

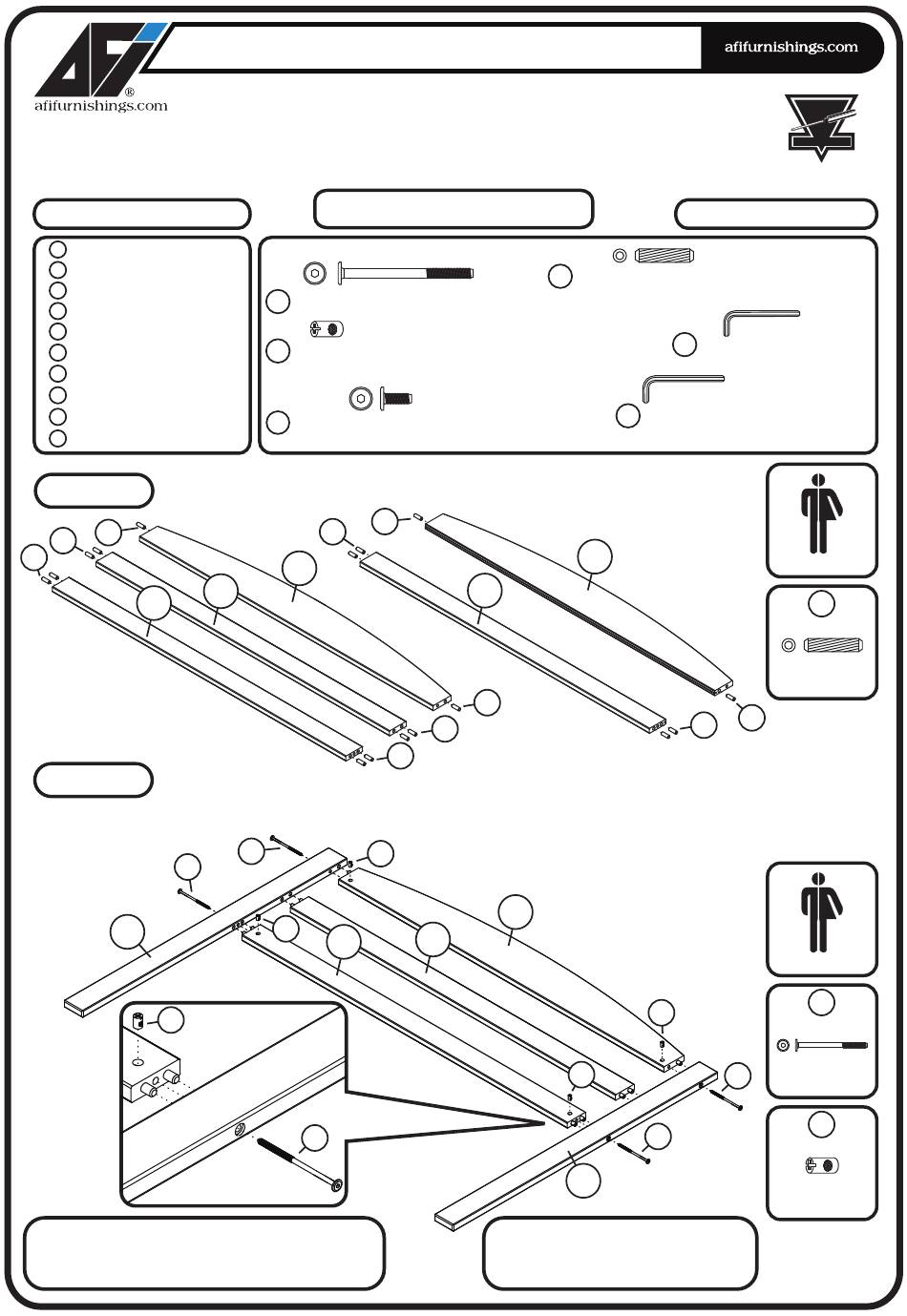

Step 1
Insert all wooden dowels (D) into the locator holes on (3)(4)(5)(9) and(10)
as shown below.
D
D
D
5
Step 2
Lay the left and right post (1)(2) bracket face down on smooth surface. Connect
HB top rail (3), mid rail (4) and HB bottom rail (5) as shown below,
using JCB M6 X 110mm (A) and barrel nut (B). Tighten with the Allen wrench (E).
A
2
B
PO:
HEADBOARD & FOOTBOARD
ASSEMBLY INSTRUCTIONS
Before assembling your headboard, please read through these
instructions carefully and familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
Instructions apply for bed sizes
A
JCB M6 X 110mm - 8 pcs
B
Barrel Nut - 8 pcs
Spare - 1 pc
C
JCB M8 X 15mm ( 5/8") - 8 pcs
Assembly headboard and footboard to side rails
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
D
3
4
A
B
B
5
A
FULL > QUEEN
Spare - 1 pc
D
10
D
D
D
3
4
CODE
HBFB-ISL-WRN G-12903X G-12904X
HARDWARE
D
Wood Dowel - 16 pcs
Spare - 1 pc
E
Allen wrench - 1pc
F
Allen wrench M6 - 1pc
9
D
B
B
A
1
ITEM
ITEM
READY
TO
ASSEMBLE
Spare - 1pc
Adult assembly
Adult assembly
D
Wood Dowel
D
Adult assembly
Adult assembly
A
A
JCB M6 X 110mm
B
Barrel Nut
Page 1 of 3
