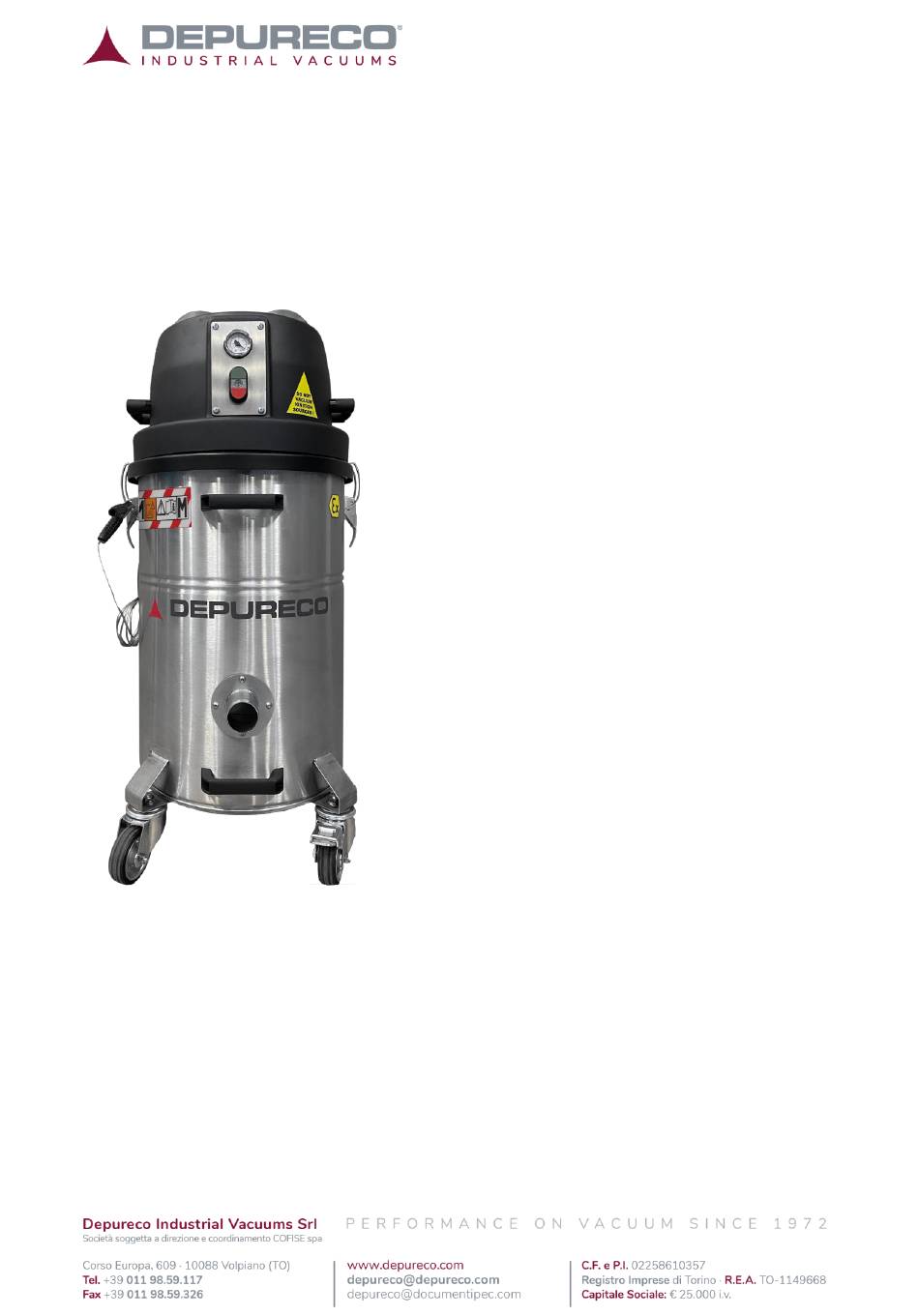

- Page 1 INSTRUCTION AND MAINTENANCE MANUAL BL 45 PRO Z22 ORIGINAL INSTRUCTIONS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS: 1. INFORMATIVE SECTION Foreword ............4 Main parts ............ 7 Optional parts ..........7 Manufacturer's identification data ......7 Identification plate .......... 8 Permitted Uses ..........8 Authorised environmental conditions ......8 Noise level ........... 9 Technical Data ..........10 1.10 Warranty ............. - Page 3 Pag. 3 di 39...
-
Page 4: Informative Section
IMPORTANT - The DEPURECO term and logo in this document refer to and are the property of DEPURECO INDUSTRIAL VACUUMS S.r.l. This document remains the exclusive property of DEPURECO S.r.l. Full or... - Page 5 Directive 2006/42/EC and the technical data are taken from the technical file archived at DEPURECO. With reference to Regulation 1907/2006/EC (REACH), DEPURECO hereby declares that no Substances of Very High Concern - (SVHC) included in the Candidate List, are contained in its products.
- Page 6 This manual should be kept in a place accessible to all personnel in charge with operating and performing maintenance on the vacuum cleaner. In the event of any dispute arising, the Court of Turin (Italy) shall have jurisdiction This manual forms an integral part of the vacuum cleaner.
-
Page 7: Main Parts
5. Bin latches 6. Suction cartridge cover 7. Ventilation cartridge cover Optional parts A wide range of optional accessories is available from DEPURECO depending on the intended use of the vacuum. Manufacturer's identification data DEPURECO INDUSTRIAL VACUUMS S.r.l. Corso Europa 609 - 10088 Volpiano (TO) - ITALY phone +39 011 98 59 117 - fax +39 011 98 59 326 | VAT NO. -
Page 8: Identification Plate
Identification plate The data on the vacuum identification plate must be referred to in any correspondence with the manufacturer or the dealer. Permitted Uses These vacuum cleaners are designed and built according to the 2014/34/EU (ATEX) Directive for an exclusive professional industrial use; either way, for any non-domestic use, This vacuum cleaner is suitable for the cleaning and the collection of solid materials, only in covered areas. -
Page 9: Noise Level
Noise level The phonometric tests performed on this specific vacuum cleaner model demonstrate a sound pressure level of BL 45 PRO Z22 72 dB(A) WARNING! Workers exposed to sound pressure levels higher than 85 dB(A) must be protected by suitable personal protection device (PPE) such as certified ear muffs. -
Page 10: Technical Data
Technical Data U.M. BL 45 PRO Z22 Weight* [Kg] Overall [mm] 987 X 440 dimensions** Voltage / 110/230 – 50/60 [V]- [Hz] Frequency 1.1 – 1.5 Power [kW -HP] Maximum [mBar] vacuum Air flow rate [m³/h] M filter surface [m²]... -
Page 11: Warranty
DEPURECO shall not be held liable for any injuries to persons or damage to objects caused by misuse or improper use of the vacuum. -
Page 12: Safety Section
In the event of equipment, procedures, work methods or techniques not expressly provided for by DEPURECO being used, it is crucial to ensure beforehand that there are no dangers for oneself and the others. Nevertheless, DEPURECO shall not be held liable. -
Page 13: Safety Recommendations
DEPURECO from any liability. Each section lists further safety measures specific to the various functions. WARNING! Setting to work – connection to the power supply Make sure there is no evident sign of damage to the vacuum cleaner before starting work. - Page 14 (superficial antistatic properties are not accepted). The use of original DEPURECO accessories is recommended. Verify electric continuity with an ohmmeter: 1. Between the inlet and the ending part of the vacuum’s accessories: The resistance measured must be inferior to 100MΩ...
- Page 15 • To use flammable or toxic solvents such as gasoline, benzene, ether or alcohol for cleaning. • To operate the vacuum cleaner without the filtering unit provided for by the manufacturer. • To operate the vacuum cleaner without safety devices. •...
-
Page 16: Safety Plates And Symbols
Clean them using a cloth with water and soap. Do not use solvents, naphtha or petrol. Request replacements for damaged plates from DEPURECO. If a plate is located on a component that is being replaced, make sure to fit the old plate to the new component. -
Page 17: Residual Risks
Warning! The removal of safety plates from the vacuum and/or its components and packaging is strictly prohibited. DEPURECO shall not be held liable for the vacuum's safety in the event of failure to comply with this prohibition. Applied Directives The following directives apply to the vacuum cleaner described in this... -
Page 18: Atex Safety Instructions
ATEX safety instructions Ex Hexagon – ATEX Directive 2014/34/EU In this manual the Ex hexagon is next to the main safety instructions concerning the risk of explosion. All staff involved in the installation, use and maintenance of the appliance and its components should receive technical training for the tasks to be carried out, particularly for working in areas with a potentially explosive atmosphere. - Page 19 The user must ensure that the appliances are used according to their intended use, namely that they are used in ZONES classified as compatible with those for which said appliances are declared suitable by the manufacturer. The appliance is designed to work in standard environmental conditions: ...
-
Page 20: Installation - Start-Up
INSTALLATION – START-UP Before installation and start-up, visually inspect the appliance for any transport damages. The tools used for installation must comply with EN 1127-1 in relation to the area of use. As a preliminary operation, provide earthing and check that it works properly. - Page 21 The installation, assembly and disassembly operations must be carried out on machines switched off and in the absence of a potentially explosive atmosphere. The installer must check that the process specifications match the appliance characteristics given on the plate (e.g. with reference to the maximum surface temperature).
- Page 22 The plug is not ATEX certified (or is not supplied): the user must either connect the plug to a socket installed in a SAFE AREA or fit an ATEX plug. The hoses, suction nozzles and filter bags are antistatic as declared by their respective manufacturers.
-
Page 23: Hadling, Unpacking Nd Installation Section
3. HANDLING, UNPACKING AND INSTALLATION SECTION Handling Warning! The instructions for transporting and unpacking the vacuum correctly are shown on the packaging as well. The following instructions also indicate the operations to be undertaken should vacuum need re-packed unpacked after subsequent transportation. -
Page 24: Unpacking
Unpacking Cut and unwind the two packaging fixing belts remove the staples that fix the carton packaging to the pallet with the aid of a screwdriver remove the carton completely Loosen and remove the fastening screws and brackets from both sides The cardboard packaging can be recycled. -
Page 25: Installation
In the event of one or more components being damaged, do not continue with installation, inform DEPURECO about the anomaly and agree upon action to be taken. The vacuum cleaner is already fitted with an appropriate filter intended... -
Page 26: Operation Section
4. OPERATION SECTION Description of the controls Attention! Only authorised staff who have read these use and maintenance instructions are allowed to use the vacuum cleaner. The appliance user and the maintenance technician who carry out the permitted operations vacuum cleaner must receive... - Page 27 plate. Ensure that the power plug is inserted into the socket correctly. Make sure the flexible hose is properly inserted and tightened on the special inlet. Ensure that the dirt collecting container is in the proper position and locked in place under the vacuum’s chamber Secure the vacuum cleaner using the brake on the rotating wheel, as shown in the figure.
-
Page 28: Emptying The Container
Caution! Do not use the vacuum cleaner with the filter clogged Emptying the container Depending on the type and quantity of material being vacuumed, it is necessary to check periodically the dirt container to avoid filling it excessively. Proceed as follows to empty the container: Switch the machine off As previously mentioned, the vacuum cleaner can be locked using the brake positioned on the rotating wheel... -
Page 29: Maintenance Section
5. MAINTENANCE SECTION Warning! Special vacuum maintenance must carried solely specialised technicians authorised by DEPURECO dealer. Informative notes This section describes checks routine maintenance operations required to ensure proper vacuum operation. Maximum reliability minimum maintenance costs result planned maintenance and inspection schedule carefully followed throughout the entire lifespan of the vacuum. - Page 30 according to the work to be done. Place a sign on the vacuum with the message: “MACHINE UNDER MAINTENANCE DO NOT START” Before returning use, whole system must checked according to the starting procedures. Run a few trial operating cycles after every maintenance operation to ensure proper machine operation.
- Page 31 Before every work shift Check that the power cord and the plug are not damaged: replace them immediately if there are any signs of wear, using a cord of the same type (information DEPURECO). This operation sole responsibility of an electrician.
-
Page 32: Filter Cartridge Replacement
Filter cartridge replacement Warning! Wear appropriate PPE (dust mask, latex gloves, goggles, etc.). Proceed as follows to replace the filter: Switch the vacuum cleaner off Disconnect the vacuum cleaner from the electricity supply Unlock the closing hooks on both sides Remove the head Remove the filter and place all components on a work bench Loosen the fastening clamp (H), remove the filter from its support... -
Page 33: Motor Protection Filter Cartridges Replacement
Motor protection filter cartridges replacement 1. Fastening screws 2. Filter cover 3. Filter cartridge Proceed as follows to replace the cartridges: Switch the vacuum off Disconnect the vacuum cleaner from the power supply line Remove the fastening screws from the cover Once cartridges have... -
Page 34: Troubleshooting
Replace claass H filter remove the filter, put it in a plastic bag, seal it and dispose of it according to the applicable legislation on the type of material collected. EXCLUSIVELY USE FILTERS MANUFACTURED BY DEPURECO Troubleshooting FAULT POSSIBLE SOLUTION... -
Page 35: Scrapping
Scrapping case scrapping, avoid damage environment, components vacuum cleaner, must disposed responsibly, appropriate landfills, in compliance with current legislation - Italy Legislative Decree 152/2006 subsequent amendments. (subsequent modifications and additions). Before scrapping the machine, the plastic and rubber materials must be separated from the electrical material. -
Page 36: Maintenance Log
MAINTENANCE LOG: INTERVENTION 1: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION: INTERVENTION 2: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION: INTERVENTION 3: DATE: TECHNICAL ASSISTANCE:... - Page 37 TYPE OF INTERVENTION: INTERVENTION 4: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION:...
