- Page 1 USE AND MAINTENANCE MANUAL SERIES M 100 OIL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS: 1. INFORMATIVE SECTION Foreword ....................... 4 Main parts ......................6 Optional parts ....................... 7 Manufacturer's identification data ..............7 Identification plate ....................7 Permitted Uses ..................... 7 Authorised environmental conditions ..............7 Noise level ......................8 Technical data ...................... 9 1.10 Warranty ...................... -
Page 3: Informative Section
IMPORTANT - The DEPURECO term and logo in this document refer to and are the property of DEPURECO INDUSTRIAL VACUUMS S.r.l. This document remains the exclusive property of DEPURECO S.r.l. Full or partial reproduction by any means (graphical, electronic, etc.) is prohibited without prior authorisation from the Company... - Page 4 This manual forms an integral part of the vacuum cleaner and must accompany the machine for its entire life cycle. In the event it is lost or damaged, you can request another copy from DEPURECO INDUSTRIAL VACUUMS S.r.l. (henceforth shortened to DEPURECO).
-
Page 5: Main Parts

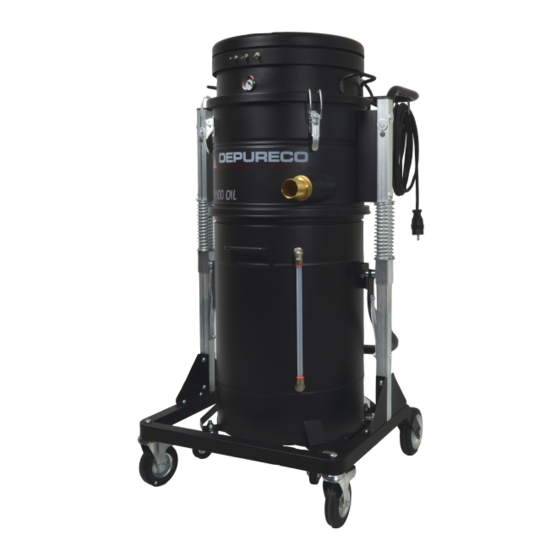

Main parts 1. Vacuum head with on/off controls 2. Handle for moving 3. Filter chamber 4. Suction nozzle 5. Dirt collecting container 6. Liquid level indicator 7. Container release/attachment handle Page 6 of 40... -
Page 6: Optional Parts
Optional parts A wide range of optional accessories is available from DEPURECO depending on the intended use of the vacuum. Manufacturer's identification data DEPURECO INDUSTRIAL VACUUMS S.r.l. Corso Europa 609 - 10088 Volpiano (TO) - ITALY phone +39 011 98 59 117 - fax +39 011 98 59 326 | VAT NO. 02258610357 e-mail: depureco@depureco.com - website: www.depureco.com... -
Page 7: Noise Level
Noise level The phonometric tests performed on this specific vacuum cleaner model demonstrate a sound pressure level of M 100 OIL 72 dB(A) WARNING! Workers exposed to sound pressure levels higher than 85 dB(A) must be protected by suitable personal protection device (PPE) such as certified individual ear defenders. -
Page 8: Technical Data
1.9 Technical data U.M. M 100 OIL Weight* [Kg] Overall [mm] 700 x 450 x 1400 dimensions** Voltage / [V]- [Hz] 230 - 50/60 Frequency Power 3.9 - 5.2 [kW - HP] Maximum [mBar] depression Air flow rate [m³/h] Noise level [dB-A] Filling time [L/s]... -
Page 9: Warranty
DEPURECO shall not be held liable for any injuries to persons or damage to objects caused by misuse or improper use of the vacuum. -
Page 10: Safety Information
Adequate training is crucial to this end. DEPURECO shall not be held liable for accidents or damage due to the improper use of the vacuum by untrained personnel or to failure to comply, even partially, with the occupational safety standards and intervention procedures contained in this manual. -
Page 11: Safety Recommendations
In the event of equipment, procedures, work methods or techniques not expressly provided for by DEPURECO being used, it is crucial to ensure beforehand that there are no dangers for oneself and the others. Nevertheless, DEPURECO shall not be held liable. - Page 12 Should the Customer install a tool not supplied by DEPURECO on the vacuum, the safety •...
-
Page 13: Safety Plates And Symbols
In the event it is lost or damaged, request another copy from DEPURECO. • WARNING! This vacuum cleaner may contain dust that may be hazardous to your health. The emptying out and maintenance procedures, including removing the dust containers, must be carried out exclusively by specialized personnel wearing suitable safety clothing. - Page 14 Warning! Crushing hazard for the upper limbs during insertion and locking of the dirt container under the vacuum cleaner. Never place your hands between the vacuum and the dirt container while inserting and locking the later under the vacuum cleaner. Lock the container by means of the special lever, using BOTH HANDS Warning! Read carefully this use and maintenance manual before using the vacuum cleaner or carrying...
-
Page 15: Residual Risks
Warning! The removal of safety plates from the vacuum and/or its components and packaging is strictly prohibited. DEPURECO shall not be held liable for the vacuum's safety in the event of failure to comply with this prohibition. Applied Directives The following directives apply to the vacuum cleaner described in this manual:... -
Page 16: Handling
3 HANDLING, UNPACKING AND INSTALLATION SECTION Handling Warning! The instructions for transporting and unpacking the vacuum correctly are shown on the packaging as well. The following instructions also indicate the operations to be undertaken should the vacuum need to be re-packed or unpacked after subsequent transportation. -
Page 17: Unpacking
When using a forklift, lift the load 200 mm off the ground and swing backwards. Always keep the height of the working environment in mind when lifting loads. Before starting any movement, ensure that the area is cleared and that there are no moving objects on the packaging. -
Page 18: Installation
In the event of one or more components being damaged, do not continue with installation and inform DEPURECO about the anomaly and agree upon action to be taken. The vacuum cleaner is already fitted with an appropriate filter intended exclusively to vacuum dry dust or debris Insert the flexible pipe fitted with terminal to the designated suction port (detail no.4, chap. - Page 19 Note: the flexible pipe and the relevant end-pieces and suction accessories are not included with the STANDARD model. Contact your dealer (or DEPURECO) for information regarding the various types of OPTIONALS that can be used on this specific model. The following operation must be carried out by a qualified electrician.
-
Page 20: Description Of Controls
4 OPERATION SECTION Description of controls Warning! The vacuum can be used solely by authorised personnel after having read these use and maintenance instructions. The user of the equipment and the maintenance technician, who carry out operations on the vacuum, must be adequately educated, informed and trained, in compliance with the occupational safety standards in force and, during the various operations, must wear personal protective equipment (PPE), such as safety footwear, gloves, protective goggles, mask, etc. -
Page 21: Operation Cycle
Operation cycle Ensure that the power cord is intact and in perfect state. Warning! Before inserting the plug, ensure that the voltage of the power supply line corresponds to that indicated on the vacuum's identification plate. Ensure that the power plug is inserted into the socket correctly. Make sure the flexible pipe is properly inserted and tightened in the special suction port (detail no. - Page 22 Hold the end of the flexible pipe with the chosen vacuum accessory. Press one of the switches (1 or 2 or 3) and start suction. For greater suction power it is possible to activate the second motor and/or the third switch by pressing the other switch.
-
Page 23: Emptying Solid Parts Out Of The Container
Type Clogged filter value M100OIL -0.22 bar -22 kPa Caution! Do not use the vacuum cleaner with the filter clogged 4.3 Emptying solid parts out of the container Warning! During this operation, wear appropriate PPE (gloves, dust mask, goggles, etc.) To empty the container from any solid parts present in the suctioned liquid, proceed as follows: Switch off the machine and wait for the motors to stop completely Disconnect the vacuum cleaner from the power supply... - Page 24 Extract the basket (complete with washable internal filter) from the inside of the container using the handles on the sides Empty the basket from the debris inside it. In order to facilitate handling and emptying, at the base of the container there is a metal profile for possible insertion of the container Warning! If the container weighs more than 15 kg, seek assistance from someone else...
-
Page 25: Emptying The Container From Liquids
To restore use of the vacuum cleaner operate in reverse: Insert the basket, complete with washable filter, into the container Insert the cage complete with float into the basket place the container under the filter chamber and lock it by means of the relevant handle Connect the vacuum cleaner to the electricity supply Turn on the vacuum cleaner and evaluate regular operation 4.4 Emptying the container from liquids... -
Page 26: Storage - Decommissioning
To restore use of the vacuum cleaner operate in reverse: Close the drain valve (D) (turn the lever to OFF) Connect the vacuum cleaner to the electricity supply Turn on the vacuum cleaner and evaluate regular operation Warning! Do not use the vacuum cleaner with the discharge valve open Warning! Upper limb crushing hazard! Never insert your hands between the dirt container and the vacuum cleaner in the... -
Page 27: Informative Notes
5. MAINTENANCE SECTION Warning! Special vacuum maintenance must be carried out solely by specialised technicians authorised by the DEPURECO dealer. 5.1 Informative notes This section describes the checks and routine maintenance operations required to ensure proper vacuum operation. Maximum reliability and minimum maintenance costs are the result of a planned maintenance and inspection schedule carefully followed throughout the entire lifespan of the vacuum. -
Page 28: General Safety Regulations
5.2 General safety regulations Warning! All the operations described above must be carried out with the plug disconnected from the socket. Before starting any maintenance or cleaning operation, wear suitable PPE (protective clothing, goggles and/or gloves, etc.) according to the work to be done. Place a sign on the vacuum with the message: “MACHINE UNDER MAINTENANCE DO NOT START”... - Page 29 Check that the power cord and the plug are not damaged: replace them immediately if there are any signs of wear, using a cord of the same type (information c/o DEPURECO). This operation is the sole responsibility of an electrician.
-
Page 30: Washing Or Replacing The Oil Mist Filter
5.3 Washing or replacing the oil mist filter Warning! Wear appropriate PPE (dust mask, latex gloves, goggles, etc.). To wash or replace the oil mist filter, proceed as follows: Switch off the vacuum cleaner and wait for the motors to stop completely Disconnect the vacuum cleaner from the power supply Unlock the hooks securing the head to the filter chamber on both sides With the help of a second person, remove the suction head... -
Page 31: Washing Or Replacing The Washable Filter
To reassemble the filter, operate in reverse order: Insert the suitably washed oil mist filter sponge or a new sponge inside the cage If previously the cage complete with filter sponge has been removed from the appropriate support, screw the cage to the latter Insert the filter support inside the filter chamber With the help of a second person, place the suction head on the filter chamber, then lock the head with the appropriate closing hooks... - Page 32 Connect the vacuum cleaner to the electricity supply Turn on the vacuum cleaner and evaluate regular operation EXCLUSIVELY USE FILTERS MANUFACTURED BY DEPURECO Page 33 of 40...
-
Page 33: Troubleshooting
Check the condition of the plug No power supply The vacuum cleaner will and the power cable Switch not start Contact DEPURECO technical assistance Try to wash the filter(s). If of no Clogged filter(s) avail, replace the filter(s) Irregular suction Clogged suction pipe Check suction pipe and clean it. -
Page 34: Scrapping
5.6 Scrapping In case of scrapping, to avoid damage to the environment, all components of the vacuum cleaner, must be disposed of responsibly, in appropriate landfills, in compliance with current legislation - for Italy Legislative Decree no. 152/2006 and subsequent amendments. (subsequent modifications and additions). - Page 35 GUARANTEE To use the warranty: Visit the website www.depureco.com Copy this form, fill it in completely, if possible in capital letters, and send it via fax to the manufacturer at the following number: +39 011 98 59 326 or to the address depureco@depureco.com...
- Page 36 MAINTENANCE LOG: INTERVENTION 1: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION: INTERVENTION 2: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION:...
- Page 37 INTERVENTION 3: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION: INTERVENTION 4: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION:...
