USE
AND MAINTENANCE
MANUAL
INDUSTRIAL
VACUUM CLEANER
SERIES
RAM OIL T500
This manual forms an integral part of the vacuum cleaner.
Read this manual and the other attachments supplied carefully. Knowledge of the
instructions contained herein is indispensable for the safe use and maintenance of the
vacuum cleaner.
rev. 0 - Dec. 2016
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DEPURECO RAM OIL T500 Series
Summary of Contents for DEPURECO RAM OIL T500 Series

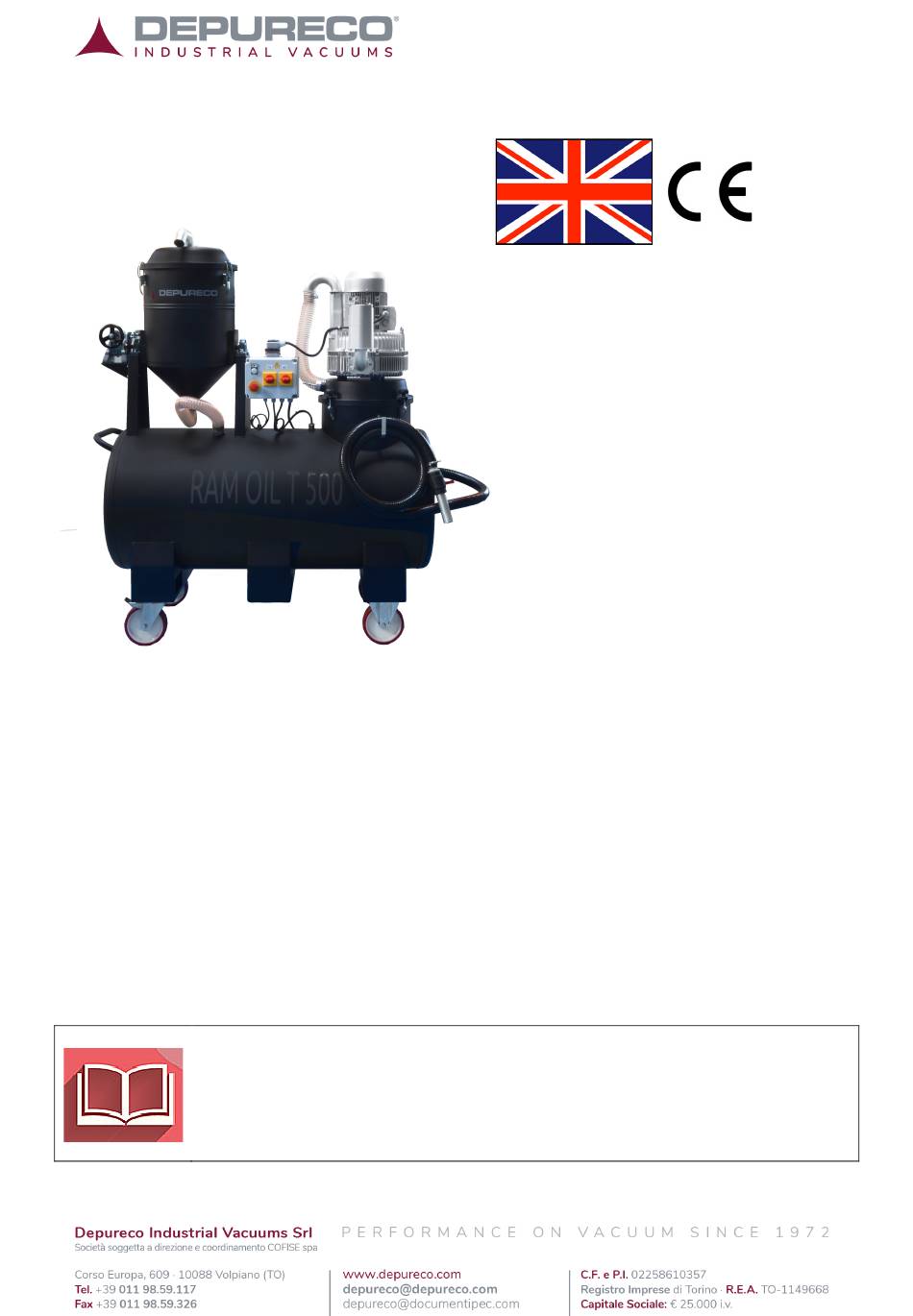

- Page 1 AND MAINTENANCE MANUAL INDUSTRIAL VACUUM CLEANER SERIES RAM OIL T500 This manual forms an integral part of the vacuum cleaner. Read this manual and the other attachments supplied carefully. Knowledge of the instructions contained herein is indispensable for the safe use and maintenance of the vacuum cleaner.
-
Page 2: Table Of Contents
Troubleshooting ......................30 Scrapping........................31 IMPORTANT - The DEPURECO term and logo in this document refer to and are the property of DEPURECO INDUSTRIAL VACUUMS S.r.l. This document remains the exclusive property of DEPURECO S.r.l. Full or partial reproduction by any means... -
Page 3: Information Section
Foreword Dear Customer Thank you for choosing DEPURECO and a DEPURECO RAM OIL T500 series vacuum cleaner This manual has been prepared in order for you to fully appreciate the quality of this machine. Please read all sections before using the machine for the first time. - Page 4 This manual forms an integral part of the vacuum cleaner and must accompany the machine for its entire life cycle. In the event it is lost or damaged, you can request another copy from DEPURECO INDUSTRIAL VACUUMS S.r.l. (hereafter simply called DEPURECO).
-
Page 5: Main Parts
Main parts Suction nozzle solid residue container lid solid residue container liquid tank vacuum head hose wrapping hook drain pipe, including valve pump for expulsion of liquids (internal view from the hatch) vacuum cleaner handle... -
Page 6: Optional Parts
Optional parts A wide range of optional accessories is available from DEPURECO depending on the intended use of the vacuum. Manufacturer's identification data DEPURECO INDUSTRIAL VACUUMS S.r.l. Corso Europa 609 - 10088 Volpiano (TO) - ITALY tel. +39 011 98 59 117... -
Page 7: Technical Data
Warning! Workers exposed to sound pressure levels higher than 85 dB(A) must be protected by a suitable individual protection device as e.g. acoustic individual protection device type-approved. In this case, you need to supply workers training and information about risks coming from noise exposure. -
Page 8: 1.10 Warranty
DEPURECO shall not be held liable for any injuries to persons or damage to objects caused by misuse or improper use of the vacuum. -
Page 9: Safety Section
Adequate training is crucial to this end. DEPURECO shall not be held liable for accidents or damage due to the improper use of the vacuum by untrained personnel or to failure to comply, even partially, with the occupational safety standards and intervention procedures contained in this manual. -
Page 10: Safety Recommendations
Safety recommendations Warning! The following information plays an important role in preventing all hazards that may occur while the vacuum cleaner is running. However, they cannot replace the expertise and common sense of operators as an overall framework for the prevention of accidents. - Page 11 • Should the Customer install a tool not supplied by DEPURECO on the vacuum, the safety requirements of Machinery Directive 2006/42/EC must be met. Nevertheless, DEPURECO shall not be held liable for problems caused by the use of such parts.
-
Page 12: Safety Plates And Symbols
Ensure that all safety messages are perfectly legible. Clean them using a cloth with water and soap. Do not use solvents, naphtha or petrol. Request replacements for damaged plates from DEPURECO. In the event that a plate is located on a piece that is replaced, ensure that a new plate is affixed to the new piece. -
Page 13: Residual Risks
Respect the limitations indicated in this manual, in section 1.5 “Authorised environmental conditions”. Risk of incorrect interpretation of the safety pictograms With reference to risk analysis and identification, DEPURECO has installed hazard labels on the vacuum, in compliance with the standards concerning graphical symbols. -
Page 14: Handling, Unpacking, And Installation Section
HANDLING, UNPACKING, AND INSTALLATION SECTION Handling Warning! The instructions for transporting and unpacking the vacuum correctly are shown on the packaging as well. The following instructions also indicate the operations to be undertaken should the vacuum need to be re-packed or unpacked after subsequent transportation. The vacuum cleaner must be lifted and handled exclusively using a forklift having suitable load bearing capacity. - Page 15 Remove the cardboard completely (where applicable) loosen and remove the fastening screws and brackets from both sides The cardboard packaging is recyclable and should be collected separately to prevent damaging the environment. Warning! Keep the pallet and the fastening brackets. In the event of subsequent transport, the vacuum must be secured to the pallet using the same fastening system.
-
Page 16: Installation
Note: the flexible pipe and the relevant end-pieces and suction accessories are not included with the STANDARD model. Contact your dealer (or DEPURECO) for information regarding the various types of OPTIONALS that can be used on this specific model. -
Page 17: Operation Section
OPERATION SECTION Description of controls Warning! The vacuum can be used solely by authorised personnel after having read these use and maintenance instructions. The user of the equipment and the maintenance technician, who carry out operations on the vacuum, must be adequately educated, informed and trained, in compliance with the occupational safety standards in force and, during the various operations, must wear personal protective equipment (PPE), such as safety footwear, gloves, protective goggles, mask, etc. -
Page 18: Operation Cycle
Operation cycle Ensure that the power cord is intact and in perfect condition. Warning! Before inserting the plug, ensure that the voltage of the power supply line corresponds to that indicated on the vacuum's identification plate. Make sure the power cord is properly inserted in the outlet and make sure the white indicator light (1) VOLTAGE PRESENCE is on. - Page 19 To proceed with vacuuming liquids, follow the steps below: make sure the drain valve at the end of the drain tube (detail no. 7, par. 1.1) is in the closed position (see image below) Place the chosen vacuum accessory on the end of the flexible hose. Turn the switch (3) LIQUID VACUUM ON/OFF to “I”, to stop the vacuum, turn the switch (1) to “O”.
- Page 20 To proceed with the expulsion of liquids, follow the steps below: turn the switch (3) to “O” as shown in the figure below, turn the handle (5) to open the drain valve to start the expulsion of liquids, tun the switch (4) LIQUID EXPULSION ON/OFF to “I”...
-
Page 21: Emptying The Solid Residue Container
Emptying the solid residue container To empty the solid residue container, make sure the machine is not in operation and proceed as indicated below: release the two hooks (6), gently raise the container lid (detail no. 2, par. 1.1) Remove the solid residue from the vacuumed liquid. For more convenient emptying, the container can be rotated 90°. -
Page 22: Storage - Decommissioning
When emptying is complete, return the container to the initial position by turning the handwheel (8) clockwise. Upon reaching the initial position, make sure the pin on the container (9) is locked under the safety hook (7) Storage - decommissioning Remove the mist filter, clean, and empty the tank of any liquid residue inside it and store the vacuum cleaner in a place out of the weather, with temperatures between 0°... -
Page 23: Maintenance Section
MAINTENANCE SECTION Warning! Special vacuum maintenance must be carried out solely by specialised technicians authorised by the DEPURECO dealer. Informative notes This section describes the checks and routine maintenance operations required to ensure proper vacuum operation. Maximum reliability and minimum maintenance costs are the result of a planned maintenance and inspection schedule carefully followed throughout the entire lifespan of the vacuum. -
Page 24: General Safety Regulations
General safety regulations Warning! All the operations described above must be carried out with the plug disconnected from the socket. Before starting any maintenance or cleaning operation, wear suitable PPE (protective clothing, goggles and/or gloves, etc.) according to the work to be done. Place a sign on the vacuum with the message: “MACHINE UNDER MAINTENANCE DO NOT START”... - Page 25 Check that the power cord and the plug are not damaged: replace them immediately if there are any signs of wear, using a cord of the same type (information c/o DEPURECO). This operation is the sole responsibility of an electrician.
-
Page 26: Cleaning The Mist Filter
Cleaning the mist filter Warning! Wear appropriate PPE (dust mask, latex gloves, goggles, etc.). To replace the mist filter, proceed as follows: switch off the machine disconnect the vacuum cleaner from the power supply disconnect the pump plug from the outlet on the electrical panel Release the closure hooks (A) on the vacuum head to release it from the hatch (to loosen the hooks, turn the handwheel clockwise (A1)) From the hatch, lift the vacuum head (B) and position it in a safe place to avoid damaging the pump. -
Page 27: Replacing The Mist Filter
Unscrew the mist filter (D) from the ring (C). Clean the filter with a jet of water with sufficient pressure to remove any residues inside the filter. To reassemble the filter, operate in reverse order: screw the mist filter (C) on the support ring and reposition the latter inside the hatch position the head of the vacuum above the hatch, making sure that it is positioned as previously and that the notches on the closure hooks are aligned with the proper closure hooks tighten the closure hooks... -
Page 28: Tank Emptying And Cleaning
Warning! Make sure the tap is screwed on and tightened properly, if not there could be leaks during normal use ONLY USE ORIGINAL DEPURECO FILTERS... -
Page 29: Troubleshooting
- Magneto-thermic switch power cable The vacuum cleaner will tripped not start - Reset the magneto-thermal switch - Contact the DEPURECO technical assistance - Follow filter cleaning procedure. If this - Mist filter solution is not effective, replace it. Irregular suction - Clogged suction tube - Check suction pipe and clean it. -
Page 30: Scrapping
Scrapping At the end of the life cycle, to avoid damages to environment, each component of the vacuum cleaner must be disposed of responsibly, in adequate dumps, according to current laws - in Italy, Legislative Decree 152/2006, as amended. Before scrapping the machine, the plastic and rubber materials must be separated from the electrical material. - Page 31 To make a warranty claim, photocopy this form and fill it in all parts, preferably in block capitals, and send via fax to the manufacturer at the following number 0 1 1 . 9 8 5 9 3 2 6 or via email to DEPURECO@DEPURECO.com VACUUM / COMPONENTS Model Serial number Date of delivery: Company name:………………………………………………………………………..
- Page 32 MAINTENANCE LOG Date INTERVENTION 1 Technical Assistance Type of intervention Signature INTERVENTION 2 Date Technical Assistance Type of intervention Signature MAINTENANCE LOG...
- Page 33 INTERVENTION 3 Date Technical Assistance Type of intervention Signature...
