DEPURECO TX Series Use And Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USE AND
MAINTENANCE
MANUAL
SERIES
TX
TRANSLATION FROM ORIGINAL INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DEPURECO TX Series

Summary of Contents for DEPURECO TX Series

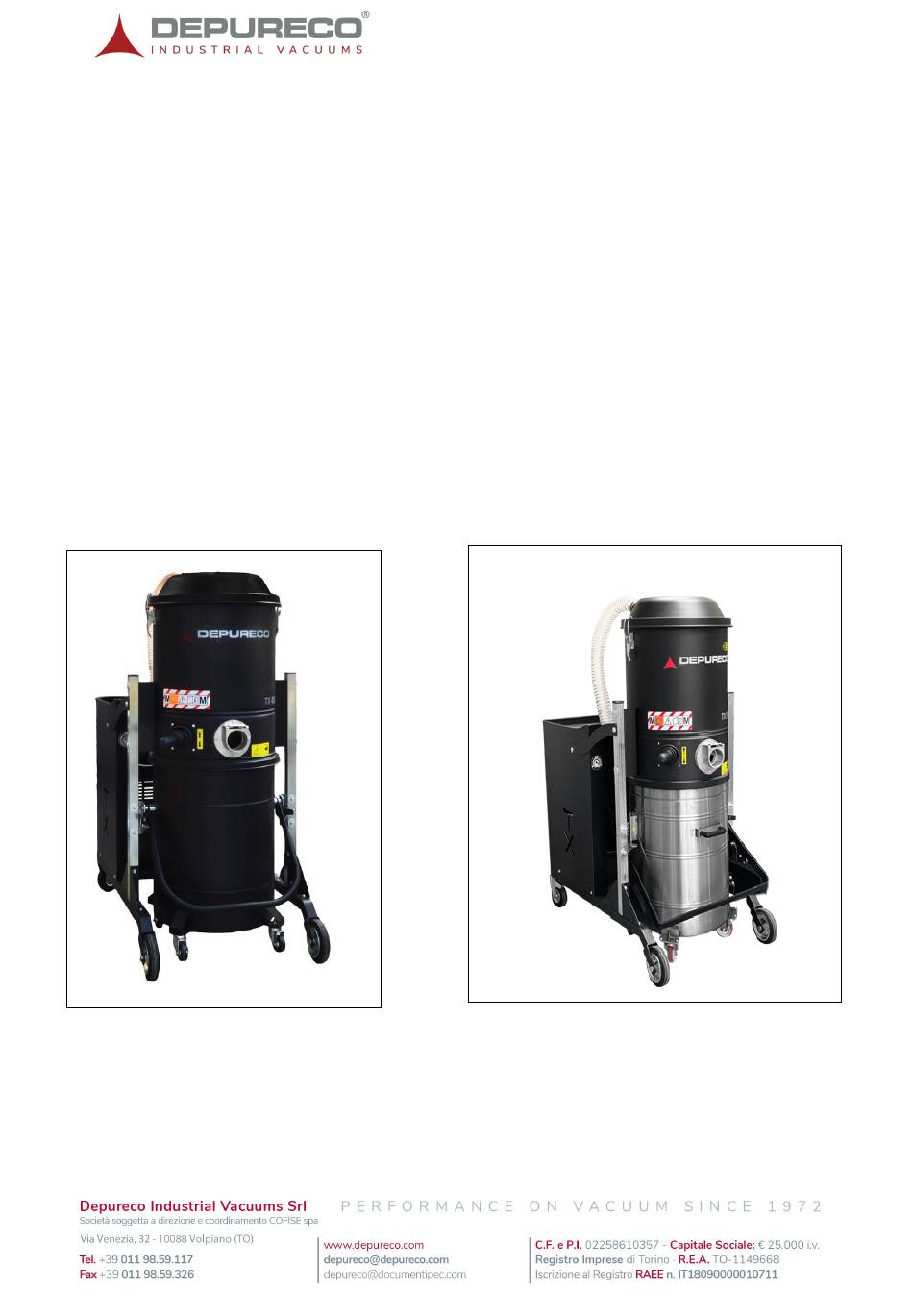

  • Page 1 USE AND MAINTENANCE MANUAL SERIES TRANSLATION FROM ORIGINAL INSTRUCTIONS...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS: 1. INFORMATIVE SECTION 1. 1.1 Foreword ....................... 6 2. 1.2 Main parts ..................... 8 3. 1.3 Optional parts ....................9 4. 1.4 Manufacturer’s identification data ..............9 5. 1.5 Identification plate ..................9 6. 1.6 Atex marking ....................9 7.

  • Page 5: Informative Section

    IMPORTANT - The DEPURECO term and logo in this document refer to and are the property of DEPURECO INDUSTRIAL VACUUMS S.r.l. This document remains the exclusive property of DEPURECO S.r.l. Full or partial reproduction by any means (graphical, electronic, etc.) is prohibited without prior authorisation from the Company...

  • Page 6: Foreword

    Foreword Dear Customer Thank you for having chosen DEPURECO; we hope you will enjoy using your new DEPURECO series TX vacuum cleaner This manual has been drafted in order for our customer to fully appreciate the quality of this machine.
  • Page 7 This manual forms an integral part of the vacuum cleaner and must accompany the machine for its entire life cycle. In the event it is lost or damaged, you can request another copy from DEPURECO INDUSTRIAL VACUUMS S.r.l. (henceforth shortened to DEPURECO).

  • Page 8: Main Parts

    Main parts 1) Vacuum cleaner cap 2) Filter chamber 3) Filter cleaning lever 4) Suction spout 5) Dirt container 6) Container handle 7) Pump cover 8) Vacuum cleaner handles 9) I/O Switch...

  • Page 9: Optional Parts

    Optional parts Automatic filter cleaning system with counter current of air (S.P.) A wide range of optional accessories is available from DEPURECO depending on the intended use of the vacuum. Manufacturer’s identification data DEPURECO INDUSTRIAL VACUUMS S.r.l. Via Venezia, 32 - 10088 Volpiano (TO) - ITALY tel. +39 011 98 59 117...

  • Page 10: Permitted Uses

    Permitted uses These vacuum cleaners are constructed and designed in accordance with Directive 2014/34/EU (ATEX) for professional industrial use only; however, for purposes other than normal domestic use. This vacuum cleaner, is suitable for performing cleaning and collection of solid materials and only in covered areas.

  • Page 11: Technical Data

    1.10 Technical data TX STD U.M. TX 300 TX 400 P TX 400 S TX 550 P TX 550 S TX 750 Weight* [Kg] Overall [mm] 1100x650x1400 dimentions** Voltage / [V]- [Hz] 400 - 50/60 Frequency Power 3 - 4 4 - 5,5 5,5 - 7,5 7,5 - 10...
  • Page 12 TX ATEX U.M. TX 300 TX 400 P TX 550 P TX 550 S Weight* [Kg] Overall [mm] 1100x650x1400 dimentions** Voltage / [V]- [Hz] 400 - 50/60 Frequency Power 3 - 4 4 - 5,5 5,5 - 7,5 [kW -HP] Maximum [mBar] depression...

  • Page 13: Warranty

    1.11 Warranty DEPURECO guarantees this model of vacuum cleaner for a period of 12 months from the date of purchase, indicated on the receipt at the time of delivery of the product. The guarantee is null and void in the event that the vacuum is repaired by unauthorised third parties or by using equipment, accessories or components not supplied or not authorised by DEPURECO, or if the serial number is removed (during the guarantee period).

  • Page 14: Safety Informations

    Adequate training is crucial to this end. DEPURECO shall not be held liable for accidents or damage due to the improper use of the vacuum by untrained personnel or to failure to comply, even partially, with the occupational safety standards and intervention procedures contained in this manual.

  • Page 15: Safety Recommendations

    DEPURECO. Additional safety requirements specific to different operations are listed in each section. The manual must accompany the vacuum cleaner in case of resale...
  • Page 16 • The Use of non-antistatic hoses in the mass (anti-staticity is not allowed only superficial). The use of original DEPURECO accessories is recommended. Check with an ohmmeter for electrical continuity: 1. between nozzle and terminal part of suction accessories: the resistance detected must be less than 100MΩ...

  • Page 17: Safety Plates And Symbols

    This manual should always be available for reference on the planned operating cycle and whenever there is any doubt. If it is lost or damaged, a replacement copy should be requested from DEPURECO. Safety plates and symbols Plates with safety symbols and/or messages are applied to the vacuum and its packaging. These pages show their precise location and the nature of the hazard.

  • Page 18: Residual Risks

    Respect the limitations indicated in this manual, in section 1.5 “Authorised environmental conditions”. Risk of incorrect interpretation of the safety pictograms With reference to risk analysis and identification, DEPURECO has installed hazard labels on the vacuum, in compliance with the standards concerning graphical symbols.

  • Page 19: Atex Safety Instructions

    ATEX safety instructions Ex Hexagon – ATEX Directive 2014/34/EU In this manual the Ex hexagon is next to the main safety instructions concerning the risk of explosion. All staff involved in the installation, use and maintenance of the appliance and its components should receive technical training for the tasks to be carried out, particularly for working in areas with a potentially explosive atmosphere.
  • Page 20 Any electrical or mechanical components to be installed on the equipment must be certified of a category suitable for use: • category 3D (ZONE 22) For maintenance or cleaning operations, the user must ensure that the equipment used (vacuum cleaners, portable lamps, etc.) is of a category suitable for the environment: •...
  • Page 21 If dusts that can give rise to self-ignition are vacuumed, the collection bin must be emptied immediately after each activity. This precaution must also be taken when vacuuming different types of dust, the mixture of which can give rise to exothermic reactions.
  • Page 22 A specially trained operator must always be present when the appliance is being used and must intervene immediately, by stopping the equipment with the emergency button (where applicable) or the emergency disconnector switch, in the event of malfunctions, such as abnormal noise (breakage of components), clogging of the inlet and outlet pipes, breakage of the filter bags, suction of material containing foreign bodies or sources of ignition.

  • Page 23: Directives Applied

    2011/65/EU - ROHS - Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment 2014/35/EU - Low Voltage Directive 2014/34/EU - ATEX Directive Regulatory references, including mandatory requirements, are managed in the Quality Management System and filed with DEPURECO...

  • Page 24: Handling

    3. HANDLING, UNPACKING AND INSTALLATION SECTION Handling Warning! The instructions for transporting and unpacking the vacuum correctly are shown on the packaging as well. The following instructions also indicate the operations to be undertaken should the vacuum need to be re-packed or unpacked after subsequent transportation. Dimensions of packed vacuum cleaner: 190/210 cm Il sollevamento e la conseguente movimentazione dell’aspiratore deve essere...
  • Page 25 remove the staples that fix the carton packaging to the pallet with the aid of a screwdriver remove the carton completely...

  • Page 26: Installation

    In the event of one or more components being damaged, do not continue with installation, inform DEPURECO about the anomaly and agree upon action to be taken. The vacuum cleaner is already fitted with an appropriate filter intended exclusively to vacuum dry...
  • Page 27 Note: the flexible tube and the relevant end-pieces and accessories are not included with the STANDARD model. Contact your dealer (or DEPURECO) for information regarding the various types of OPTIONALS that can be used on this specific model. The following operation must be carried out by a qualified electrician.

  • Page 28: Description Of The Controls

    4. OPERATION SECTION Description of the controls Attention! Only authorised staff who have read these use and maintenance instructions are allowed to use the vacuum cleaner. The appliance user and the maintenance technician who carry out the permitted operations on the vacuum cleaner must receive appropriate information and training, as required by current laws on safety in the workplace, and wear the personal protective equipment (PPE) provided for the different operations, such as safety footwear, gloves, safety goggles, mask, etc.

  • Page 29: Operation Cycle

    Operation cycle Ensure that the power cord is intact and in perfect state. Warning! Before inserting the plug, ensure that the voltage of the power supply line corresponds to that indicated on the vacuum's identification plate. Ensure that the power plug is inserted into the socket correctly. Make sure the flexible hose is properly inserted and tightened on the special inlet.
  • Page 30 For further verification that the vacuum cleaner is working properly, in addition to checking the actual suction, make sure that the direction of rotation of the pump is as shown in the figure below Caution! Before switching on again the vacuum cleaner, ensure the pump has come to a complete stop.
  • Page 31 When the filter is clogged, the vacuum gauge shows the value given in the table. Type Clogged filter value TX 300 -0.40 bar -40 kPa TX 400 P -0,36 bar -36 kPa TX 400 S -0.13bar -13 kPa TX 550 P -0,41 bar -41 kPa TX 550 S...

  • Page 32: Emptying The Container

    Vacuum cleaner with counter-current air (S.P.) cleaning system. The vacuum cleaner must be connected to compressed air with a maximum pressure of 6 bar, to the appropriate filter regulator. Cleaning of the filter cartridges will be done automatically during the vacuum work. Warning! If the vacuum cleaner is not working properly, after cleaning the filter, the filter may be clogged and need to be replaced.

  • Page 33: Inserting And Locking The Dirt Container

    Empty the debris into the container designated for waste disposal If a plastic bag is used for debris collection, proceed as follows for replacement: After removing the container tie the bag, pull it out and insert a new bag Caution. If the container or bag weighs more than 15 kg, you will need to get help from at least one other person.

  • Page 34: Storage - Decommissioning

    4.5 Storage - decommissioning Remove the filter and clean it, empty the debris container or remove the part of the bag with debris, and store the vacuum cleaner in a place sheltered from the weather with temperatures between 0°and 40°C, covering it with a nylon cloth so as to prevent dust accumulation.

  • Page 35: Informative Notes

    5. MAINTENANCE SECTION Warning! Special vacuum maintenance must be carried out solely by specialised technicians authorised by the DEPURECO dealer. 5.1 Informative notes This section describes the checks and routine maintenance operations required to ensure proper vacuum operation. Maximum reliability and minimum maintenance costs are the result of a planned maintenance and inspection schedule carefully followed throughout the entire lifespan of the vacuum.

  • Page 36: General Safety Regulations

    5.2 General safety regulations Warning! All the operations described above must be carried out with the plug disconnected from the socket. Before starting any maintenance or cleaning operation, wear suitable PPE (protective clothing, goggles and/or gloves, etc.) according to the work to be done.

  • Page 37: Replacing The Filter

    Check that the power cord and the plug are not damaged: replace them immediately if there are any signs of wear, using a cord of the same type (information c/o DEPURECO). This operation is the sole responsibility of an electrician.
  • Page 38 Unlock from both sides the two locking hooks (C) Disconnect the suction tube (D) by unscrewing the clamp with appropriate hex wrench Remove the cap (E) Remove filter H and/or cleaning system C.C.A (where provided). Slide off the filter (F) and place it on a workbench. Loosen the fastening clip (H), remove the filter from its support and, using scissors, cut the lower belts that clamp it to the shaking cage When replacing the filter, make sure that the equipotential bonding braid is...

  • Page 39: Replacing The Filter Cartridges On The C.c.a. Cleaning System

    Remove the filter, place it inside a plastic bag, close it and dispose of it according to current laws for the type of material sucked in To reassemble the filter, operate in reverse order: Insert the new filter in the support ring and lock it by means of the fastening clip (H) lock the filter to the cage by tying the special laces on the bottom side insert the filter with ring and cage inside the filtering chamber, paying particular attention to align the cage to the filter shaking lever...
  • Page 40 Remove the cap Unlock the locking hooks and raise up the vacuum cleaner cover Unlock and remove the H filter (if provided) Unlock the locking hooks of the C.C.A. cleaning system and pull it up along with another person from the filtering chamber, turn it over and place it on a work bench Remove and unscrew the fastening nuts from the cartridges base Slip out and replace the filter cartridges remove the filter, put it in a plastic bag, seal it and dispose it of according...

  • Page 41: Sostituzione Della Cartuccia Hepa (Dove Previsto)

    Perform the same operations in reversed order to fit back the filter cartridges: Insert the new cartridges and tighten the fastening nuts, make sure they have been properly mounted Helped by a second person, place the C.C.A. on the filter chamber and lock it with the locking hooks position the H filter (if provided) and lock it by means of the locking hooks position the vacuum cleaner cup, insert the suction tube to the cap and tighten the fastening...
  • Page 42 Then lock the cap with the appropriate locking hooks Connect the vacuum cleaner to the mains Switch the vacuum cleaner on by positioning the main switch to "I", then check to make sure it works properly. USE EXCLUSIVELY FILTERS MANUFACTURED BY DEPURECO...

  • Page 43: Troubleshooting

    Check the condition of the plug and the power cable The vacuum cleaner will Reset the magneto-thermal not start switch Contact DEPURECO technical circuit breaker assistance tripped - Clean any clogged filters. If this solution is not effective, replace Clogged filters...

  • Page 44: Scrapping

    Scrapping This product falls under the scope of Directive 2012/19/EU on the management of waste electrical and electronic equipment (WEEE). The equipment should not be disposed of with household waste as it is composed of different materials that can be recycled at the appropriate facilities. Inquire through the municipal authority regarding the location of ecological platforms suitable to receive the product for disposal and its subsequent proper recycling.
  • Page 45 MAINTENANCE LOG: INTERVENTION 1: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION: INTERVENTION 2: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION:...
  • Page 46 INTERVENTION 3: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION: INTERVENTION 4: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION:...
