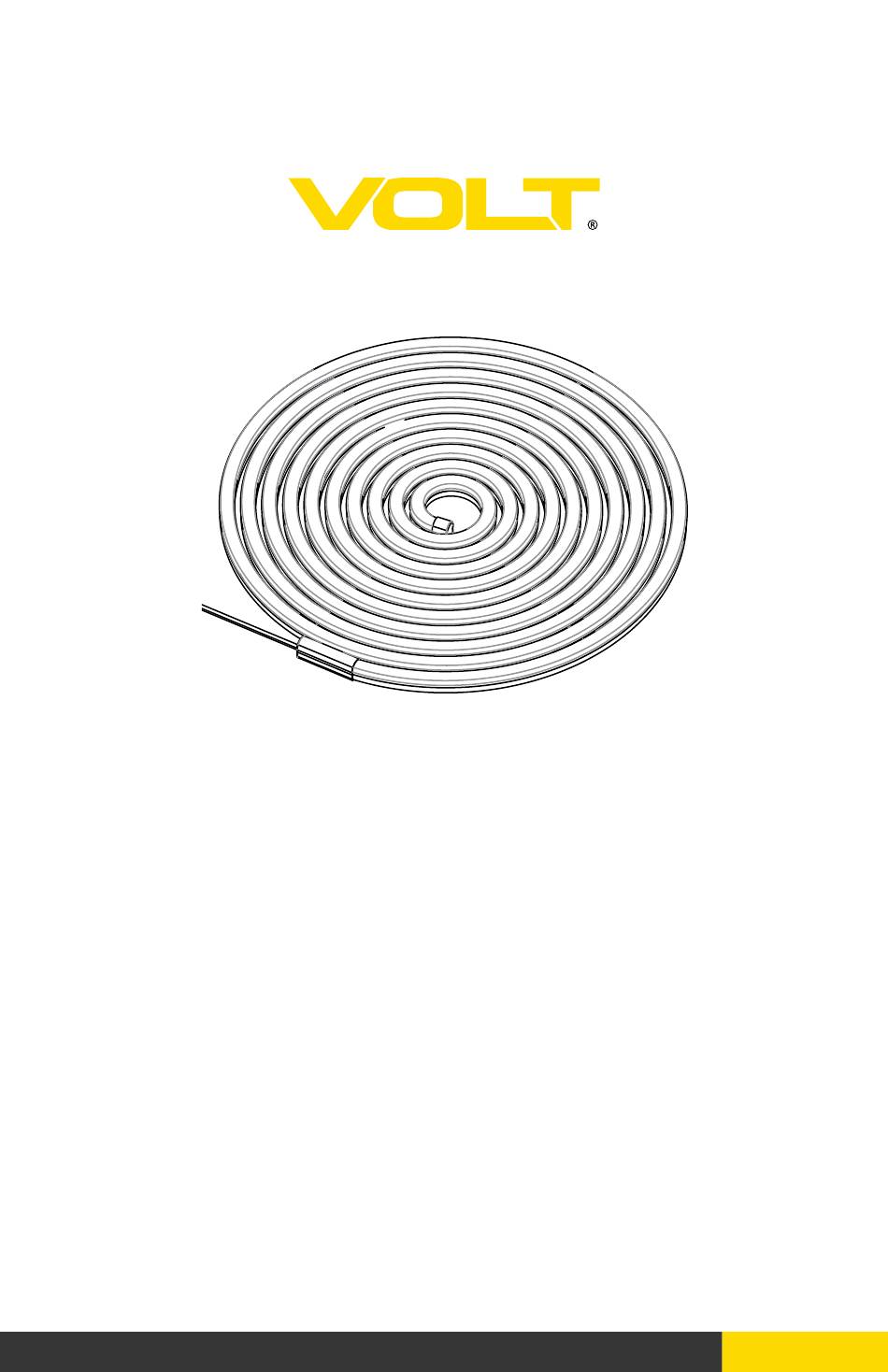

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT 16ft RGBW LED Rope Light ® ITEM: VRL-RGBW-16 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS VOLT 16ft RGBW LED Rope Light- VRL-RGBW-16 ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This fixture is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. - Page 3 IMPORTANT: PLEASE READ BEFORE INSTALLATION Refer to the following illustrations for the correct methods of installing the strip lights. CORRECT BENDING METHODS Luminous Surface Luminous Surface Luminous Surface >6.5” >12” R>3.25” Bend the strip light into a circle. The Bend the strip light diameter must be greater than 160mm at a right angle.
- Page 4 IMPORTANT: PLEASE READ BEFORE INSTALLATION Do NOT bend the strip lights in any of the following illustrations when installing the strip lights. Otherwise, the strip lights might be damaged and the warranty will be invalid. INCORRECT BENDING METHODS Luminous Surface Luminous Surface Luminous Surface <6.5"...
-
Page 5: Product Dimensions
PRODUCT DIMENSIONS 16.4’ 0.72” 0.58” This neon light strip can be cut to desired length. Read the following notes carefully before operations. If you would like to use the entire neon light strip, skip the step 1 - Step 3 and follow the steps to install fixtures. 1. Only cut the neon light strip from the cutting marks. - Page 6 INSTALLATION INSTRUCTIONS VOLT 16ft RGBW LED Rope Light- VRL-RGBW-16 ® FILL SILICONE GLUE IN END CAP Using Silicone glue, fill in the end cap. Silicone glue End Cap INSTALL END CAP Silicone glue 1. Install the end cap onto the end of the neon light strip.
-
Page 7: Wire Connections
INSTALL NEON LIGHT STRIP TO STRIP HOLDER WALL Strip Holder Strip Holder Strip Holder Neon Light Strip Place the rope light onto the strip holders with the back of the light strip against the strip holders. Gently push the light strip until it is embedded in. - Page 8 INSTALLATION INSTRUCTIONS VOLT 16ft RGBW LED Rope Light- VRL-RGBW-16 ® IR REMOTE An IR Remote is provided for this fixture. The IR remote requires two AAA batteries. REMOVE THE BATTERY COMPARTMENT COVER Press the tab and rotate the battery compartment cover to remove it from the IR Remote.
-
Page 9: Ir Remote Functions
IR REMOTE FUNCTIONS 1. On 2. Off 3. Brightness Control 4. 16 color selections FLASH STROBE FADE SMOOTH 5. Flash • Jump between seven colors and then repeat. Cycle for 7 seconds duration of the seven colors within this mode. 6. Strobe • Jump between Red, Green, Blue and then repeat. - Page 10 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
