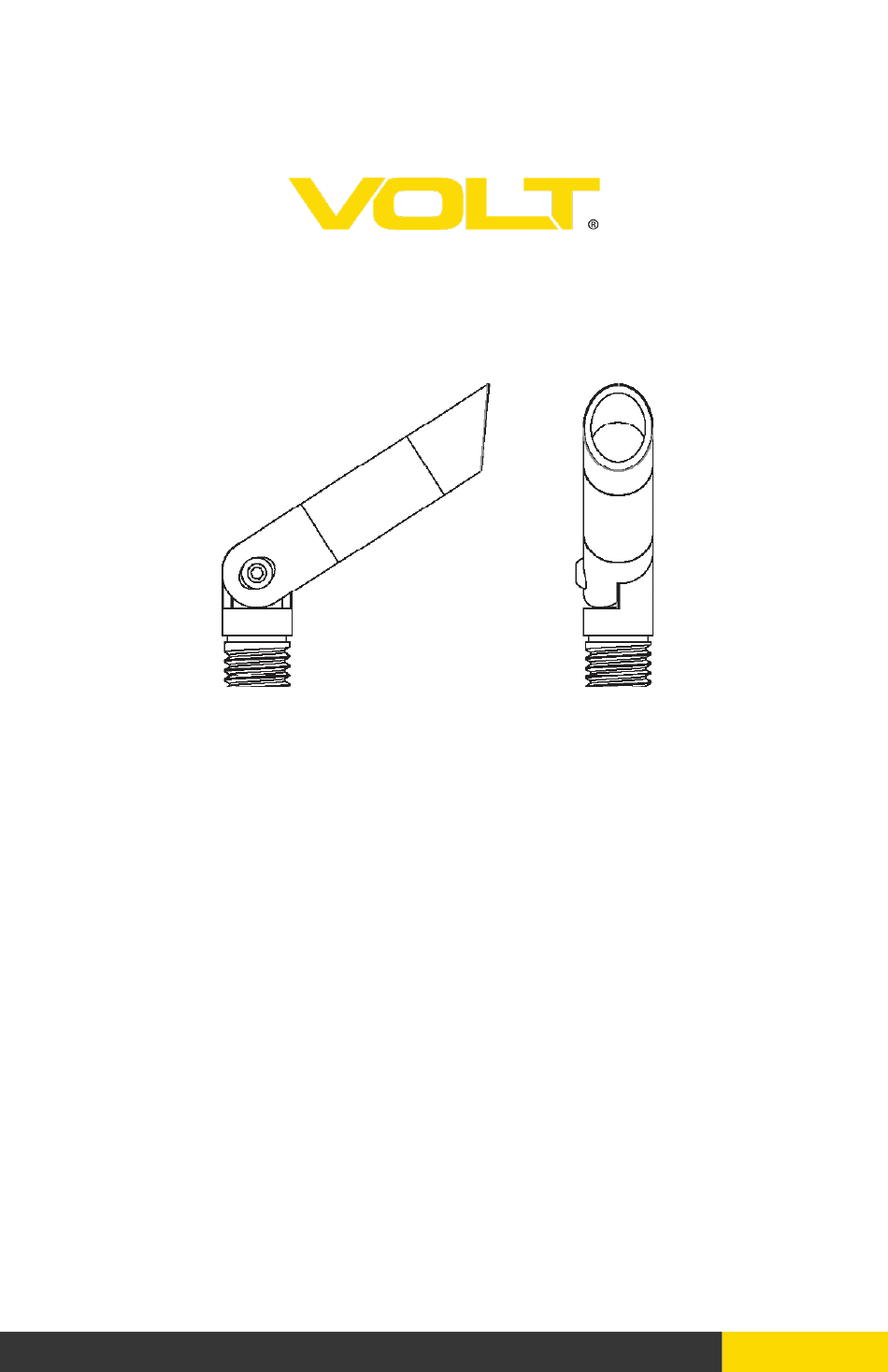

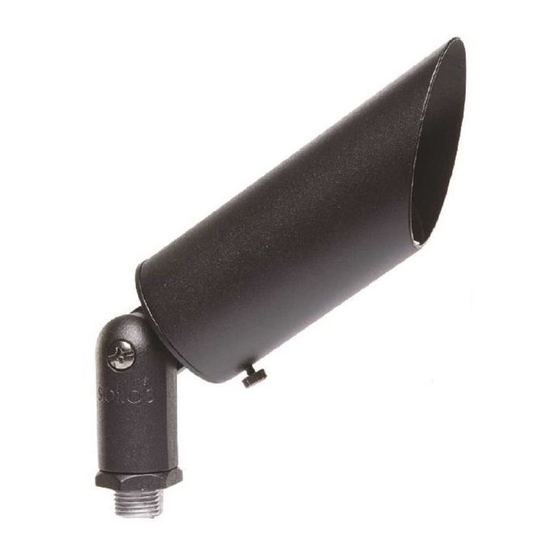

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT - Nano Integrated LED Brass Spotlight ® ITEM: VAL-2049-35-4-BBZ 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS VOLT Nano Integrated LED Brass Spotlight -VAL2049-35-4-BBZ ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. -
Page 3: Package Contents
PACKAGE CONTENTS A. (1) Fixture Body B. (1) Allen Wrench C. (1) Stake PRODUCT DIMENSIONS 0.5” 2.39” 0.45” INSTALL FIXTURE BODY TO STAKE Pass the supply wire of the fixture Fixture Body body through the wireway slot on the stake. Thread the fixture body onto the stake. - Page 4 INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS VOLT Nano Integrated LED Brass Spotlight -VAL2049-35-4-BBZ ® INSTALL STAKE INTO SOIL Insert the stake into the soil until Fixture Body flange of stake is flush to the ground. Supply Wires Stake Ground Soil Wire Connections Strip both the leads from the luminaire pigtail.
- Page 5 Adjust Directions By using the Allen wrench, ROTATE loosen the screw at the joint Fixture Body and adjust the luminaire to the Screw desired direction. Once the desired direction is achieved, tighten the screw. Allen Wrench 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com...
- Page 6 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
