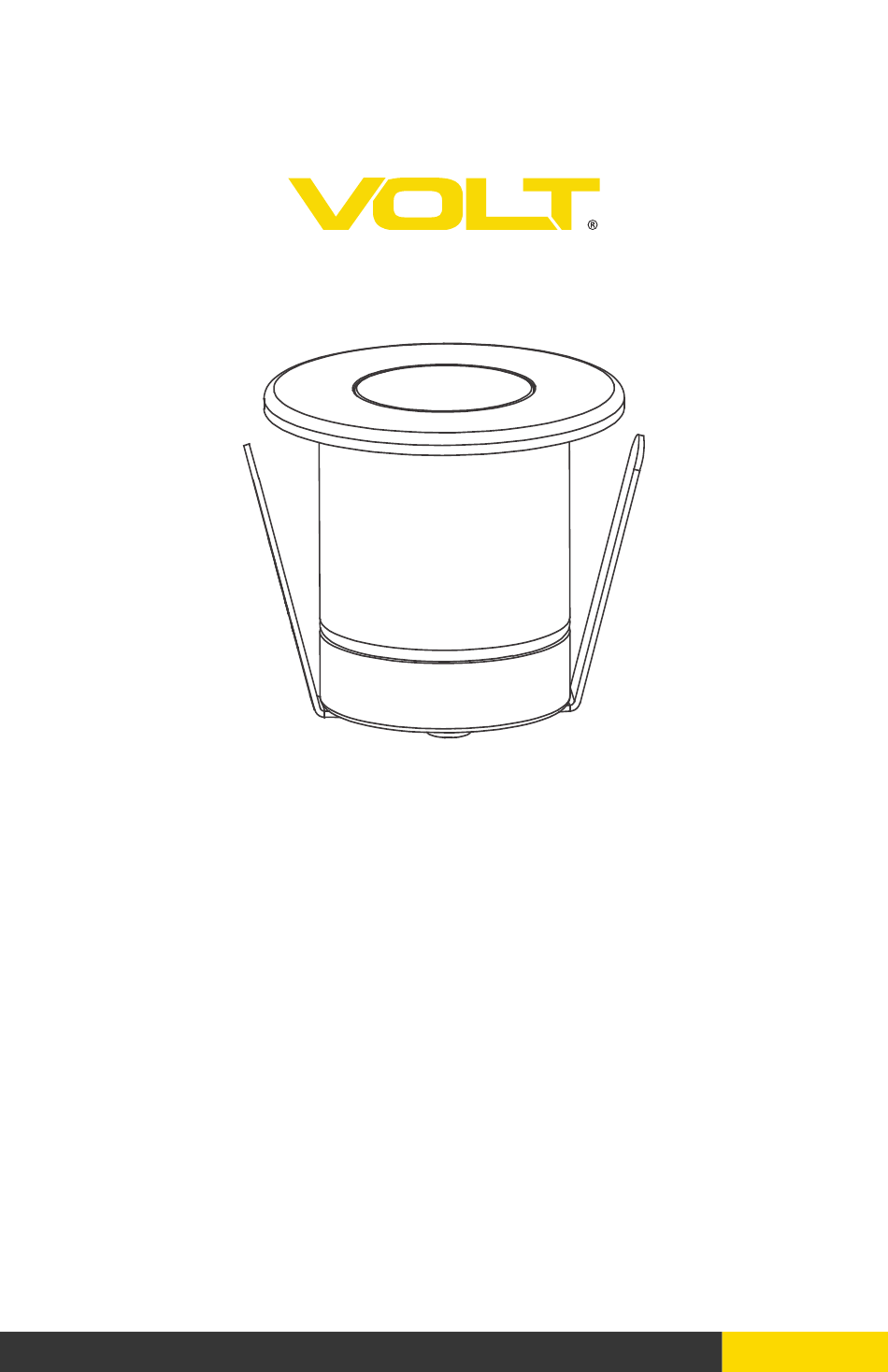

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT RGBW Mini Integrated LED In-Ground Light ® ITEM: VHS-6727 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- Page 2 INSTALLATION INSTRUCTIONS VOLT RGBW Mini Integrated Light - VHS-6727 ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Fixture Body B. (1) PE Tube PRODUCT DIMENSIONS Fixture Body PE Tube 1.44” 1.38” 1.3” 1.26” 1” DIG HOLE AND FILL GRAVEL ON THE BOTTOM PE Tube Dig a 1.76” diameter, 2.38” depth hole in the ground. Place supply 1/4”...
- Page 4 INSTALLATION INSTRUCTIONS VOLT RGBW Mini Integrated Light - VHS-6727 ® WIRE CONNECTION Pass the fixture supply cable from the fixture body through Fixture Body the PE tube. Strip both leads from fixture supply cable. Using two UL listed wire PE Tube...
- Page 5 INSTALL FIXTURE BODY Push the fixture body into the PE Fixture Body tube until the flange of fixture body flush to the top of the PE tube. PE Tube IR REMOTE (OPTIONAL) An IR Remote is optional for this fixture. The IR remote requires two AAA batteries.
- Page 6 INSTALLATION INSTRUCTIONS VOLT RGBW Mini Integrated Light - VHS-6727 ® INSTALL THE BATTERY COMPARTMENT COVER Place the battery compartment cover back onto the IR Remote. Cover Backing IR Remote IR REMOTE FUNCTIONS 1. On 2. Off 3. Brightness Control 4. 16 color selections 5. Flash • Mode 1: Repeats Red, Green,...
- Page 7 IR REMOTE FUNCTIONS (CONTINUED) white color at the same speed as before. 7. Fade • Mode 1: Pick any color on the remote, then press fade and that color will slowly fade on and off every second. • Mode 2: Hit fade a second time and it will fade a blended white color on and off at the same speed as before. ...
- Page 8 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
