INSTALLATION INSTRUCTIONS
VOLT
®
VOLT
®
VAL-2006-4-BBZ
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specifications and product details subject to change without notice.
© Copyright 2021, VOLT
customersupport@voltlighting.com • 813.978.3700
Landscape Lighting

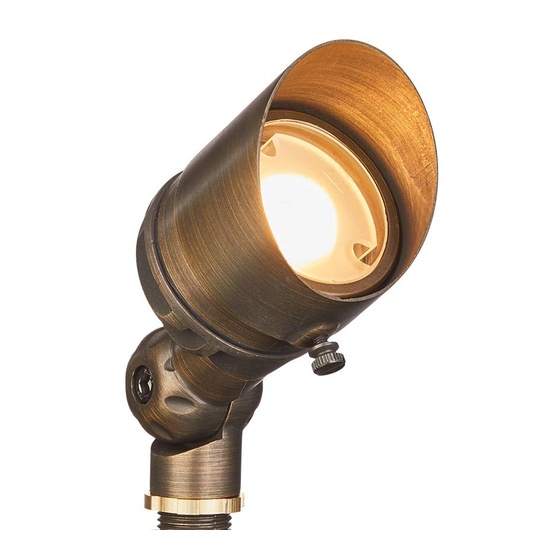

Lucid Brass Spotlight
Lighting, Lutz FL USA 33549 • All rights reserved.
®
- 1 -
Advertisement
Table of Contents
Related Manuals for Volt VAL-2006-4-BBZ
Summary of Contents for Volt VAL-2006-4-BBZ
- Page 1 VAL-2006-4-BBZ Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2021, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • 813.978.3700 - 1 -...
- Page 2 INSTALLATION INSTRUCTIONS VOLT Lucid Brass Spotlight ® VAL-2006-4-BBZ Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 Package Contents A. (1) Fixture Parts Required (Sold Separately) A. (1) MR16 Bulb Product Dimensions 2.18” 2.58” 5” 2” Remove Glare Guard Loosen the set screw and ROTATE remove it from the glare guard. Rotate the glare guard counter clockwise and remove it from the fixture.
- Page 4 INSTALLATION INSTRUCTIONS VOLT Lucid Brass Spotlight ® VAL-2006-4-BBZ Install MR16 Bulb Use a custom or MR16 bulb (sold Custom separately), with the correct MR16 Bulb wattage and type as marked on the luminaire label. Push the bulb onto the socket properly.
- Page 5 Install Stake Determine the desired location Board for mounting the stake mount. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while Stake hammering.
- Page 6 INSTALLATION INSTRUCTIONS VOLT Lucid Brass Spotlight ® VAL-2006-4-BBZ Wire Connection Wire Connectors Supply Cable from Fixture Main Supply Cable Pigtail Strip both leads from the fixture pigtail. Using two UL listed wire connectors (sold separately), connect the leads from the fixture to the main supply cable leads.
- Page 7 Install/Replace MR16 Bulb Reverse Step 1 - Step 3 to expose the MR16 bulb and replace it with correct wattage and type marked on luminaire label. Reinstall the glare guard. IMPORTANT: Bulbs must be protected from moisture and dust at all times. Always reinstall glare guard when removed.
- Page 8 . v o l t l i g h t i n g . c o m Specifications and product details subject to change without notice. © Copyright 2021, VOLT Lighting, Lutz FL USA 33549 • All rights reserved.
