Range Name : DORA
Box 1 dimensions : W153.5xD49.5xH13.5cm
LIVING I BEDROOM I DINING
Product Dimension : W140xD40xH45cm
Dora TV Unit
Up to 30 minutes
Two person
assembly time
assembly
P-1-9
This product is intended for domestic use only,not for commercial purposes.
V-2.0
Advertisement
Related Manuals for DUSK Dora TV Unit
Summary of Contents for DUSK Dora TV Unit

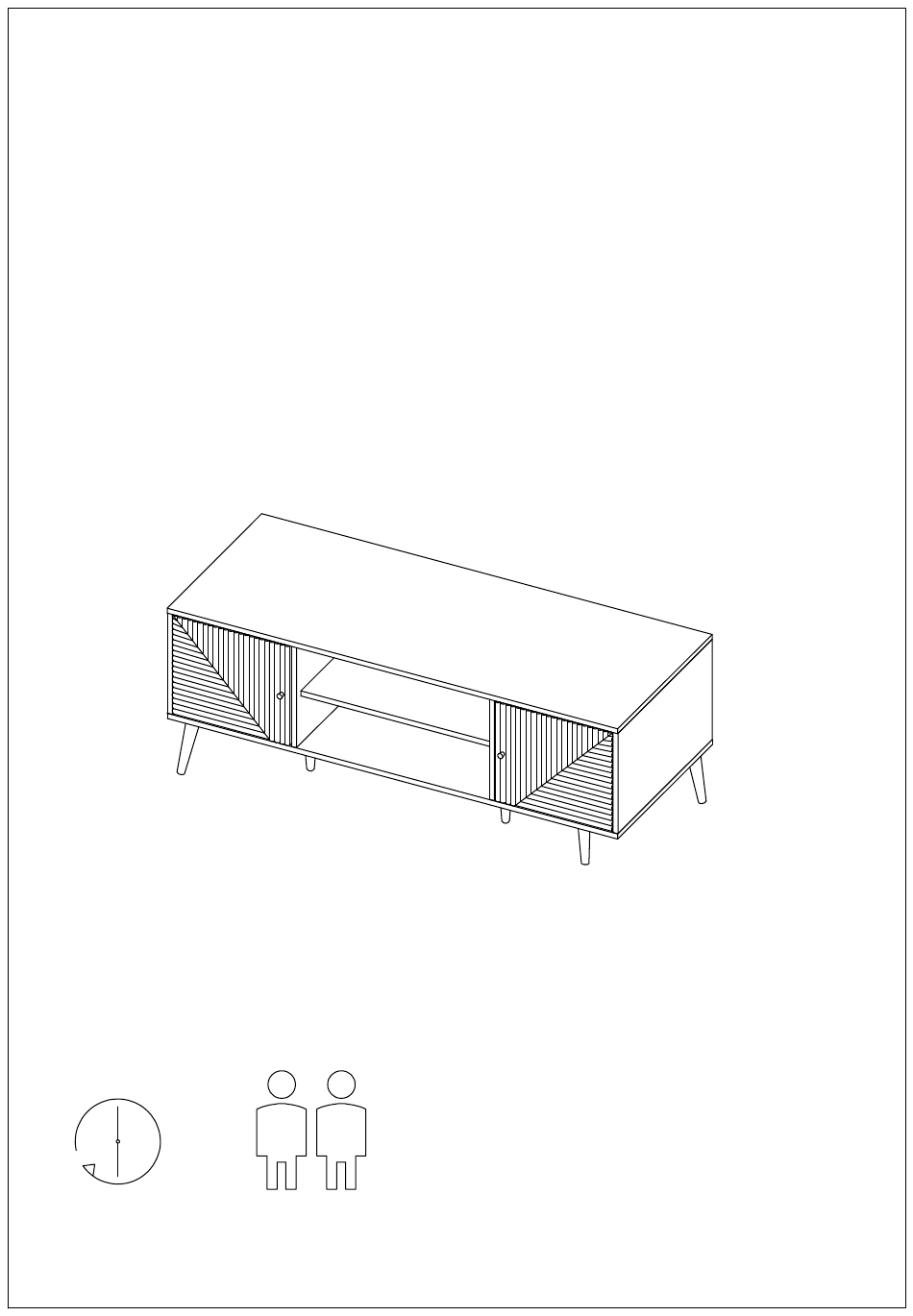

- Page 1 DUSK.COM Range Name : DORA Box 1 dimensions : W153.5xD49.5xH13.5cm LIVING I BEDROOM I DINING Product Dimension : W140xD40xH45cm Dora TV Unit Up to 30 minutes Two person assembly time assembly P-1-9 This product is intended for domestic use only,not for commercial purposes.
- Page 2 TOP TIP We recommend that you assemble the Dora TV Unit in the room you'd like it to be located. This will help prevent any risk of damage to the frame whilst moving it.
- Page 3 Parts list Before you begin building your Dora TV Unit,please take a moment to read through the instructions and make surethat you have all the relevant parts listed on the parts check list. Part Number Part Description Quantity Box No...
- Page 4 1.Attach parts to the top panel. M6*35mm Bolt Ø3x14mm Screw Pusher 12pcs 4pcs 2pcs 2.Attach the metal plate to the bottom panel. P-4-9 Spring Washer 4mm Allen Key Metal Plate M6*14mm Bolt Lock Washer V-2.0 4pcs 20pcs 20pcs 20pcs...
- Page 5 3.Attach parts to Side Panels and Middle Panels. 180° 180° M6*35mm Bolt 10pcs 4.Attach Back Middle Panel to middle panels and shelf panel. P-5-9 Ø8x30mm Dowel Ø8x50mm Dowel Ø15x9.5mm Cam Lock V-2.0 6pcs 4pcs 4pcs...
- Page 6 5.Attach side panels and back panels to the frame. Caution Label Ø8x30mm Dowel Ø15x9.5mm Cam Lock 4pcs 4pcs 6.Attach bottom panel to the frame. P-6-9 Ø8x30mm Dowel Ø7x40mm Screw V-2.0 14pcs 12pcs...
- Page 7 7.Attach middle legs to the frame. Spring Washer Ø7x40mm Screw Metal Plate M6*14mm Bolt Lock Washer Wall Bracket 4pcs 2pcs 8pcs 8pcs 8pcs 2pcs 8.Attach legs to the frame. P-7-9 V-2.0...
- Page 8 9.Attach top panel to frame. Ø8x30mm Dowel Cover Ø15x9.5mm Cam Lock 12pcs 14pcs 8pcs 10.Attach hinges to the door. P-8-9 Ø4x14mm Screw Ø3x12mm Screw Hinge Washer V-2.0 8pcs 2pcs 2pcs 4pcs...
- Page 9 11.Attach door panels to the frame. P-9-9 Handle M4*18mm Bolt Ø4x14mm Screw V-2.0 2pcs 2pcs 16pcs...
