DUSK.COM
Range Name : DORA
Box 1 dimensions : W58xD48xH17.5cm
LIVING I BEDROOM I DINING
Product Dimension : W48xD39xH60cm

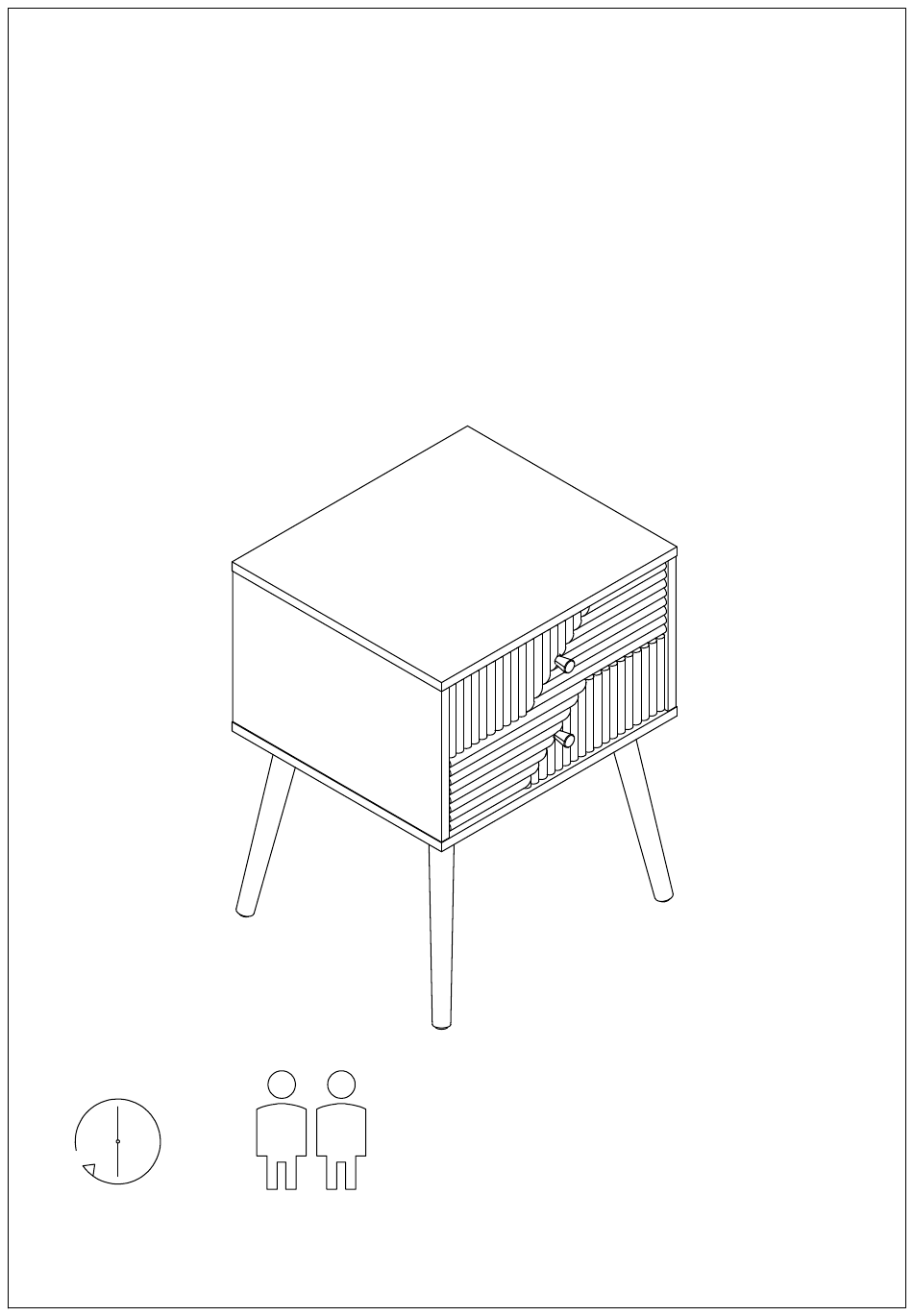

Dora Nightstand
Up to 30 minutes
Two person
assembly time
assembly
P-1-9
This product is intended for domestic use only,not for commercial purposes.
V-2.0
Advertisement
Related Manuals for DUSK Dora Nightstand
Summary of Contents for DUSK Dora Nightstand
- Page 1 DUSK.COM Range Name : DORA Box 1 dimensions : W58xD48xH17.5cm LIVING I BEDROOM I DINING Product Dimension : W48xD39xH60cm Dora Nightstand Up to 30 minutes Two person assembly time assembly P-1-9 This product is intended for domestic use only,not for commercial purposes.
- Page 2 IMPORTANT ASSEMBLY TIP Before you begin, it's best to identify all of the parts and fittings to build your Dora Bedside frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building. TOP TIP We recommend that you assemble the Dora Bedside in the room you'd like it to be located.
- Page 3 Parts list Before you begin building your Dora Nightstand,please take a moment to read through the instructions and make surethat you have all the relevant parts listed on the parts check list. Part Number Part Description Quantity Box No Bedside Top...
- Page 4 1.Attach Parts to the bedside top and drawers Front M6*35mm Bolt 12pcs 2.Attach left and right side panels to the bedside top. P-4-9 Ø8x30mm Dowel Cover Ø15x9.5mm Cam Lock V-2.0 4pcs 4pcs 4pcs...
- Page 5 3.Assemble the back panel. 4.Attach bottom panel to the Frame. P-5-9 4mm Allen Key Ø8x30mm Dowel Ø7x40mm Screw V-2.0 4pcs 4pcs...
- Page 6 5.Attach the Metal plate to the Frame. Ix20 Jx20 Kx20 Spring Washer Metal Plate M6*14mm Bolt Lock Washer 4pcs 20pcs 20pcs 20pcs 6.Attach legs to the Metal plate. P-6-9 V-2.0...
- Page 7 7.Assemble the Drawers. P-7-9 Ø4x35mm Screw Handle M4*18mm Bolt Cover Ø15x9.5mm Cam Lock V-2.0 8pcs 8pcs 2pcs 2pcs 8pcs...
- Page 8 8.Assemble the drawers in the Bedside. 9.Attach the plastic Buckles and Nylon strip. Manually adjust the frame slightly to ensure the drawers are in the correct position, even and parallel before attaching the plastic buckles. P-8-9 Nylon Strip Plastic Buckle Ø3x16mm Screw Ø4x14mm Screw Lock Washer...
- Page 9 10.Fix the Nylon strip to the wall. WALL P-9-9 Ø4x35mm Screw Lock Washer Wall Plug V-2.0...
