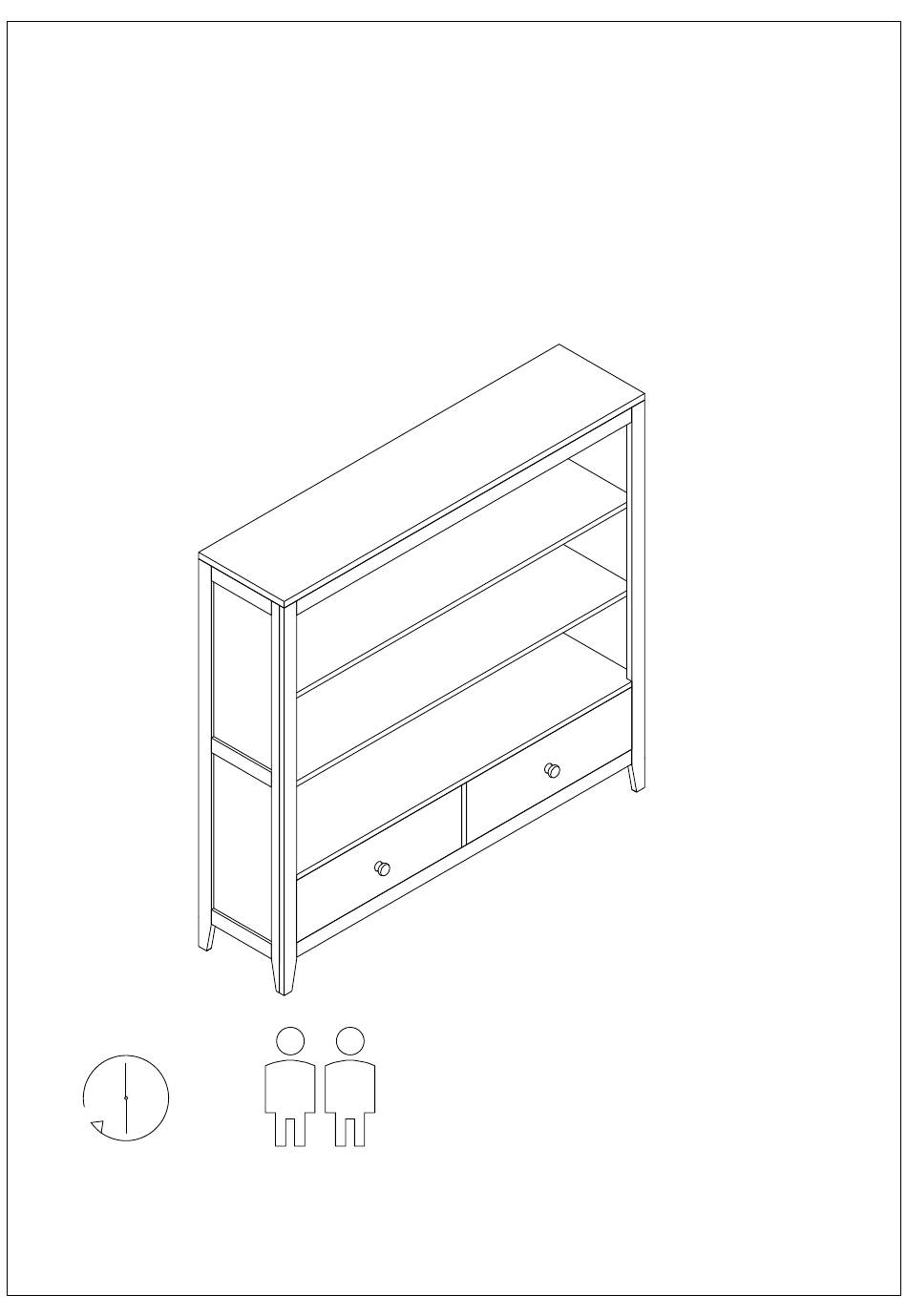

Nell / Poppy / Poppy & Nell Bookshelf with Drawers
Up to 30 minutes
assembly time
This product is intended for domestic use only,not for commercial purposes.
Two person
assembly
Range Name : NELL
Box dimensions : 132x36x21cm
Range Name : POPPY
Box dimensions : 129x35x9.5cm
126x36x16cm
Range Name : POPPY & NELL
Box dimensions : 132x36x9.5cm
126x36x16cm
P-1-12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DUSK Nell Bookshelf with Drawers
Summary of Contents for DUSK Nell Bookshelf with Drawers
- Page 1 126x36x16cm LIVING I BEDROOM I DINING Range Name : POPPY & NELL Box dimensions : 132x36x9.5cm 126x36x16cm Nell / Poppy / Poppy & Nell Bookshelf with Drawers Up to 30 minutes Two person assembly time assembly This product is intended for domestic use only,not for commercial purposes.
- Page 2 IMPORTANT ASSEMBLY TIP Before you begin, it's best to identify all of the parts and fittings to build your Evie Large Chest frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building. TOP TIP We recommend that you assemble the Evie Large Chest in the room you'd like it to be located.
- Page 3 Parts list Before you begin building your Willow Bedside,please take a moment to read through the instructions and make surethat you have all the relevant parts listed on the parts check list. Part Number Quantity Part Number Quantity Part Description Part Description Top Back Support Strip Left Side Panel...
- Page 4 Parts list P-4-12...
- Page 5 1.Attach parts to the panels. FRONT BACK FRONT FRONT BACK BACK 215mm Sliding Rail M3*12mm Screw Ø6x30mm Dowel M6*35mm Bolt M4*30mm Screw P-5-12 8pcs 4pcs 4pcs 4pcs 26pcs...
- Page 6 2.Attach parts to the panels. M6*35mm Bolt 16pcs 3.Attach strips to the panels. Ø6x30mm Dowel Ø15x9.5mm Cam Lock 4pcs 7pcs P-6-12...
- Page 7 4.Attach strips to the panels. Ø6x30mm Dowel Ø15x9.5mm Cam Lock 4pcs 6pcs 5.Attach center bracing to the panels. Ø6x30mm Dowel 4pcs M4*35mm Screw Ø15x9.5mm Cam Lock P-7-12 2pcs 2pcs...
- Page 8 6.Attach panels to the side panel. Ø6x30mm Dowel 13pcs Ø15x9.5mm Cam Lock 10pcs 7.Attach back panel to the side panel. P-8-12...
- Page 9 8.Attach panels to the side panel. Ø6x30mm Dowel 13pcs Ø15x9.5mm Cam Lock 10pcs Foot Gasket 4pcs 9.Assemble top back panel. P-9-12...
- Page 10 10.Attach the top to the frame. Ø6x30mm Dowel 8pcs Ø15x9.5mm Cam Lock 7pcs M4*40mm Screw 3pcs Hole Gasket M2.5*10mm Screw 42pcs 2pcs 11.Assemble drawer. M6*35mm Bolt 8pcs Ø15x9.5mm Cam Lock 8pcs M4*35mm Screw 8pcs Handle M4*16mm Screw 2sets P-10-12...
- Page 11 12.Assemble drawers in the bookshelf. M4*10mm Bolt 4pcs Hole Gasket 8pcs 13.Assemble the plastic buckles and anti-fall rope. 4x14mm Anti-fall rope Gasket M4*14mm Screw 2sets Plastic buckle M3*16mm Screw 12sets P-11-12...
- Page 12 WARNING: Please make the choice of screws according to your own wall for wall locking.In order to prevent overturning this product must be used with the wall attachment device provided. SCIANA P-12-12...
