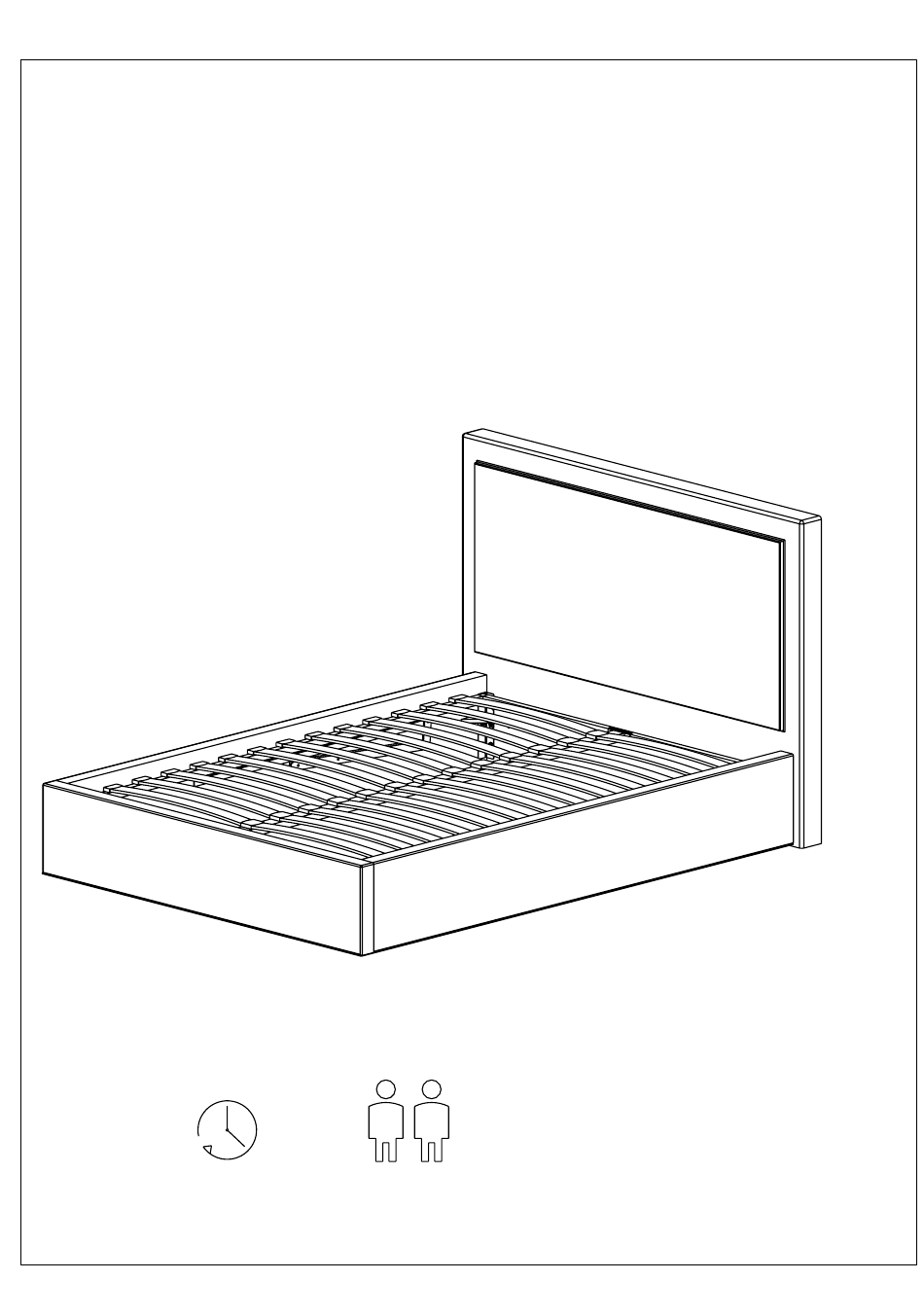

- Page 1 DUSK Windsor Ottoman Bed Frame Double/King Two person p to 2 hours assembly assembly time V2.0 Page 1...
-
Page 2: Assembly Tip
Important Assembly Tip Before you begin, it's best to identify all of the parts and fittings to build your ottoman bed frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building. Top Tip We recommend that you build your new ottoman bed frame in the room you'd like it to be located. - Page 3 Operating Your Ottoman Bed Frame Safely · Caution, this ottoman bed frame uses a pressurised mechanism. · Please ensure children and animals are kept away from the ottoman bed frame when operating the mechanism. · Use caution when operating , and always use two hands at arm's length. ·...
- Page 4 Parts B efore you begin building your ottoman bed frame, please take a moment to read through the instructions and make sure that you have all the relevant parts listed on the parts check list. Page 4...
-
Page 5: Parts Checklist
Parts Check List Parts List Parts List Plastic Corner Bracket 4pcs Headboard 4pcs Footboard Angle Corner Bracket Slde Rall with Lift Mechanism - Holding Block Slde Rall with Lift Mechanism - Strap 4pcs 26/30pcs Adjustable leg Slat Front/Rear Ottoman Metal 2pcs Side Slat Cap Double/king 26/30pcs... - Page 6 Step 1: Attaching the Bolts to the Headboard & Footboard 12pcs 12pcs 12pcs 12pcs A F G A F G A F G WRONG CORRECT NB: Before tightening the bolts, please ensure the bed frame is square Step 2: Attaching the Left & Right Side Rails to the Headboard & Footboard NB: The Angle Iron Brackets &...
- Page 7 Step 3: Attaching the Side Rails to the Headboard & Footboard using the Angle Corner Brackets 2pcs 8pcs Attaching the Holding Block to the Centre of the Footboard Step 4: Securing the Left & Right Side Rails to the Lifting Mechanism 2pcs Leave the ottoman bed frame in an elevated position.
- Page 8 Step 5: Attaching the Fabric Base & Legs Attach the Legs (5) to the base and tighten. Step 6: Attaching the Rear Ottoman Metal Frame to the Side Rails 2pcs Attach the Rear Ottoman Metal Frame (6) to the Left and Right Hand Side Rails with the Plastic Corner Brackets (9).
- Page 9 Step 7: ttaching the Horizontal Support Rails to the Left & Right Side Rails 6pcs Step 8: Attaching the Central Support Rail to the Rear Ottoman Metal Frame 2pcs Page 9...
- Page 10 Attaching the Central Support Rail & Side Rails to the Front Ottoman Step 9: Metal Frame 2pcs 2pcs Attach the Front Ottoman Metal Frame (6) to the left and right hand Side Rails with Plastic Corner Brackets (9). Page 10...
-
Page 11: Care And Maintenance
Step 10: Attaching the Slats & Strap to the Ottoman Metal Frame Side Slat Caps Double/King 26/30 pcs Centre Slat Caps Double/King 13/15 pcs Push down firmly on the Slat Caps into the pre-drilled holes on the Ottoman Metal Frame. It is recommended to push the Centre Slat Caps into position before pushing down on the Side Slat Caps. - Page 12 Gas strut/piston best use: · Use caution when operating - always use two hands. · Only attempt to close the ottoman frame, once the mattress has been placed on the frame. · The thicker side of the cylinder should be above the thinner side- this will increase longevity of the part.
- Page 13 Windsor Ottoman Frame Super...
- Page 14 efore you begin, it's best to identify all of the parts and fittings to build your ottoman bed frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building. We recommend that you build your new ottoman bed frame in the room you'd like it to be located.
- Page 15 Operating Your Ottoman Bed Frame Safely Caution, this ottoman bed frame uses a pressurised mechanism. Please ensure children and animals are kept away from the ottoman bed frame when operating the mechanism. Use caution when operating , and always use two hands at arm's length. You must always ensure the mattress is on the ottoman bed frame before lifting the mechanis m.
- Page 16 ottoman e frame, please take a moment to have all parts check list.
- Page 17 Parts Check List Parts List Parts List Plastic Corner Bracket 4pcs Headboard 4pcs Footboard Angle Corner Bracket Slde Rall with Lift Mechanism - Holding Block Slde Rall with Lift Mechanism - Strap 4pcs 45pcs Adjustable leg Slat Front/Rear Ottoman Metal 2pcs Side Slat Cap Double/king 30pcs...
- Page 18 Attaching the Bolts to the Headboard & Footboard 12pcs 12pcs NB: Before tightening the bolts, please ensure the bed frame is square Attaching the Left & Right Side Rails to the Headboard & Footboard NB: The Angle Iron Brackets & Lift Mechanisms are pre-attached. WRONG CORRECT NB ：...
- Page 20 Step 5: Step 6:...
- Page 21 Step ttaching the Horizontal Support Rails to the Left & Right Side Rails 6pcs Step 8: Attaching the Centre Support Rail to the Rear Ottoman Metal Frame Page 9...
- Page 22 Attaching the Central Support Rail & Side Rails to the Front Ottoman Step 9: Metal Frame Attach the Front Ottoman Metal Frame (6) to the left and right hand Side Rails with Plastic Corner Brackets (9). Page 10...
- Page 23 Step 10: S ts & Strap Ottoman Metal F Side Slat Caps Super King 30pcs Centre Slat Caps Super King 30pcs Push down firmly on the Slat Caps into the pre-drilled holes on the Ottoman Metal Frame. It is recommended to push the Centre Slat Caps into position before pushing down on the Side Slat Caps.
- Page 24 Gas strut/piston best use: · Use caution when operating - always use two hands. · Only attempt to close the ottoman frame, once the mattress has been placed on the frame. · The thicker side of the cylinder should be above the thinner side- this will increase longevity of the part.
