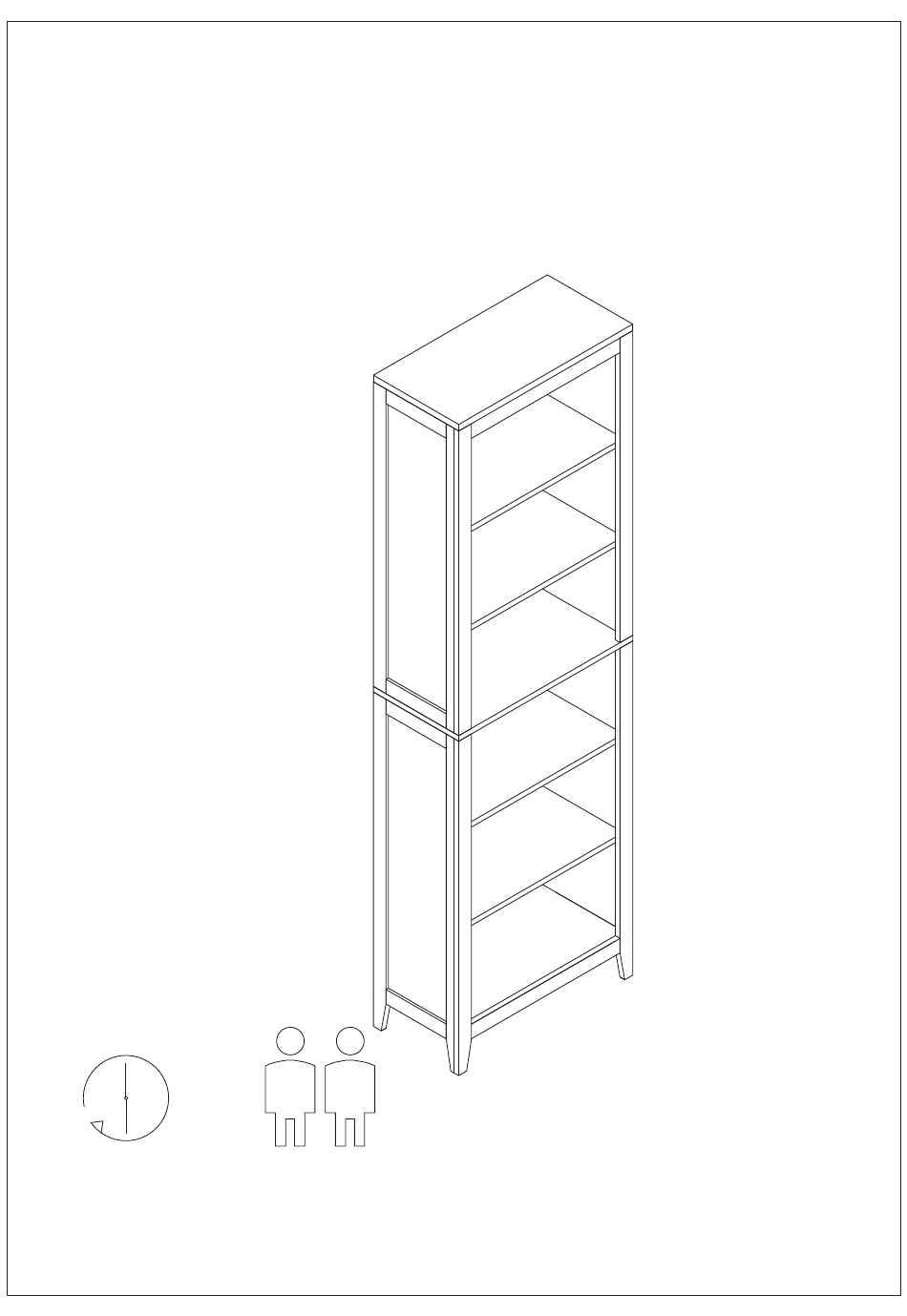

Range Name : NELL
Box1 dimensions : W106xD37.5xH25cm
DUSK.COM
Product dimensions : W58xD28.5xH178cm
LIVING I BEDROOM I DINING
Nell Tall Bookshelf
Up to 30 minutes
Two person
assembly time
assembly
This product is intended for domestic use only,not for commercial purposes.
P-1-14
V-2.0
Advertisement
Related Manuals for DUSK Nell Tall Bookshelf
Summary of Contents for DUSK Nell Tall Bookshelf
- Page 1 Range Name : NELL Box1 dimensions : W106xD37.5xH25cm DUSK.COM Product dimensions : W58xD28.5xH178cm LIVING I BEDROOM I DINING Nell Tall Bookshelf Up to 30 minutes Two person assembly time assembly This product is intended for domestic use only,not for commercial purposes.
- Page 2 IMPORTANT ASSEMBLY TIP Before you begin, it's best to identify all of the parts and fittings to build your Tall Bookshelf frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building. TOP TIP We recommend that you assemble the Tall Bookshelf in the room you'd like it to be located.
- Page 3 Parts list P-3-14...
- Page 4 Parts list Before you begin building your Nell Tall Bookshelf,please take a moment to read through the instructions and make surethat you have all the relevant parts listed on the parts check list. Part Number Quantity Part Number Part Description...
- Page 5 1.Attach parts to the panels. M6*35mm Bolt P-5-14 50pcs...
- Page 6 2.Attach strips to the panels. Ø6x30mm Dowel Ø15x9.5mm Cam Lock P-6-14 12pcs 16pcs...
- Page 7 3.Attach panels to the side panel. Ø6x30mm Dowel 10pcs Ø15x9.5mm Cam Lock 8pcs 4.Attach back panel to the panel. P-7-14...
- Page 8 5.Attach left down side panel to the frame. Ø6x30mm Dowel 10pcs Ø15x9.5mm Cam Lock 8pcs Foot Gasket 4pcs 6.Attach back panel to the frame. P-8-14...
- Page 9 7.Attach panels to the side panel. Ø6x30mm Dowel 6pcs Ø15x9.5mm Cam Lock 4pcs 8.Assemble back panel. P-9-14...
- Page 10 9.Attach left up side panel to the frame. Ø6x30mm Dowel 6pcs Ø15x9.5mm Cam Lock 4pcs 10.Assemble back panel. P-10-14...
- Page 11 11.Attach the top to the frame. Ø6x30mm Dowel 6pcs Ø15x9.5mm Cam Lock 4pcs 12.Attach the middle panel to the frame. Ø6x30mm Dowel 6pcs M4*40mm Screw P-11-14 6pcs...
- Page 12 13.Attach the upper and lower frames. Ø6x30mm Dowel 8pcs Ø15x9.5mm Cam Lock 6pcs Hole Gasket 50pcs P-12-14...
- Page 13 14.Assemble the plastic buckles and anti-fall rope. 4x14mm Anti-fall rope Gasket Plastic buckle M4*14mm Screw M3*16mm Screw 14sets 1set P-13-14...
- Page 14 WARNING: Please make the choice of screws according to your own wall for wall locking.In order to prevent overturning this product must be used with the wall attachment device provided. SCIANA P-14-14...
