DUSK Hattie TV Unit Manual
Product dimension: w150xd39xh56cm
Hide thumbs
Also See for Hattie TV Unit:
- Assembly instructions (5 pages) ,
- Manual (12 pages) ,
- Manual (5 pages)
Advertisement
Quick Links
DUSK.COM
LIVING I BEDROOM I DINING
Up to 60 minutes
assembly time
This product is intended for domestic use only,not for commercial purposes.
Hattie TV Unit
Two person
assembly
Range Name : Hattie
Box1 dimensions : W160xD47xH19cm
Product Dimension:W150xD39xH56cm
P-1-16
V-2.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DUSK Hattie TV Unit
Summary of Contents for DUSK Hattie TV Unit

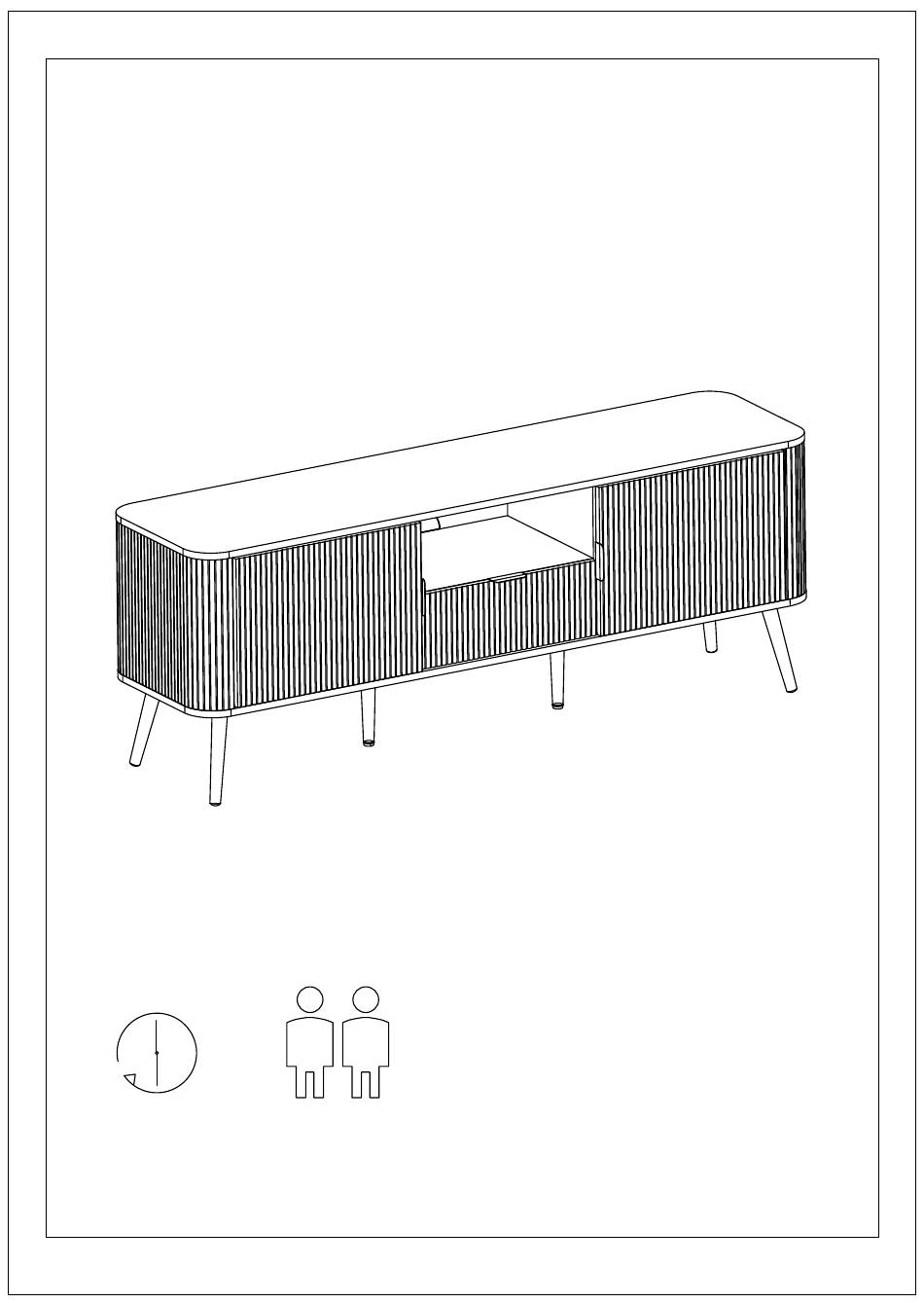

- Page 1 DUSK.COM Range Name : Hattie Box1 dimensions : W160xD47xH19cm LIVING I BEDROOM I DINING Product Dimension:W150xD39xH56cm Hattie TV Unit Two person Up to 60 minutes assembly assembly time This product is intended for domestic use only,not for commercial purposes. P-1-16...
- Page 2 IMPORTANT ASSEMBLY TIP Before you begin, it's best to identify all of the parts and fittings to build your Willow Wardrobe frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building. TOP TIP We recommend that you assemble the Willow Wardrobe in the room you'd like it to be located.
- Page 3 Parts list ③ ⑰ ⑭ ⑤ ⑬ ⑫ ⑮ ⑪ ⑭ ⑯ ⑧ ⑨ ⑦ ⑪ ⑩ ⑥ ④ ① ① ② ② ① ① P-3-16 V-2.0...
- Page 4 Parts list Bef ore you begin building your Hattie TV Unit, please take a moment to read through the instructions andmake surethat you have all the relevant parts listed on the parts check list. Part Number Part Description Quantity Box No...
- Page 5 Fittings Please check you have all the f ittings listed below with your product in box 1. M6.3*45mm Bolt M4*35mm Screw Ø15*12mmCam Lock Ø12*9mmCam Lock Ø8*30mm Dowel 4pcs 24pcs+1pc extra 20pcs+1pc extra 4pcs 28pcs+1pc extra M7*38mm Screw M6*15mm Screw M3*12mm Screw M3.5*14mm Screw M3.5*14mm Screw 24pcs+1pc extra...
- Page 6 1. Att 1. Attach p ach parts to the boards. ×8 ③ ×2 ⑯ ×2 ⑰ ×4 ⑫ ×4 ⑬ M6.3*45mm Bolt 20pcs P-6-16 V-2.0...
- Page 7 ach parts to the boards. 2. Att ×2 ⑭ ⑯ ×2 ⑰ ×2 ⑭ ×2 Ø15*12mmCam Lock Ø8*30mm Dowel 4pcs 4pcs ach parts to the boards. 3. Att ×4 ⑮ ⑫ ⑬ ×2 ×2 Ø15*12mmCam Lock Ø8*30mm Dowel 4pcs P-7-16 4pcs V-2.0...
- Page 8 4. Att ach parts to the boards. ×2 ⑮ ⑫ ⑭ ⑬ ⑯ ×2 Ø15*12mmCam Lock Ø8*30mm Dowel 2pcs 2pcs ach parts to the boards. 5. Att ×2 ×2 Ø15*12mmCam Lock Ø8*30mm Dowel 2pcs P-8-16 2pcs V-2.0...
- Page 9 ach parts to the boards. 6. Att ×4 ⑰ ⑬ ×4 ⑫ ×4 ×4 ⑭ ⑮ ⑭ ⑯ ③ ×8 Ø15*12mmCam Lock Cover Ø8*30mm Dowel 8pcs 8pcs P-9-16 8pcs V-2.0...
- Page 10 ach b a ck to t he frame. 7. Att ⑤ P-10 -16 V-2.0...
- Page 11 8. Attach parts to the boards. ×8 ④ ×8 ⑬ ⑫ ⑰ ⑯ ⑤ ×4 M7*38mm Screw 4mm Allen Key Ø8*30mm Dowel M3.5*14mm Screw 8pcs 8pcs 4pcs P-11-16 V-2.0...
- Page 12 Assemble the leg to the frame. ×2 ×24 ① ① ② ② ① ① ④ ⑰ ⑯ ⑤ M6*15mm Screw 4mm Allen Key Adjustable Feet 24pcs 2pcs Assemble the drawer. 10 . ⑦ ×4 ⑨ ⑩ ×4 ⑥ ⑥ M6.3*45mm Bolt Ø12*9mmCam Lock P- 12 -16 4pcs...
- Page 13 11 . Attach parts to the boards. ⑧ ×1 ×4 ⑨ ⑩ ⑥ ×4 ⑦ ⑩ ⑦ ⑧ ⑨ ⑥ ×2 M4*35mm Screw Cover Handle M3*12mm Screw 4pcs 2pcs 4pcs Attach parts to the boards. 12 . ×2 ×4 ×4 ×2 ×2 ⑪...
- Page 14 13 . Assemble doors to the frame. ×16 ⑪ M3.5*14mm Screw 16pcs P - 14 -16 V-2.0...
- Page 15 14 . Assemble drawer to the TV Unit. ⑥ 15 . ⑥ P - 15 -16 V-2.0...
- Page 16 P- 1 6 -1 6 V-2.0...
